4x8ft Woodworking Machine Cnc Router With Clamping Roller 3D Cnc Engraving Machine for Embossment
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Cnc Plasma Cutting Machine Welding Machine Stainless Steel Plasma Cutter 10mm Carbon Steel Cutting Machine
-
1212 1224 1325 Wood Cnc Router Machine 1325 Cnc Carving Wood Router Machine
-
Cupboard Drawer Making Cnc Router Machine 4x8ft Size Wood Cutting Engraving Machine
-
Cnc Router Wood Carving Machine Cnc Router for Aluminum Composite Panels 1530
-
Wood Door Making Cnc Machine 1325 KT-board Cnc Machine With CCD Aluminum Cnc Router
-
Metal Plate Cnc Plasma Cutting Machine Stainless Plasma Cutting Machine 120A Plasma Cutter
Product Description
Product Description
4x8ft woodworking machine cnc router with clamping roller 3D cnc engraving machine for embossment
Parameter List of Roller CNC Router Machine | ||||||||
Model | SESAME Roller CNC Router UT-1325 | |||||||
Working area | 1300*2500mm, optional 1500*3000mm, 2000*3000mm, 2000*4000mm | |||||||
Transmission device | XY axis by 1.25m helical gear rack transmission, Z axis by Taiwan PMI linear rail guide | |||||||
Table structure | T-slot table+PVC, optional vacuum table, double table together | |||||||
Travel speed | 0-30000mm/min | |||||||
Spindle power | 3.2kw/4.5kw/5.5kw/6kw/7.5kw(air/water cooled is optional) | |||||||
Spindle speed | 0-24000rpm/min | |||||||
Diameter of cutter | φ3.175-φ12.7mm | |||||||
Drive Motors | Standard with stepper motor&driver, hybrid servo/AC servo is optional | |||||||
Command code | hPGL G-code | |||||||
Control system | Nc-studio/DSP controller/Mach3 controller etc | |||||||
Resolution | 0.01mm | |||||||
Running Environment Temperature | 0 - 45 Centigrade | |||||||
Working voltage | AC220V/50/60Hz, 3PH (Option: 110V, 380V)Working voltage | |||||||
Application Industry
Working Industry of UTECH CNC Router Machine
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
Detailed Images
Standard configuration:
(1) Working area: 1300*2500*200mm
(2) 3.2kw water cooling/3.5kw air cooling spindle
(3) Nc-studio controller
(4) JMC driver 860H+ Patent type reducer structure 1:4+stepper motor 450B
(5) Best inverter
(6) XY axis by 1.25 module helical rack gear transmission, Z axis by Taiwan TBI ball screw
(7) Taiwan PMI linear guide+Flange slider
(8) T-slot table
(9) Brand electrical components
(10) Roller
(11) The z-axis transmission machine head parts are made of aviation aluminum T6061/6063 material precision machining center, with high precision.
(12) Square pipe welding bed structure 200*300mm+150*200mm gantry
(13) Japan Omron limited switch
(14) Tool Sensor, Filter, Cast steel moter Box
(15) Sweden SKF bearing holder
(16) Independent control box
(17) Standard tool box
(18) Forklift loading and unloading, better protecting the weight of the fuselage and cargo.
(19) Lathe bed body and bed holder free separation, disassembly and delivery for saving shipping costs.
(1) Working area: 1300*2500*200mm
(2) 3.2kw water cooling/3.5kw air cooling spindle
(3) Nc-studio controller
(4) JMC driver 860H+ Patent type reducer structure 1:4+stepper motor 450B
(5) Best inverter
(6) XY axis by 1.25 module helical rack gear transmission, Z axis by Taiwan TBI ball screw
(7) Taiwan PMI linear guide+Flange slider
(8) T-slot table
(9) Brand electrical components
(10) Roller
(11) The z-axis transmission machine head parts are made of aviation aluminum T6061/6063 material precision machining center, with high precision.
(12) Square pipe welding bed structure 200*300mm+150*200mm gantry
(13) Japan Omron limited switch
(14) Tool Sensor, Filter, Cast steel moter Box
(15) Sweden SKF bearing holder
(16) Independent control box
(17) Standard tool box
(18) Forklift loading and unloading, better protecting the weight of the fuselage and cargo.
(19) Lathe bed body and bed holder free separation, disassembly and delivery for saving shipping costs.
Optional parts:
(1) 1500*3000mm, 2000*3000mm, 2000*4000mm working size, all could be customized.
(2) 4.5kw/6kw/9kw air cooled spindle, 5.5kw/7.5kw water cooled spindle (if you're not sure how to choose, you can tell us which kind of material you mainly cut/engrave and thickness, then we'll give you proper suggestions)
(3) Hybrid servo or AC servo motor&driver
(4) Vacuum table or double table together
(5) Automatic lubricator
(6) Dust collector
(7) Auto tool changer
Roller
The roller is distributed on both sides of the center tool of the spindle, which can effectively prevent the material from shaking on the table when processing small materials or materials that are not easily adsorbed or clamped.
Double heads and spindle.
The accuracy of cnc router machine greatly depends on the spindle. The High-quality SESAME series CNC Router machine comes with 3.2kw water or 3.5 air cooled high-frequency spindle. This precision spindle requires no maintenance, uses industry standard ER collects. Fully programmable speeds from 6000 to 24000RPM, and comes complete with pneumatically retractable vacuum hood.
Machine Base Frame.
The base frame is fabricated from heavy-duty tubular steel that is welded, precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine.
Anodized Aluminum Spindle Fixing plate.
The spindle is fixed on the high quality aviation aluminum T6061/6063 plate, and it is Anodized Aluminum processing, the plate is machined by high precision CNC machining center.
UTECH patent type reducer 1:4*3+JMC stepper motor&driver*4
SESMAE series cnc router is equipped with reducer, we add our patent type reducer 1:4 on driving motor, makes the motor is more powerful, and having a longer time service life.
If you use servo motor&driver, then would install Japan SHIMPO reducer 1:5 or 1:10 on machine.
The stepper motors are installed on all axis to ensure precise positioning of the gantry and the spindle in accordance with a predetermined program at high speed.
TBI High-Precision Ball-screw Transmission (Taiwan)+Disc coupling
1) Higher efficiency than traditional ball screws.
2) Gothic groove shape, the shaft direction clearance can be adjusted to a minimum and can be easily transferred.
3) The internal circulation method is applicable to many different scenes, and the circulation method is selected according to its own needs.
4) Use rigorous materials, high heat treatment and processing technology to supply durable products.
Control box.
Independent control box could be moveable freely, usually could put it under front of table, then you can operate it easily and save time when some problem occured.
Hiwin/PMI square rail&High quality helical rack pinion
SESAME choose heavy duty linear guide rail with high assembly Flange sliding block and PMI linear guide. The Y-axis adopts double-row four-column guide rail, with strong bearing force, fast speed, smooth operation, high precision and high life span.
Rack of SESAME ATC type adopts high-precision 1.25M helical rack, which is complementary with the professional motor and professional deceleration device, which runs smoothly, high speed, high precision and low noise.
Three Common Machine Working Table's Introduction and Distinction

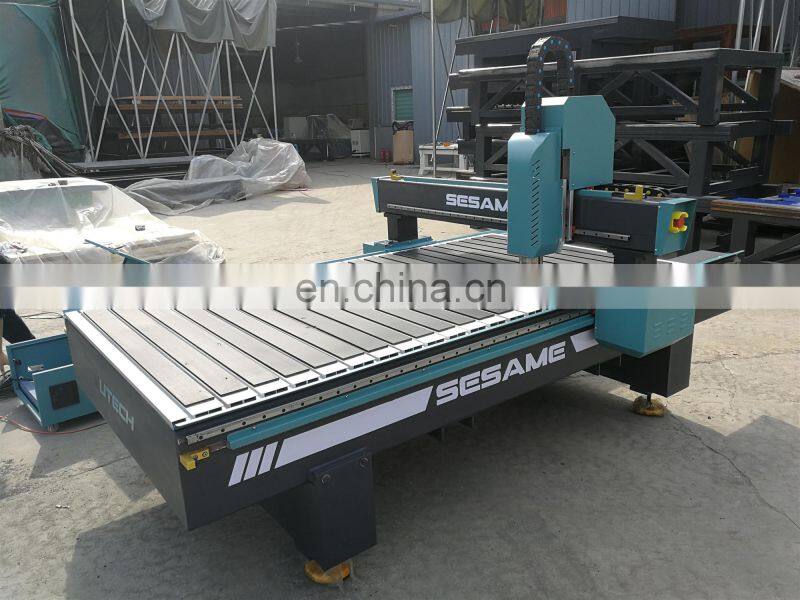

T-slot table
It is composed of aluminum profiles, and the workpiece to be engraved is fixed on the table using some clamp device, so that it can be arbitrarily fixed according to the size and thickness of the workpiece. Such a countertop saves costs, but it takes time to fix, it costs more people, and the production efficiency is low. For materials that cannot be adsorbed, such as copper and aluminum, you must choose an aluminum profile table.
Vacuum table
No need human fix the material. Absorb the material automatically. More efficent than T-slot table.
The texture of our vacuum table is double hard pvc, which is high-temp and cauterization endurable. Vacuum table with 6 or more zones is most popular. Of course,the zones can be designed according to customers’needing. Valve in the machine will control the working of the zones. Open the valve, the relevant zones will work accordingly.
Vaccum table need to combine with vacuum pump. Wihout it, vacuum table can not work.
Among the disadvantages are the inconvenience of the clamp device when processing small materials, and the second disadvantage is the waste of energy, which refers to electricity costs. Then the third kind of table is occured.
T-slot table+Roller
Working principle: The roller shaft is distributed on both sides of the center tool of the spindle, which can effectively prevent the material from shaking on the table when processing small materials or materials that are not easily adsorbed or clamped.
Related Products
Packing&Shipping

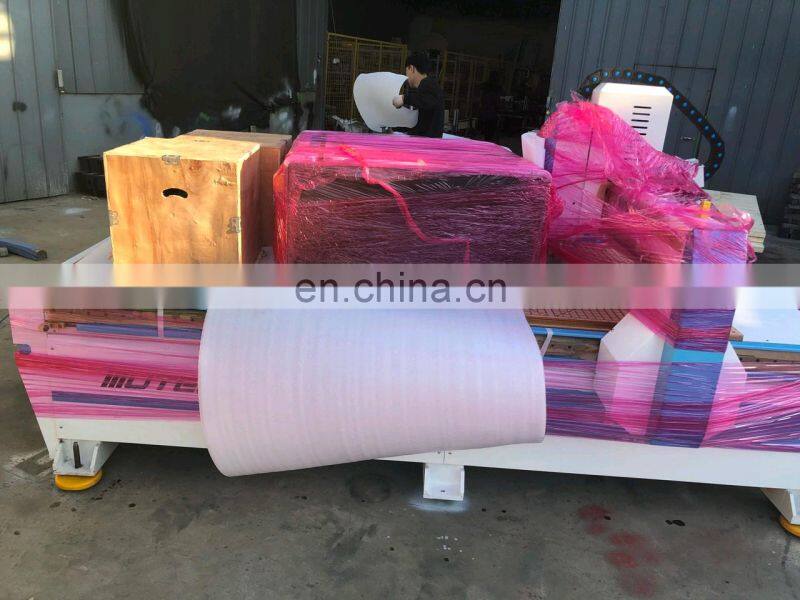

Packing:
1/ If machine delivery via LCL, then would packed with wrapping film, EPE foam, and standard export plywood box.
2/ If machine delivery via FCL, then dont need wood box, would packed with warpping film and EPE foam.
Shipping:
We support machine delivery via express, air transportation, land transportation and sea transportation.
1/ Such as some small machine, Mini CNC Router or Small CO2 Laser Machine and Fiber Laser Marking Machine, usually delivery via express and air transportation.
2/ If you wanna us help you delivery to domestic warehouse or Russia, Kazakhstan etc, usually delivery via land transportation.
3/ Large machine or some countries where shipping is more convenient, usually suggest choose sea transportation.
You can choose any way you'd prefer, we also will give you some proper suggestions.
Company Introduction
FAQ
Q1. How do you get the best price?
As you may know, the different type of CNC machine apply to the different material, and the different model apply to the different material.
Please tell me what's material you want to cutting or engraving?
And what's MAX size and thickness of carved material?
Then I will recommand the most suitable model and the best price for you.
Q2: How long is the delivery time?
For standard machines, it would be 15-20 days, if small machine, such as our mini cnc 3020, 3040, 4060, within one week; For non-standard machines and customized machines according to clients specific requirements, it would be 20 to 30 days.
Q3: In case of failure, how to do?
Call us----our enginners are online for 24-hours,and ready to serve you.
Replacement of damaged parts for free---For more information,please contact us
The CD and operation manual----It show the most common failure in working processing and how to solve this problems.
Q4: How is the packing?
1) For CNC engraving machine: Machine would packed with wrapping film, EPE foam, and standard export plywood box.
2) For fiber laser cutting machine: Machine body covered with plastic film, laser source, control cabinet packed with plywood case and put on the machine body, chiller packed with plywood alone, usually fiber laser cutting machine packed with a whole 20GP container.
Welcome to contact Sofia, I'm waiting for you.
IF YOU ARE INTERESTED IN THIS MACHINE, PLS CONTACT WITH US IN ANY TIME, THANK YOU!
