3d Door Cabinet Making Machine Guitar Cnc Router Machine for Wood/MDF Engraving Cutting Carving

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

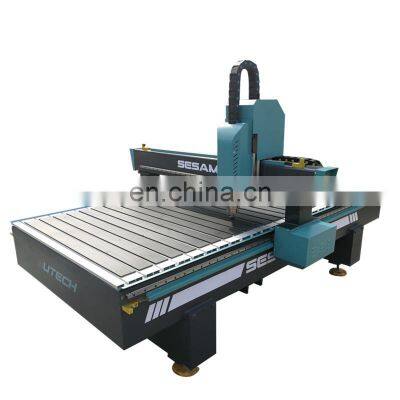

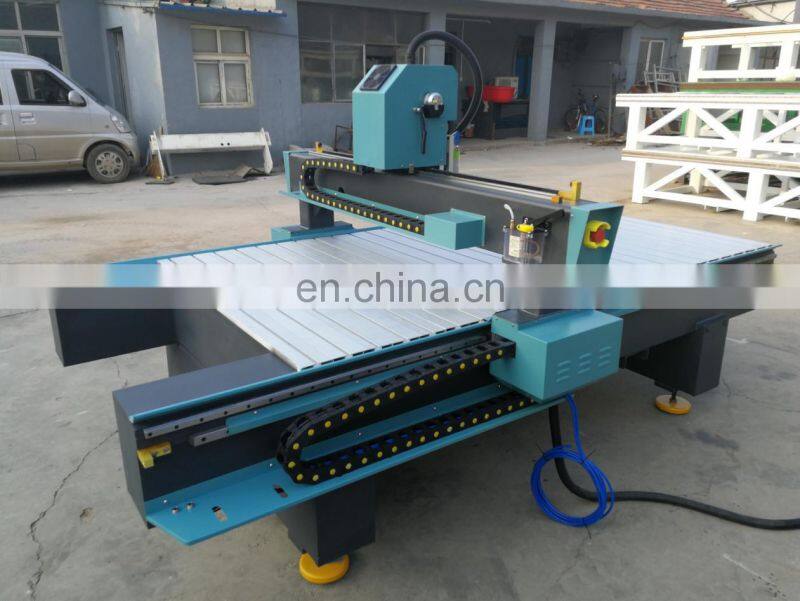

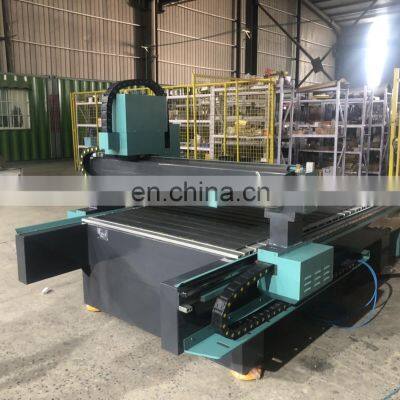

3d door cabinet making machine guitar cnc router machine for wood/MDF engraving cutting carving

UTECH have two hot sale type cnc router, one is SOFIA Series, the other is SESAME Series. The following type is SESAME-S1 type, standard type with 3.2kw spindle, stepper motor&driver+UTECH patent type reducer, could improve the process speed. CCD, Oscillating knife, Auto tool changer, 4th rotary is optional.

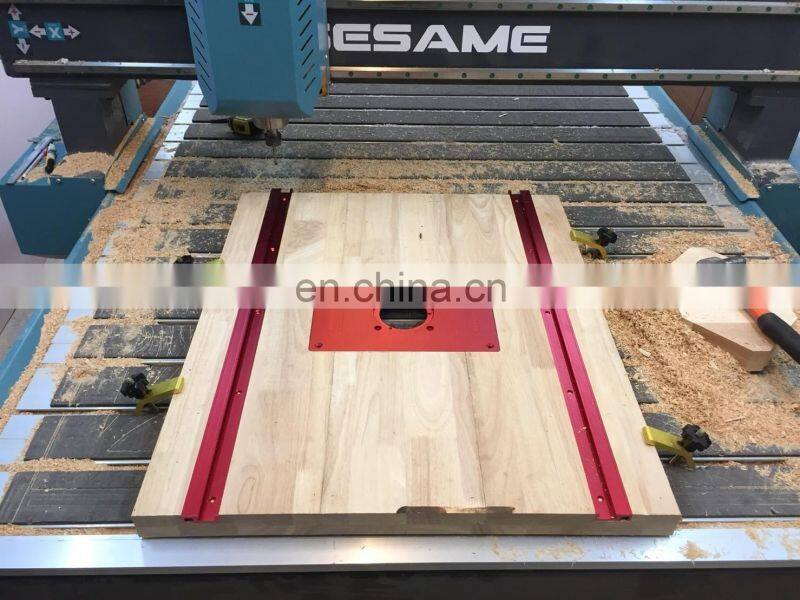

Suitable for advertising and woodworking industry, acrylic, wood, plastic, foam, MDF, plywood, aluminum etc. If you dont know how to choose, weclome to ask us, we'll provide proper solution with you.

Specification

Standard Specifications:

1/ 1300*2500*180mm working size

2/ 3.2kw water cooled spindle

3/ Four sets stepper motor&driver, three sets reducer 1:4

4/ XY axis by gear rack transmission, Z axis by Taiwan TBI ball screw

5/ Whole machine by 20 Taiwan HIWIN rail guide

6/ T-slot table

7/ Nc-studuio controller

etc.

Optional:

1/ DSP/Mach3 controller

2/ 4.5kw, 5.5kw, 6kw spindle (according to your work)

3/ Vacuum table+Vacuum pump

4/ Dust collector

5/ Servo motor&driver, SHIMPO reducer

6/ Automatic oil lubrication system

7/ Working size 1212, 1530, 2030, 2040 etc.

Details Images

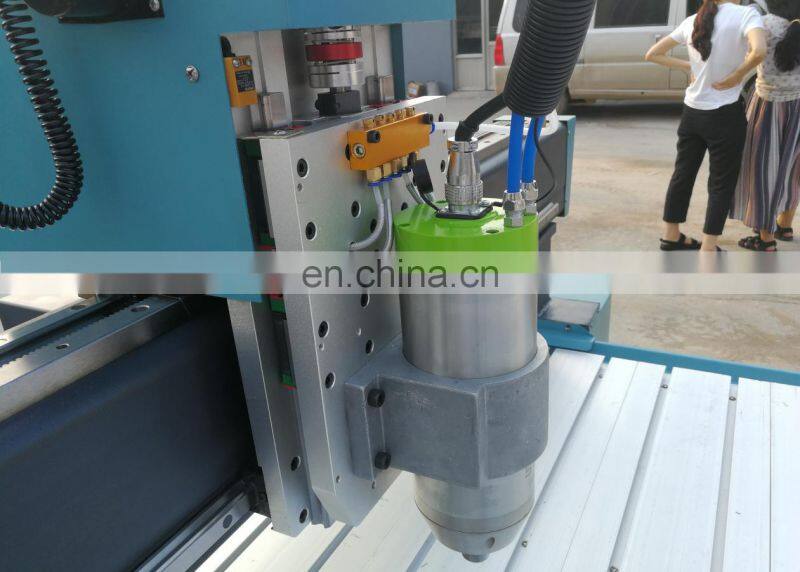

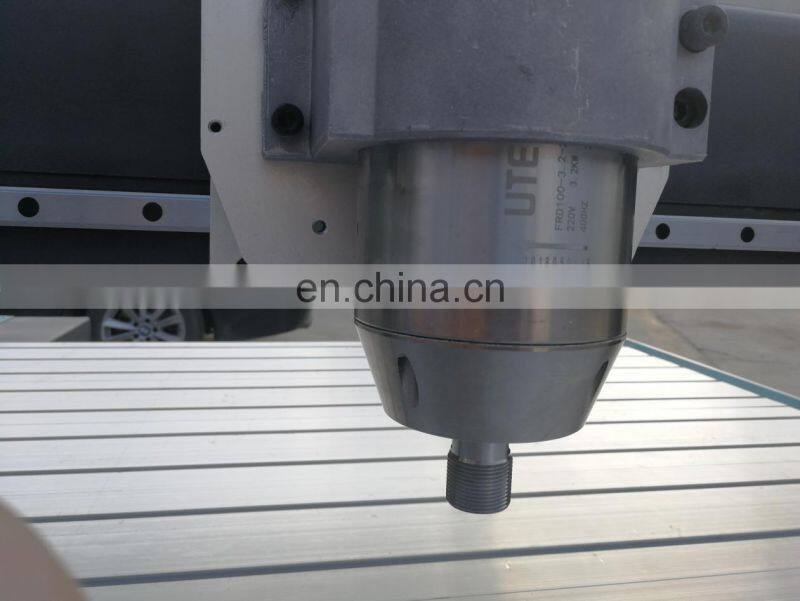

High Frequency Powerful spindle

The High quality SESAME series CNC Router machine comes with 3.2kw water or 3.5 air cooled high frequency spindle. This precision spindle requires no maintenance, uses industry standard ER collects. Fully programmable speeds from 6000 to 24000RPM, and comes complete with pneumatically retractable vacuum hood.

Machine Base Frame

The base frame is fabricated from heavy-duty tubular steel that is welded, precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine.

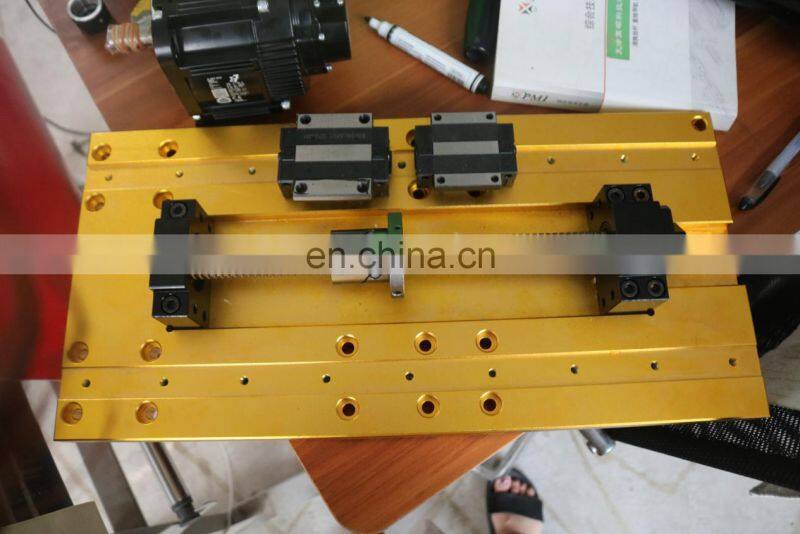

Anodized Aluminum Spindle Fixing plate

The spindle is fixed on the high quality aviation aluminum T6061/6063 plate, and it is Anodized Aluminum processing, the plate is machined by high precision CNC machining center.

Dust cover for the guide rail and the helical rack gear

The machine is designed with the dust cover for the guide rail and the helical rack and gear, to reduce friction, make the rail and the rack have longer service life.

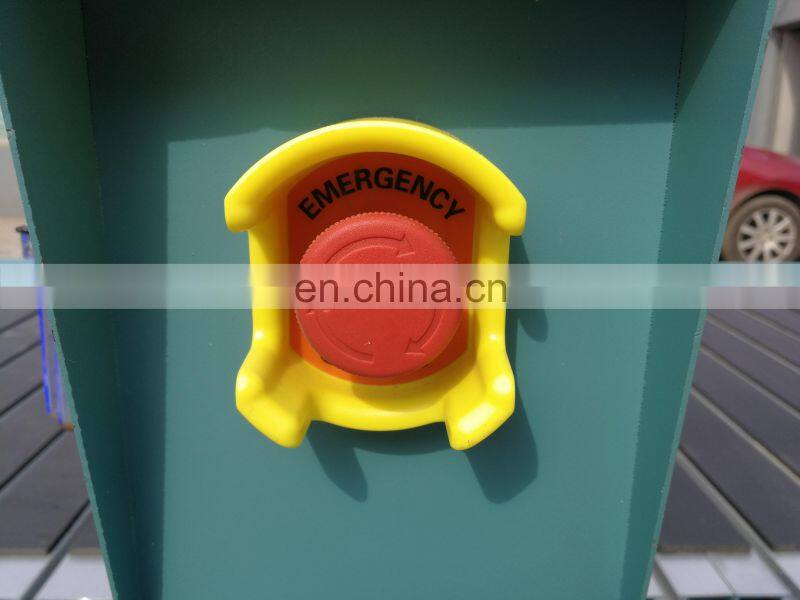

Double Insurance Emergency Stop Button

There is double insurance emergency stop switch. In case of any emergency, the worker can press any emergency stop button and the machine will stop working.

TBI High-Precision Ball-screw Transmission (Taiwan)

1) Higher efficiency than traditional ball screws. 2) Gothic groove shape, the shaft direction clearance can be adjusted to a minimum and can be easily transferred. 3) The internal circulation method is applicable to many different scenes, and the circulation method is selected according to its own needs. 4) Use rigorous materials, high heat treatment and processing technology to supply durable products.

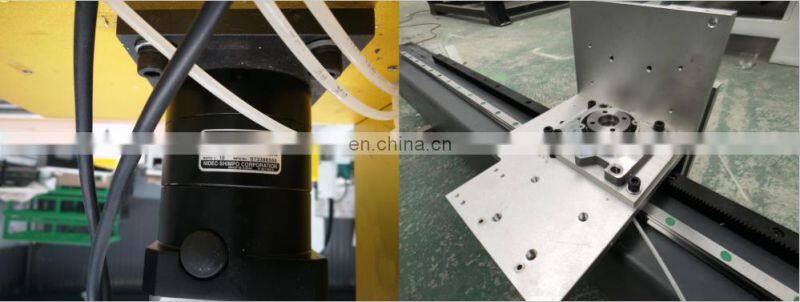

Patent design 1:4 gear reducer + Stepper 450B driving motor

Patent design 1:4 gear reducer install on the driving motor, makes the motor is more powerful, and having a longer time service life. The stepper motors are installed on all axes to ensure precise positioning of the gantry and the spindle in accordance with a predetermined program at high speed. Stepper motors are well proven high degree of reliability. The machine is installed 4 pieces of motors.

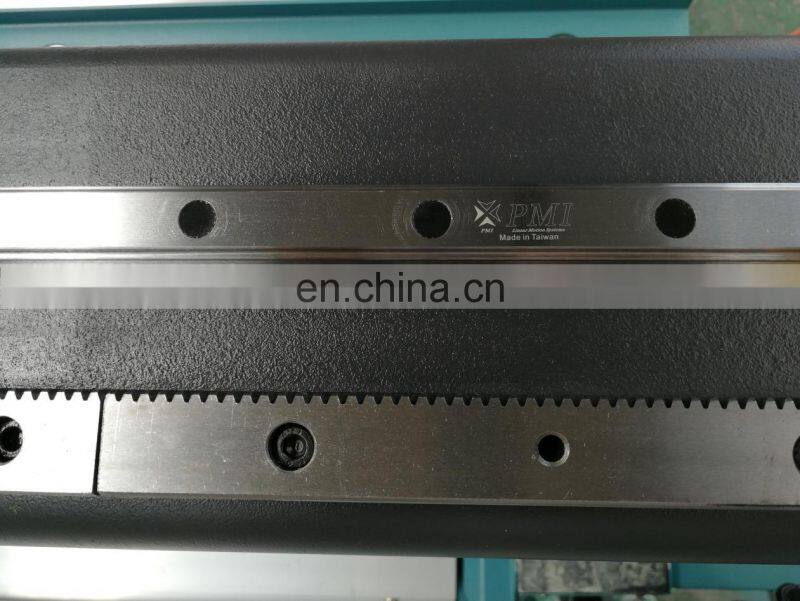

Hiwin/PMI square rail&High quality helical rack pinion

Sesame choose heavy duty linear guide rail with high assembly Flange sliding block and PMI linear guide. The Y-axis adopts double-row four-column guide rail, with strong bearing force, fast speed, smooth operation, high precision and high life span. Rack of Sesame adopts high-precision 1.25 helical rack, which is complementary with the professional motor and professional deceleration device, which runs smoothly, high speed, high precision and low noise.

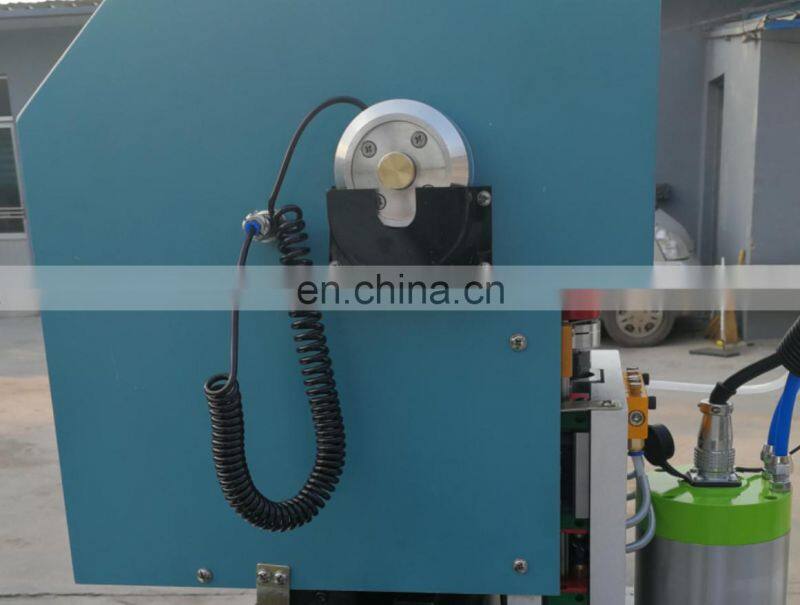

CNC Tool Sensor

This device takes the guesswork out of tool changes and ensures that every tool path that you run is accurate. Consistent Z height across tool changes is critical, especially when running multi-tool jobs like cabinet work, raised panel doors and intricate 3D
carving projects.
CNC Tool Sensor allows for easy and accurate "Z" zero position for single and multiple tool changes through the program.

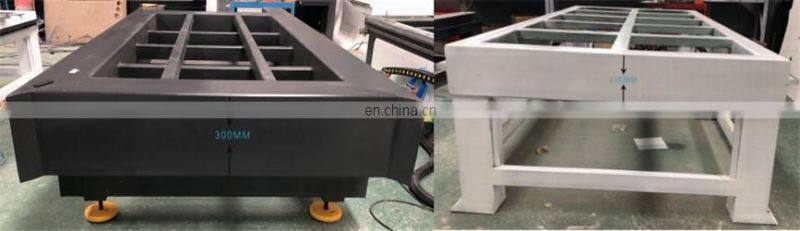

Machine bed

Machine bed with 100 * 300mm square tube welded together, compared to ordinary machines, we use the square tube model can better reflect the stability of the equipment.

Machine gantry use 150*200mm square tube, wall thickness 8mm.

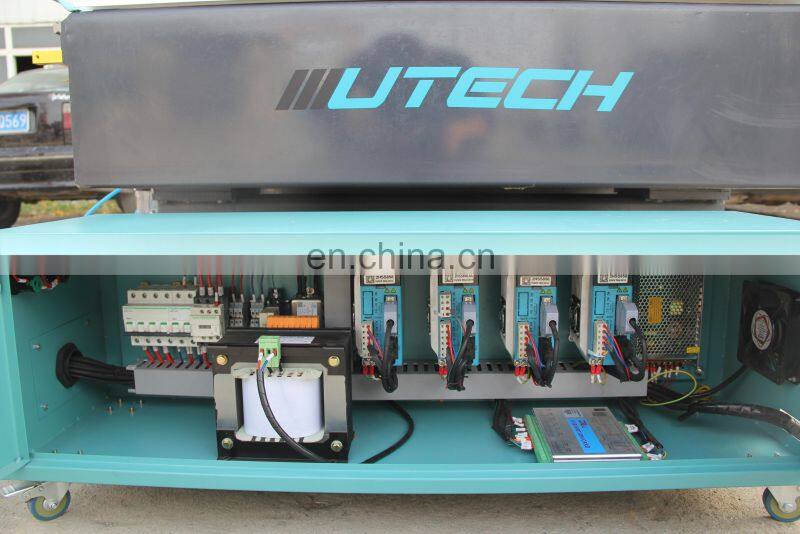

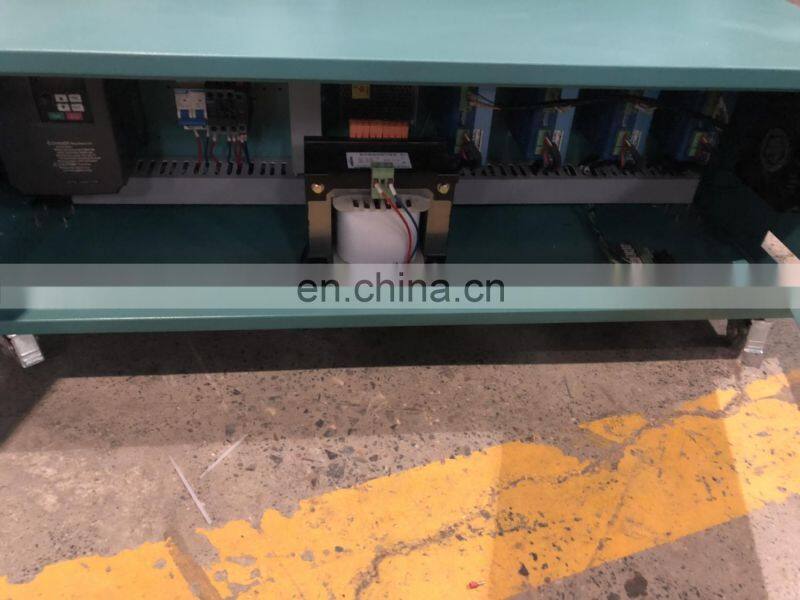

Control box

Control box has universal wheel, could moveable freely, we will reserve at least 2.5 meters of wire for customers to move the control cabinet. It is usually placed under the bed in front of the machine for easy use.

Application Industry

Applicable industries and materials:
* Advertising industry:

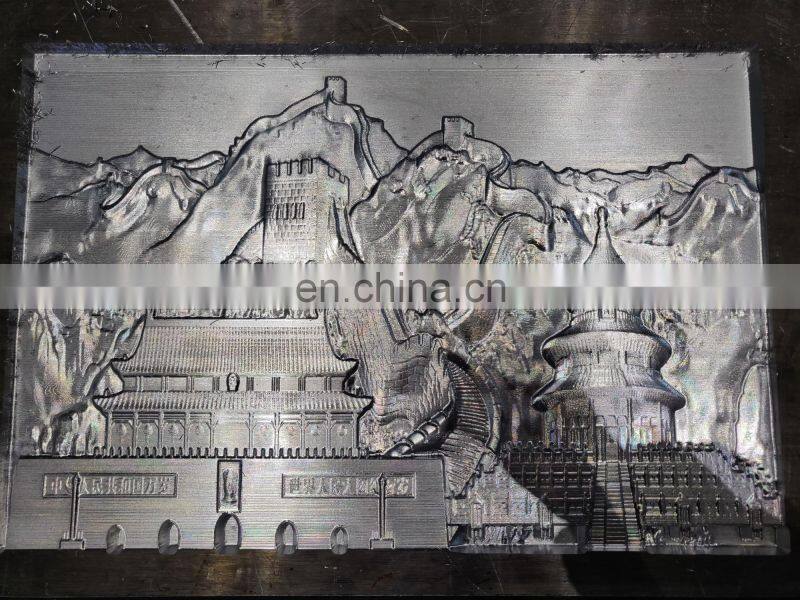

Acrylic cutting, density board cutting, snowflake cutting, double color board carving, various advertising boards.
* Furniture industry:
Cabinet doors, wooden doors, solid wood, mahogany furniture, antique furniture, all kinds of composite sheet cutting carving.
* Plate processing industry:
Insulation board, plastic work piece, PCB board, anti-double board, epoxy resin, ABS, PP, PE and other carbon mixtures.
* Crafts industry:
Artificial marble, PVC, wood, plexiglass, copper aluminum and so on.
* Decoration industry:
The screen, wave plate, wood, artificial marble, organic board, decorative board, double color board and other.

Packing & Delivery

Packing:

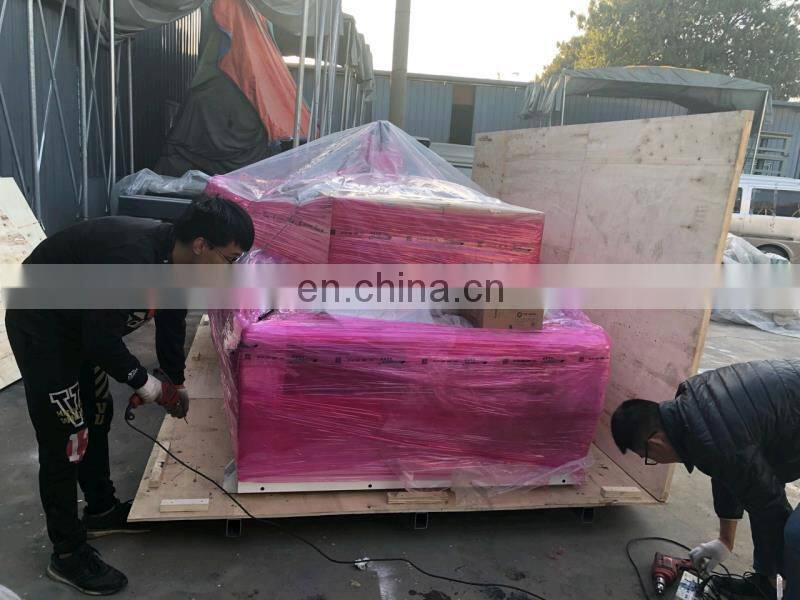

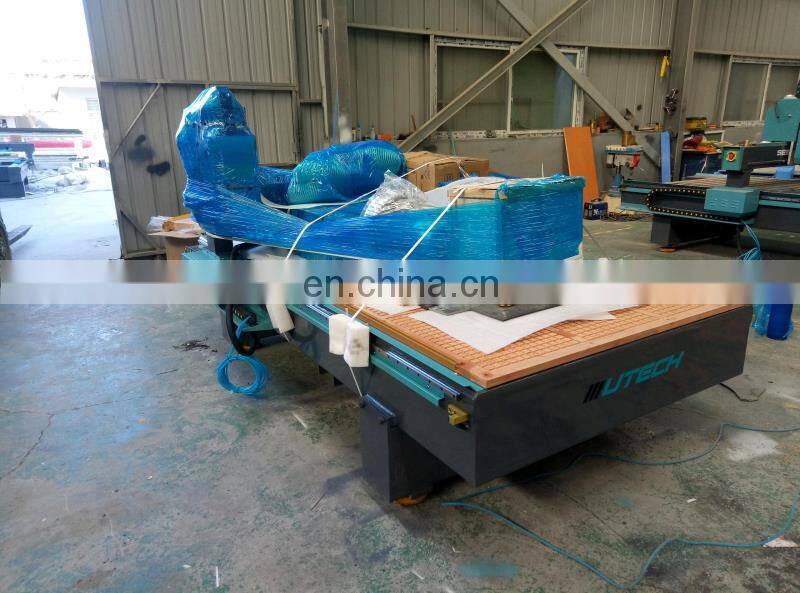

1/ If machine delivery via LCL, then would packed with wrapping film, EPE foam, and standard export plywood box.
2/ If machine delivery via FCL, then dont need wood box, would packed with warpping film and EPE foam.

Shipping:

We support machine delivery via express, air transportation, land transportation and sea transportation.
1/ Such as some small machine, Mini CNC Router or Small CO2 Laser Machine and Fiber Laser Marking Machine, usually delivery via
express and air transportation.
2/ If you wanna us help you delivery to domestic warehouse or Russia, Kazakhstan etc, usually delivery via land transportation.
3/ Large machine or some countries where shipping is more convenient, usually suggest choose sea transportation.
You can choose any way you'd prefer, we also will give you some proper suggestions.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

UTECH are mainly for produced CNC Router, Fiber/CO2 Laser Machine, Plasma Cutting Machine, etc, support OEM, has professional design team and technical penson, tell us what you need, UTECH will provide what you want.

FAQ

1/ How will machine package?

------Working size of 1325 with four spindles, when package, dont need dismantle, will packed with EPE foam and plastic film, external packing use export standard wood box. If delivery via LCL, sometimes shipping agency will put other supplier's goods on wood box, then we'll add square tube on the top of wood box, in case of machine's damge. If machine size more than 1325, such as 1530, 2030 etc, due to container has limited of width, then we'll choose dismantle machine gantry or two side's motor, but dont worry, we'll take video for helping you install it. We often produce machine similar as this type, we'll try our best to help you avoide trouble and easy to install.

2/ What can the machine do?
------This kind of machine with multi-spindles, high efficiency, save time, could process at same time. It's suitable for advertising and woodwoking industry, most of materials, like wood, MDF, acrylic, aluminum, foam, PVC, plastic etc, all could be processed.
Machine's configurations and design could be customized. Optional parts like auto tool changer, oscillating knife, CCD camera, oil mist cooling system, water tank etc, all could be changed according to what you want. Just tell us your requirement.

3/ After machine arrived, if I dont know how to assemble and use, how can I do?
------Except specific machine, usually be installed already, you just need connect some wires, and some extra parts such as water pump, vacuum pump etc(if your machine has). About specific machine, such as 4th axis cnc, when we dismantle at our factory, we'll take video for you, and our design team also will make 360° video, for showing machine how to dismantle and assemble, then you'll know how you can do it. We also provide online and Tel help, usually if our customer meet some problem, we'll bulid a talking group via Whatsapp, Skype or Wechat with our designer, technical person, seller together, could solve problem quickly.

4/ If my parts are broken, how can I do?
------Whole machine has one year warranty. If some parts are broken, you can take a video for us, we'll help you check the
problem, if cannot be solved, we'll send new one for you for replacement. If you buy our machine, about spare machine parts, we also give you an agent price.

Welcome to contact me

If you dont know how to choose proper machine or has other problems, welcome to contact Sofia.
