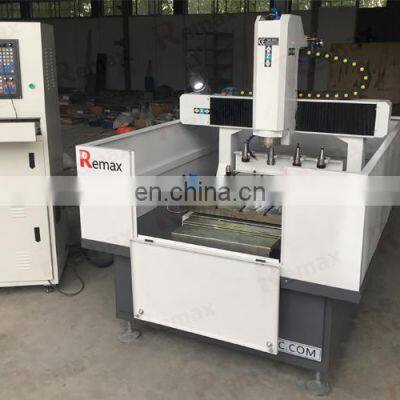

Cnc 3d Router Machine Metal Cnc Router With Atc
- T/T Credit Card
You May Like
-
China Good Quality 6060 Cnc Metal Router Machine Price
-
6060 Metal Milling Machine Cnc Router
-
3030 Cnc Wood Router Table Sheet Metal Cutting Machine
-
Mini 6090 Cnc Router Metal 3D Carving Engraving Machine For Wood Aluminum Metal Stainless Steel
-
China Cnc Router Machine 5 Axis Metal Milling Machine 6060 3d Cnc Router
-
Mini 3030 Metal Mold CNC Router Machine With Full Closed
Product Description

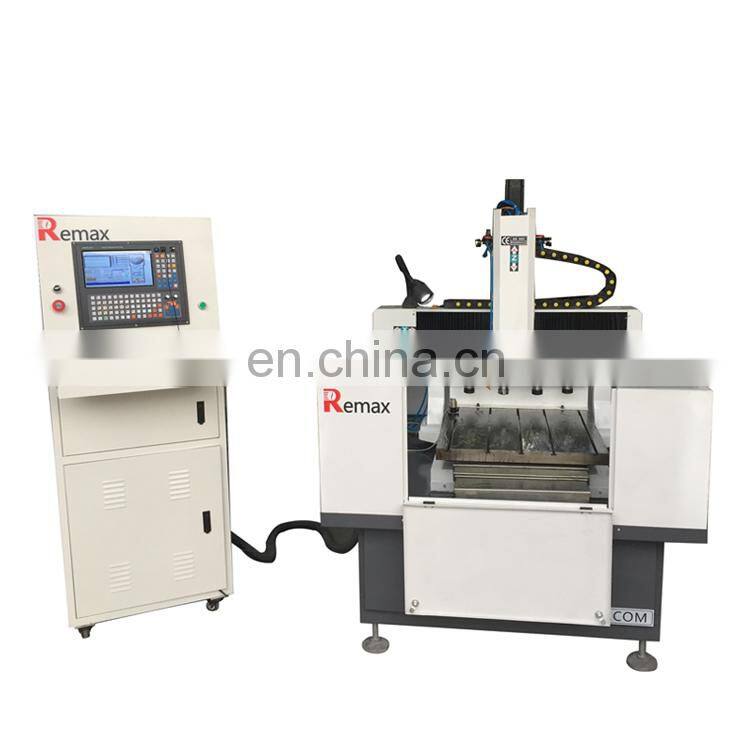

cnc 3d router machine metal cnc router with atc
Application:
cnc sign router is usde for engraving and cutting PCB, acrylic, wood, sign,Aluminum etc.
Technology parameters:
| NO. | Description | Parameter |
| 1 | X,Y,Z Working Area | 600x600x200mm |
|
2 |
X,Y,Z Traveling Positioning Accuracy | ±0.03/200mm |
| 3 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 4 | Table Surface | T-slot Table |
| 5 | Frame | cast by iron |
| 6 | X, Y,Z Structure | Hiwin Rail Linear Guide and Ball Screw |
| 7 | Z Structure | Hiwin Rail Linear Guide and Ball Screw |
| 8 | Max. Power Consumption | (Without Spindle) 1.0Kw |
| 9 | Max. Rapid Travel Rate | 16000mm/min |
| 10 | Max. Working Speed | 10000mm/min |

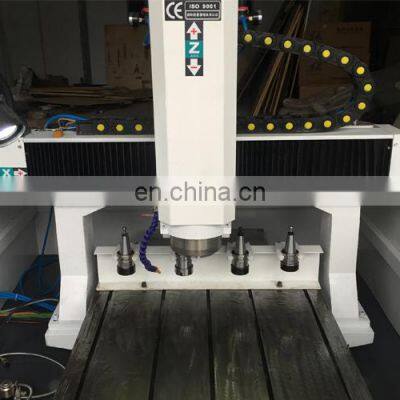

| 11 | Spindle Power | 5.5KW water cooling auto tool change spindle |
| 12 | Spindle Speed | 0-24000RPM |
| 13 | Drive Motors | delta servo Motor |
| 14 | Working Voltage | AC220/380V/50/60Hz,3PH |
| 15 | Command Language | G Code |
| 16 | Operating System | Mach3 PC Software |
| 17 | Computer Interface | USB |
| 18 | Flash Memory | 128M(U Disk) |
| 19 | X,Y Resolution | <0.01mm |
| 20 | Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
| 21 | Running Environment Temperature | 0 - 45 Centigrade |
| 22 | Relative Humidity | 30% - 75% |
| 23 | Inverter | Delta/Fuling |
| 24 | Electrical components | Schneider |
| 25 | Limit switch | OMRON |

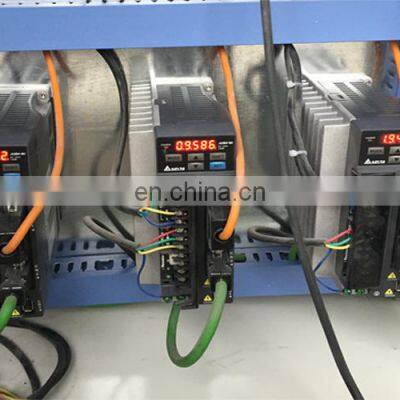

| 26 | Driver | Delta |

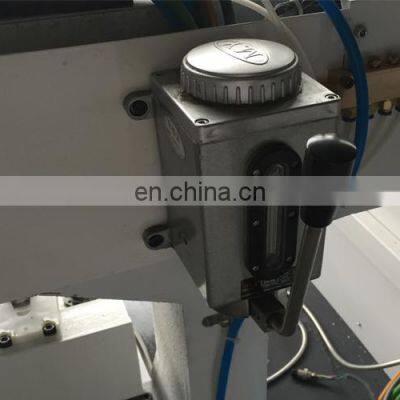

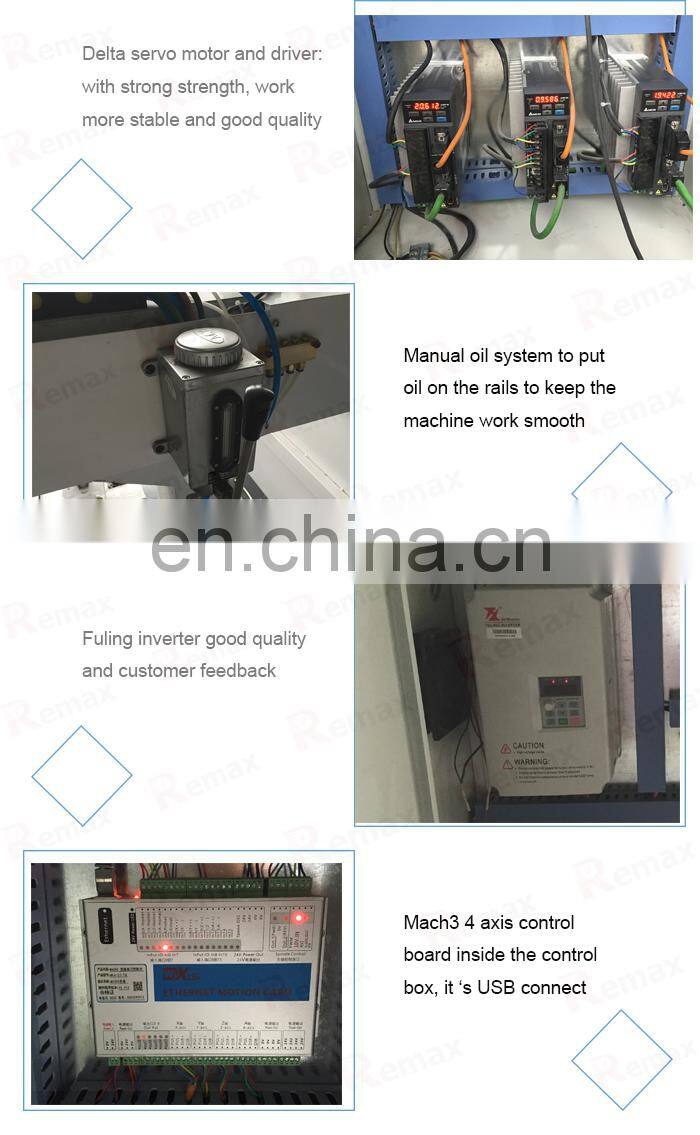

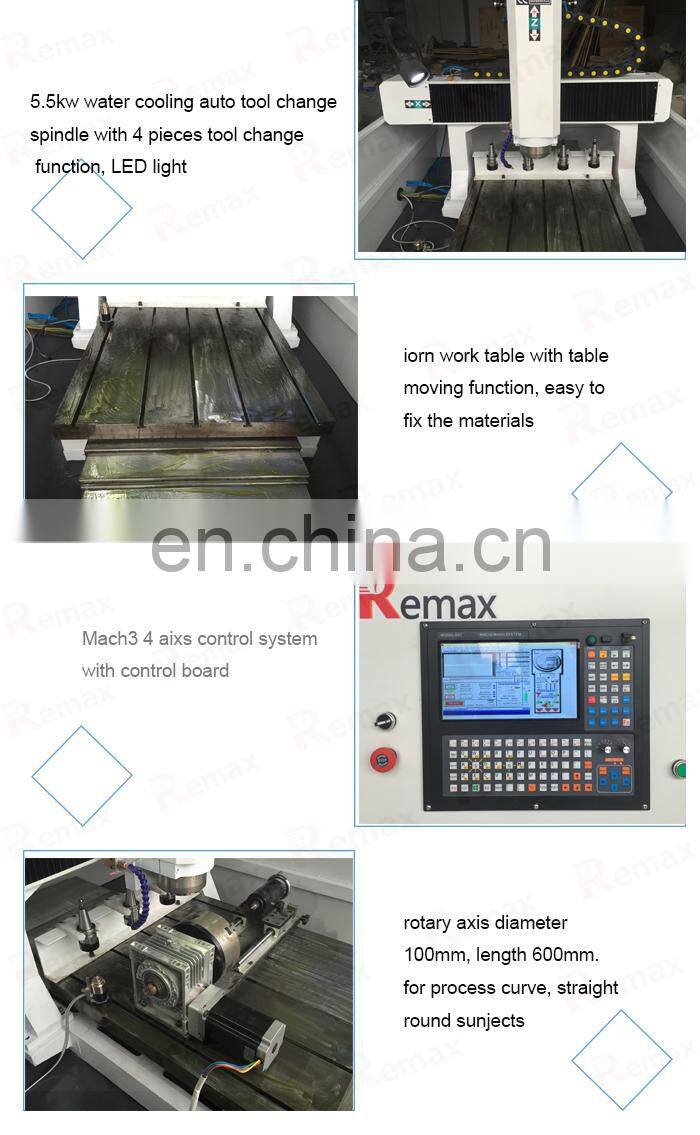

Spare parts:

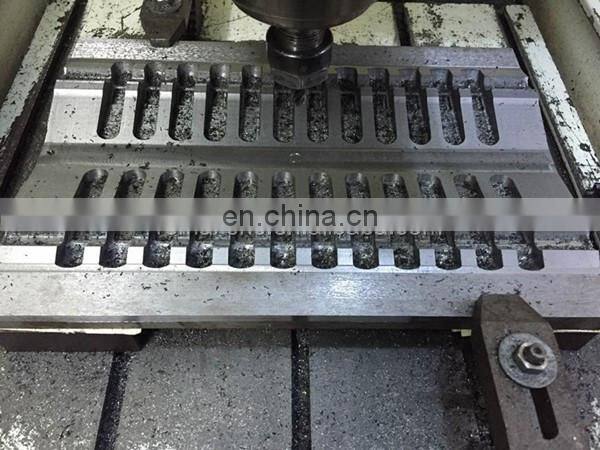

Samples:
Our service:
Certificate:
FAQ:
A This is the first time I use this kind of machine, is it easy to operate?
There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.
D How can I buy this machine from you? ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
E 10 good reasons why you should buy from us?
1 we are a real factory offering products
2 free technical advice by QUALIFIED MECHANICAL ENGINEERS
3 company in business for many years
4 over 50 countries customers served!
5 buy direct saving your money!
6 all machine with CE, ISO, BV certificate.
7 machine and spindle warranty 1 year.
8 our engineer can go to your country to provide technical guidance
9 we have phone support in English, if you have any questions, you can call it,
we can give you a best solution within 24 hours
10 fast delivery, save your time.
More information, pls contact me.
