Hot Sale 6060 Cnc Router Machine Metal Engraving Cnc Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Steel Carving Machine Cnc Metal Mould Machine 6060 Atc Cnc Router
-
Cnc Mold Cnc 6060 Metal Moulding Machine/cnc Machine Router
-
Semi Closed Heavy Duty 4040 Mini Router Cnc Metal Mould Making Machinery
-
New Product Remax 6015 Hobby Wood Acrylic Mdf Pcb Board Aluminum Metal Cnc Cutting and Milling Router Machine
-
Long Service Life 8090 Mould Cnc Router for Sheet Metal Cutting Milling Machine
-
Remax 4050 Mini Steel Engraving and Metal Mold Milling Cnc Router Machine China Price for Sale Shoe Mould Making Machines
Product Description
Product Description

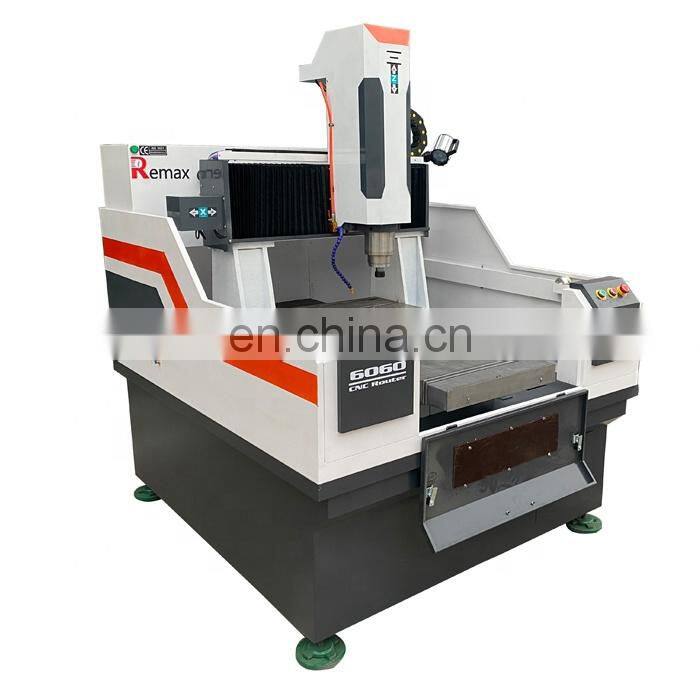

6060 cnc router machine metal engraving cnc machine

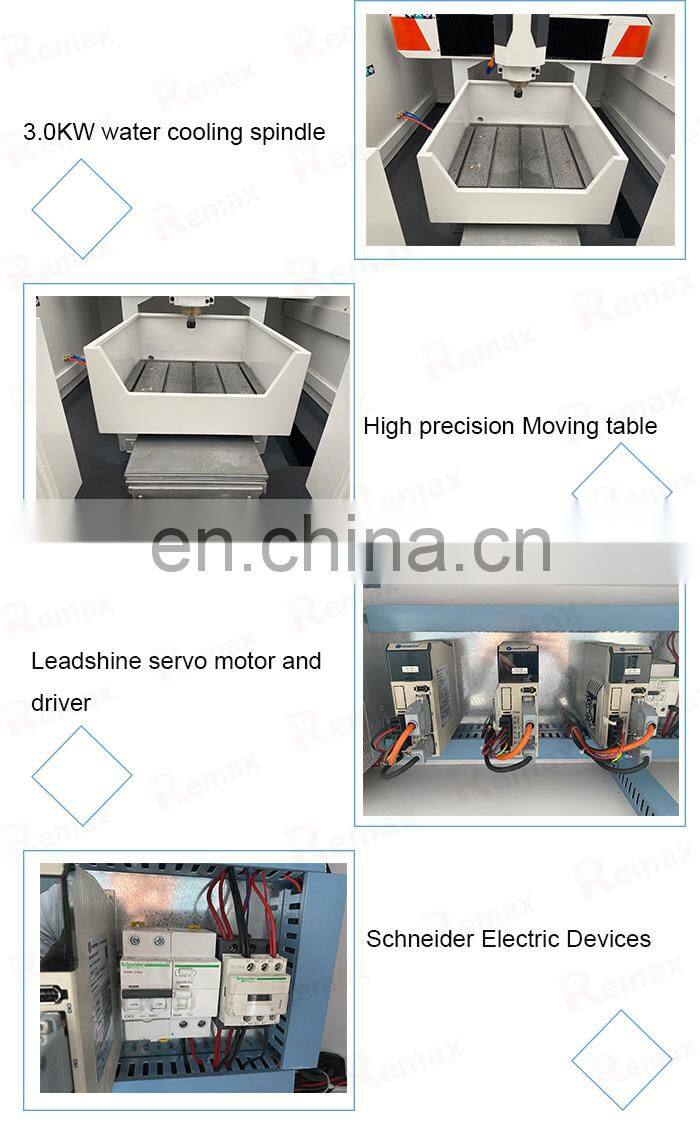

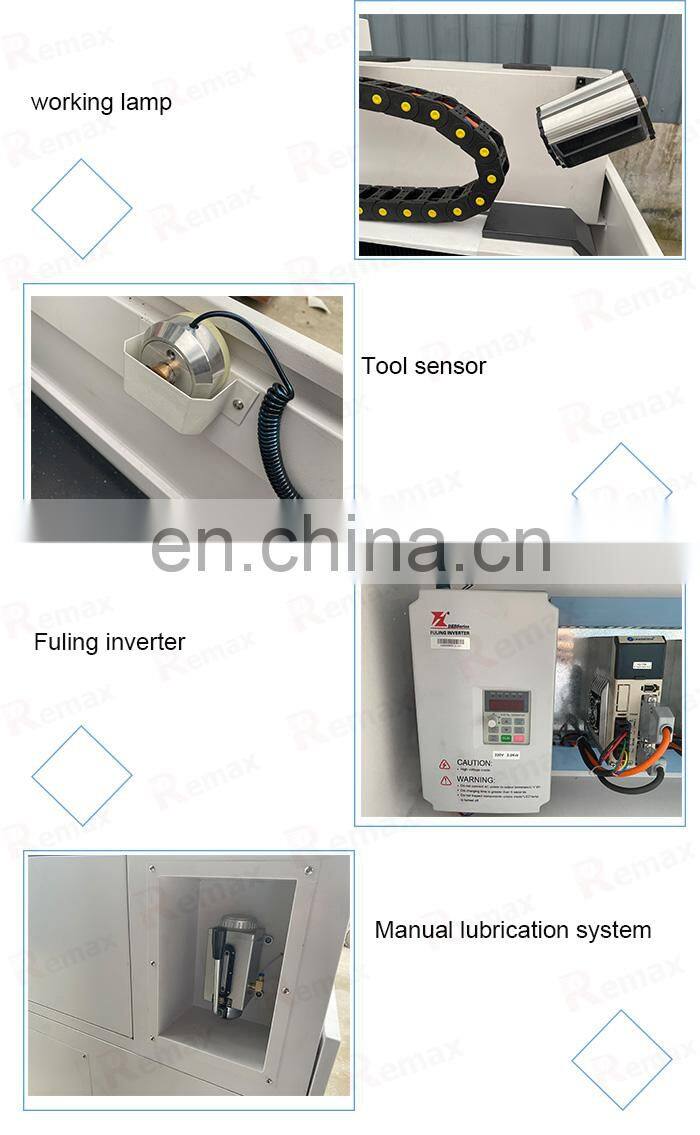

Main Features
1. Aluminum grooved and moving table, ideal for machining metal or wooden molds
2. Axes X, Y, Z are equipped with photoelectric devices, which ensure a fast response and good anti-interference capacity
3. TBI ball screw transmission improves positioning accuracy and fast speed
4. Selection of high speed 3.0kw water cooled spindle, low noise, high torque, this CNC can be used to process high hardness materials.
5. With the Nc studio operating system, it has the breakpoint memory function, which allows you to continue working in the event of a power failure or next day's workrements
Application
It can engrave various moulds, wooden moulds, aviation wooden moulds, propeller and automobile foam moulds, and is suitable for products with high precision requirements.
Description | Parameter | ||||||
Product name | 6060 cnc router machine metal engraving cnc machine | ||||||
X,Y,Z Working Area | 600x600x200mm | ||||||
X,Y,Z Accuracy | ±0.02mm | ||||||
X,Y,Z Repositioning Accuracy | ±0.0254mm | ||||||
Table Surface | T-slot Table | ||||||
Frame | cast by iron | ||||||
X, Y,Z Structure | Hiwin Square Rail and TBI ball screw | ||||||
Max. Rapid Travel Rate | 16000mm/min | ||||||
Max. Working Speed | 10000mm/min | ||||||
Spindle Power | 3.0KW water cooling spindle | ||||||
Spindle Speed | 0-24000RPM | ||||||
Driver and motor | leadshine hybrid servo driver and motor | ||||||
Working Voltage | AC220/380V 50/60Hz | ||||||
Command Language | G Code | ||||||
Operating System | DSP System (Options: Ncstudio/Mach3 PC Software) | ||||||
Computer Interface | USB | ||||||
X,Y Resolution | <0.01mm | ||||||
Software Compatibility | Type3/UcancameV9/Artcam | ||||||
Running Environment Temperature | 0 - 45 Centigrade | ||||||
Relative Humidity | 30% - 75% | ||||||
Inverter | Delta/Fuling | ||||||
Electrical components | Schneider | ||||||
Limit switch | OMRON | ||||||
Detailed Images

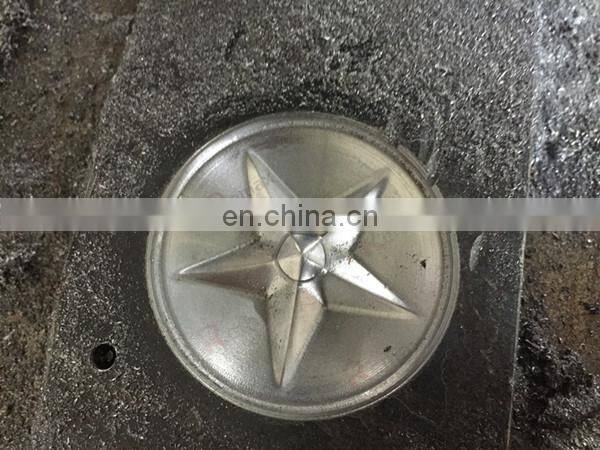

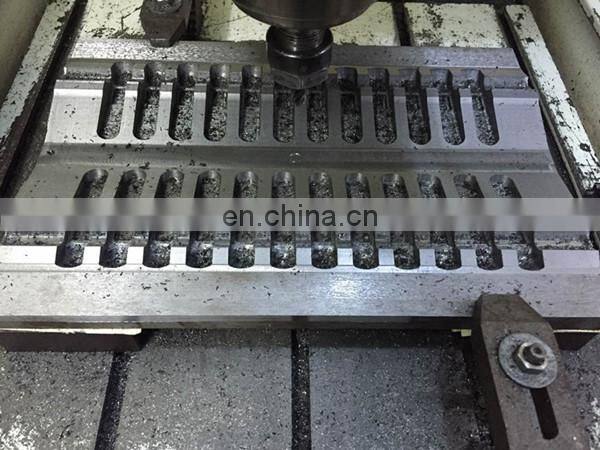

Sample

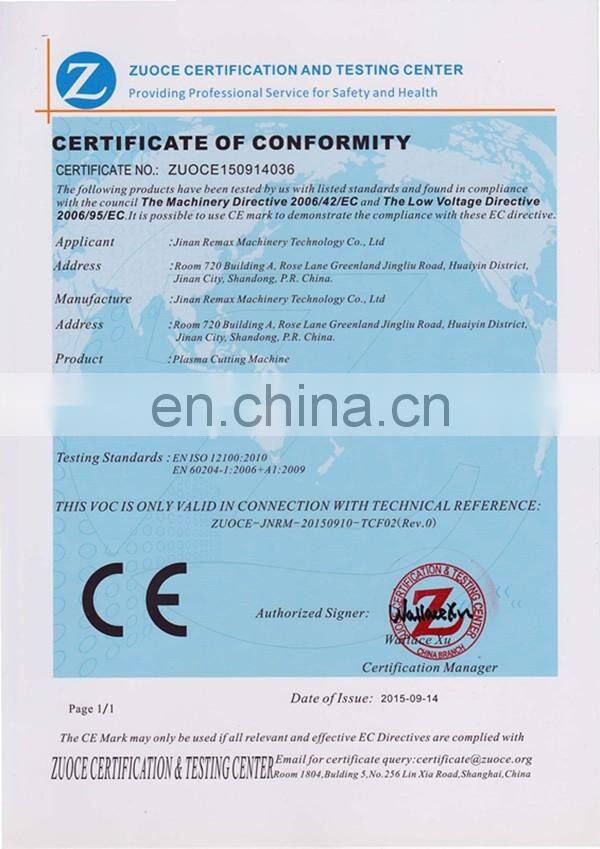

Certifications

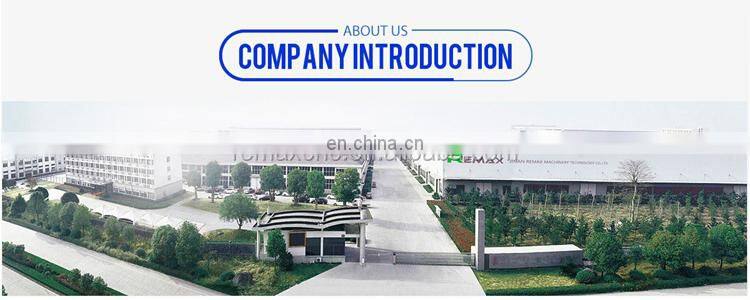

Our Company
Jinan Remax Machinery Technology Co., Ltd specializes in the development and manufacture of CNC router machines, CNC laser machine, CNC plasma cutting machine.
Our company sets research and development, production, sales, maintenance services as a whole,Our products have covered advertising industry, woodworking industry, craft gifts, architectural models, electronics, CAD / CAM industry mold industry, decoration, clothing, packaging, printing, dyeing, logos, seals, etc industries; and because of its distinct cost-effective domestic and in various application fields have been completely replacing imported similar products. The company will continue to adopt international advanced production technology and production processes, development and production of high quality, the high price ratio of numerical control equipment, continuing to create maximum value for customers.
We not only produce machines, we provide the best solution for you.
Remax looking forward to being your partner.
Our Service
Guarantee:
1. One year for the whole machine.
2. Within one year under normal use and maintenance, If something is wrong with machine, you will get spare part for free.
3. Out of one year, you will get spare part at cost price.
4. You will also get technical support and service all the lifetime.
Technical support:
1, Technical support by phone, email or MSN/Skype 24 HOURS
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
After sales services:
1 Normal machine is properly adjusted before dispatch.
2 You will be able to use the machines immediately.
3 You will be able to get free training advice towards our machine in our factory.
4 You will also get free suggestion and consulting, technical support and service by email/fax/tel and lifetime technical support.
