Medium and Large Scale Palm Oil Processing Mill Plant

We are professional manufacturers of crude palm oil processing machine, the crude palm oil machine we produce can help you get more crude palm oil. The crude palm oil processing machine has the advantage of low consumption and energy-saving.

Crude palm oil processing machine

Work flow of crude palm oil processing machine:
Raw material reception--Sterilization--Threshing—Digesting & pressing--Oil clarification--Kernel recovery

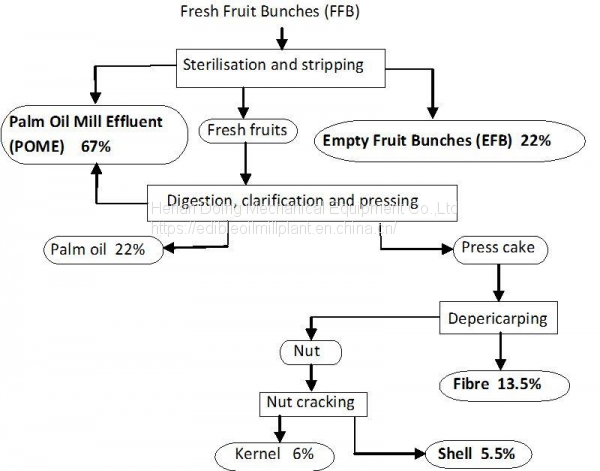

Palm oil processing process

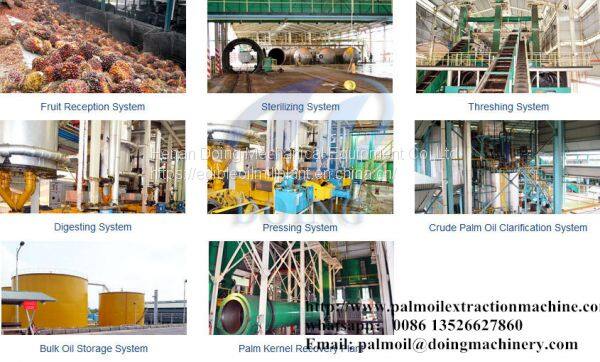

Detail introduction of 30tph palm oil processing machine:

1.Raw materials reception: the first step of the palm oil processing machine  is collecting the ripe fresh cluster and convey by trucks, then pour the fluster into the discharge door after weighed .Open the gate of the discharge door, then the palm fruits will fall into the fruit basket car or conveyor.
2.Sterilizing: fresh palm fruit bunch are airtight sterilized in sterilizer of palm oil processing machine, injecting direct steam to heat 60mins. The purpose is to prevent enzymes broken down, avoiding FFA content in oil further increase.
3.Threshing:the purpose of threshing is to separate the palm fruit from the FFB. The drum type thresher of palm oil processing machine is the usual machine to separate the fruit.
4.Digesting&pressing:the purpose of digester is to separate the pulp and nut and crush the palm pulp. Then it is sent to continuous screw palm oil press machine. After pressing of palm oil processing line, oil palm fruit is divided into two parts: the mixture of oil, water and solid impurities, and the press cake (fiber and nut).
5.Crude oil clarification: crude oil first diluted with water washing, through settlement and filtration, the fiber material removed from the oil, and then carry out continuous settlement, the whole divided into two parts: oil and sediment. Oil by centrifugal separation and through vacuum drying pumped into the storage tank for storing; oil sediment by filtration and dirt oil separation.
6.Kernel recovery: by corrugated crusher of palm oil processing line, kernel was released. The broken mixture enters into broken mixture separation system. After separation, shell is sent to the warehouse for temporary storage. Dried kernel is sent to kernel storage warehouse for storing.

Advantages of crude palm oil processing machine:
1.Highly increasing the oil yield and oil quality
2.Low cost and less labor work force
3.Easy operation and maintenance of the palm oil extraction machine
