KGUV-1000/1200 Automatic Whole UV Coating Machine
- Ningbo, China
- T/T L/C
- 40 days
You May Like
Product Details
| Brand Name | KINGSUN | Place of Origin | China | |
| Model Number | KGUV-1000/1200 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description

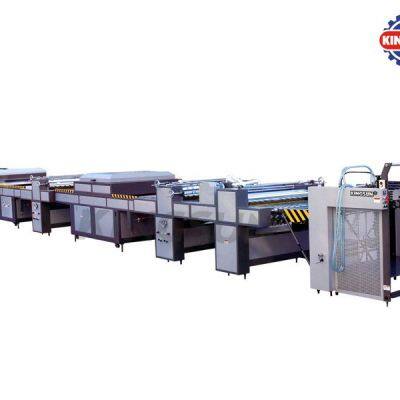

KGUV-1000/1200 Automatic Whole UV Coating Machine
Features:
KGUV-1000/1200 automatic whole UV coating machine is designed based on the semi-auto UV coating machine. With frequency conversation control, oil quantities which are decided according to the different thickness of paper can be controlled by different linear velocity. With easy operation, fundamental improvement in the printing paper surface and smoothness of coating products without orange peel veins, the machine optimizes polishing products.
Technical specifications:
Model | KGUV-1000 | KGUV-1200 |
Max. paper size | 780×950mm | 780×1150mm |
Min. paper size | 340×240mm | 340×240mm |
Max. coating width | 950mm | 1150mm |
Paper thickness | 80-600g/㎡(with air knife) 200-600g/㎡ | 80-600g/㎡(with air knife) 200-600g/㎡ |
Max. feeding speed | 8000pcs/hour(thick paper) 4000pcs/hour(thin paper) | 8000pcs/hour(thick paper) 4000pcs/hour(thin paper) |
Total weight | 6500KG | 7000KG |
Total power | 65KW | 65KW |
Overall dimensions | 16000×1880×1710mm | 16000×2080×1710mm |
