Discussion on the efficiency of wns3-1.25 condensing steam boiler, used in gas-fired steam boiler of food factory

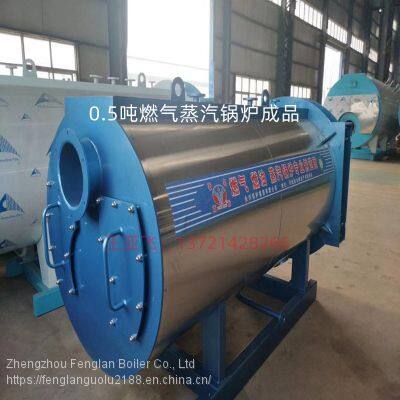

WNS gas-fired steam boiler adopts horizontal standard three return structure, and the combustion mode adopts micro positive pressure combustion. The boiler body is composed of a drum, a furnace liner (corrugated furnace liner) and two smoke return pipes. The steam drum is equipped with steam water separation device and water supply device, and the lower part is equipped with regular blowdown device. After the fuel is mixed with air in the burner, it is ignited by the electronic igniter and injected into the furnace for combustion. High temperature flue gas enters the two-stage convection tube bundle from the furnace lining, and is discharged into the atmosphere through the chimney from the rear smoke box.

Main technical parameters:

Boiler specification sheet

name Company numerical value

Rated evaporation capacity of boiler t/h three

working pressure MPa one point two five

Safe and stable operating condition range % 80-100

Excess air coefficient at smoke exhaust one point one five

Rated steam temperature ℃ 194 (saturated)

Feed water temperature ℃ twenty

Radiant heating area m thirteen point four two

Convective heating area m sixty-eight point five three

Heating area of economizer m fifteen point eight six

Boiler efficiency % 92.84 oil) 93.72 (gas)

Exhaust temperature ℃ 132.54 (oil) 129.04 (gas)

Hydrostatic test pressure MPa one point six five

water capacity m five

Adaptive fuel Oil and natural gas

Combustion mode / Micro positive pressure chamber combustion

Calorific value of light oil fuel KJ/Kg forty-two thousand nine hundred and seventeen

Heating value of natural gas fuel KJ/Nm3 thirty-five thousand four hundred and thirty-eight

Steel structure metal consumption t one point three

Body metal consumption t six point one nine two

Weight of large parts of boiler t eight point two three six

Total power consumption KW ten point five

Fuel consumption light oil 182.31Kg/h

natural gas 225.39 Nm3/h

Transportation size of large pieces mm four thousand three hundred and ninety-five × two thousand and twenty-five × two thousand three hundred and eighty-eight

Overall installation dimension mm eight thousand one hundred and fourteen × two thousand eight hundred and sixty-eight × ten thousand

Chimney size mm φ four hundred and fifty × eight thousand

Legal unit of measurement:

According to the order of the State Council on the unified implementation of legal units of measurement in China, the relevant data provided by the product drawings and technical documents adopt the specified legal units of measurement.

Table of measurement units:

Measurement name Company Symbol Export units Symbol Symbol

length rice m millimeter mm

quality Kilogram kg ton t

time second S Minute hour min h

pressure PA Pa Megapascal Mpa

quantity of heat coke J Kilojoule KJ

power tile W KW · MW KW MW

temperature centigrade ℃
