Home > Products > Recycling Machinery > New Arrivals Superior Quality Plastic PVC Hose Pipe Making Machine
New Arrivals Superior Quality Plastic PVC Hose Pipe Making Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
PPR/PP/PPRC Pipe Making Machine
-
PE Pipe Production Line PERT Heating Pipe Making Machine
-
High Quality Plastic PE Pipe Extrusion Production Line for Sale
-
High Quality-width 600mm PVC Pinch Plate Production Lines
-
Pvc Upvc Window Profile Door Frame Making Machine /Pvc Window Profile Extrusion Line
-
High Quality Plastic UPVC Profile Making Machine
Product Description
High Quality Plastic PE Pipe Extrusion Production Line for Sale
PRODUCT SPECIFICATIONS
Product Description
Machine Description

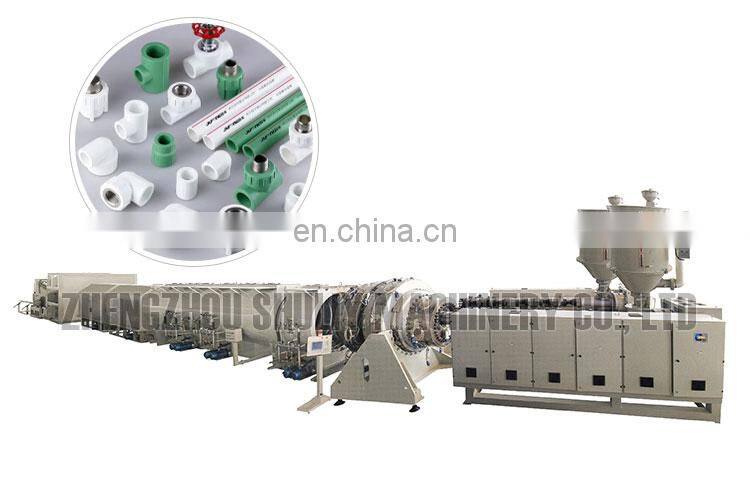

20~63mm PPR PE HDPE Pipe Tube Processing Extrusion Manufacturing Machine Line Factory
The PPR Pipe Extrusion Line/HDPE Pipe Processing Machine/PE Pipe Tube Manufacturing Machine can be used for HDPE large diameter gas and PPR water pipes, with excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength,environmental stress cracking resistance, creep resistance, hot link, etc. Therefore, the HDPE PE Silicon Core Pipe Making Machine is the preferred gas and water pipe for the pipeline system between the city and the suburbs, and the
large-diameter HDPE pipe line began to play a very important role in the urban water supply and gas supply system.
20~63mm PPR PE HDPE Pipe Tube Processing Extrusion Manufacturing Machine Line Factory
The PPR Pipe Extrusion Line/HDPE Pipe Processing Machine/PE Pipe Tube Manufacturing Machine can be used for HDPE large diameter gas and PPR water pipes, with excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength,environmental stress cracking resistance, creep resistance, hot link, etc. Therefore, the HDPE PE Silicon Core Pipe Making Machine is the preferred gas and water pipe for the pipeline system between the city and the suburbs, and the
large-diameter HDPE pipe line began to play a very important role in the urban water supply and gas supply system.
Equipment List
Name | Quantity/Set | Description |

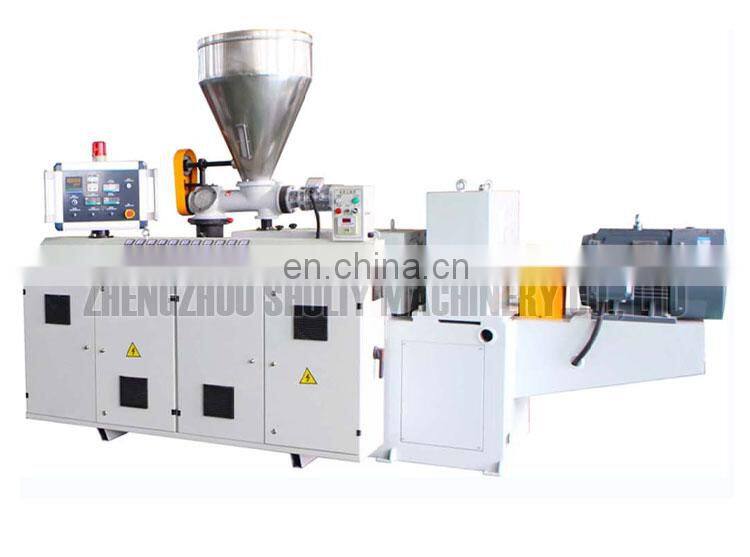

High Efficiency Single Screw Extruder | 1 | Motor, reducer, screw, barrel, automatic drying and feeding machine, electric control cabinet |
Single screw co-extrusion color line machine | 1 | Motor, reducer, screw, barrel, electrical appliance |

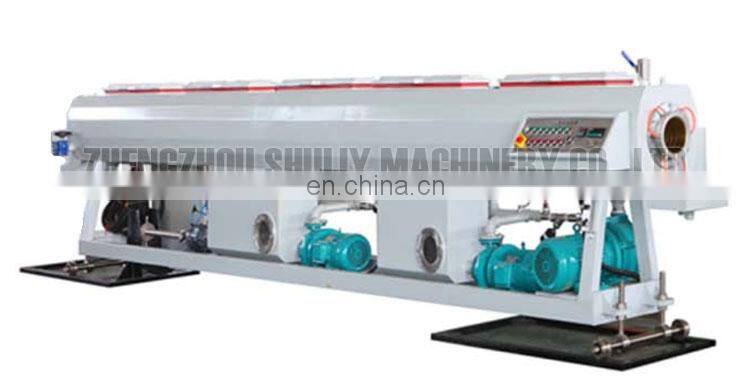

Vacuum Sizing Machine | 1 | The setting table is equipped with a two-way quick-change filter system |
Spray cooling tank | 1 | Applicable pipe diameter Φ20-Φ63mm Sink length 6000mm Pump power 4kw × 1 set water temperature controller water filter |
belt tractor | 1 | Traction motor power: 1.1kw*2 sets, speed regulation mode: frequency conversion speed regulation (ABB), number of belts: 2 crawler traction, belt adjustment mode: pneumatic pressing device, traction line speed: 1-10m/min Effective traction length: 1200mm, maximum traction force: 15KN, traction pipe diameter range: Φ20-Φ63mm |

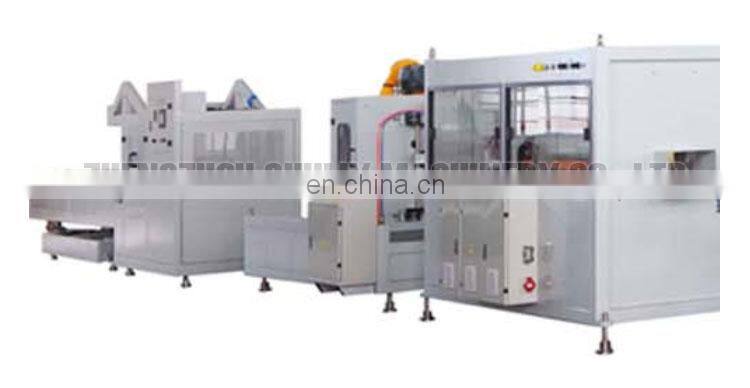

Chipless Cutter | 1 | Cutting method: chipless cutting, control method: programmable control, feed method: cylinder feed, revolution power: 1.5kw, applicable pipe diameter range: Φ20-Φ63, saw blade diameter (mm): Φ75, cutting speed: 6m/min |
Turnover rack | 1 | 6 meters in length. stainless steel flap |
Product Overview
SIMILAR PRODUCTS
Contact Us
Our Company
Zhengzhou Shuliy machinery Co., Ltd. was found in 2000. Our company specializes mainly produce plastic processing machine. We not only provides customers with cost-effective products, but also provides first-class service support and solutions. Our products have been exported to countries and regions such as Arabia, India, Russia, Central Asia, Africa and Mongolia. Perfect after-sales service system allows you to worry-free.
FAQ
Q1: Are you manufacturer or trade company?
A1:We are a professional manufacturer for producing machinery over 10 years.
Q2: How is the quality of your product?
A2: Our products are manufactured according to national and international standard, and we have a test on every machine before
delivery.
Q3: How about the price?
A3: We are a professional manufacturer and be able to provide you with the lowest price than market one. We will give you the best
quotation.
Q4:What if the machine is damaged?
A5:One year warranty and all-round after-sales service. After this deadline, we shall charge at low cost to keep after-sales
service.
A1:We are a professional manufacturer for producing machinery over 10 years.
Q2: How is the quality of your product?
A2: Our products are manufactured according to national and international standard, and we have a test on every machine before
delivery.
Q3: How about the price?
A3: We are a professional manufacturer and be able to provide you with the lowest price than market one. We will give you the best
quotation.
Q4:What if the machine is damaged?
A5:One year warranty and all-round after-sales service. After this deadline, we shall charge at low cost to keep after-sales
service.
