Home > Products > Recycling Machinery > New Design Pvc Shiplap Panels Wpc Fluted Wall Panel Making Machine For Wholesales
New Design Pvc Shiplap Panels Wpc Fluted Wall Panel Making Machine For Wholesales
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Plastic PVC UPVC Window Door Sash Frame Profile Extruder Production Machine Line
-
New Type Good Price Cardboard Shredder Carton Cutter Waste Paper and Box Shredding Machine With Dust Collector
-
Low Price Cardboard Shredder Paper and Cardboard Shredder Carton Paper Shredder
-
Corrugated Board Cutting Machine Paper Cardboard Shredder With Dust Removal Function
-
Cardboard Box Shredder Cutting Shredding Machine With Dust Removal Function
-
Crinkle Paper Shredder Machine Carton Ccardboard Box Cutting Machine With Dust Collector
Product Description
Plastic PVC UPVC Window Door Sash Frame Profile Extruder Production Machine Line
PRODUCT SPECIFICATIONS
Product Description

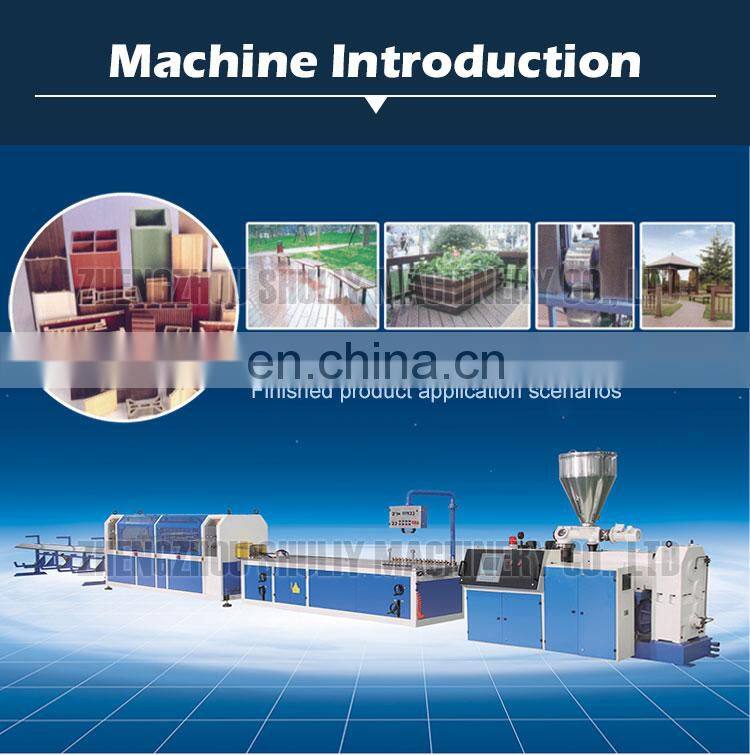

The equipment is specially designed for the production of PVC profile products
The extrusion line includes: conical twin-screw extruder-vacuum setting table-tractor-cutting machine-turning frame

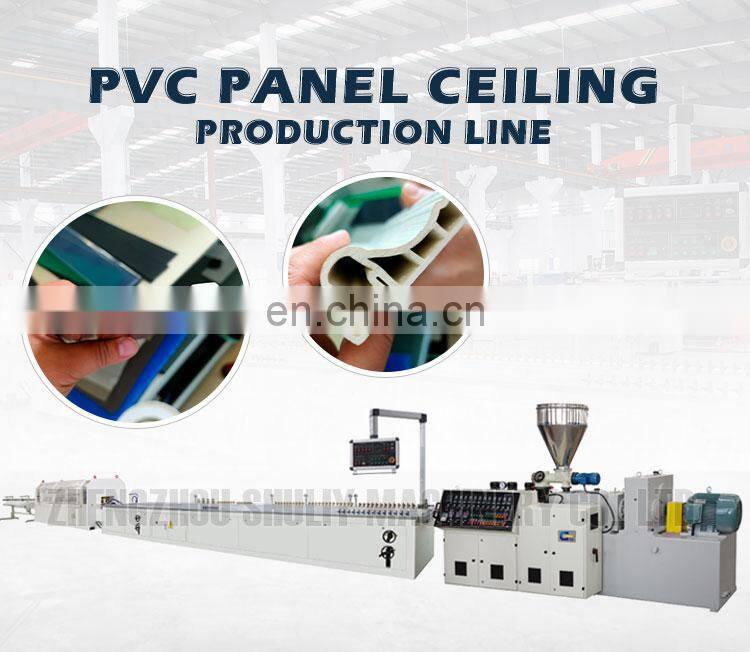

Process flow of PVC ceiling production line:
Automatic loader→double screw extruder machine→mould→vacuum calibration spraying platform→online lamination or hot stamping
transfer machine(option)→blade cutter→stacker
Features of the PVC Wall Panel Making Machine:
1. The calcium powder required in the board formula can be increased up to 5%-25% and the required amount of the auxiliary
material decreased by 30%.
2. The products made using the PVC Wall Panel extrusion machine offer a fine appearance and uniform plasticization.
3. Through the use of a PID controller, the extrusion machine provides an automatic alarm in case of a problem with any component.
Automatic loader→double screw extruder machine→mould→vacuum calibration spraying platform→online lamination or hot stamping
transfer machine(option)→blade cutter→stacker
Features of the PVC Wall Panel Making Machine:
1. The calcium powder required in the board formula can be increased up to 5%-25% and the required amount of the auxiliary
material decreased by 30%.
2. The products made using the PVC Wall Panel extrusion machine offer a fine appearance and uniform plasticization.
3. Through the use of a PID controller, the extrusion machine provides an automatic alarm in case of a problem with any component.
Equipment List
Name | Quantity/Set | Description |

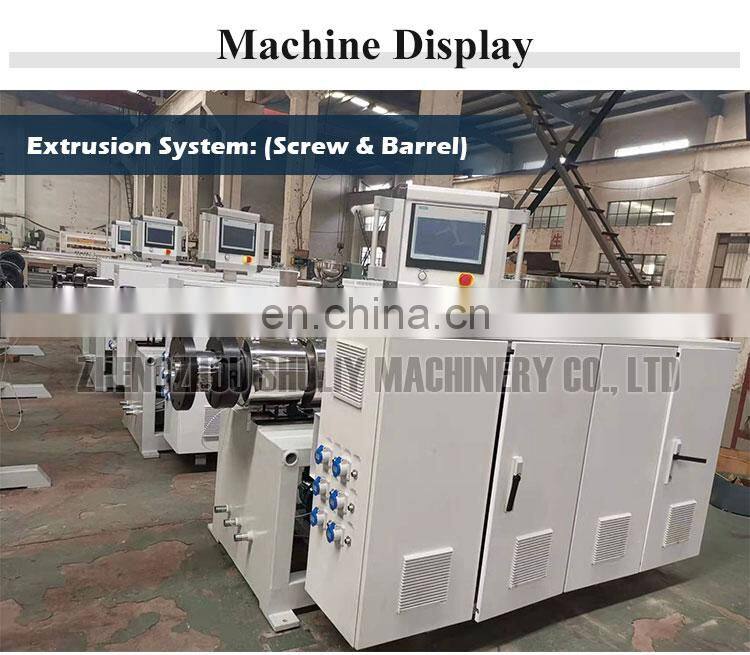

Conical twin screw extruder | 1 | Extrusion System: (Screw & Barrel),Quantitative Feeding System,Transmission reduction system,main motor system,electrical control system |

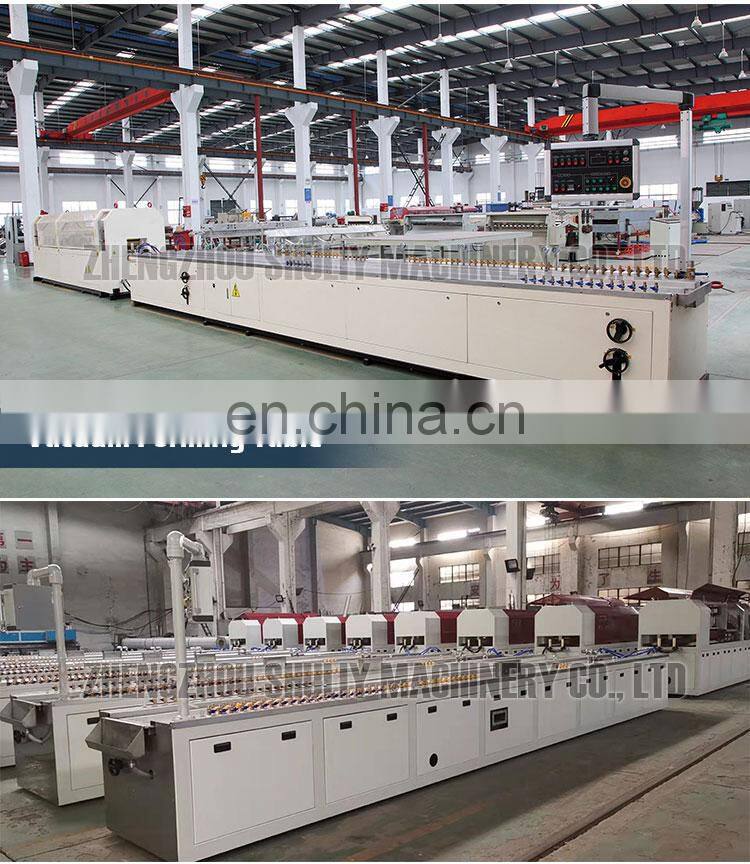

Vacuum setting table | 1 | Forming table length: 6000mm Forming table width: 1100mm The center distance of the aluminum guide rail of the shaping table: 320mm Vacuum: 0 -0.09 Mpa |
tractor | 1 | Number of traction belts: 2; The effective length of the traction track is 2000mm; Effective width of traction belt: 240mm; |
Cutting Machine | 1 | Cutting motor power: 2.2 KW Maximum cutting width: 240mm Maximum cutting height: 80mm Dust suction fan power: 2.2 KW, external dust collector, using movable cloth bag vacuum cleaner. |

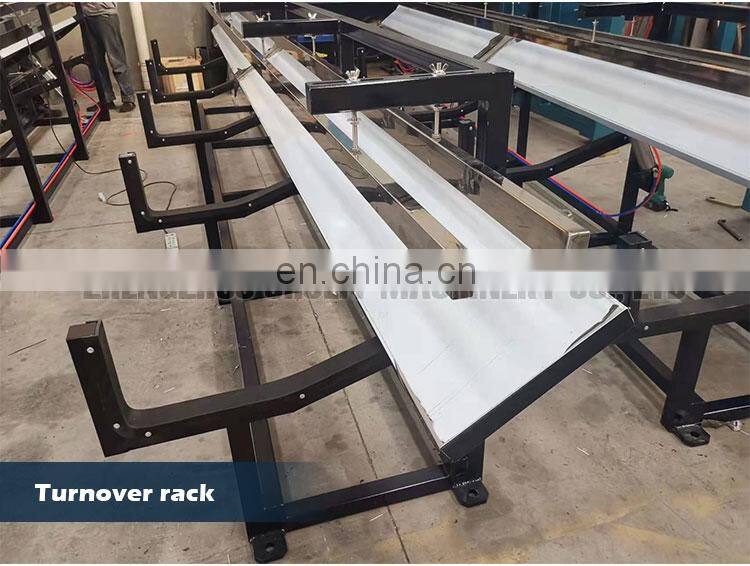

Turnover rack | 1 | Turning rack length: 6m The stacking part adopts a widened structure, which is convenient for profile packaging. Cylinder Flip, Limit Switch Length Count The form of turning rack: the contact part of the product of the turning rack is covered by a rubber block. Stainless steel bezels on both sides. |
Product Overview
SIMILAR PRODUCTS
Contact Us
Our Company
Zhengzhou Shuliy machinery Co., Ltd. was found in 2000. Our company specializes mainly produce plastic processing machine. We not only provides customers with cost-effective products, but also provides first-class service support and solutions. Our products have been exported to countries and regions such as Arabia, India, Russia, Central Asia, Africa and Mongolia. Perfect after-sales service system allows you to worry-free.
FAQ
Q1: Are you manufacturer or trade company?
A1:We are a professional manufacturer for producing machinery over 10 years.
Q2: How is the quality of your product?
A2: Our products are manufactured according to national and international standard, and we have a test on every machine before
delivery.
Q3: How about the price?
A3: We are a professional manufacturer and be able to provide you with the lowest price than market one. We will give you the best
quotation.
Q4:What if the machine is damaged?
A5:One year warranty and all-round after-sales service. After this deadline, we shall charge at low cost to keep after-sales
service.
A1:We are a professional manufacturer for producing machinery over 10 years.
Q2: How is the quality of your product?
A2: Our products are manufactured according to national and international standard, and we have a test on every machine before
delivery.
Q3: How about the price?
A3: We are a professional manufacturer and be able to provide you with the lowest price than market one. We will give you the best
quotation.
Q4:What if the machine is damaged?
A5:One year warranty and all-round after-sales service. After this deadline, we shall charge at low cost to keep after-sales
service.
