Screw Press Hand Operated Extrusion Olive Husk Biomass Briquette Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Small Screw Roll Type Wood Sawdust Homemade Screw Press Briquette Machine
-
Cheap Firewood Saw Dust Wood Chip Straw Biomass Fuel Briquette Machine
-
Hand Operated Rice Husk Straw Biomass Wood Saw Dust Briquette Making Machine
-
High Quality Cheap Small Simple Rice Husk Biomass Briquette Making Machine
-
High Quality Factory Outlet Square Small Bagasse Wood Briquette Press Machine
-
Hand Operated Rice Husk Sawdust Straw Wood Coconut Bio Briquettes Machine
Product Description

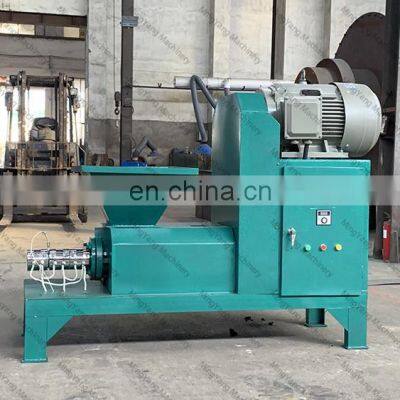

Screw Press Hand Operated Extrusion Olive Husk Biomass Briquette Machine
Introduction
1. Reasonable design, Reliable quality, Simple structure, Easy to operate, Small volume, Energy saving.
2. The design of automatic control of the electric heating device can be randomly adjusted material humidity, to ensure the stability of the material forming and improve work efficiency.
3. The propeller uses wear-resistant materials to extend the production time and extend the service life.
4. The structure of the forming cylinder is improved, reducing the friction of machinery and raw materials increase the density of the mandrel.
Model | Power (Kw) | Capacity (Kg/h) | Moisture | Weight (Kg) | Size (mm) |
ZBJ50 - 9 | 11 - 15 | 120 - 220 | 8% - 12% | 550 | 2200*600*1300 |
ZBJ50 - C | 22 | 350 - 420 | 8% - 12% | 620 | 2700*700*1550 |
ZBJ60 - 9 | 15 - 18.5 | 220 - 250 | 8% - 12% | 650 | 2400*700*1350 |
ZBJ70 - 9 | 18.5 - 22 | 280 - 340 | 8% - 12% | 780 | 2400*700*1400 |
ZBJ80 - 9 | 22 | 320 - 360 | 8% - 12% | 850 | 2400*750*1400 |
Click here for the PDF file of "Development of briquette making equipment"

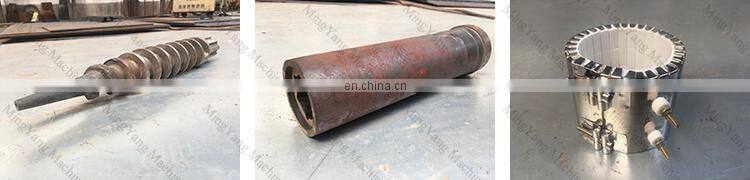

Spare Parts
Propeller
Using high wear-resistant alloy to cover the top of the propeller to extends the service life.
Forming Tube
Made of high heat resistant alloy and the shape could be customized according to demand
Heating Rings
Using ceramic materials to deal with different environmental changes so that the heating effect is more stable.

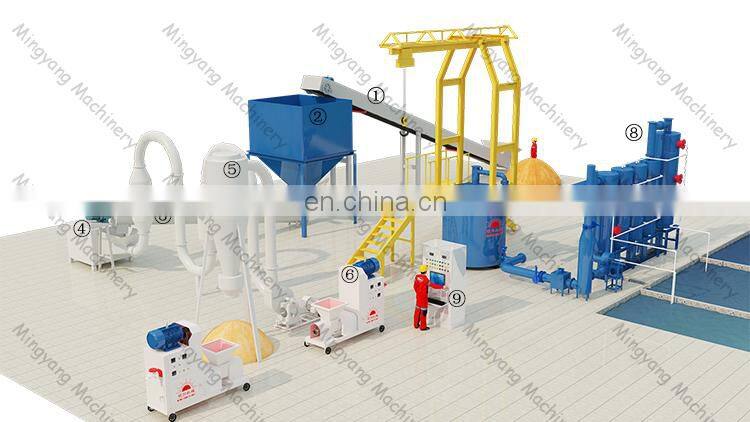

Production Line
1. Feeder Conveyor: To get the raw materials into the Storage Silo.
2. Storage Silo: Cooperate with the Screw Conveyor to make the raw materials enter the crusher in an orderly manner.
3. Screw Conveyor: To get the raw materials into the Hammer Mill.
4. Hammer Mill: Pulverize the raw material into a powder.
5. Air Flow Dryer: Using hot air stream to evaporate the water from the raw material until 8-12% is left.
6. Wood Briquette Machine: Shape the raw materials by heating and compressing them.
7. Carbonization Stove: Charring the wooden rod.
8. Purification System: Dealing with smoke and dust.
9. Central Controler: Manpower Saving.
Click Here to Get a Detailed Working Video of the Production Line
1. Raw Material: Rick Husk, Corn Stalk, Wasted Wood, Corncob, Cocoanut Shell, Wood Branch, etc.
2. Final Products: Customized length, diameter and shape according to your needs.

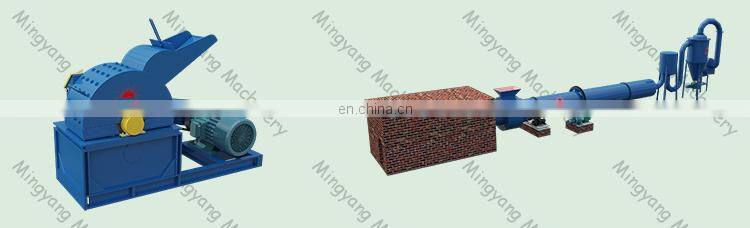

Related Products
Wood Crusher
Click the image to learn more about different models of hammer mill.
Sawdust Dryer
Click the image you'll get a list of different models of airflow dryers.

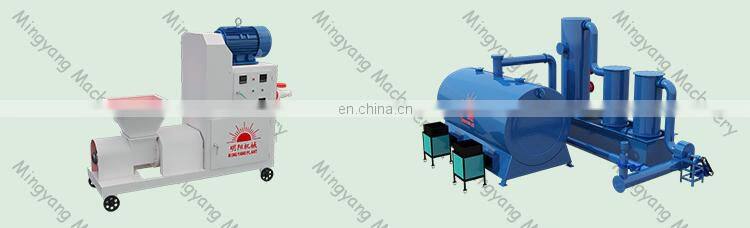

Biomass Briquette Machine
Click the image to get our product list of biomass briquette machine.
Carbonization Stove
Click the image to get different sizes of carbonization furnace.
About Us
Gongyi Xiaoyi Mingyang Machinery Plant is a manufacturer & trading combo which is spcialized in Energy-Saving and Environmental Protection Equipments.
1. Has funded for more than 38 years, with fully experience in charcoal making industry.
2. Certificated CE, ISO. Qualified products with moderate price has won the love of customers in different countries.
3. Professional pre-sales Guidance and After-sales Service, so that your procurement process is no longer confused.
4. We provide remote video guidance, engineer on-site installation guidance, and other services. Your happiness is my only mission.
