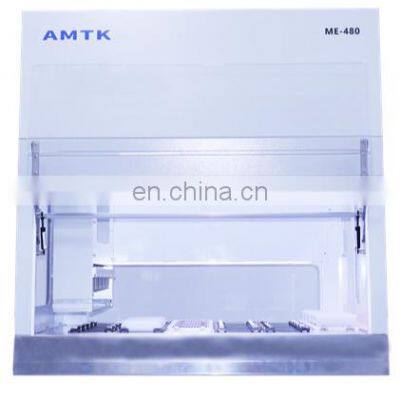

AMTK ME-480 Fully-automatic Nucleic Acid Extractor

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Size（Length X width X Height）	1130cm X 770cm X 1160cm
Weight	About 175Kg
Power supply	AC220V，50Hz，900VA
Num of Heating module	10
Processing volume	20-1000μL
Maximum Sample throughput	480
Deviation between holes	CV <=3%
Maximum Heating temperature	100℃
Oscillatory mixing	5-stage, adjustable
Pollution prevention	UV lamp, HEPA

Ordering information for supporting consumables:

Ordering No	Product Name	Specification
7-0002-14	96 2.2mL shape bottom deep-well plate	50 pics/box
7-0005-01	96-well V-shaped magnetic rod sleeve	100 pics/box

<<< CLICK HERE TO VIEW MORE PRODUCTS NOW

AMTK® ME-480 Fully-automatic nucleic acid extractor is based on the magnetic beads adsorption method by the magnetic rod. The system is composed of five 96-channel magnetic rod, heating module and automatic loading/unloading module of magnetic rod sleeve. It’s compatible with different nucleic acid extraction reagents with magnetic beads, widely used for large-scale automatic nucleic acid extraction with kinds of samples, such as whole blood, serum, plasma, swab, exfoliated cells, urine, sputum, feces, tissue, dried blood spots, saliva, lung lavage fluid and etc. It has the characteristics of high cost performance, high timeliness and high openness.

Application: 1. Large-scale gene detection of pathogenic microorganism or screening items in molecular diagnosis of clinical market, such as public health infection emergencies, mass screening of HBV/HPV, etc. 2. Screening of genetic markers in agricultural molecular breeding. 3. The gene detection of infection events in animal epidemic prevention, such as swine fever and avian flu, etc. 4. The system can be used in the third-party medical laboratories , movable laboratories and hospitals.

Ct value of the reference gene of 5 plates of samples after qPCR No of plate, Num of samples, The median of Ct value with reference gene of samples, The median of Ct value with reference gene of positive samples, Pass rate of extraction The extraction result of 450 samples, the pass rate is 100%.

Manufacturing Technique

Company Profile

AMTK was founded in 2004 by a group of elites in design of sophisticated devices. Our headquarter bases in Beijing ZhongGuanCun - the heart of Chinese tech center. AMTK established its 2500M2 GMP rated manufacturing facility in Suzhou in 2016. AMTK is a tech pioneer. We are proud of making nation's first HPLC autosampler and the first high throughput liquid handler in China. AMTK is also an application-driven company. We have developed many workstations for third-party medical laboratories,hospitals,blood stations,CDC,research institutes.

Certificate

Exhibition

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

1.Why choose AMTK Biotechnology Co., Ltd.? We are a professional company and the leading of fully automatic sample pretreat-ment in China. Meanwhile, we provide OEM and ODM service to our clients.

2.How to transport the product? A: We transport the product as your requirement. Depending on the quantity and the machine you orderor whether you are urgent or not,we will suggest you suitable transportation way, by air or by sea.

3. What kind of packing way for product? A: Depends on which kind product you order.Most of products are packed with cartons. Some productsare packed with wooden boxes.All of the packing way is based on the safety of the product.

4.What kind of warranty will be offer? A: The warranty of our products varies from 12 months.
