Fuel Level Sensor Fuel Level Meter for Oil Tanks Fuel Level Monitoring Solution
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Capacitive Fuel Level Sensor Fuel Level Meter for Oil Tanks Fuel Level Monitoring Solution
-
Capacitive Fuel Level Sensor for Gps Tracking Vehicle Tracking System
-
Capacitive Diesel Level Sensor for Vehicle Generator Machine Fuel Control
-
Capacitive Digital Diesel Fuel Sensor GPS Tracking Fuel Level Monitoring
-
0.5mm Accuracy Remote Monitoring Truck Bus Car Trailer Analog Digital GPS Oil Diesel Water Fuel Level Sensor JT606X
-
Capacitive Digital Analog Fuel Level Sensor Fuel Gauge for Oil Tanks Fuel Level Monitoring
Product Description
fuel level sensor fuel level meter for oil tanks fuel level monitoring solution
Brief Introduction

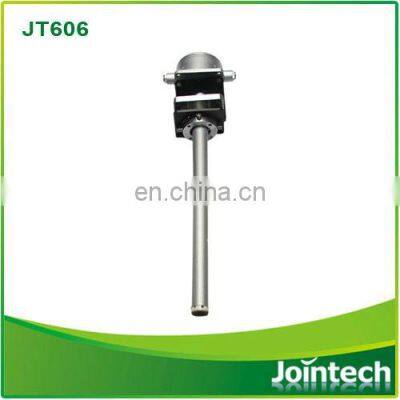

- JT606X is a fuel level sensor for oil tanks real time fuel level monitoring solution.
- It support cut off size and support signal like: RS232, RS485, 0-5V, etc.
- It can provide real time oil tanks fuel data, like: fuel level, refuling time, volume, real time fuel chart.
- It is widely used for trucks fleet, generator, base station generator, trailer, muti-tanks truck, heavy machine, boat, etc fuel consumption monitoring.
Product feature:
- high accuracy 0.5% and high resolution 1mm.
- cut off size freely to match fuel tanks(100mm~1500mm).
- Waterproof, IP67, can meet the oudoor environment.
- suitable for different fuel kinds, like: gasoline, diesel, bio diesel, etc.

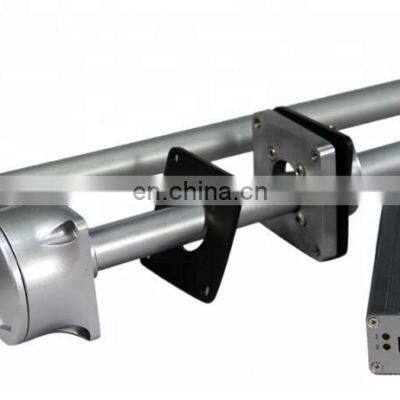

- Easy installation. patented flange installation design.
- Multiple output: RS232, RS485.
- Wide range power input: 4-70V.
Our solution:
We are the expert on fuel consumption monitoring and provide completely fuel anti theft solution all around the world. The device in our solution: GPS tracker + fuel sensor+ fuel monintoring client software. We have our own tracking sofware to help you manage monitoring data, such as:
- 1. real time position, mileage, parking times, etc truck or mobile asset operation data.
- 2. real time fuel level, such as: real time fuel level chart, adding times, adding volume, etc.
- 3. Alarm function. Abnormal fuel consumption will trigger alarm sent to our server or mobile phone.
- 4. management report. all history data can be download to excel document for your management.
- 5. It also support muti tanks truck fuel consumption monitoring solution.
Product Parameters
| Item | Performance parameters |
| Collection principle | Capacitance |
| Size | 100mm to 1500mm |
| Electrical parameters | Input DC:4-70V |
| Power Consumption | 0.13W/5V, 0.19W/12V, 0.38W/24V |
| Signal output (can be customized) | Voltage output:0-5V /Digital output:RS-232 RS-485 /Analog resistant output:10-500Ω /Current output: 4-20mA |
| Communication baud rate | 2400,4800,9600,57600,115200 |
| Detection of liquid type | Diesel, bio diesel, kerosene, gasoline, etc. |
| Material | Aluminum alloy |
| Protection class | IP67 |

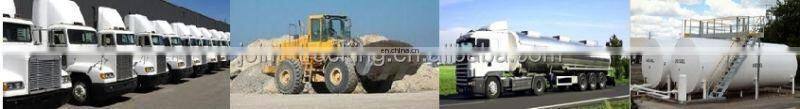

Product Application
- It is widely used for remote fuel consumption monitoring and management, such as:
- Logistics fleet
- truck fleet
- heavy machine
- base station generator fuel consumption monitoring.

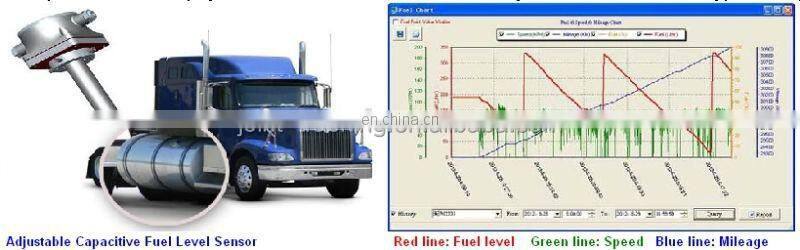

Our fuel level sensor application

Our Owned tracking software Can help you track and manage your mobile asset
