Capacitive Fuel Level Sensor Gauge for Trucks Generator Fuel Level Monitoring
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
GPS Fuel Level Sensor RS485 for Truck Tank Fuel Level Remote Monitoring
-
Diesel Fuel Tank Level Sensor With Gps Tracker for Fleet Fuel Consumption Monitoring
-
Accurate Cuttable Digital Fuel Sensor to Monitor Your Fleet in PC and Android Tracking System
-
Adjustable GPS Capacitive Fuel Level Sensor With Accurate Reading
-
Capacitive Fuel Level Sensor Meter for Oil Tanks Fuel Level Monitoring
-
Gps Fuel Level Sensor Truck Oil Tanks Fuel Level Monitoring
Product Description
Product Description

capacitive fuel level sensor

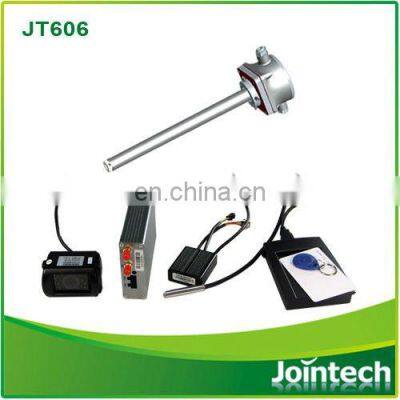

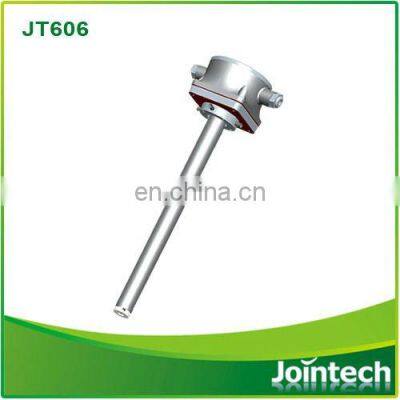

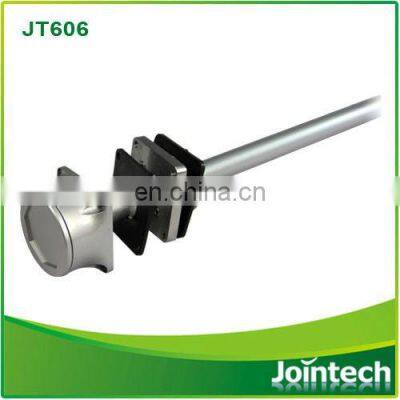

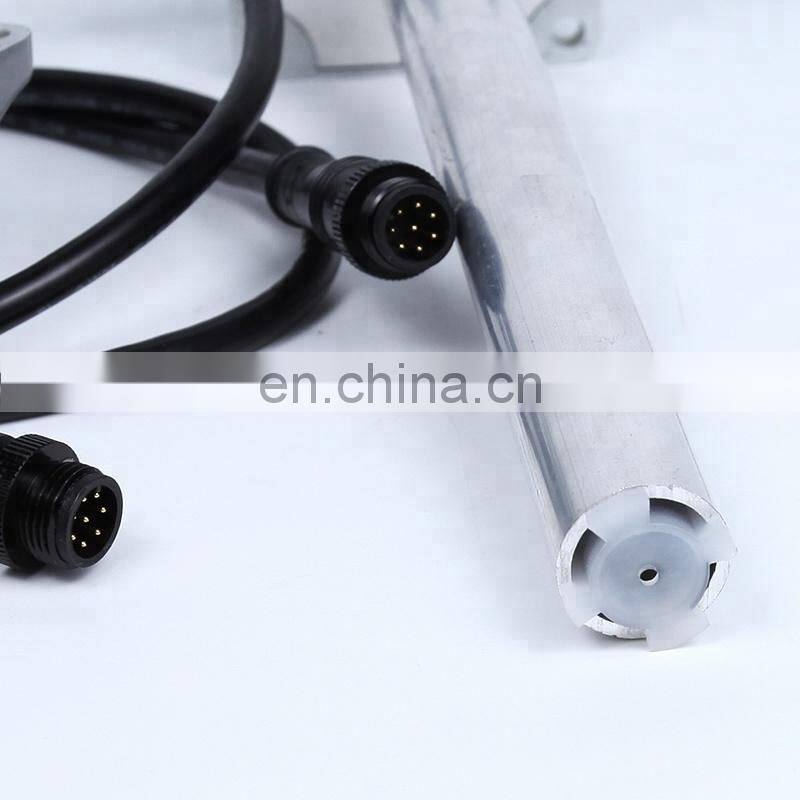

JT606X capacitive fuel level sensor is independently developed by JOINTECH, a number of innovative patented technologies enable it
can continously detect liquid level with a high resolution(<1mm), as well as adjust the length size to fit different fuel tanks on

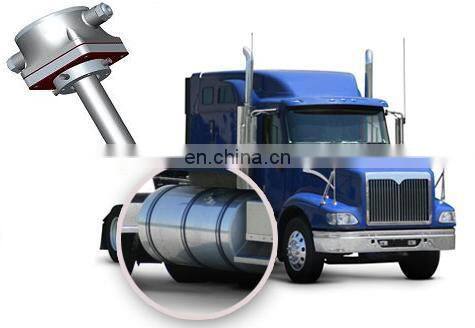

the spot. It is widely applied to remote fuel cosumption monitoring management of logistic fleet, Generator sets, buses, coaches,
construction machines, etc.
can continously detect liquid level with a high resolution(<1mm), as well as adjust the length size to fit different fuel tanks on
the spot. It is widely applied to remote fuel cosumption monitoring management of logistic fleet, Generator sets, buses, coaches,
construction machines, etc.
Product Paramenters

No. | Item | Parameters |
1 | Collection thoery | Capacitance |
2 | Size | From 0.1m-1.5m( adjustable size ) |
3 | Electrical parameter | DC4-70V(over/reverse voltage protection) |
4 | Signal output | RS232, RS485, 0~5V |
5 | Communication baud | 2400, 4800, 9600, 57600,115200 |
6 | Resistance output | 10~500Ω |
7 | Detection of liquid | Diesel, Biodiesel, Kerosene, etc. |
8 | Resolution | Less than 1mm |
9 | Accuracy | +/- 0.5% |
10 | Use of environment | Working temperature: -40C~+75C |
11 | Humidity | 0~99% |
12 | Protection | Waterproof IP67 |

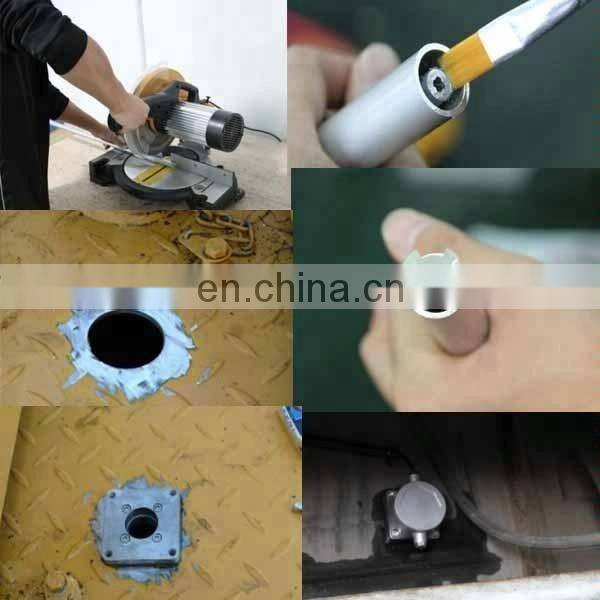

Installation Instructions
