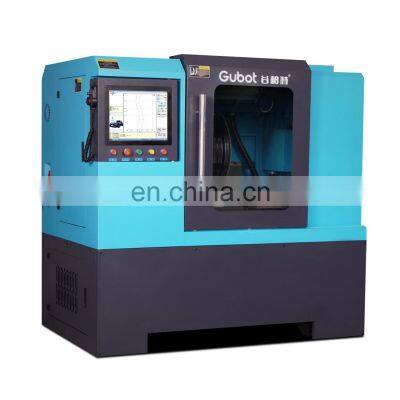

High quality factory direct sale wheel repair machine alloy rims repair cnc lathe machine price

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Gubot alloy wheel repair machine:

1.The fixed central shaft mode is very stable during the high-speed rotation of the wheel.
2.It can repair not only the wheel , but also the brake disc.
3.Three jaw chuck is also available.

Specification

Items	Unit	Specifications
Max.swing over bed	Mm	Ф700
Max. Size of alloy wheel	Inch	24
Cutting feed speed (mm)	mm/min	0.1-1800
Range of spindle speed	rpm	50-2000
Spindle speed control		Automatic
Moving distance of x axisand Z axis	mm	(Z)long 800 (X)cross 700
Moving speed of X axisand Z axis	mm/min	(Z)long 18000 (X)cross 12000
Spindle Length	KW	3
Moving track	Hign quality	Import rails
Motor		Servo motor
Wheel positioning accuracy	mm	0.01
Wheel positioning repeatedaccuracy	mm	0.01
Weight	Kg	2000
Size(LWH)	mm	182012701700

Wheel Repair Machine LSB300 Advantages

1.Components: Use servo motor, it is stabler and low noise than stepper motor. And we use Panasonic high-precision infrared laserdetector.
2.The wheel diamond cut machine can repair 10-24 inch wheels.
3.Remote control:If the wheel diamond cut machine has any problems, we can remote control it to solve the problems for you.
4.Remember function and wireless online: 24 inch wheel diamond cut machine LSB200 has remember function,so you only need scan oncetime for same wheels.
5.Software: Self-developed ”Gubotlathe” control software, and we will update it in 6 month, free update to the latest software.
6.Appearance: Our machine appearance is designed for wheel diamond cut machine, not change from other CNC machine. It has beautiful appearance and reasonable.
7.17 inch LCD touch screen, windows 7 operation system. Easy to operate.
8.Self-lubricating system.
9.Laser scanner: High precious and only two minutes to scan wheels surface.
10.Wheel repair is easy to learn, no need to program, It only need half day to study this machine for a new person.
11.Cost-effective, good quality with competitive price.

Recommend Products

Packing & Delivery

PACKAGE: We use the wooden pack the machine and it will be very safe to ship.And the machine will not be damaged during transportation. DELIVERY TIME: 3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.

Company Profile

Adhering to Gubot's concept of excellent quality, Shanghai Gubot always regards high technology as the foundation of its founding, and continuously strengthens its technology research and development, providing customized production solutions and supporting services for nearly 2,000 domestic and overseas automotive aftermarket partners . As a high-tech enterprise, the company has nearly one hundred patents, and its products have covered most of China's provinces and cities, and have entered Europe, North America, Oceania and other countries and regions, and have been highly recognized and trusted by customers.

After sale service

How to provide training after buying machine? 1.Come to our company and get training: We provide free training in our company,and it only need 1 days to study because the machine is pretty easy to study. 2.Sending the training video: If you don't have time come to china, we will send a video training to you. You will know how to operate the machine according to the video. We have had 1000 customers studying our machine according to this video. What should I do if the machine has problems? We provide one year warranty to you. If the machine has any problems or need to change the spare parts, we will express it to you by DHL within 3 days.

FAQ

Q: What size wheels can fit in the wheel diamond cut machine LSB300？
A: It can cut 10-24 inch wheels.

Q: How long does it take to repair a wheel?
A: It need 5-10 mins.

Q:What voltage is the wheel diamond cut machine LSB300?
A:We have 220V (single phase),380V(three phase). We also have 220V(three phase).

Q: How do you provide train?
A: We will send one video that will teach you how to operate the machine, and you also can come to china and we will have
professional engineer who teach you for free.

Q：If the wheel diamond cut machine has problems, what should i do?
A: We have a engineer team who will provide 24 hours service, if you meet any problems, our engineer will help you solve it by video call or phone.
