Product Description
Product Description

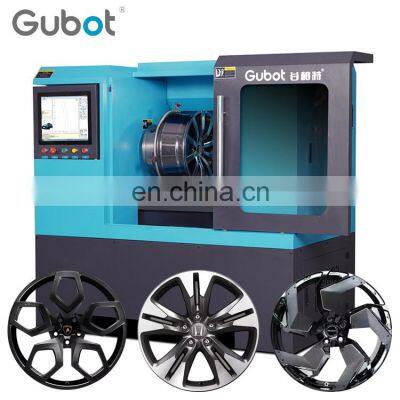

In order to meet the request for alloy wheel end-face repair, our company developed the lathe with special function for alloy wheel repairing. Detect the surface curve of alloy wheel and generate the machining program automatically, and using the diamond cutter to repair the wheel end-face. After scanner, the program will be automatically generated, it is very easy to operation, and the operator do not have to know everything on programming.
Specification
Items | Unit | Specifications |
Max.swing over bed | Mm | Ф700 |
Max. Size of alloy wheel | Inch | 24 |
Cutting feed speed (mm) | mm/min | 0.1-1800 |
Range of spindle speed | rpm | 50-2000 |
Spindle speed control | Automatic | |
Moving distance of x axisand Z axis | mm | (Z)long 800 (X)cross 700 |
Moving speed of X axisand Z axis | mm/min | (Z)long 18000 (X)cross 12000 |
Spindle Length | KW | 3 |
Moving track | Hign quality | Import rails |
Motor | Servo motor | |
Wheel positioning accuracy | mm | 0.01 |
Wheel positioning repeatedaccuracy | mm | 0.01 |
Weight | Kg | 2000 |
Size(L*W*H) | mm | 1820*1270*1700 |
Gubot alloy wheel repair machine:
1.The fixed central shaft mode is very stable during the high-speed rotation of the wheel.
2.It can repair not only the wheel , but also the brake disc.
3.Three jaw chuck is also available.
2.It can repair not only the wheel , but also the brake disc.
3.Three jaw chuck is also available.
Wheel Repair Machine LSB300 Advantages
1.Components: Use servo motor, it is stabler and low noise than stepper motor. And we use Panasonic high-precision infrared laserdetector.
2.The wheel diamond cut machine can repair 10-24 inch wheels.
3.Remote control:If the wheel diamond cut machine has any problems, we can remote control it to solve the problems for you.
4.Remember function and wireless online: 24 inch wheel diamond cut machine LSB200 has remember function,so you only need scan oncetime for same wheels.
5.Software: Self-developed ”Gubotlathe” control software, and we will update it in 6 month, free update to the latest software.
6.Appearance: Our machine appearance is designed for wheel diamond cut machine, not change from other CNC machine. It has beautiful appearance and reasonable.
7.17 inch LCD touch screen, windows 7 operation system. Easy to operate.
8.Self-lubricating system.
9.Laser scanner: High precious and only two minutes to scan wheels surface.
10.Wheel repair is easy to learn, no need to program, It only need half day to study this machine for a new person.
11.Cost-effective, good quality with competitive price.
2.The wheel diamond cut machine can repair 10-24 inch wheels.
3.Remote control:If the wheel diamond cut machine has any problems, we can remote control it to solve the problems for you.
4.Remember function and wireless online: 24 inch wheel diamond cut machine LSB200 has remember function,so you only need scan oncetime for same wheels.
5.Software: Self-developed ”Gubotlathe” control software, and we will update it in 6 month, free update to the latest software.
6.Appearance: Our machine appearance is designed for wheel diamond cut machine, not change from other CNC machine. It has beautiful appearance and reasonable.
7.17 inch LCD touch screen, windows 7 operation system. Easy to operate.
8.Self-lubricating system.
9.Laser scanner: High precious and only two minutes to scan wheels surface.
10.Wheel repair is easy to learn, no need to program, It only need half day to study this machine for a new person.
11.Cost-effective, good quality with competitive price.
Recommend Products
FAQ
Q: What size wheels can fit in the wheel diamond cut machine LSB300？
A: It can cut 10-24 inch wheels.
Q: How long does it take to repair a wheel?
A: It need 5-10 mins.
Q:What voltage is the wheel diamond cut machine LSB300?
A:We have 220V (single phase),380V(three phase). We also have 220V(three phase).
Q: How do you provide train?
A: We will send one video that will teach you how to operate the machine, and you also can come to china and we will have
professional engineer who teach you for free.
Q：If the wheel diamond cut machine has problems, what should i do?
A: We have a engineer team who will provide 24 hours service, if you meet any problems, our engineer will help you solve it by video call or phone.
A: It can cut 10-24 inch wheels.
Q: How long does it take to repair a wheel?
A: It need 5-10 mins.
Q:What voltage is the wheel diamond cut machine LSB300?
A:We have 220V (single phase),380V(three phase). We also have 220V(three phase).
Q: How do you provide train?
A: We will send one video that will teach you how to operate the machine, and you also can come to china and we will have
professional engineer who teach you for free.
Q：If the wheel diamond cut machine has problems, what should i do?
A: We have a engineer team who will provide 24 hours service, if you meet any problems, our engineer will help you solve it by video call or phone.
