Brand New Mini Bulldozer Chinese Bulldozers SD13 Prices With Various Types

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product description

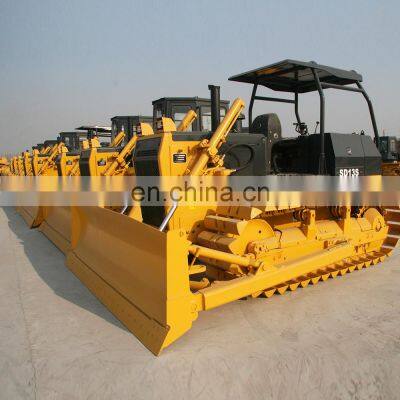

Brand New Mini Bulldozer Chinese Bulldozers SD13 Prices With Various Types

* Power System:
* Strong power, high efficiency and energy-saving, and low maintenance cost.
* The rated power reaches 105kW, featuring high torque reserve coefficient.
* The improved air filter and intake and exhaust system guarantee up to 99% filtration

accuracy to effectively prolong the engine life.

*Drive system:
* The curves of drive system and engine are perfectly matched to achieve more extensive

high-efficiency zone and higher transmission efficiency.
* Homemadeself-made drive system features stable performance and reliable quality and has

been long proved by the market

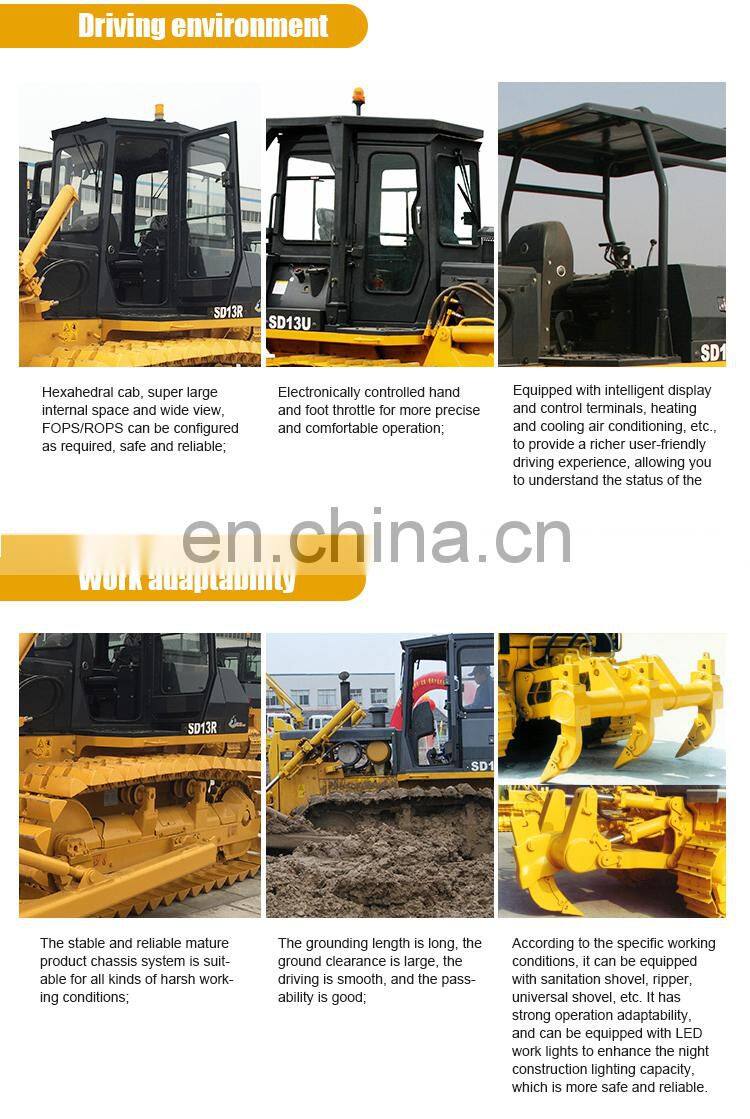

* Driving/Riding Environment
* The hexahedral cab provides super-large interior space and broad vision and the

ROPS/FOPS can be installed depending on specific needs to ensure high safety and

reliability.

* The electronic control hand and foot accelerators guarantee more accurate and comfortable

operations.
* The intelligent display and control terminal and the A/C and heating system are installed to

provide more abundant personalized driving/riding experience and enable you to understand

system status at any time, featuring high intelligence and convenience.

*Working adaptability
* Homemademature product chassis system is applicable to diversified severe working

conditions, featuring high stability and reliability.

* The product features long ground length, high ground clearance, stable driving, and good

trafficability.

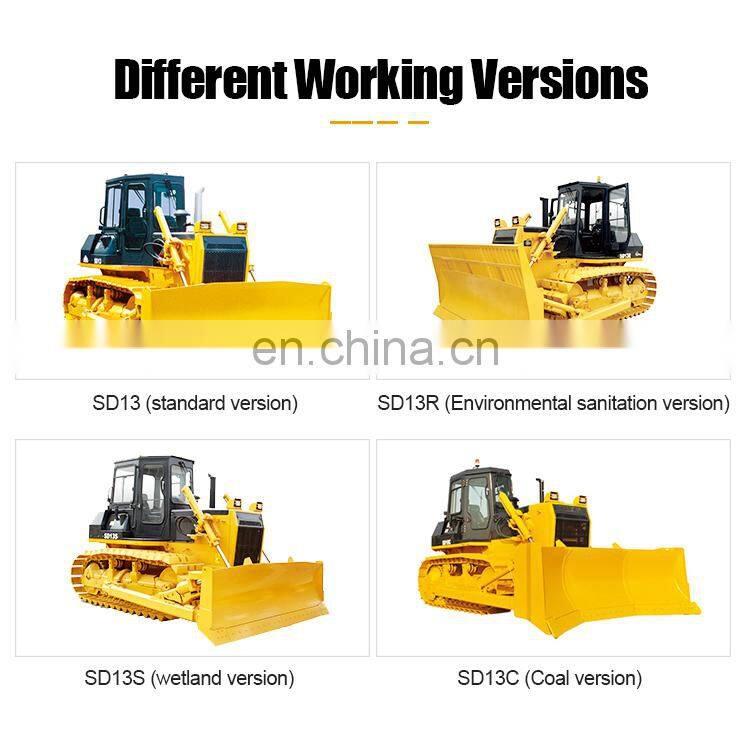

* The environmental sanitation blade, ripper, and universal blade can be installed depending

on specific working condition to achieve strong working adaptability. The optional LED

working lamps improve the illumination capability during nighttim operations to achieve

higher safety and reliability.

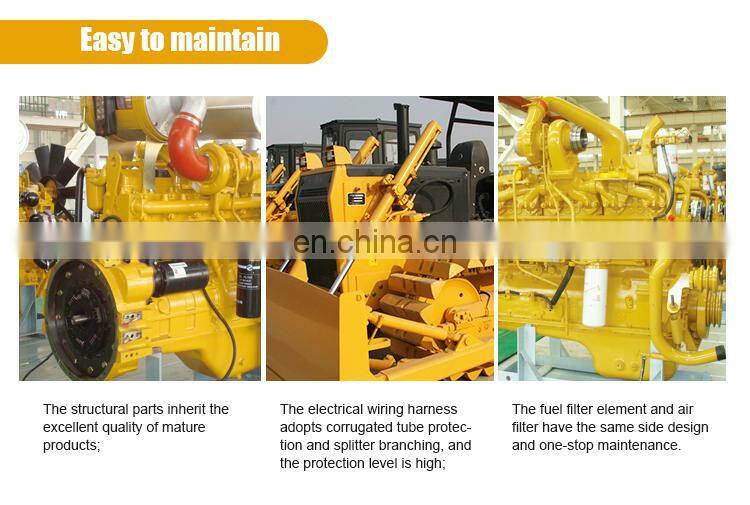

* Easy maintenances
* The structural parts inherit the excellent quality of homemademature products;
* The electric harnesses adopt corrugated pipes for protection and deconcentrators for

branching, featuring high protection grade.

* The fuel filter element and the air filter are designed on one same side to achieve one-stop maintenances.

Technical Parameters

SD13 Bulldozer
PRODUCT				SD13

PERFORMANCE PARAMETERS	Operatiing Weight (kg)		13700
		Rated horsepower (kw/hp)		105/130
		Minimum turning radius (mm)		3880
		Ground pressure (kpa)		53.8
ENGINE	Model		SC8D143G2B1
		Emission		China II
		Type		In-line,direct injection,water cooled,4-cycles,turbocharged
		No.of cylinders×Bore×stroke (mm×mm)		6×114×135
		Piston displacement (L)		8.27
		Horsepower/rpm (kw/rpm)		105/1900
		Maximum torque (N.m/r/min)		674/1300
DIMENSIONS	Length(mm)		4492
		Width(mm)		3185
		Height(mm)		2950
TRAVELING PERFORMANCE	Forward/Reverse(km/h)		F1:0-3.2 F2:0-5.9 F3:0-9.8 R1:0-3.9 R2:0-7.1 R3:0-11.9
		Gradeability(deg)		30
		Clearance(mm)		320
TRANSMISSION	Torque convertor		3-element, single stage, 1-phase
		Gear box		Planetary gear and powershift transmission, hydraulically actuated, forced lubrication
		Main drive		Spiral bevel gear, single-stage speed reduction, splash lubrication
		Steering clutch		Wet multiple disc,coned disc spring loaded, hydraulically actuated, hand operated,interconnected with steering brake
		Brake		Wet, contracting band,foot operated with hydraulic booster
		Final driver		spur gear,double reduction ,splash lubrication
UNDERCARRIAGE	Suspension		Swing type of sprayed beam,suspended structure of equalizer bar
		Track gauge (mm)		1880
		Shoe width (mm)		460
		Track length on ground (mm)		2365
		Number of shoes (each side)		38
		Pitch (mm)		190
		Carrier rollers (each side)		2
		Track rollers (each side)		6
WORKING HYDRAULIC SYSTEM	Pressure(Mpa)		14
		Working pump		Gear pump
		Valve		Multi-way valve
		Bore of blade lift cylinder (mm)		φ90
		Bore of blade tilt cylinder (mm)		φ160
TANK CAPACITY	Fuel tank capacity (L)		300
		Working hydraulic tank capacity (L)		70
WORKING EQUIPMENT	Blade width (mm)		3185
		Blade height (mm)		1090
		Blade capacity (m³)		3.7
