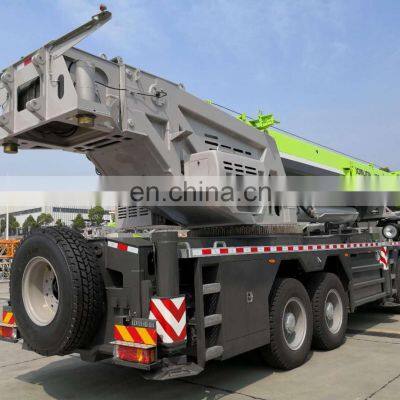

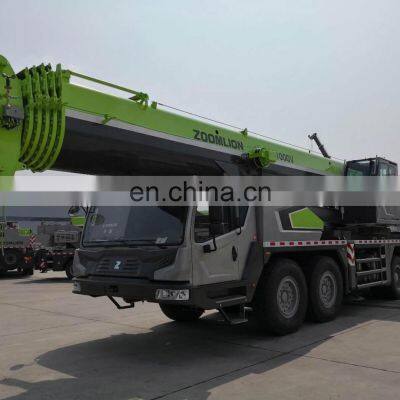

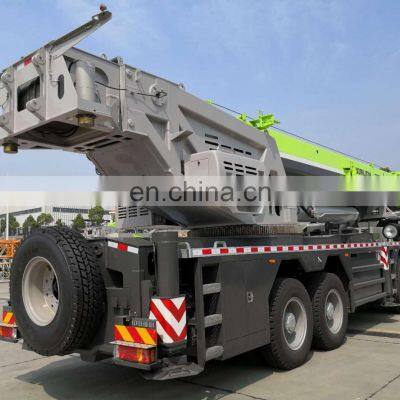

Zoomlion 100 Ton Pickup Truck Crane With Cable Winch ZTC1000

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

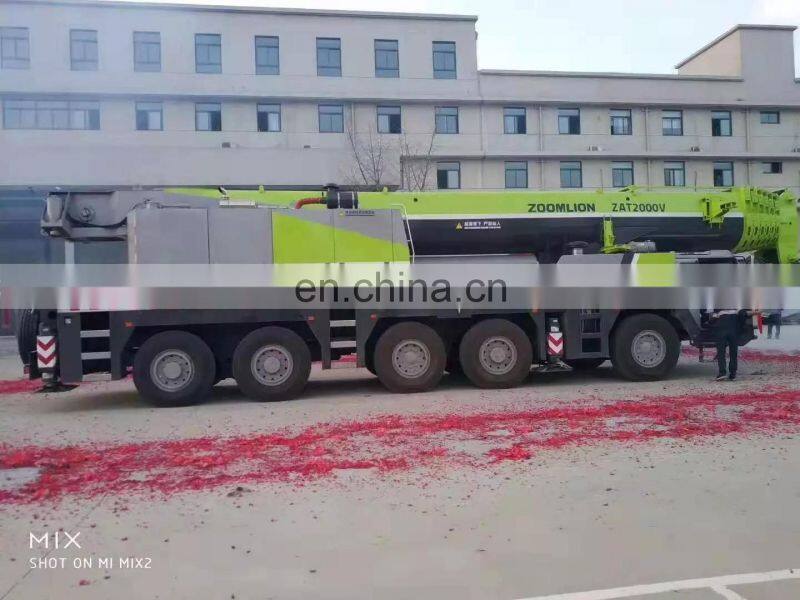

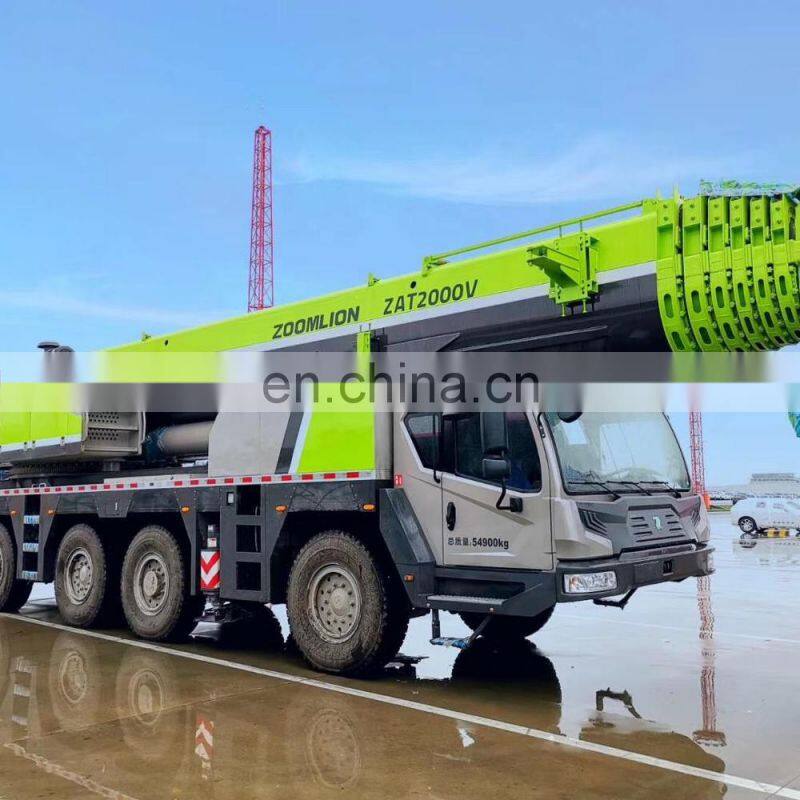

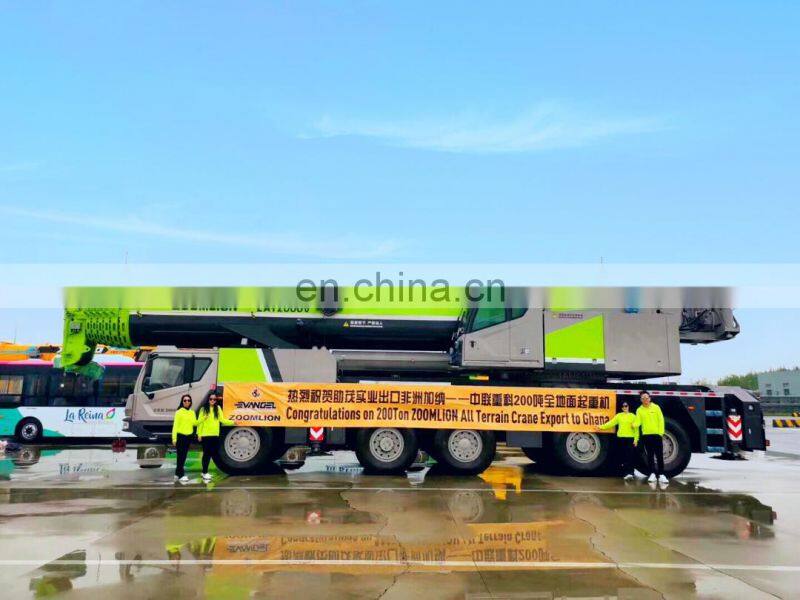

ZOOMLION 200 ton all terrain crane ZAT2000V with 300 ton ZAT3000V crane all terrain hot sale in Africa

Product Description

Specification:
Four axles (1 & 2 for turning, 3 & 4 for driving), HANDE brand,
Weichai engine 276kW,
Fast brand transmission,
6-section main boom (13.6-64m),
2-section jibs (17.5m),
A/C for carrier and crane,
45t removable balance weight,
70t, 25t, 7t hooks.

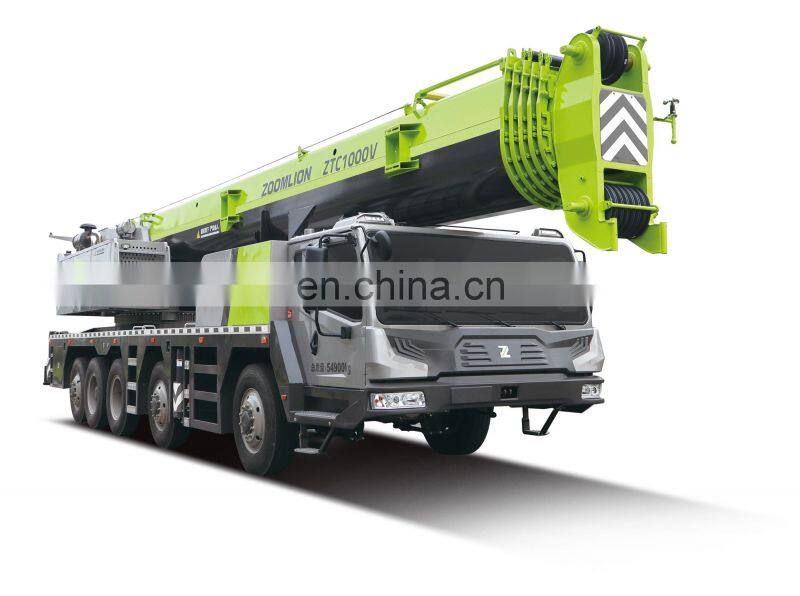

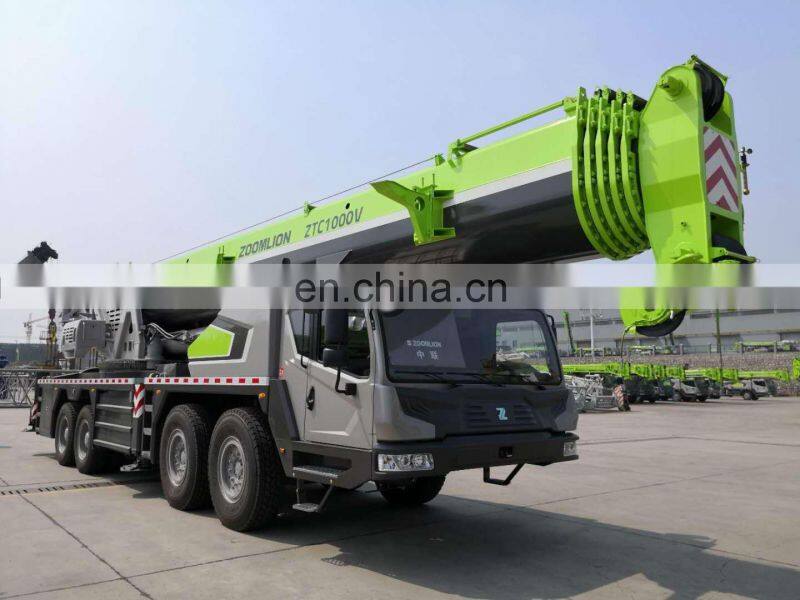

ZTC1000V653 truck crane is our experience and advanced technology for adapting to market demand. A new generation of high performance products developed by the main. This product is a highly concentrated high-tech product of electro-hydraulic systems. It will be distinguished by its excellence. Active control, economical construction, excellent micro-motion performance, huge lifting capacity and extraordinary lifting height. Various areas. This product is suitable for lifting operations in chemical, mining, oil fields, port terminals, construction sites and other places. Installation work. This product is not suitable for areas with strong electromagnetic waves.

This product is a full-slewing, telescopic boom-type, electro-hydraulic proportional control truck crane, which is made by our company.Full-drive four-bridge dedicated chassis, wide view, luxurious and comfortable decoration, 8×4 drive, hydraulic power steering, light and flexible.

Adopts the latest load-feedback electro-hydraulic proportional directional control valve and multi-plunger variable displacement pump, open and closed combined variables. The system makes the working capacity of each actuator fully exerted, and the double rocker is operated, which can realize the main and auxiliary lifting, variable amplitude, rotation, The combined action between the telescopic mechanisms greatly improves the working efficiency of the crane. Lightweight, flexible, and easy to operate. It is characterized by smooth and reliable, stepless speed regulation. In the hydraulic system, there are relief valves, balancing valves, hydraulic locks, brake valves, etc. Safety devices to prevent overloading of the oil circuit and to avoid accidents caused by oil pipe rupture.

The crane is equipped with a variety of safety devices such as a torque limiter and a complete lighting system to ensure safe operation. Rely on, and easy to work at night. The product is novel in shape, with a beautiful body, a beautiful line and a beautiful color.

Item	Value	Remarks
Work performance	Max. rated lifting capacity kg	10000
	Max. load moment of basic boom kN.m	4410
	Max. load moment of main boom (fully extended) kN.m	2328
	Max. lifting height of basic boom m	14.0
	Max. lifting height of main boom m	64.5
	Max. lifting height of jib m	82.2 / (89.2)
Work speeds	Max. hoist rope speed (Main winch) m/min.	115
	Max. hoist rope speed (Auxiliary winch) m/min.	90
	Boom derricking up time s	70
	Boom extending time s	13
	Max. slewing speed r/min.	1.5
Driving
	Max. driving speed km/h	85
	Max. gradeability %	45
	Min. turning diameter m	24
	Min. ground clearance mm	330

	Fuel consumption per hundred kilometers L	46
Mass	Deadweight in driving condition kg	50000
	Complete vehicle kerb mass kg	49805
	Load on axles 1 and 2 kg	24000
	Load on axles 4 and 5 kg	26000

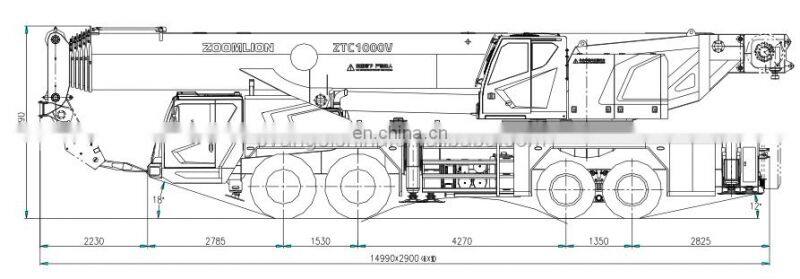

Dimensions	Overall dimensions (L × W × H) mm	14990x2900x3990
	Outrigger spread (L) m	6.53
	Outrigger spread (W) m	7.8 (fully extended), 5.6 (intermediately extended)
	Main boom length m	13.6~64.0
	Boom angle °	-0.5~82
	Jib length m	10.4 ,17.5
	Jib + extension length m	24.5
	Offset °	0, 15, 30
Engine	Engine model	WP12.375E50
	Rated power	276kW/1900r/imn
	Rated torque	1800N.m/(1000-1400)r/min
