ZOOMLION 20/22m Telescopic Boom Aerial Work Platform ZT20J With CE for Sale
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
25t Hydraulic Mobile Truck Crane QY25K5-I Euro V and Five-section Main Boom 39.5m
-
2021 New Model Truck Crane ZOOMLION 55 Ton 5 Section Boom Crane ZTC551V552
-
ZOOMLION 25t Truck Crane ZTC250A552
-
25 Ton Zoomlion Truck Crane Stc250 ZTC250V451.1 Price Sale in China
-
Chinese Factory Zoomlion Truck Crane 50 Ton Zoomlion Cranes ZTC500v Price For Sale
-
Zoomlion 50T Truck Crane ZTC500 With Best Price
Product Description
ZOOMLION 20/22m telescopic boom aerial work platform ZT20J with CE for sale
Product Description

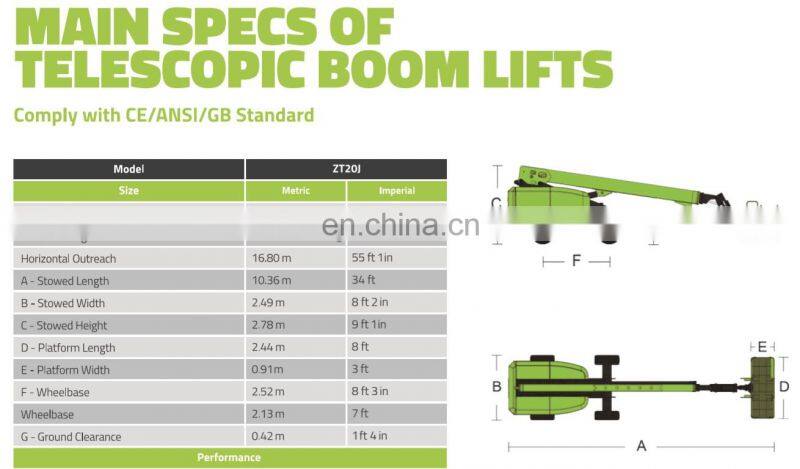

| Main Specs of Telescopic Boom Lifts | |||
| Comply with CE/ANSI/GB Standard | |||
| Model | ZT34J | ZT26J | ZT20J |
| Size | |||
| Work Height | 36m | 28.20m | 22.75m |
| Platform Height | 34m | 26.20m | 20.75m |
| Horizontal Outreach | 23.50m | 22.71m | 16.80m |
| A - Stowed Length | 13.50m | 12.5m | 10.36m |
| B - Stowed Width | 2.49m | 2.49m | 2.49m |
| C - Stowed Height | 3m | 2.80m | 2.78m |
| D - Platform Length | 2.44m | 2.44m | 2.44m |
| E - Platform Width | 0.91m | 0.91m | 0.91m |
| F - Wheelbase | 3.80m | 3.05m | 2.52m |
| Wheelbase | 2.05/3.41m | 2.11m | 2.13m |
| G - Ground Clearance | 0.41m | 0.40m | 0.42m |

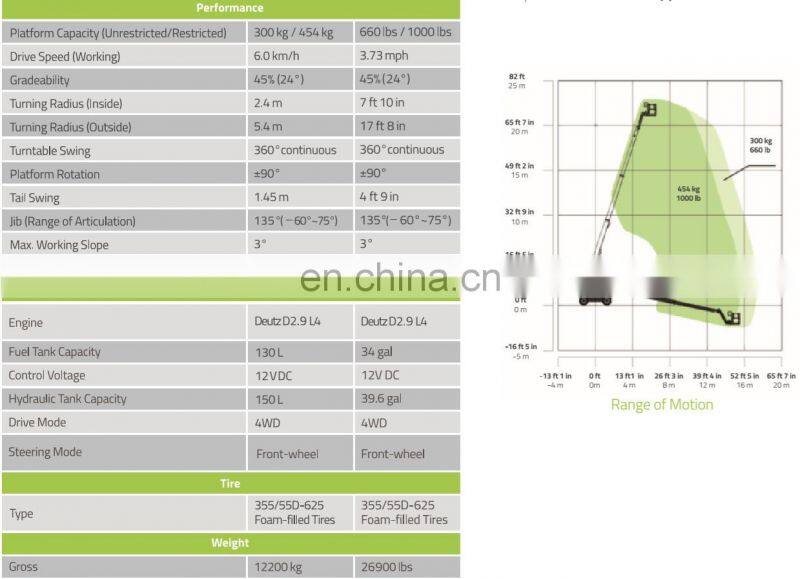

| Performance | |||
| Platform Capacity (Unrestricted/Restricted) | 300/454kg | 300kg/454kg | 300kg/454kg |
| Drive Speed (Working) | 5.5km/h | 5.5km/h | 6.0km/h |
| Gradeability | 45%(24°) | 45% (24°) | 45% (24°) |
| Turning Radius (Inside) | 2.80m | 3.66m | 2.4m |
| Turning Radius (Outside) | 5.70m | 6.86m | 5.4m |
| Turntable Swing | 360°continuous | 360°continuous | 360°continuous |
| Platform Rotation | ±90° | ±90° | ±90° |
| Tail Swing | 1.88m | 1.60m | 1.45m |
| Jib (Range of Articulation) | 130° | 130° | 135° |
| Max. Working Slope | 3° | 3° | 3° |
| Max. Wind Speed | 12.5m/s | 12.5m/s | 12.5m/s |
| Power | |||
| Engine | Ko-hler KDI2504TCR | DEUT Z TD2.9 L4/CUM-MIN QSF2.8 | Deu-tz D2.9L4 |
| Fuel Tank Capacity | 200L | 150L | 130L |
| Control Voltage | 12V DC | 12V DC | 12V DC |
| Hydraulic Tank Capacity | 250L | 150L | 150L |
| Drive Mode | 4WD | 4WD | 4WD |
| Steering Mode | Front-wheel/Rear-wheel/Crab | Front-wheel | Front-wheel |
| Tire | |||
| Type | IN445/50D710 Foam-filled Tires |
15-625 Foam-filled Tires | 355/55D-625 Foam-filled Tires |
| Weight | |||
| Gross | 19200kg | 18900kg | 12200kg |
