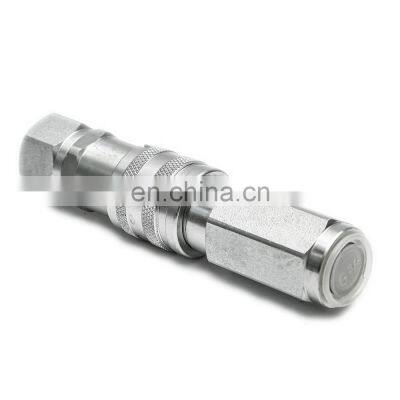

Made in China Female and Male Carbon Steel 1/2 Inch ISO 166028 Hydraulic Quick Coupling for Tractor
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
1/2 Inch Body Size 3/4 Inch Thread ISO 16028 Flat Face Type Hydraulic Quick Coupling for Skid Steer Loader
-
Hot Sale ISO7241-A 1/2 Inch NPT Thread Skid Steer Flat Face Hydraulic Quick Connect Couplers Couplings Set
-
Factory Direct Supply 1/2 Inch BSP Thread Flat Face Hydraulic Quick Connect Couplers for Skid Steer Bobcat
-
High Quality 1/2 Inch Agricultural Hydraulic Quick Connect Needle Type Coupling Set ISO 7241-A BSP Thread
-
Factory Direct Supply Flat Face Type 1/2 Inch ISO 16028 Hydraulic Quick Release Coupling for Skid Steer Loader
-
High Precision Poppet Type Female and Male 1/2 Inch ISO 7241-A ANV Hydraulic Quick Coupling for Tractor
Product Description
Product Description

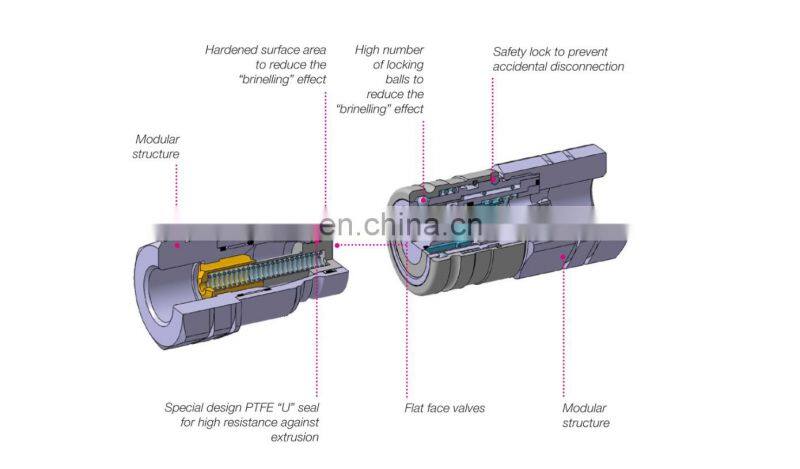

FF series is the evolution of Free Fit technology and quality applied to flat face couplings. The series has a internal design combined with a high resistance material to allow the achievement of higher operating pressure and minimal pressure drop. The modular structure allows the flexibility to offer several types of threads or special ports in order to satisfy diverse applications while maintaining a compact dimension. These features make FF series couplings the leader in many hydraulics applications where high performance is necessary with the elimination of fluid loss and contamination in the circuit.

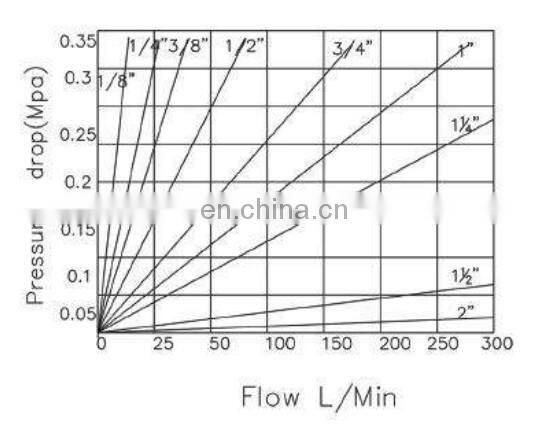

Specifications
Technical datas | ||||||||||||||||||
Body size(inch) | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |||||||||
Rated pressure(Mpa) | 35 | 35 | 35 | 35 | 30 | 25 | 25 | 25 | 20 | |||||||||
Rated flow(L/min) | 12 | 15 | 30 | 50 | 90 | 125 | 185 | 370 | 750 | |||||||||
Temperature range(polyurethane) | -25 ℃ to +125 ℃ | |||||||||||||||||
PART NO | ISO | A and E | L | B | C | H | D | X | Y |
FF-01C-18BSP-SP | 3.2 | G1/8 | 68.5 | 40 | 36.5 | 11.6 | 20 | 19 | 17 |
FF-02C-14BSP-SP | 6.3 | G1/4 | 108 | 58.5 | 60 | 16.1 | 27 | 24 | 24 |
FF-03C-38BSP-SP | 10 | G3/8 | 134 | 73 | 77 | 19.7 | 30 | 27 | 27 |
FF-04C-12BSP-SP | 12.5 | G1/2 | 142 | 81 | 75 | 24.5 | 38 | 34 | 34 |
FF-06C-34BSP-SP | 16 | G3/4 | 169 | 92 | 91 | 27 | 42 | 38 | 38 |
FF-08C-1BSP-SP | 19 | G1 | 180 | 100 | 102 | 29.9 | 48 | 41 | 41 |
FF-10C-114BSP-SP | 25 | G1-1/4 | 186 | 100 | 106 | 36 | 55 | 55 | 55 |
FF-12C-112BSP-SP | 32 | G1-1/2 | 213 | 118 | 122.5 | 57.05 | 80 | 70 | 70 |
FF-16C-2BSP-SP | 48 | G2 | 251 | 149 | 139.5 | 72.9 | 100 | 80 | 80 |

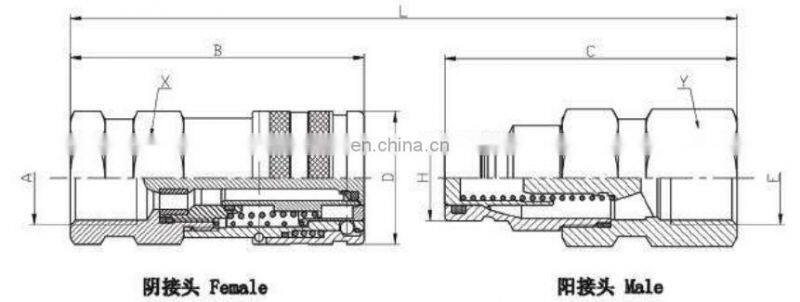

Drawings

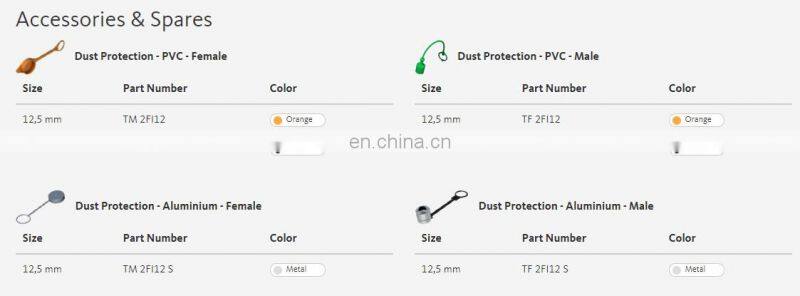

Accessories

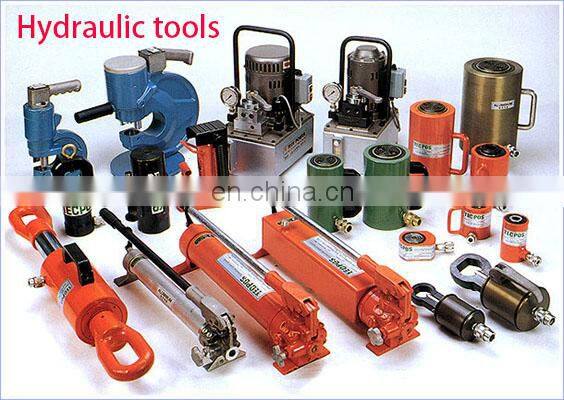

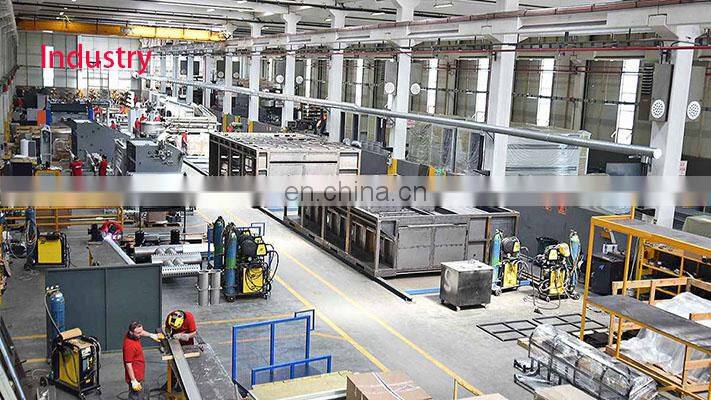

Application
Why Choose Us

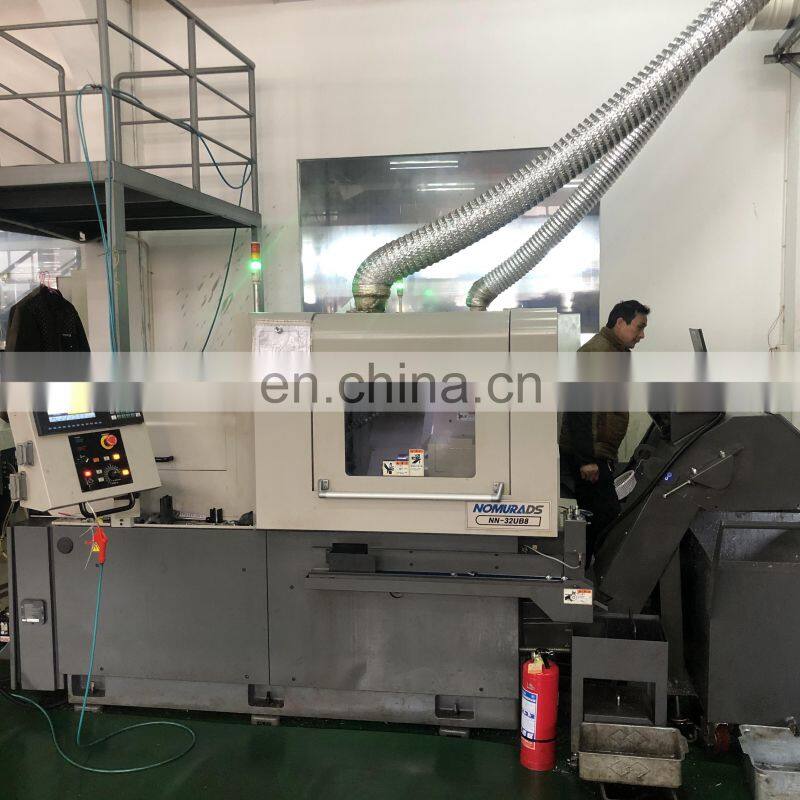

Company Profile
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
