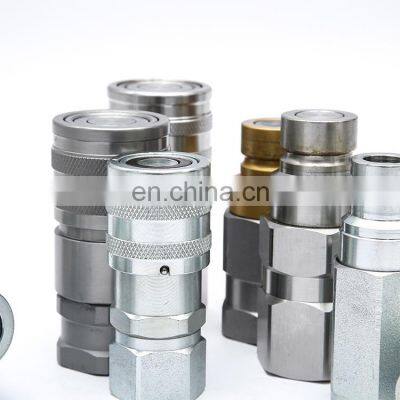

integrated flat face cartridge quick couplings suitable for hydraulic multiconnections and manifolds
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Construction Machinery Parts for Bobcat skid steer loader integrated flat face cartridge couplings
-
7246777 Replacement Coupler Connect Under Pressure Self-aligning flat face couplings
-
ISO 16028 interchange Flat face 7411976 male flat face hydraulic quick coupler
-
Construction Machinery Parts 7246798 Replacement Hydraulic 3/8'' male Flat Face Quick Coupler
-
High quality OEM Service provide flat face 1/2 inch ISO 16028 hydraulic quick coupling for skid steer loader
-
Female and male carbon steel stainless steel 3/8 ball type HPA hydraulic quick release coupling for tractor
Product Description
Product Description
FF series is the evolution of Free Fit technology and quality applied to flat face couplings. The series has a internal design combined with a high resistance material to allow the achievement of higher operating pressure and minimal pressure drop. The modular structure allows the flexibility to offer several types of threads or special ports in order to satisfy diverse applications while maintaining a compact dimension. These features make FF series couplings the leader in many hydraulics applications where high performance is necessary with the elimination of fluid loss and contamination in the circuit.
Specifications
Technical datas | ||||||||||||||||||
Body size(inch) | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |||||||||
Rated pressure(Mpa) | 35 | 35 | 35 | 35 | 30 | 25 | 25 | 25 | 20 | |||||||||
Rated flow(L/min) | 12 | 15 | 30 | 50 | 90 | 125 | 185 | 370 | 750 | |||||||||
Temperature range(polyurethane) | -25 ℃ to +125 ℃ | |||||||||||||||||
PART NO | ISO | A and E | L | B | C | H | D | X | Y |
FF-01C-18BSP-SP | 3.2 | G1/8 | 68.5 | 40 | 36.5 | 11.6 | 20 | 19 | 17 |
FF-02C-14BSP-SP | 6.3 | G1/4 | 108 | 58.5 | 60 | 16.1 | 27 | 24 | 24 |
FF-03C-38BSP-SP | 10 | G3/8 | 134 | 73 | 77 | 19.7 | 30 | 27 | 27 |
FF-04C-12BSP-SP | 12.5 | G1/2 | 142 | 81 | 75 | 24.5 | 38 | 34 | 34 |
FF-06C-34BSP-SP | 16 | G3/4 | 169 | 92 | 91 | 27 | 42 | 38 | 38 |
FF-08C-1BSP-SP | 19 | G1 | 180 | 100 | 102 | 29.9 | 48 | 41 | 41 |
FF-10C-114BSP-SP | 25 | G1-1/4 | 186 | 100 | 106 | 36 | 55 | 55 | 55 |
FF-12C-112BSP-SP | 32 | G1-1/2 | 213 | 118 | 122.5 | 57.05 | 80 | 70 | 70 |
FF-16C-2BSP-SP | 48 | G2 | 251 | 149 | 139.5 | 72.9 | 100 | 80 | 80 |
Accessories
Application
Why Choose Us
Related Products
Company Profile
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
