Product Description

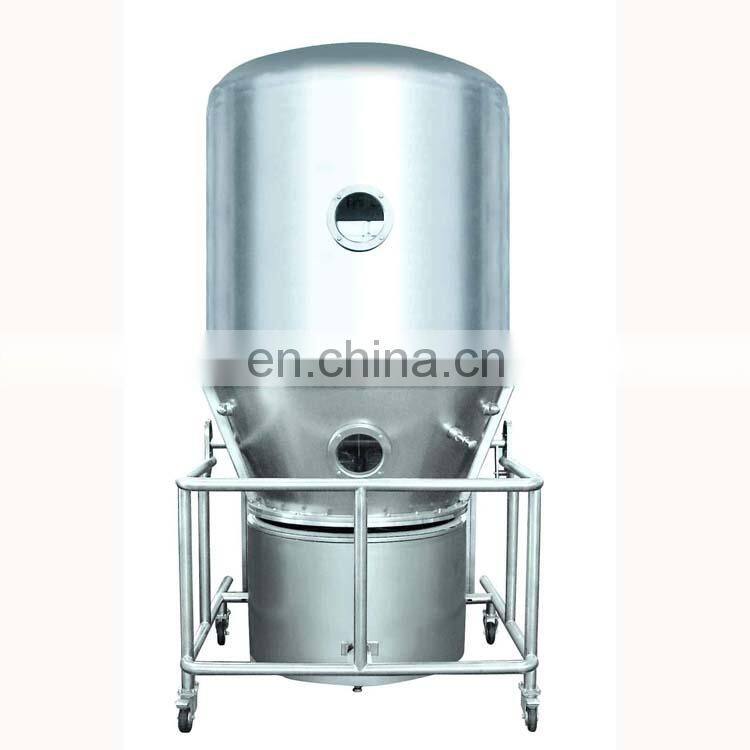

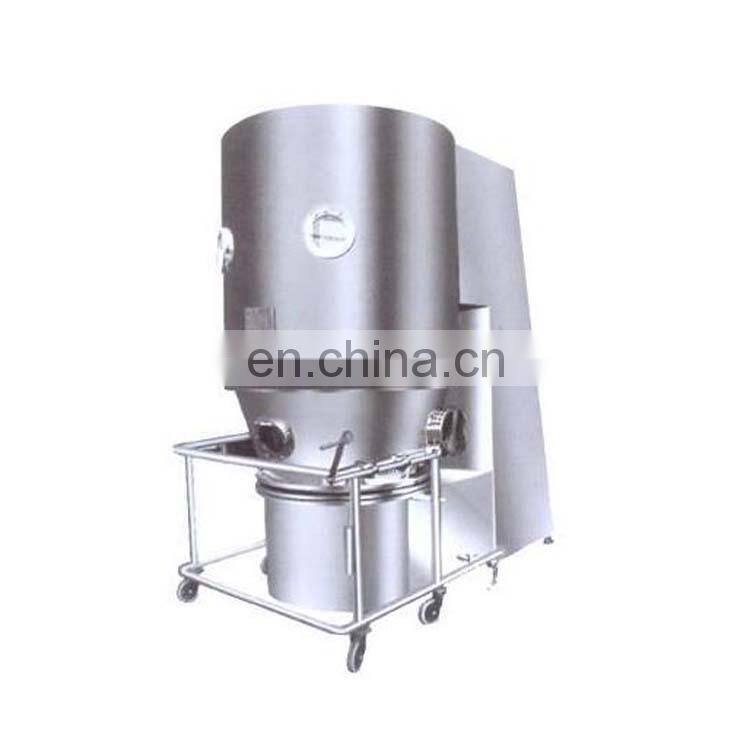

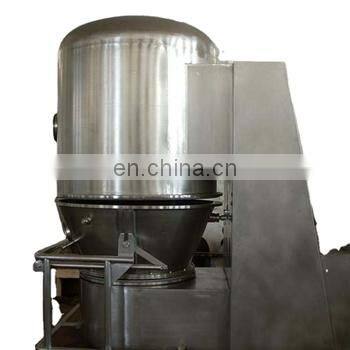

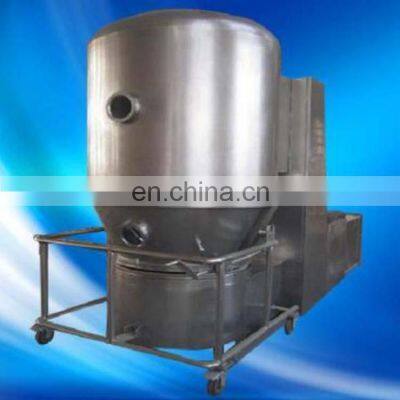

Hot Sale gfg model high efficient fluid bed dryer

WORKING PRINCIPLE The purified and heated air is introduced from the bottom by the draft fan and passed through the screen plate. The fluidization is formed through stirring and negative pressure in the working room. The moisture will be rapidly evaporated and exhausted so the material can be dried very fast. FEATURES 1. The structure of fluidization bed is round so it is smooth inside without cleaning dead corners. 2. There is a stirring device inside of the hopper which can avoid agglomeration of wet material. 3. The granule is discharged by tipping over the hopper. The discharged system can be designed as per customer requirements. 4. The dryer is operated at the negative pressure and seal conditions. The air is filtered before enters to the dryer. Therefore, it is simple in operation and convenient in cleaning. 5. The drying speed is fast and the temperature is uniform. The drying time is normally 20~30 minutes for each batch. APPLICATION

This dryer is widely used for the following materials:

1. Damp granules and powder materials in pharmaceutical, foodstuff, feed, chemical, and agrochemical industries. 2. Granules made by extruder, oscillating granulator, and high speed mixing granulator. 3. Special large granule and small blocks that having adhesive property. 4. The material that changes volume during drying process; such as konjak.

Specification

Item	Model
Feeding Capacity(kg)	60	100	120	150	200	300	500
Fan Power(kw)	7.5	11	15	18.5	22	30	45
Stirring Power (kw)	0.55	1.1	1.1	1.1	1.1	1.5	2.2
Stirring Speed (rpm)	8～11
Steam Consumption (kg/h)	141	170	170	240	282	366	451
Working Time(min)	15-30（According to the material properties）
Dryer Height(mm)	2700	2900	2900	2900	2900	3300	3500

Packing & Delivery

Company Profile

Changzhou Haomai Drying Engineering Co., Ltd. Specializes in Spin flash dryers, centrifugal spray drying equipment, vibrating fluid bed dryers and other equipment R & D, manufacturing, business and related export services. The factory is located in Sanhekou industrial park, Zhenglu town, Changzhou City, Jiangsu Province. Over the years the design of equipment involved in pharmaceuticals, chemicals, pesticides, electronics, mining, food, dyes, pigments and other areas, and sell our products throughout the whole country. Haomai not only with work experience in a group of more than a decade of lean engineering and technical personal and senior management, but also has a number of excellent production staff. Their research, design, service and so has an excellent ability for many years they concentrated on studying in practice wrap-up, God help those who help themselves, a deep understanding of effective guarantee for the quality of customers' products. Facing with the global energy conservation issue, facing the fierce market competition, Haomai people do not pursue the company's output value and profit maximization, but seek the best product quality. Good quality is our goal and direction of success. Energy conservation is the secret weapon for us to stand out from the crowd. The most energy-saving equipment is also the social responsibility of our heroic people. Over the years, the equipment we designed has achieved good economic and social benefits in various industries. In the face of the past, we are not satisfied; we are working hard to move toward higher goals.

FAQ

Q: Where is your factory? A: We are located in Changzhou City which about 150km away from Shanghai. Q: What’s the quality control procedure? A:We have an experienced technical team to support and provide solutions to meet the project requirements of our clients. We are certified with ISO9001 quality management system. We are following a strict quality control procedure to ensure the product quality. Q: What is the warranty period? A: 24 hours timely response of mail and phone calls. The warranty period for non-artificial damage is 1 year after delivery of goods. Q: What is the payment term? A: Our regular payment term is: 30% TT in advance, 70% TT before shipment. Q: Does your price include freight? A: Our usual price is based on FOB Shangha. We can provide CIF quote upon request.
