JYG Hollow Paddle Dryer for Sludge/sewage Sludge
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
Product Description
Our service:
Our 24hr-online
WeChat/WhatsApp: +86-13915098637
Skype: merrymiao37
Company Profile
Changzhou Jiacheng Drying Equipment Co., Ltd is founded in 2015, it is a professional manufacturer engaged in the research, development, production, sales and service of drying equipment, providing a variety of drying machine. The company is located in Changzhou City, Jiangsu Province with convenient transportation.
Our new factory is located in Zhenglu Industrial Park, Changzhou City, Jiangsu Province, China. It's only 3 kilometers from downtown and it tightly close to east-ring elevated road of Changzhou and Hengshanqiao Exit of Shanghai-Nanjing Expressway.
Our company owns a 8000m2 composite comprehensive office building, for the 2 large-scale modern machinery heavy-duty manufacturing workshop which covers an area of 5000 square meters are equipped with sheet metal cold processing equipment, 30 sets of welding machine and other special processing machines. We have abundant technical force: a number of top professional talent which have above 15 years professional experience in drying industry engaged in design, mechanical drawing, electrical automation edit etc. We actively participate in international market competition.
Due to our well grounded, rich project management experience and advanced site construction technology, we obtained good performance and well-known reputation. Welcome all the customers can guide and visit our factory in the future.

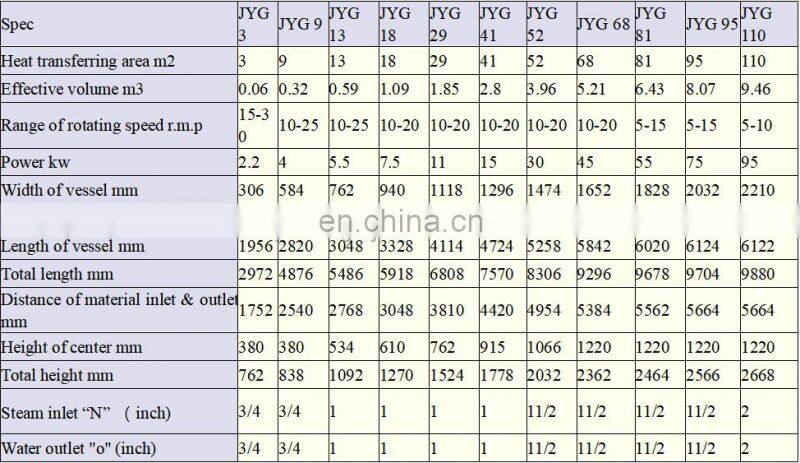

Specification
item | value |
Type | Paddle Dryer |
Application | Medicine Processing, Chemicals Processing, Food Processing |
Condition | New |
Place of Origin | China |
Jiangsu | |
Voltage | 220V |
Power | 2.2-95kw |
Dimension(L*W*H) | Based on different model |
Certification | CE |
Key Selling Points | Multifunctional |
Warranty | 1 Year |
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service | |
Weight (KG) | 450 |
After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
Applicable Industries | Food & Beverage Factory, Farms, Food Shop, Energy & Mining, Food & Beverage Shops, Other, Pharmaceutical Industry |
Local Service Location | None |
Showroom Location | None |
Marketing Type | Hot Product 2019 |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Bearing, Pump, Gear, Motor, Gearbox, Engine, Pressure vessel |
Evaporation Capacity(kg/h) | Based on different model |
Heating Method | Heating source can be customized |
Material | SUS304, SUS304L, Other |
Product Description

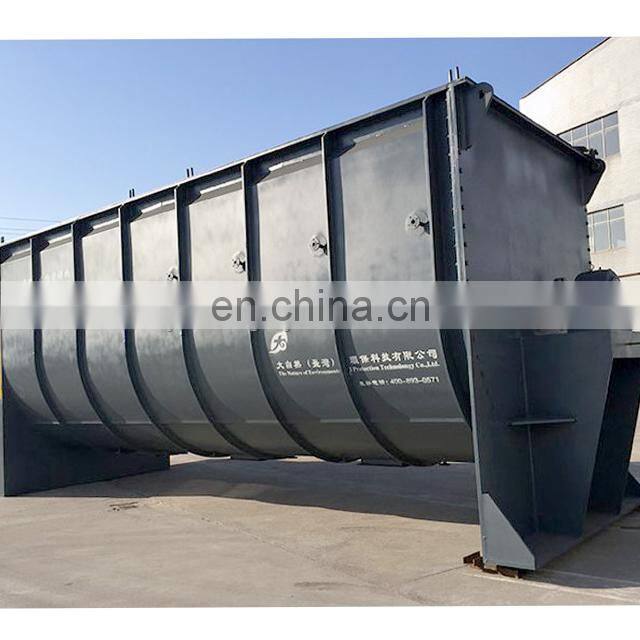

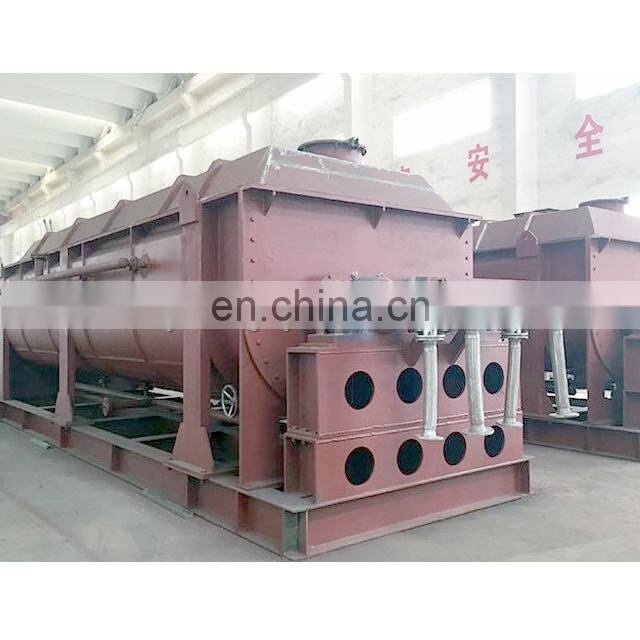

Descriptions of Hollow Paddle Dryer for sludge/sewage sludge
Applicable for drying or cooling of paste, particle, powder and slurry state of material, perform the process of drying, cooling, heating, sterilizing, reacting and combustion under low temperature. The special stirring and heating transferring blade, makes
high heat transferring efficiency, and provide self-cleaning function. The special chock shaped stirring and heat transferring blade has high heating efficiency and self-cleaning function of the heating transferring surface.

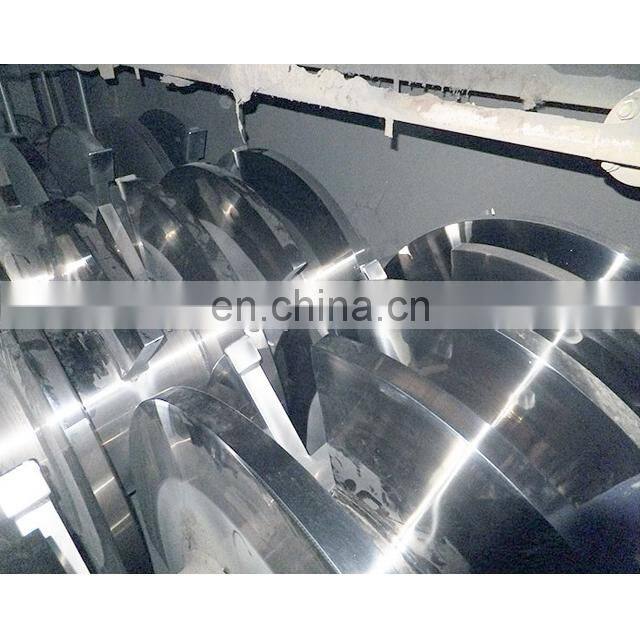

Hollow chock shaped blades are concentrated on the hollow shaft. Heat media flow through the blade from the hollow shaft. The heat transferring area in the effective volume is very high. The temperature range of heating media is -40 ℃ to 320 ℃. It might be steam, or liquid state, such as steam, thermal oil etc. Indirect heating, there's no heat carried out by air. All heat is utilized
for to drying the material except the lost of heat insulation layers. The surface of chock shaped blade has self-cleaning function. The relative movements of the product particles and the chocked shaped surface might clean the material attached to the
chock shaped surface, so to keep the cleanliness of heat transferring surface during working. The shell of hollow blade dryer is Ω shape. 2 or 4 pieces of hollow stirring shaft are usually equipped in the shell. To avoid any leakage of material, there're sealed
terminal cover and top cover with the shell. The heat transferring media flow through the rotation connector, jacket's shell and hollow stirring shaft. To ensure best transferring effect, the hollow stirring shaft adopts different interior structure in accordance with different heating media.
high heat transferring efficiency, and provide self-cleaning function. The special chock shaped stirring and heat transferring blade has high heating efficiency and self-cleaning function of the heating transferring surface.
Hollow chock shaped blades are concentrated on the hollow shaft. Heat media flow through the blade from the hollow shaft. The heat transferring area in the effective volume is very high. The temperature range of heating media is -40 ℃ to 320 ℃. It might be steam, or liquid state, such as steam, thermal oil etc. Indirect heating, there's no heat carried out by air. All heat is utilized
for to drying the material except the lost of heat insulation layers. The surface of chock shaped blade has self-cleaning function. The relative movements of the product particles and the chocked shaped surface might clean the material attached to the
chock shaped surface, so to keep the cleanliness of heat transferring surface during working. The shell of hollow blade dryer is Ω shape. 2 or 4 pieces of hollow stirring shaft are usually equipped in the shell. To avoid any leakage of material, there're sealed
terminal cover and top cover with the shell. The heat transferring media flow through the rotation connector, jacket's shell and hollow stirring shaft. To ensure best transferring effect, the hollow stirring shaft adopts different interior structure in accordance with different heating media.
Features of Hollow Paddle Dryer for sludge/sewage sludge
1. The heat consumption of blade is low：
Due to adopting indirect heating method, there will not be large amount of heat energy being taken away, besides there is additionally heat-insulation outside of heating drum body, therefore for paste materials, it only consume 1.2 kgs of steam to
evaporate 1.0 kg of moisture inside the raw material.
2. The cost of the blade dryer is low:
For unit effective volume, there is a vast heat-convection area, thus it will shortens the processing duration, and also facilitates to reduce equipment’s sizes, in the end the construction area and space is greatly decreased.
3. The range of material to be processed is wide:
It can apply different heating medium, thus it can not only process heat-sensitive material but also material to be processed under high temperature. The commonly applicable heat medium is as: steam, thermal oil, hot water, cooling water and etc. It can
not only run continuously but also intermittently in many process fields.
4. The pollution is less:
There is much less dust material being carried or emitted out to environment. There is also much less material solvent being evaporated, which is easy to be processed. For processing conditions such as there is contaminated material or there is solvent to be recovered, the close-circuit circulation mechanism can be adopted.
5. The operation cost is low:
By adopting low-speed stirring mechanism and reasonable structure and less wear allowance, the maintenance cost is also very low.
6. Steady operation:
Due to the special compression-expansion stirring function of V-shaped blade, it makes it possible to get material granule contact with heat-transferring surfaces fully, thus within the axial inter-zones, the material temperature, humidity and mixing gradient is very small, which can guarantee process stability.
Due to adopting indirect heating method, there will not be large amount of heat energy being taken away, besides there is additionally heat-insulation outside of heating drum body, therefore for paste materials, it only consume 1.2 kgs of steam to
evaporate 1.0 kg of moisture inside the raw material.
2. The cost of the blade dryer is low:
For unit effective volume, there is a vast heat-convection area, thus it will shortens the processing duration, and also facilitates to reduce equipment’s sizes, in the end the construction area and space is greatly decreased.
3. The range of material to be processed is wide:
It can apply different heating medium, thus it can not only process heat-sensitive material but also material to be processed under high temperature. The commonly applicable heat medium is as: steam, thermal oil, hot water, cooling water and etc. It can
not only run continuously but also intermittently in many process fields.
4. The pollution is less:
There is much less dust material being carried or emitted out to environment. There is also much less material solvent being evaporated, which is easy to be processed. For processing conditions such as there is contaminated material or there is solvent to be recovered, the close-circuit circulation mechanism can be adopted.
5. The operation cost is low:
By adopting low-speed stirring mechanism and reasonable structure and less wear allowance, the maintenance cost is also very low.
6. Steady operation:
Due to the special compression-expansion stirring function of V-shaped blade, it makes it possible to get material granule contact with heat-transferring surfaces fully, thus within the axial inter-zones, the material temperature, humidity and mixing gradient is very small, which can guarantee process stability.
Applications of Hollow Paddle Dryer for sludge/sewage sludge
The paddle dryer is successfully applied in foodstuff, chemical, petrochemical, dyestuff, and industrial mud etc.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2016,sell to Southeast Asia(7.00%),Eastern Europe(5.00%),Northern Europe(5.00%),Oceania(3.00%),Southern Europe(3.00%),South Asia(3.00%),Africa(2.00%),Domestic Market(2.00%),Central America(2.00%),Western Europe(2.00%),North America(2.00%),Mid East(2.00%),South America(1.00%),Eastern Asia(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Spray Dryer,Paddle Dryer,Spin Dryer,Fluid Bed Dryer,Belt Dryer
4. why should you buy from us not from other suppliers?
Changzhou Jiacheng has abundant technical force: a number of top professional talent which have above15 years professional experience in drying industry engaged in design, mechanical drawing, electrical automation edit etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Jiangsu, China, start from 2016,sell to Southeast Asia(7.00%),Eastern Europe(5.00%),Northern Europe(5.00%),Oceania(3.00%),Southern Europe(3.00%),South Asia(3.00%),Africa(2.00%),Domestic Market(2.00%),Central America(2.00%),Western Europe(2.00%),North America(2.00%),Mid East(2.00%),South America(1.00%),Eastern Asia(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Spray Dryer,Paddle Dryer,Spin Dryer,Fluid Bed Dryer,Belt Dryer
4. why should you buy from us not from other suppliers?
Changzhou Jiacheng has abundant technical force: a number of top professional talent which have above15 years professional experience in drying industry engaged in design, mechanical drawing, electrical automation edit etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
All the machine for the spare parts are packed in 20GP, 40GP, 40HQ. Shipping to Shanghai seaport or CIF destination port.
Our Advantages
1.Engineers available to service machinery overseas (All counties).
2. Overseas service center available (some countries).
3. Overseas third-party support available (some countries).
4. Our engineer have above 15 years professional experience in drying industry engaged in design, mechanical drawing, electrical automation edit etc.
5. We have rich project management experience and advanced site construction technology, we obtained good performance and well-known reputation.
6. We can show you the best price and high-quality machine.
7. We can show you the best price for our old customers, all new customers we will give 5% discount for the first time.
2. Overseas service center available (some countries).
3. Overseas third-party support available (some countries).
4. Our engineer have above 15 years professional experience in drying industry engaged in design, mechanical drawing, electrical automation edit etc.
5. We have rich project management experience and advanced site construction technology, we obtained good performance and well-known reputation.
6. We can show you the best price and high-quality machine.
7. We can show you the best price for our old customers, all new customers we will give 5% discount for the first time.
