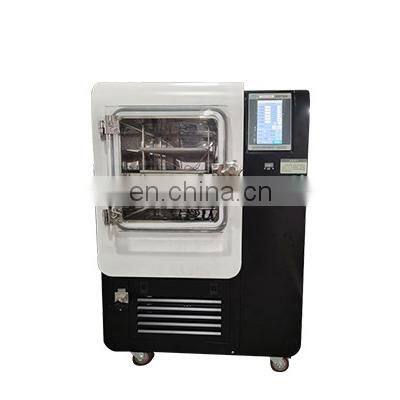

Silicone oil heating Freeze Dry Machine Laboratory Lypholizer
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
Product Description
Product Description
FG series freeze-drying machine is spliced by SUS304 square tubes. Silicon oil circulating heating is used to ensure the uniformity of the cooling and heating of the diaphragm to the materials. The temperature difference after the temperature balance of the diaphragm is only ± 1 ℃. The cold trap temperature can reach about -80 ℃, which is applicable to the freeze-drying of samples containing organic solvents and the exploration of process conditions (food processing, dehydration of ancient books, pretreatment of soil samples, etc.).
Feature
1. The machine adopts the international brand Of French Taikang compressor refrigeration, refrigeration is fast, cold trap
temperature is low.
2.7 inch true color touch screen control system, powerful function, simple and convenient operation.
3.Industrial PLC controller, PID temperature control.The heating curve is stable and smooth.The precision is better than single chip microcomputer control.Strong anti-interference ability, the system is stable and reliable.
4.The system automatically saves the freeze-drying data and can view the real-time curve and historical curve form, making the whole drying process clear and clear.
5.Colorless transparent plexiglass door is adopted in the drying room, the samples are clear and intuitive, and the whole process of freeze-drying can be observed.
6.Universal standards are adopted for external pipe connections.It's easy and quick to replace.
7.This machine can store freeze-dried curves for many times, and it is convenient for U disk to extract data, and use upper computer to browse, print and various options in computer.
8.The control system has unlimited options for freeze-drying curve. Each option contains 40 temperature control Settings, which can realize a variety of pending freeze-drying process parameters recording.The corresponding plan is directly transferred at the time of freeze-drying of certain material.
9.Equipped with a charging valve, can be filled with dry inert gas.
10.Diaphragm temperature is controllable, adjustable, fumble production process.
11,Equipped with manual operation and automatic operation of two, so that the work has a greater choice.
12.System multi-layer permission Settings, easy to manage
temperature is low.
2.7 inch true color touch screen control system, powerful function, simple and convenient operation.
3.Industrial PLC controller, PID temperature control.The heating curve is stable and smooth.The precision is better than single chip microcomputer control.Strong anti-interference ability, the system is stable and reliable.
4.The system automatically saves the freeze-drying data and can view the real-time curve and historical curve form, making the whole drying process clear and clear.
5.Colorless transparent plexiglass door is adopted in the drying room, the samples are clear and intuitive, and the whole process of freeze-drying can be observed.
6.Universal standards are adopted for external pipe connections.It's easy and quick to replace.
7.This machine can store freeze-dried curves for many times, and it is convenient for U disk to extract data, and use upper computer to browse, print and various options in computer.
8.The control system has unlimited options for freeze-drying curve. Each option contains 40 temperature control Settings, which can realize a variety of pending freeze-drying process parameters recording.The corresponding plan is directly transferred at the time of freeze-drying of certain material.
9.Equipped with a charging valve, can be filled with dry inert gas.
10.Diaphragm temperature is controllable, adjustable, fumble production process.
11,Equipped with manual operation and automatic operation of two, so that the work has a greater choice.
12.System multi-layer permission Settings, easy to manage
Specification
Model | Scientz-20FG | ||||
Type | Ordinary | Top press | |||
Dryer area（㎡） | 0.2 | 0.2 | |||
Ability to capture water（㎏/batch） | 4 | 4 | |||
Schering bottle quantity | φ12mm | 1300 | 1300 | ||
φ16mm | 814 | 814 | |||
φ22mm | 430 | 430 | |||
Plate load capacity （L） | 3 | 3 | |||
Plate size（mm） | Long(mm) | 430 | 430 | ||
Wide(mm) | 240 | 240 | |||
Plate distance （mm） | 70 | 70 | |||
Plate size（pc） | 2+1(radiant layer) (square tube splicing) | 2+1(radiant layer) (square tube splicing) | |||
Plate temperature range | -50~+70（no load） | -50~+70（no load） | |||
Cold trap the lowest temperature（℃） | ≤-80（no load） | ≤-80（no load） | |||
Ultimate vacuum(Pa) | ≤5（no load） | ≤5（no load） | |||
Power Kw（220V） | 2.2 | 2.5 | |||
Amibient temperature℃） | ≤25 | ≤25 | |||
Overall dimension（mm） | 840*820*1240 | 840*820*1240 | |||
weight(㎏) | 236 | 236 | |||
Notes | The size and weight of the whole machine do not include the external vacuum pump, and the power distribution, heating and defrosting function of the gland type machine. | ||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Ningbo Scientz Biotechnology Co., Ltd. (stock code: 430685) was founded in 1989. The company is headquartered in the National High-tech Zone of Ningbo City. It is a world-renowned provider of biological sample processing equipment and a pioneer in the application of ultrasonic technology in China. Xinzhi Bio is a high-tech enterprise that provides related scientific instruments for scientific research, education, biomedicine, agriculture and forestry, environmental protection, petroleum, new materials and other fields.
FAQ
Q1.Are you factory or trading company?
We are a factory
Q2.What is your principle for the samples?
We do not provide free sample.
Q3.Which payment can be acceptable?
Q3.Which payment can be acceptable?
We could accept the payment by T/T、Paypal etc
Q4.How about your delivery me?
Generally, it will take 7to 15 working days after receiving your payment.Depend on the quantity.
Q5.Service
We could provide Online instruction;Real-time support by call or voice-chat During warranty time,we can send product accessories when you need for free.Technical guidance is free and ready forever.
Q6.Training
Your technicians can come to our factory for training,SCIENTZ engineers can go your place for local support(insta llation、training、debugging、maintenance); Products can be customized according to your requirements;OEM service available with customers' brand
