24v 125a Cheap Contactor for Eve Conversion Kits Albright DC Contactor SW80-65

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

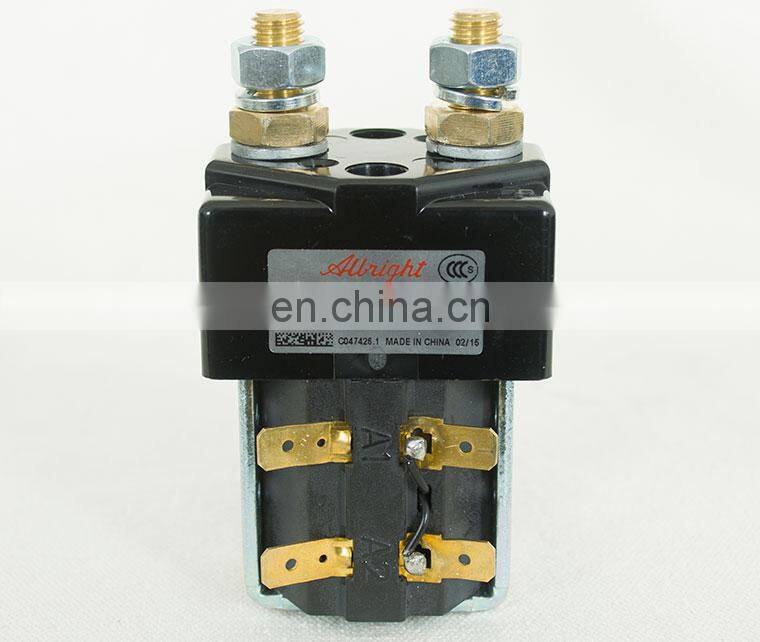

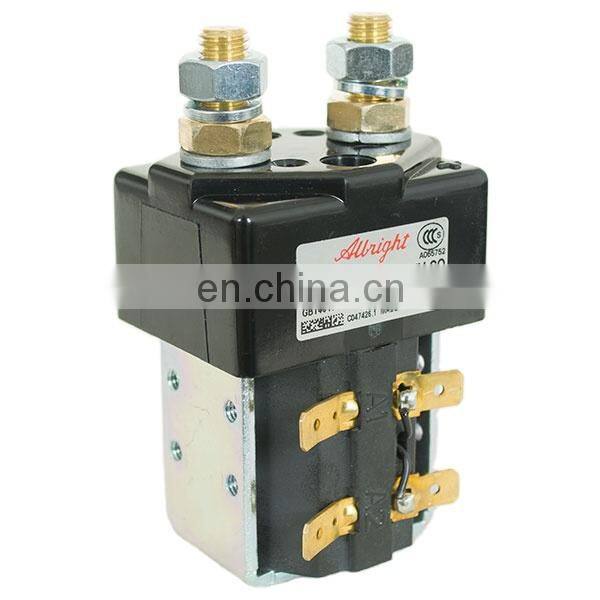

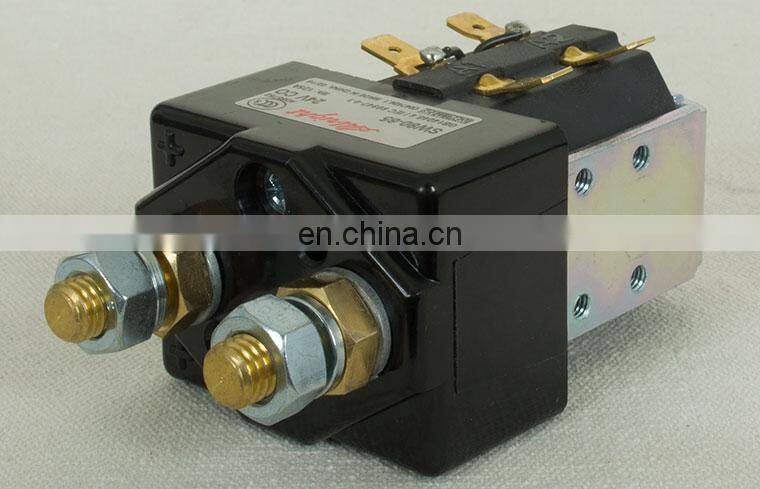

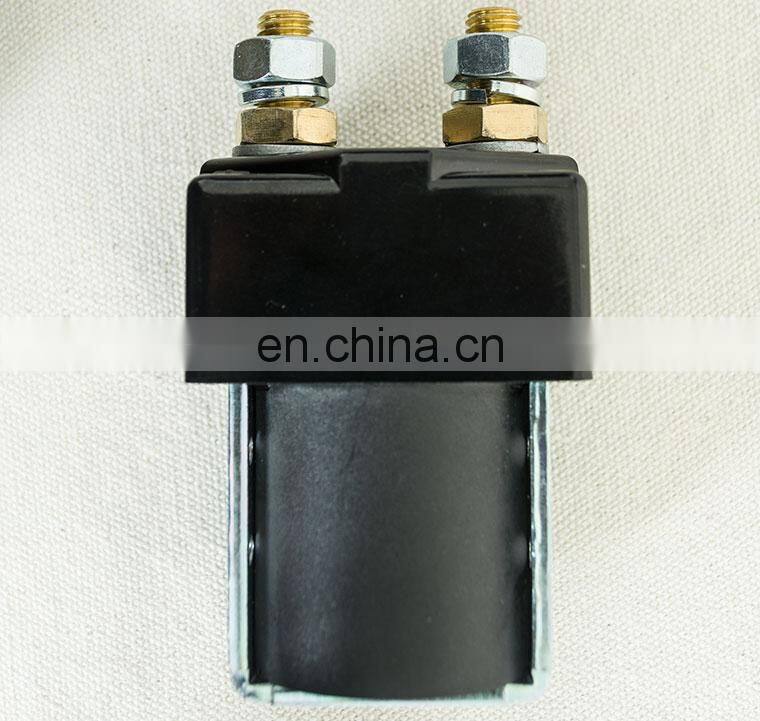

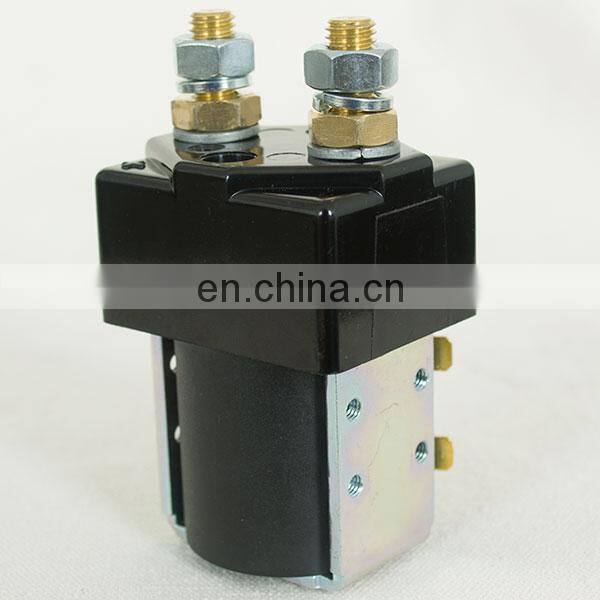

Albright DC contactor 24v Coil SW80-65

Specifications:
* Manufacturer: ALBRIGHT (made in China)
* Model: SW80-65
* Contactor Type: Single Pole Single Throw, SPST
* Main Circuit Current Rating: 125A

* Main Circuit Voltage Rating: 24V DC
* Weight: about 0.35kg

Overview
The SW80 has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks, and telecom and power distribution applications. Developed for both interrupted and uninterrupted loads, the SW80 is suitable for switching Resistive, Capacitive and Inductive loads.
* Interrupted current: opening and closing on load with frequent switching (results in increased contact resistance)
* Uninterrupted current: no or infrequent load switching requirements (maintains a lower contact resistance)

The SW80 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The SW80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via M4 tapped holes or mounting brackets, either supplied fitted, or as separate items. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards. If the requirement is for downwards orientation we can adjust the contactor to compensate for this.

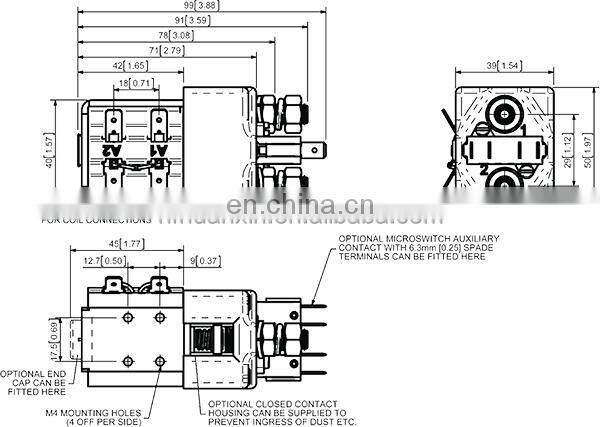

Dimensions (attention: SW80-65 has not the optional auxiliary contacts in the diagram below):

Specification

item	value
Place of Origin	China
	Anhui
Brand Name	Albright
Model Number	SW80-65
Model	sw80-65
Brand	Albright Brand
Main Circuit Current Rating:	125A
WEIGHT	0.35kg
electric type	dc
contactor type	Single Pole Single Throw (SPST)
Typical application	electric vehicles controlling system
Main voltage	24v dc
phase	2
Number of pole	1

Packing & Delivery

Package:Normally we use the standard exporting packaging. We also can according to clients' request .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shanghai airport to customers’ destination city air port.
3. By Sea: Delivery from the Shanghai sea port .

Company Profile

Hefei Huanxin Technology Development Co.,Ltd, established in 2004, is a professional manufacturer engaged in the research, development, production, sales and service of Motor Controller, DC-DC Converter, Drive Wheel Assembly, Instrument Cluster, Switch, Accelerator and so on. Our company specialized in various kind of pallet trucks parts and forklift parts for both domestic and international markets. Also our company is the first-level agent of CURTIS BRAND and appointed of Britain Albright Contactor. In addition we have obtained ISO9001 and CE Certificates. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your souring requirement. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.

FAQ

1. who are we?
We are based in Anhui, China, start from 2004,sell to Domestic Market(33.00%),North America(15.00%),Southeast Asia(10.00%),South America(8.00%),Mid East(5.00%),South Asia(5.00%),Eastern Europe(3.00%),Africa(3.00%),Oceania(3.00%),Eastern Asia(3.00%),Western Europe(3.00%),Central America(3.00%),Northern Europe(3.00%),Southern Europe(3.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Lithium Battery,Battery Charger,Tiller Head,DC Converter,Accelerator,Battery Meter

4. why should you buy from us not from other suppliers?
Established in 2004, is a professional manufacturer engaged in the research, development, production, sales and service of electric vehicle controller, handle, meter, electronic accelerator and so on. Our products are mainly exported to Europe, USA, Asia,

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese
