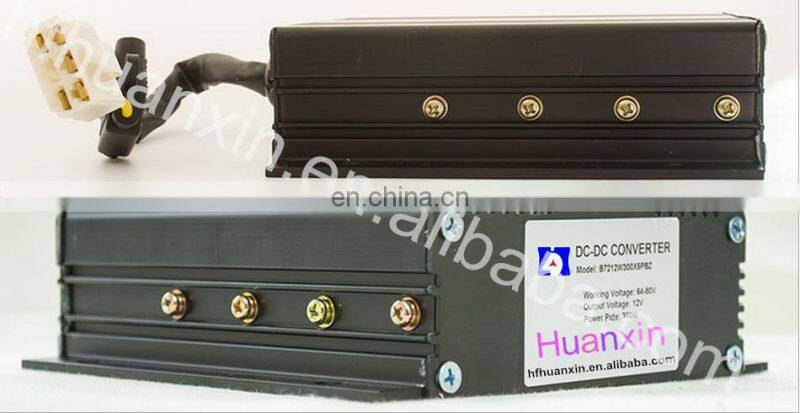

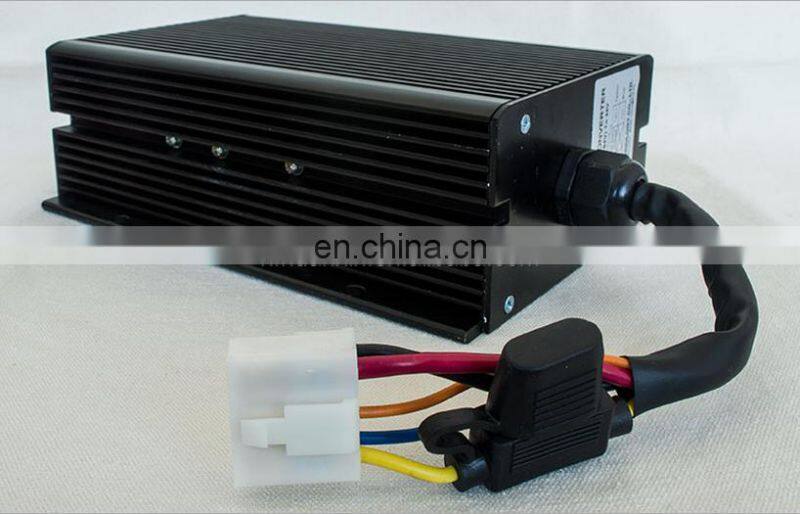

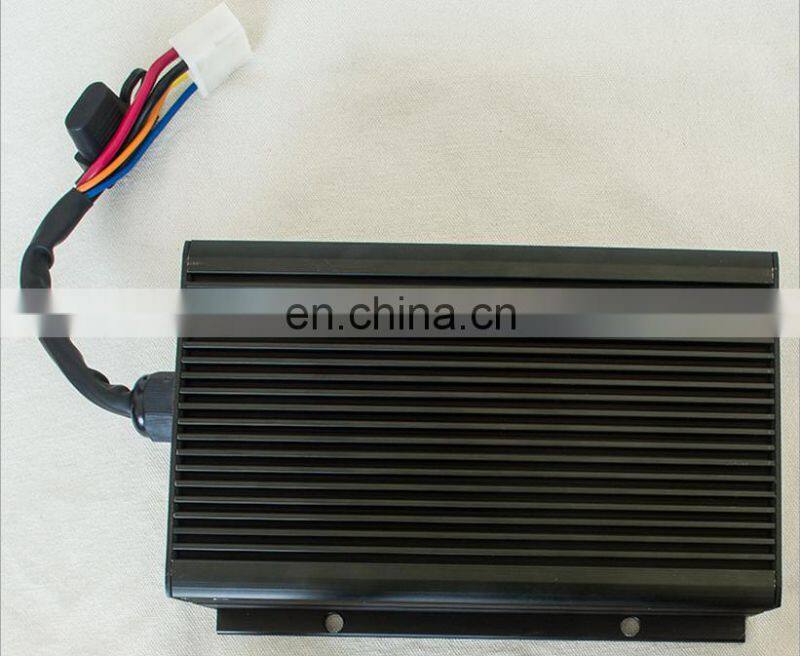

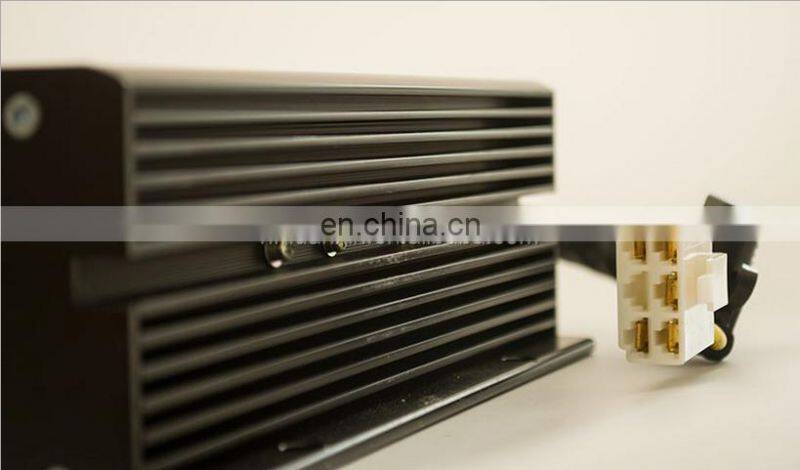

300W DC Converter Step Down Transformer 72V To 12V Converter HXDC-B1

Product Application

Input voltage: 72V (60-84V) DC
Output voltage: 12V DC
Max output current: 25A
Electrical isolation to heatsink (min.): 500 VAC
Self-protections available:
DC power poles reverse connection protected
Over-current protection
Shortcut protection
Over-voltage & low-voltage protection
Overheat protection
Mating connector included
Operating ambient temperature range: -40°C to 50°C
Storage ambient temperature range: -40°C to 85°C
Product dimensions: 148mm x 148mm x 46mm

FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

Q3. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2years warranty to our products.

Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A: Sample needs 3-5 days.

Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.

Q8: How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less
