ALBRIGHT DC CONTACTOR SW80B FOR FORKLIFT PARTS

The SW80 has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks, and telecom and power distribution applications. Developed for both interrupted and uninterrupted loads, the SW80 is suitable for switching Resistive, Capacitive and Inductive loads.

Interrupted current: opening and closing on load with frequent switching (results in increased contact resistance)

Uninterrupted current: no or infrequent load switching requirements (maintains a lower contact resistance)

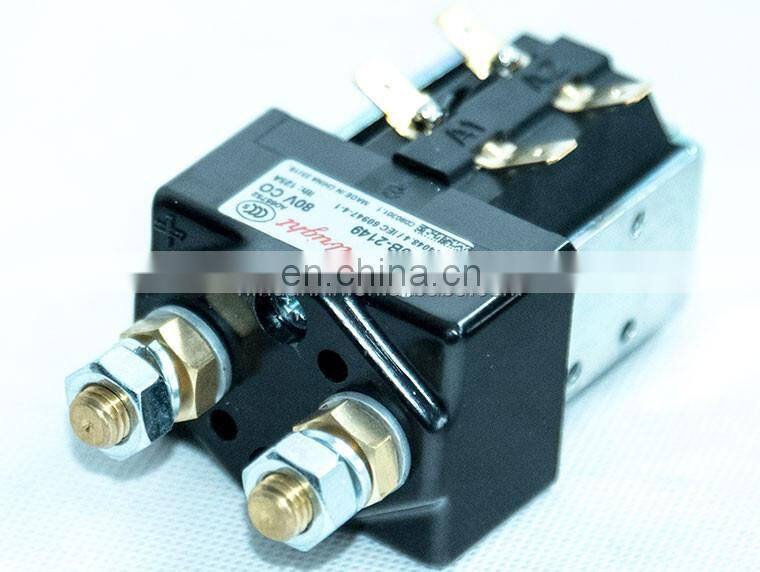

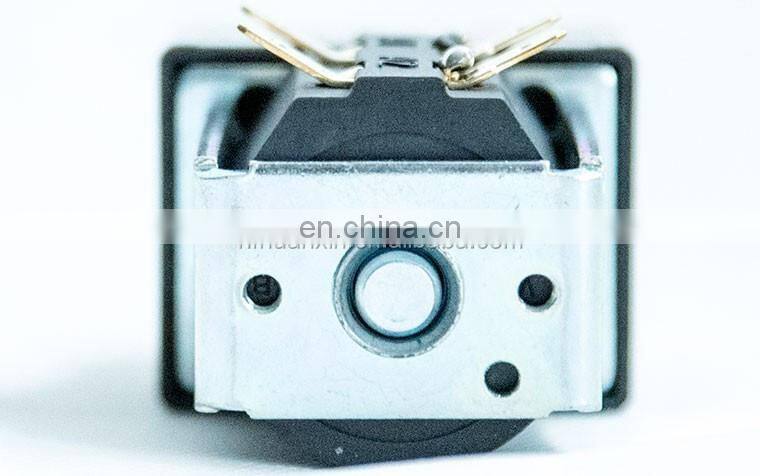

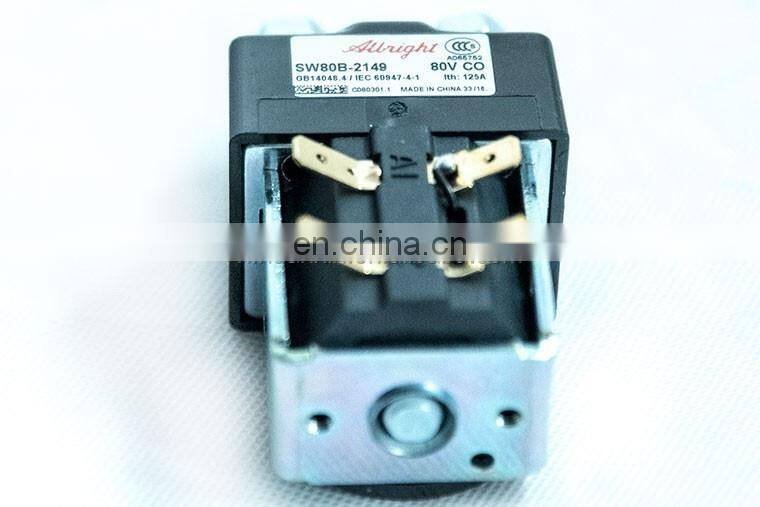

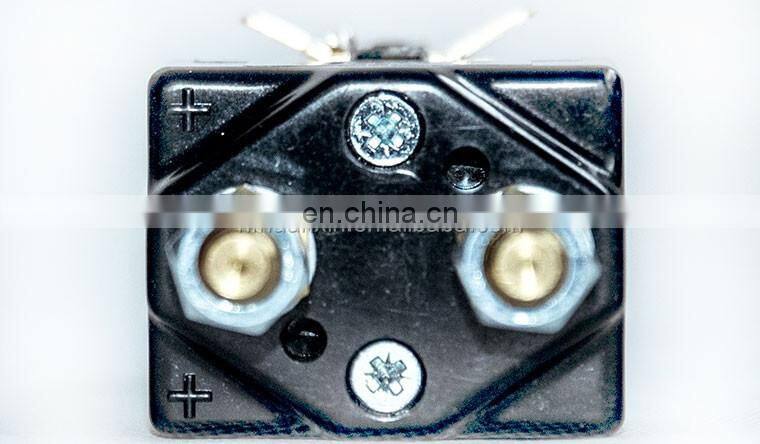

The SW80 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The SW80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via M4 tapped holes or mounting brackets, either supplied fitted, or as separate items. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards. If the requirement is for downwards orientation we can adjust the contactor to compensate for this.

Specifications:

Model: SW80B-2149 (updated version of SW80B-62 & SW80B-421T; ZAPI B8SW11)
Working voltage: 80V
Ambient temperature: –40˚C to +60˚C
Application: disconnector for 72V / 80V DC power system, widely used in electric vehicle and automation industries: forklift, pallet truck, ATV, pump, mobility vehicles, etc.

Dimensions:

CERTIFICATE
