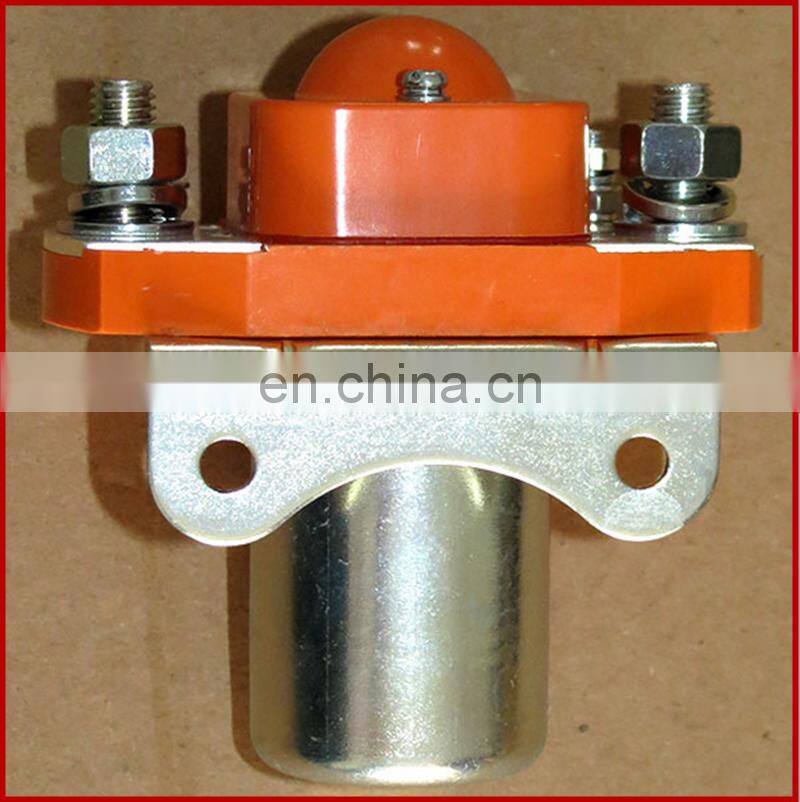

400A 12V TO 72V DOMESTIC DC FORKLIFT CONTACTOR

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Model	ZJ400D
Voltage Options (Volts)	12V, 24V, 36V, 48V or 72V
Ambient temperature	-25~+40℃
Altitude range	0~2000m
Max.relative humidity	90% at 25℃
Voltage fluctuating	0.7~1.1Ue

Main rated load current of contact circuit (amps)	400A
Dielectric (volt) strength	50Hz 1000V AC 1min
Current volt drop of main contact at 400A	Not above 80mV

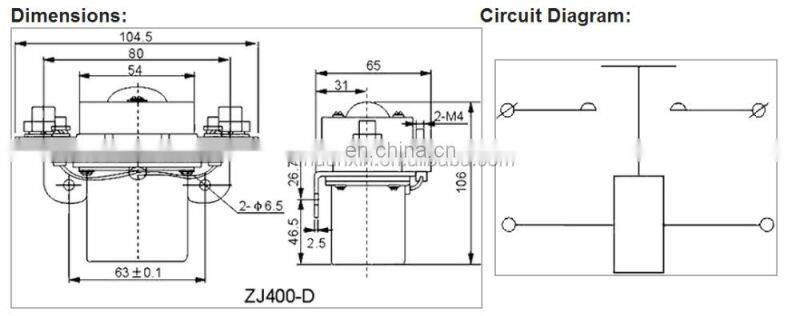

Dimensions (LxWxH )	104.5x65x106 mm
Continual working duration	8h
Mechanical life	100,000 times

Overview

The ZJ400D contactor is a SPST (Single Pole Single Throw; normally open type) DC contactor, designed for direct current loads, particularly for motors on small electric vehicles such as light industrial trucks, electric forklift, electric pallet stacker, golf cart, etc. ZJ400D has double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.

Packing & Delivery

Package: Normally we use the standard exporting packaging. We also can according to clients' request .
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperating.
2. By Air: Delivery from the Shanghai airport to customer's destination city air port.
3. By Sea: Delivery from the Shanghai sea port .

Our Company

Hefei Huanxin Technology Development Co., Ltd. has been devoting ourselves to developing and manufacturing and other since 2004. We are located in Hefei, Anhui Province, with convenient transportation access. We employ over 101 - 200 People staff members. We have achieved great improvement since our company was founded in 2004. We abide by the motto of Firstclass quality, Reasonable price, Best service and Professional product support.
