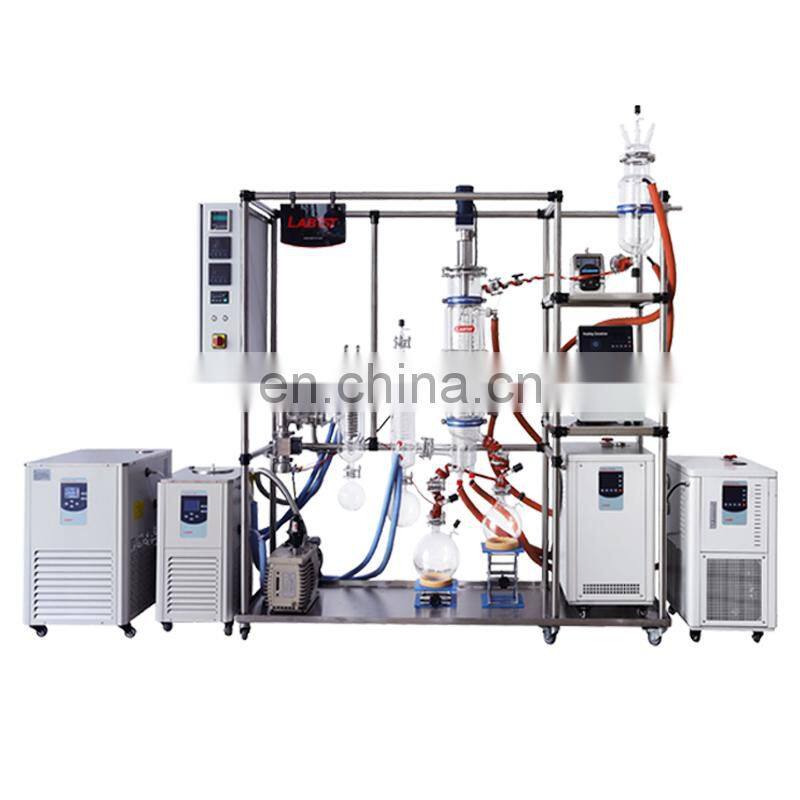

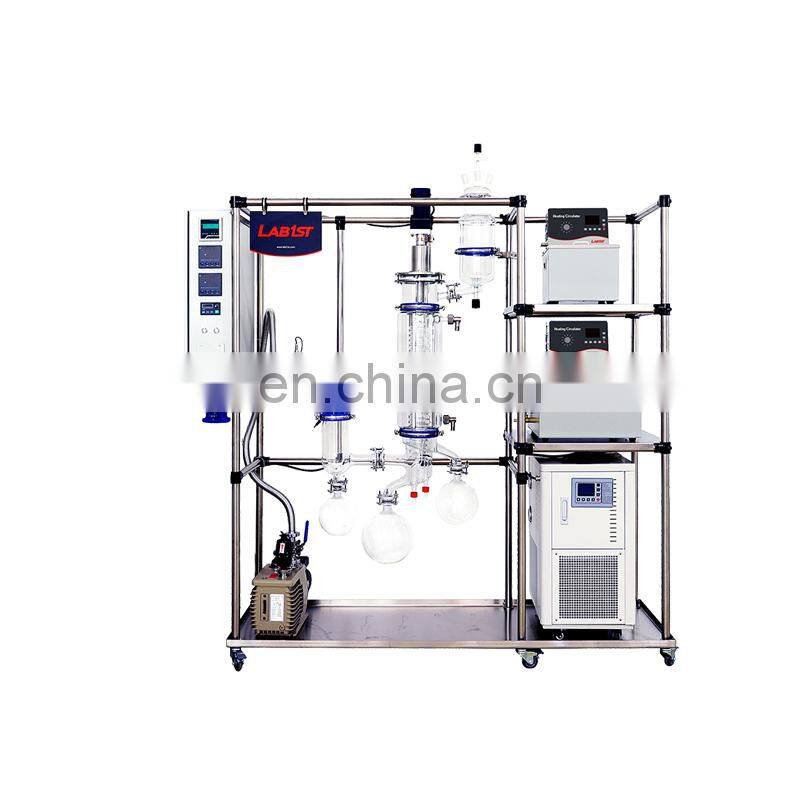

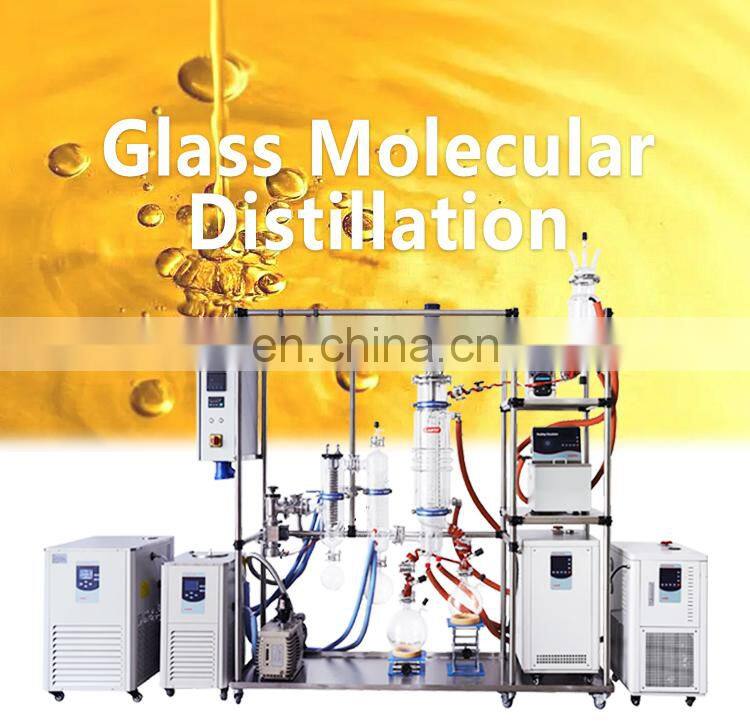

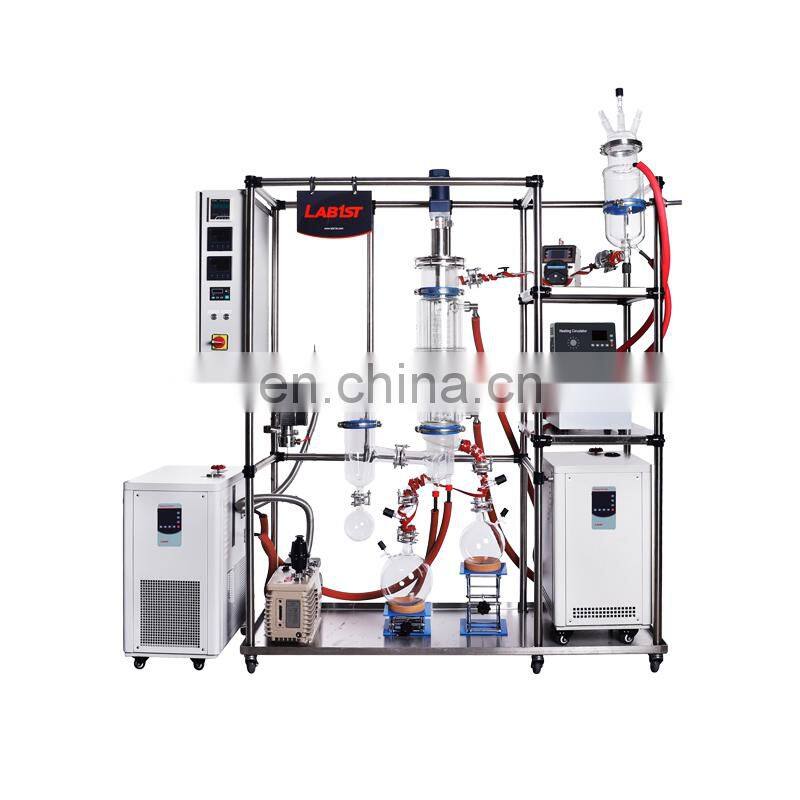

Lab Fully Jacketed Pipelines Glass Wiped Film Evaporator Molecular Distillation for Sale
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Turnkey Solution Herb Plant Oil Extraction Short Path Molecular Distillation Machine
-
Lab1st Lab Glass Short Path Mulecular Distiller Wiped Film Distillation Unit
-
Laboratory Vacuum Short Path Wiped Film Molecular Distillation Unit
-
Lab1st Short Path Shortpath Molecular Distillation Distiller Machine
-
5kg/h Throughput Glass Wiped Film Thin Film Herb Plant Oil Molecular Distillation
-
Manufacturer Price Customized Short Path Thin Film Molecular Distillation Equipment
Product Description

Labfirst Scientific (LAB1ST) Was Founded and Based in Shanghai, Committed to Providing First-class Equipment for Customers in the Chemical and Pharmaceutical Industry. Our Product Lines Range from Laboratory & Pilot Scale to Industrial Scale and Mainly Focus on the Fine Chemicals, Biological Fermentation, Plant Extraction and Other Related Fields, to Provide All Kinds of Equipment and Turnkey Solutions.

Our Team

Our Office

Warehouse in USA

Warehouse in China




Products Description


Model | GMD-100 | GMD-150 | GMD-200 | ||
General Feeding Rate (kg/h) | 0.75~7.5 | 1.25~12.5 | 1.75~17.5 | ||
Throughput - CBD Oil (kg/h) | 1.5 - 3 | 2.5 - 5 | 3.5 - 7 | ||
Effective Evaporationn Area (㎡/sqft) | 0.15/1.6 | 0.25/2.7 | 0.35/3.8 | ||
Evaporator Internal Diameter (mm/inch) | 100/4.0 | 150/6.0 | 200/7.9 | ||
Feeding Funnel Volume (L) | 2 | 3 | 5 | ||
Internal Condenser Area (㎡) | 0.3 | 0.4 | 0.5 | ||
Distillate Receiving Vessel Volume (L) | 2 | 5 | 5 | ||
Residue Receiving Vessel Volume (L) | 1 | 3 | 5 | ||
Wiping Motor Power (W) | 120 | ||||
Maximum Speed (rpm) | 400 | ||||
Stirrer Seal | Oil-less Magnetic, High Vacuum | ||||
Wiper | PTFE Scraper | ||||
Material | Borosilicate Glass 3.3 / SS316L (wet parts) / SS304 (frame) | ||||
Vacuum Gauge | Pirani Style | ||||
Operation Temperature | Up to 250℃ | ||||
Vacuum Degree | Better than 10 Pa | ||||
Voltage | 220V-Single Phase / Customizable | ||||
Dimension (LxWxH mm) | 2120 x 1740 x 628 | 2270 x 1940 x 628 | 2420 x 2040 x 628 | ||
Optional


Standard Wiped Film Distillation Unit
1.Evaporator Unit : Standard with Dewar-style Cold Trap
2.Main Heater: 5kw Heating Power, Up to 300c
3.Pre-heater Heater/chiller for Internal Condenser: 1.5kw Heating Power, Up to 300c
4.Rotary Vane Pump: 6l/s Gas Displacement

1.Evaporator Unit : Standard with Dewar-style Cold Trap
2.Main Heater: 5kw Heating Power, Up to 300c
3.Pre-heater Heater/chiller for Internal Condenser: 1.5kw Heating Power, Up to 300c
4.Rotary Vane Pump: 6l/s Gas Displacement
5.Peristaltic Pump Module for Continuous Inlet
6.Glass Valve Module for Continuous Outlet
7.Diffusion Pump:80l/s Gas Displacement for Higher Vacuum

1.Evaporator Unit with Dewar-style Cold Trap;
2.Main Heater: Up to 300℃
3.Pre-heater: Up to 300℃
4.Heater/chiller for Internal Condenser: -25℃ to 180℃
5.Rotary Vane Pump: 6l/s Gas Displacement
6.Additional Terpene Condenser
7.Chiller for Terpene Condenser: Down to -20℃
8.Peristaltic Pump Module: for Continuous Inlet
9.Glass Valve Module: for Continuous Outlet
10.Diffusion Pump Chiller for Cold Trap: Down to -80℃
Related Products

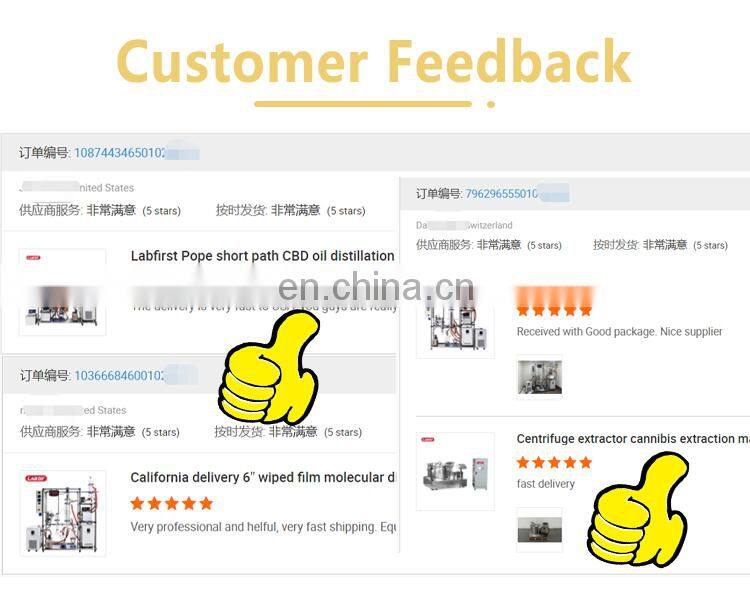

Customer Reviews
