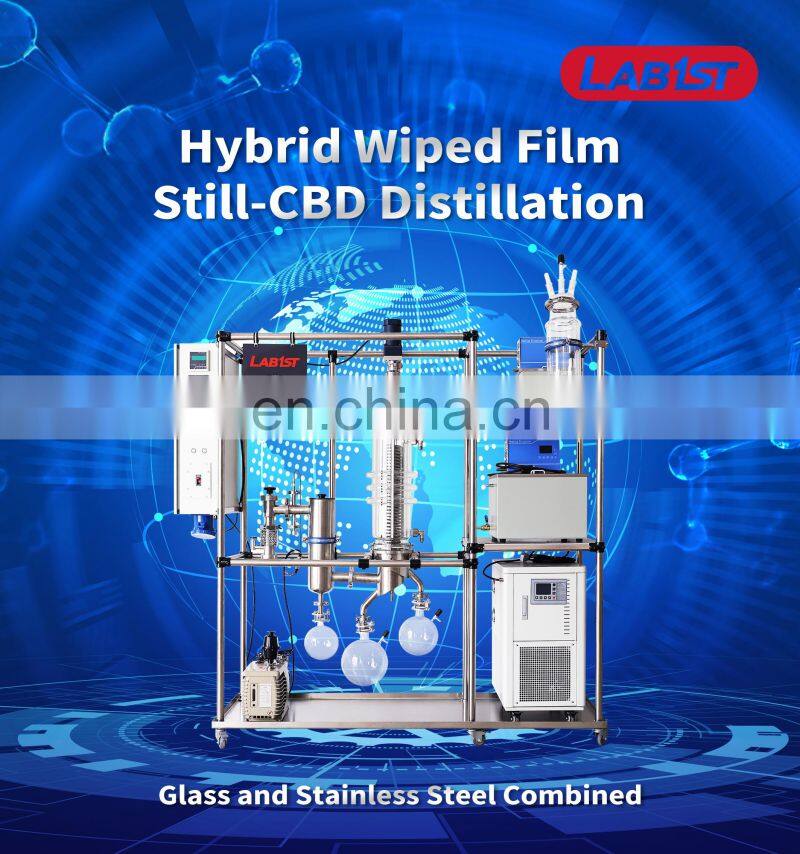

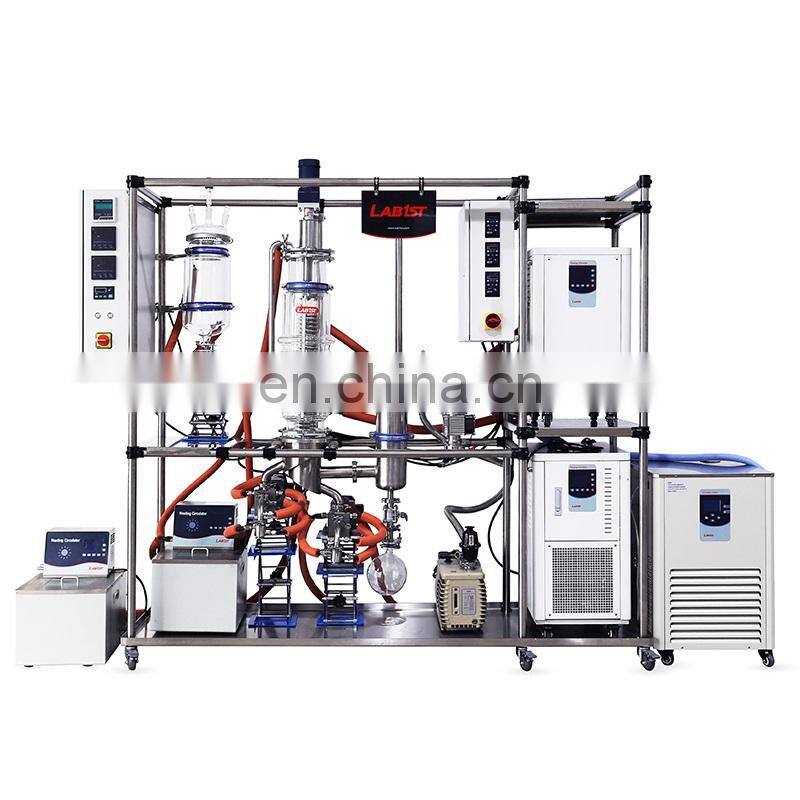

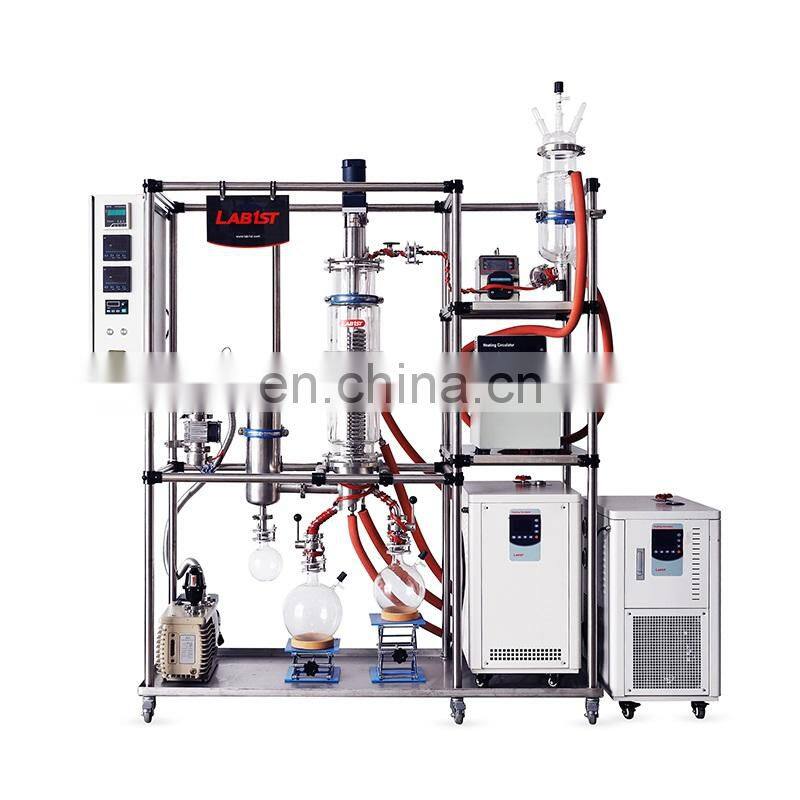

Laboratory Shortpath Herb Oil Glass Wiped Film Molecular Evaporator Distillation Unit Molecule Distiller Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Lab1st Short Path Wiped Film Molecular Molecule Distillation Unit Equipment
-
Lab1st Manufacturer Price OEM Wiped Film Short Path Molecular Distillation Equipment
-
Lab1st 6\" Wiped Film Distillation System
-
Lab1st Manufacturer OEM Glass Wiped Film Plant Essential Oil Molecular Distillation
-
Lab1st Glass Short Path Herb Oil Wiped Film Molecular Distillation Equipment
-
Lab1st Short Path Wiped Film Evaporator Herb Oil Molecular Distillation Equipment
Product Description
Products Description

Glass Flasks with PTFE Valve Electrical Heating (Silicone Heating Tape )

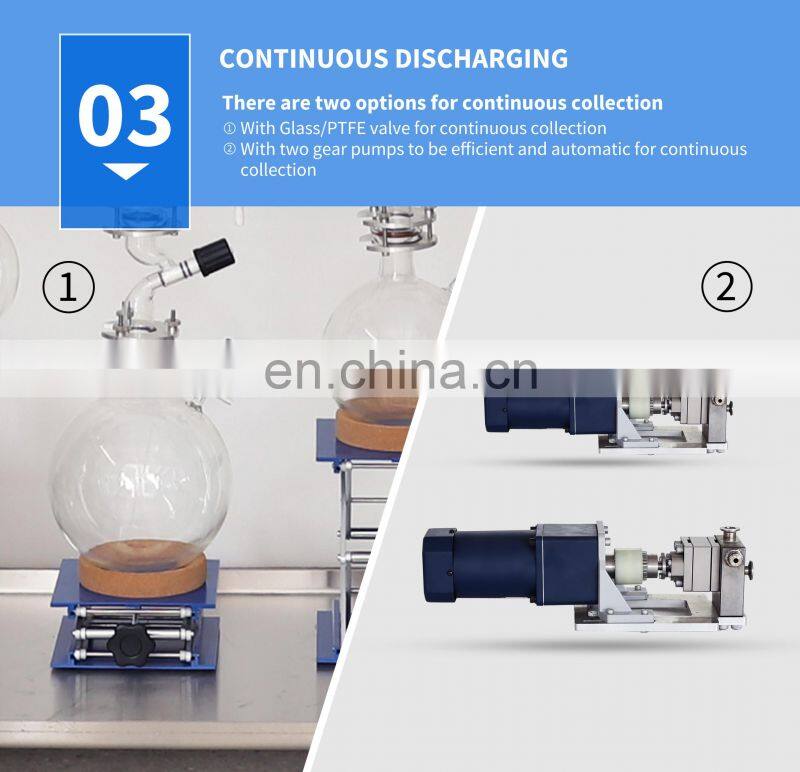

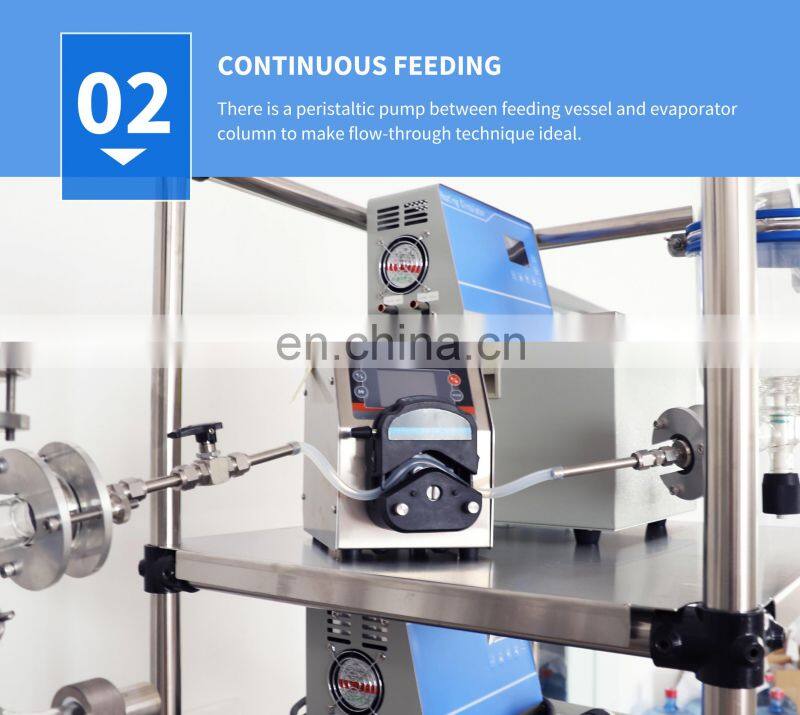

Larger Feeding Vessel - 5 Liter Continuous Feeding:Gear Pumps with Jacketed Head Continuous Discharging:Gear Pumps with Jacketed

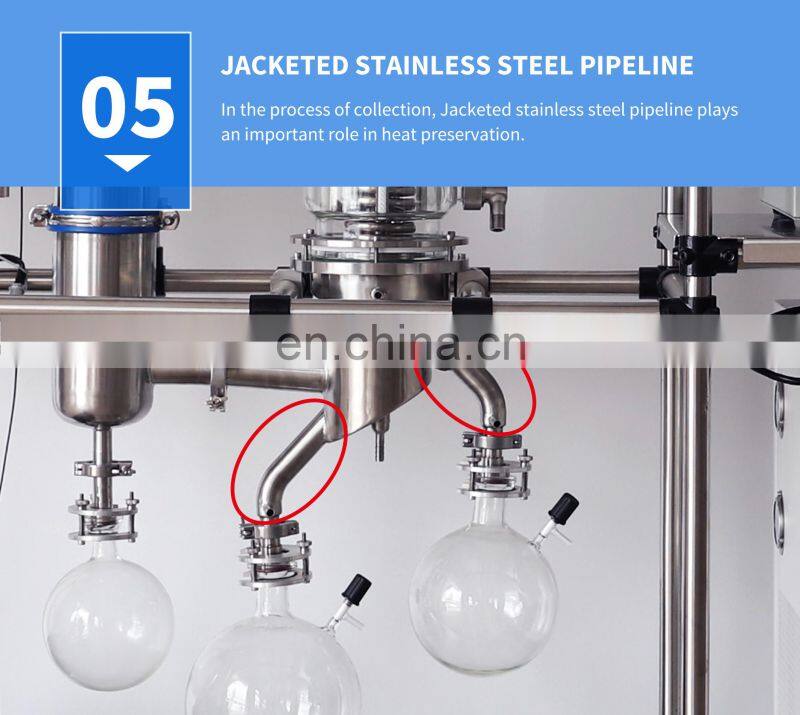

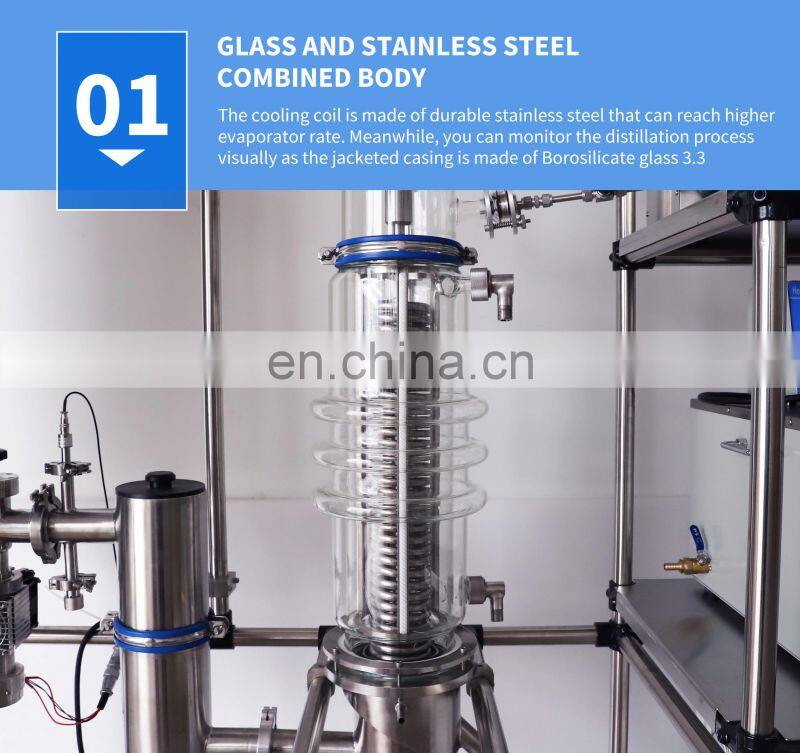

Head Jacketed Heating (Fully Jacketed Pipeline) Equipped with a stainless steel cooling coil (equipped with a -80℃ chiller)Product Paramenters
Model | HMD-150 | HMD-200 | |
General Feeding Rate (kg/h) | 1.25~12.5 | 1.75~17.5 | |
Throughput - Crude CBD Oil (kg/h) | 2.5 ~ 5 | 3.5 ~ 7 | |
Material | Boro Glass 3.3 (evaporator) / SS316L (other wet parts) / PTFE (wiper) / SS304 (frame) | ||
Effective Evaporationn Area (㎡/sqft) | 0.25/2.7 | 0.35/3.8 | |
Evaporator Internal Diameter (mm/inch) | 150/6.0 | 200/7.9 | |
Feeding Funel Volume (L) | 3 | 5 | |
Internal Condenser Area (㎡) | 0.4 | 0.5 | |
Distillate Receiving Vessel Volume (L) | 5 | 5 | |
Residue Receiving Vessel Volume (L) | 3 | 5 | |
Motor Power (W) | 120 | ||
Maximum Speed (rpm) | 400 | ||
Stirrer Seal | Oil-less Magnetic, High Vacuum | ||
Wiper Type | Scraper | ||
Vacuum Gauge | Pirani Style | ||
Operation Temperature | Up to 250℃ | ||
Vacuum Degree | Better than 10 Pa | ||
Voltage | 220V-Single Phase / Customizable | ||
Dimension (LxWxH mm) | 2270 x 1940 x 628 | 2420 x 2040 x 628 | |

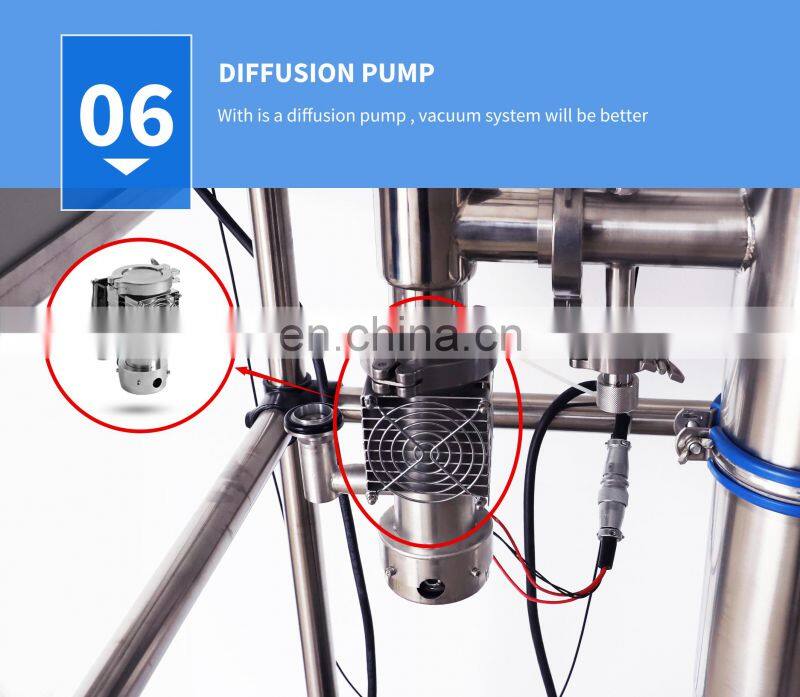

Details Images
