KODI Industrial Small Scale Arabic Gum Spray Drying Machine Powder Spray Dryer
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
LPG-5 Model Spray Dryer Cyclone Separator
-
KODI Stevia Powder Lab Small Spray Drying Machine
-
KODI Lab LPG 5 High Speed Centrifugal Spray Dryer Ingredients Powder Spray Drying Machine
-
KODI GMP Standard Pilot Mini Coconut Milk Spray Dryer
-
Industrial Small Scale Protein Powder Spray Drying Machine Protein Spray Dryer
-
KODI Laboratory Use Lab Herb Extract Spray Dryer
Product Description
Product Description

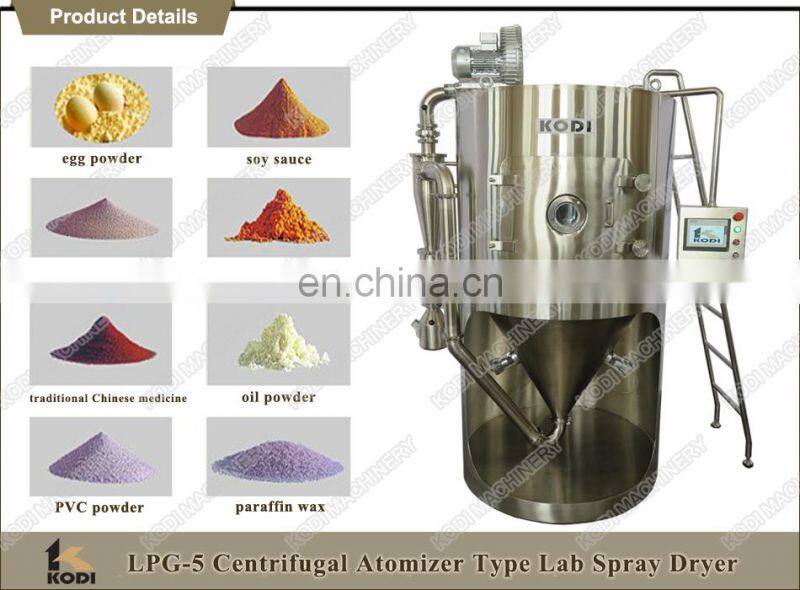

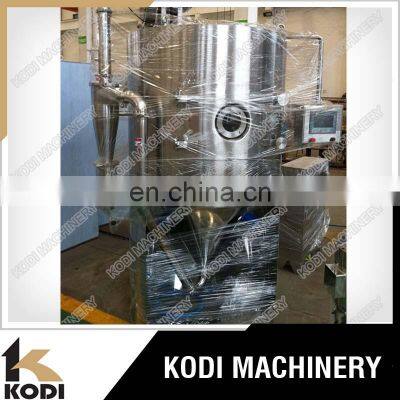

KODI Industrial Small Scale Arabic Gum Spray Drying Machine Powder Spray Dryer Description
KODI Industrial Small Scale Arabic Gum Spray Drying Machine Powder Spray Dryer is a wide applied process in liquid process shaping and drying industry. Particularly it is suitable for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid. Therefore when the distribution of granule size, final moisture, bulk density, granule shape of finished product must be conformed to accuracy standard, the spray drying is an ideal process.
KODI Industrial Small Scale Arabic Gum Spray Drying Machine Powder Spray Dryer Application
KODI Industrial Small Scale Arabic Gum Spray Drying Machine Powder Spray Dryer is a wide applied process in liquid process shaping and drying industry. Particularly it is suitable for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid. Therefore when the distribution of granule size, final moisture, bulk density, granule shape of finished product must be conformed to accuracy standard, the spray drying is an ideal process.
KODI Industrial Small Scale Arabic Gum Spray Drying Machine Powder Spray Dryer Working Principle
After filtering and heating, the hot fresh air enter into the air distributor at the top of drying chamber, distributed in spiral
way uniformly from up to down. At the same time, the feeding liquid is pumped to the top atomizer, then be sprayed to extremely fine mist liquid drop. Through the short time of direct contact with hot air, the moisture evaporated at once, the solid remains to be powder. The dry powder will be discharged continuously from the bottom of drying tower and cyclone collector, the exhaust air will be discharged after cleaning.
way uniformly from up to down. At the same time, the feeding liquid is pumped to the top atomizer, then be sprayed to extremely fine mist liquid drop. Through the short time of direct contact with hot air, the moisture evaporated at once, the solid remains to be powder. The dry powder will be discharged continuously from the bottom of drying tower and cyclone collector, the exhaust air will be discharged after cleaning.
Specification
KODI Industrial Small Scale Arabic Gum Spray Drying Machine Powder Spray Dryer Technical Data
Evaporation | 3~5Kg/h | Dia/Height | 1.0M/2.2M |
Operation temperature | Inlet 180℃ Outlet 90℃ | Atomizer Dia 50mm | Compressed air driving |
Power | Drive:0.75KW | Water consumption | 0.1m3/h |
Heater:12KW | |||
Type | Open circle | Feeder | peristaltic pump |
Air contact | Co-current | Heater | Electric heater |
Collection | Cyclone | Atomizer | Centrifugal atomizer |
Overall size | 1.68x1.5x2.1 | Weight | About 500Kg |
Packing | Plywood box | Power | 3Ph, 220-415V, 50/60Hz |
Parameters of KODI Industrial Small Scale Arabic Gum Spray Drying Machine Powder Spray Dryer
No. | Item | Model | Qty | Material | Notes | |||||
Feeding system | ||||||||||
1 | peristaltic pump | BT-100 | 1set | Sanitary | 0.3Kw | |||||
2 | Feeding pipe | 1set | SUS304 | |||||||
Circulation system | ||||||||||
1 | Suction blower | 9-19 | 1set | SUS304 | 0.75KW | |||||
2 | Air valve | 1set | SUS304 | |||||||
3 | Hot air pipe | 1set | SUS304 | |||||||
4 | Air out pipe | 1set | SUS304 | |||||||
5 | Pipe fittings | 1set | SUS304 | |||||||
Air system | ||||||||||
1 | Air filter | 1set | SUS304 | Initial and middle | ||||||
2 | Air heater | 12Kw | 1set | SUS304 | ||||||
3 | Pipe fitting | 1set | SUS304 | |||||||
4 | Hot air pipe | 1set | SUS304 | Insulation | ||||||
Main machine | ||||||||||
1 | Drying chamber | D1000H2200 | 1set | SUS304 | ||||||
2 | Air distributor | 1set | SUS304 | |||||||
3 | Air cover | 1set | SUS304 | |||||||
4 | Atomizer | LPG5/Dia 50mm | 1set | SUS304 | Air driven | |||||
5 | Light | 100W | 1set | |||||||
6 | Manhole | 1set | SUS304 | |||||||
7 | Insulation | Glass fiber | ||||||||
8 | Hammer | SK40 | 2sets | Aluminum | ||||||
Powder collection system | ||||||||||
1 | Cyclone | XF170 | 1set | SUS304 | ||||||
2 | Discharge valve | 1set | SUS304 | |||||||
3 | Product jar | 1set | SUS304 | |||||||
4 | Air pipe | Quick opening | 1set | SUS304 | ||||||
Control system | ||||||||||
1 | Control box | 1set | SUS304 | |||||||
2 | PLC | SIEMENS | 1set | |||||||
3 | Touch screen | SIEMENS | 1set | |||||||
4 | Contactor | SIEMENS | 1set | |||||||
Successful Experience Overseas by KODI Lab Spray Drier

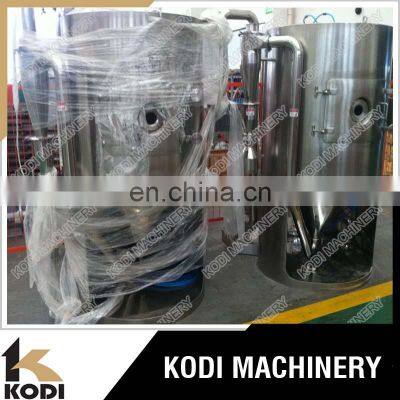

Packing & Delivery
Company Profile
Why Choose KODI
* International high quality certification product chain
* Manufacturer, more reasonable price
* Solid technical support and after-sales service
* Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)
* Exports to more than 20 countries and regions, good customers feedback
* One-stop service, customized exclusive project feasibility report
* International high quality certification product chain
* Manufacturer, more reasonable price
* Solid technical support and after-sales service
* Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)
* Exports to more than 20 countries and regions, good customers feedback
* One-stop service, customized exclusive project feasibility report
About KODI
Changzhou KODI Machinery Co., Ltd. located in the birthplace of China drying equipment----Zhenglu Industrial Park, Changzhou City, Jiangsu Province which is 150km away from Shanghai city, with a comfortable environment and convenient transportation access.
KODI company is a professional manufacture of drying machine, which include Seaweed processing machine, Seaweed drying machine (Cottonii to carrageenan, Agar agar ), Spray dryer machine, Food ingredients spray dryer, Flavor spray dryer machine(Cocoa, Maltdextrin,Gum Acacia), spray drier/ lab spray drier / lpg-5 mini spray drier, Gelatin processing machinery, Gelatin drying machine (Hide and bone),Gelatin production line. we also deal in high-quality fermentation tank, Bright tank , Extraction tank, concentration tank , evaporator and etc.
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products conform to international standards, such as CE, SGS.
KODI company also has a lot of top talent which have more than 15years of work experience, include research, design, manufacture and after sale service. Our products sell to all of the world (such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Chile, Peru, Argentina, Russia, Ukraine, South Africa, Cameroon, Sudan, Syria) and also have the good cooperation with the foreign client and vendor.
KODI company is a professional manufacture of drying machine, which include Seaweed processing machine, Seaweed drying machine (Cottonii to carrageenan, Agar agar ), Spray dryer machine, Food ingredients spray dryer, Flavor spray dryer machine(Cocoa, Maltdextrin,Gum Acacia), spray drier/ lab spray drier / lpg-5 mini spray drier, Gelatin processing machinery, Gelatin drying machine (Hide and bone),Gelatin production line. we also deal in high-quality fermentation tank, Bright tank , Extraction tank, concentration tank , evaporator and etc.
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products conform to international standards, such as CE, SGS.
KODI company also has a lot of top talent which have more than 15years of work experience, include research, design, manufacture and after sale service. Our products sell to all of the world (such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Chile, Peru, Argentina, Russia, Ukraine, South Africa, Cameroon, Sudan, Syria) and also have the good cooperation with the foreign client and vendor.
Pre-service:
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.
After-sale service
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.
After-sale service
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.
FAQ
Special Notice:
In order to quota you the right mini spray drier/ lpg-5 lab spray drier / small spray drier with best price, we would like to get
the following information include in your inquiry:
* -What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
* -What is the capacity per hour you need (kg/h)?
* -What is the initial moisture and final moisture of finished products you require to get?
* -What about the maximum heat temperature of raw material?
* -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
* -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
* -Provide us your country’s electricity information, such as phases, voltage, HZ?
* -How about dust collect requirements?
* -Other special requirements?
Frequently Asked Questions
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you about 1 hour to get Changzhou.Or we can visit you in Shanghai.
Q: What’s the quality of your products?
A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q: What to do if the machine has a problem?
A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: How long is the warranty of your equipment?
A: Our warranty period is one year generally.
Q: What is your payment term?
A: Our usual payment term is: 50% TT in advance, 50% TT before shipment. Other ways can also be received after we both sides discussion and agreement.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF
price.
In order to quota you the right mini spray drier/ lpg-5 lab spray drier / small spray drier with best price, we would like to get
the following information include in your inquiry:
* -What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
* -What is the capacity per hour you need (kg/h)?
* -What is the initial moisture and final moisture of finished products you require to get?
* -What about the maximum heat temperature of raw material?
* -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
* -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
* -Provide us your country’s electricity information, such as phases, voltage, HZ?
* -How about dust collect requirements?
* -Other special requirements?
Frequently Asked Questions
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you about 1 hour to get Changzhou.Or we can visit you in Shanghai.
Q: What’s the quality of your products?
A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q: What to do if the machine has a problem?
A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: How long is the warranty of your equipment?
A: Our warranty period is one year generally.
Q: What is your payment term?
A: Our usual payment term is: 50% TT in advance, 50% TT before shipment. Other ways can also be received after we both sides discussion and agreement.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF
price.
Contact Us
- Changzhou Kodi Machinery Co., Ltd.
Product Categories
| Drying Machine | Evaporator | Filter Machine | Granulation Machine |
| Mixer Grinder and Sifter | Packaging Line | packaging machine | Reactor |
| Rice Process Line | Tank | Ungrouped |
New Products
-
CE GMP Standard Lab Small Spirulina Microalgae Spray Drying Machine Algae Spray Dryer
-
KODI GMP Standard Egg Powder Mini Spray Dryer Machine
-
KODI LPG5 Blood Spray Dryer CE GMP Standard Lab Use Spray Drying Machine
-
LPG5 Model Laboratory Use Yeast Powder Spray Dryer
-
KODI CE GMP Standard Maltodextrin Pilot Spray Dryer Flavour Powder Mini Spray Dryer
-
Lab LPG 5 High Speed Centrifugal Humic Acid Spray Dryer
-
Stainless Steel Pilot Spray Dryer Machine XH-5 Atomizer
-
KODI XH Series Spray Dryer Machine Electric Atomizer
-
KODI XH Series Stainless Steel High Speed Rotary Centrifugal Atomizer for Spray Dryer
-
KODI GMP Standard High Speed Centrifugal Rotary Spray Dryer Electric Atomizer
-
KODI XH-25 Spray Dryer Rotary Electric Atomizer
-
KODI XH-50 High Speed Centrifugal Spray Dryer Atomizer
-
KODI XH-5 Centrifugal Penumatic Atomizer For Pilot Spray Dryer
-
XH Series Centrifugal Spray Dryer Atomizer For High Speed Spray Dryer
-
KODI XH Model Pneumatic Atomizer For Mini Spray Dryer
-
XH Series Electric Pneumatic Type High Speed Centrifugal Atomizer for Spray Dryer
-
KODI LPG-10 Model High Speed Industrial Centrifugal Spray Dryer
-
KODI CE ISO LPG 10 Model Coconut Milk Powder Spray Dryer
-
LPG 10 Small Egg Powder Making Machine Spray Dryer Machine
-
KODI CE GMP Standard LPG10 Dry Powder Spray Drying Machine
-
KODI LPG-10 Stainless Steel Milk Powder Making Machine Centrifugal Atomizer Spray Dryer
-
KODI CE GMP Standard LPG10 Food Flavor Powder Spray Dryer Lab Spray Drier
-
LPG 10 Model Flavor and Food Ingredients Centrifugal Atomizer Type Spray Dryer
-
KODI LPG Series Food Ingredients Flavour Spray Dryer
Popular Searches
- tube bundle dryer
- fluid bed dryer
- dryer equipment
- spray drying equipment
- vacuum dryer
- plate drying machine
- industrial dryer
- rotary drum dryer
- cross joint shaft
- rotary dryer
- drum dryer
- vacuum drying equipment
- rotary drying equipment
- dryer oven
- spray dryer
- rotary dryer machine
- industrial rotary dryer
- rotary drying machine
- hopper dryer
- hopper drying machine
- freeze dryer
- industrial centrifugal dryer
- cowpea seed
- blood gas machine
- drier machine
- lab spray dryer
- drier equipment
- air tunnel
- air drying
- mineral dryer
Recommended Products
- Yosion Technology YH-9423A Drying Oven;Industrial Oven;Trolley Oven
- Peptide White Powder Spray Dryer Stainless Steel Plant Protein Spray Drying Equipment
- Yosion Technology YH-D2000T Drying Oven;Industrial Oven;Trolley Oven
- Yosion Technology YH-9623A Drying Oven;Industrial Oven;Sample Preparation Equipment
- [Explosion-Proof Design] [80-120°C VFD Control] Biomass Vacuum Dryer for Bamboo Powder/Sugarcane Residue [Shandong Manufacturer]
- [Explosion-Proof Design] [80-120°C VFD Control] Biomass Vacuum Dryer for Bamboo Powder/Sugarcane Residue [Shandong Manufacturer]
- [Explosion-Proof Design] [80-120°C VFD Control] Biomass Vacuum Dryer for Bamboo Powder/Sugarcane Residue [Shandong Manufacturer]
- [Explosion-Proof Design] [80-120°C VFD Control] Biomass Vacuum Dryer for Bamboo Powder/Sugarcane Residue [Shandong Manufacturer]
- [Explosion-Proof Design] [80-120°C VFD Control] Biomass Vacuum Dryer for Bamboo Powder/Sugarcane Residue [Shandong Manufacturer]
- .[Energy Efficiency Certified] [24KW Motor/90KG Fuel] Vacuum Dryer for Wood Chips/Straw Drying [Jinan Hengyuruntai Supplier]
- Freeze Dryer
- Vacuum Freeze Dryer
Find Similar Products By Category
- Manufacturing & Processing Machinery > Chemical Equipment & Machinery > Chemical Drying Equipment
- Please Enter your Email Address
- Please enter the content for your inquiry.
We will find the most reliable suppliers for you according to your description.
Send Now
Changzhou Kodi Machinery Co., Ltd.
AIBot OnlineThis conversation is AI-generated. Contact manufacturer before transaction to confirm info.
-
sales
Hi there! Welcome to my shop. Let me know if you have any questions.
Your message has exceeded the limit.
- Contact supplier for lowest price
- Customized Request
- Request Sample
- Request Free Catalogs
Your message has exceeded the limit.
-
Purchase Quantity
-
*Sourcing Details
Your inquiry content must be between 10 to 5000 characters.
-
*Email
Please enter Your valid email address.
-
Mobile
