CT-C Model Spice Chilli Pepper Hot Air Dryer Machine

 CT-C Model Spice Chilli Pepper Hot Air Dryer Machine

1, pepper dryer machine / hot air dryer / hot air dryer machine

2, Automatic temperature control system

3, Low energy consumption

4, Easy operation and control

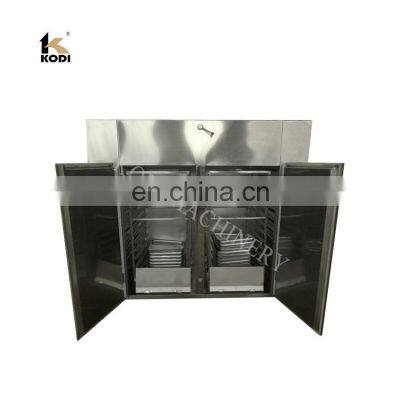

CT-C Hot Air Dryer Machine or Tray oven dryer adopts noise elimination and thermal stable axial flow fan and automatic temperature control system. The entire circulation system is enclosed to make that the heat efficiency of the tray dryer increases from 3~7% of the traditional tray dryerto 35~45% of the present one. The highest heat efficiency can be up to 50%.The successful design of CT -C hot air circulation oven makes that the hot air circulation tray dryer in our country reach the advanced level in the world. It saves energy and increases the economic benefit.In1990, the medical management bureau of the State issued the industry standard and the uniform type is RXH.

Hot Air Dryer Machine Application

This Hot Air Dryer Machine is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc .

Hot Air Dryer Machine Features

1. Three kinds of heat source are used for heating : electricity, steam+ electricity.

2. Operation temperature: steam,50-140°C. Max.150°C, electricity,50~350°C. The temperature can be controlled automatically.        Moreover it can be recorded through recorder.

3. The inner wall of oven body is fully welded. Each transition adopts circular arc and no dead.

4. The seal property of whole machine is good. Being adopted unique guide rail seal apparatus, the seal property can be                  guaranteed.

5. The air inlet is equipped with high effective air filter and the damp exhaust outlet is equipped with middle effective air filter.

6. The double doors of oven adapt mechanical interlock apparatus.

7. All parts inside the oven can be assembled and disassembled quickly in order to clean conveniently.

8. The control system has test display and touch screen for your choice.

9. The whole machine is in conformity with the requirements of GMP.

Pepper Dryer Machine Technical Parameters

Drawings and Flow Chart of Pepper Dryer Machine

Changzhou KODI Machinery Co., Ltd. located in the birthplace of China drying equipment----Zhenglu Industrial Park, Changzhou City, Jiangsu Province which is 150km away from Shanghai city, with a comfortable environment and convenient transportation access.

KODI company is a professional manufacture of drying machine, which include Seaweed processing machine, Seaweed drying machine (Cottonii to carrageenan, Agar agar ), Spray dryer, Food ingredients spray dryer, Flavor spray dryer (Cocoa, Maltdextrin,Gum Acacia), Laboratory dryer/ herb dryer, Hot Air Dryer Machine /Hot pepper Dryer Machine / drying oven, Gelatin processing machinery, Gelatin drying machine (Hide and bone),Gelatin production line. we also deal in high-quality fermentation tank, Bright tank , Extraction tank, concentration tank , evaporator and etc..

We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products conform to international standards, such as CE, SGS.

KODI company also has a lot of top talent which have more than 15years of work experience, include research, design, manufacture and after sale service. Our products sell to all of the world (such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Chile, Peru, Argentina, Russia, Ukraine, South Africa, Cameroon, Sudan, Syria) and also have the good cooperation with the foreign client and vendor.

We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us. Welcome!

Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.

After-sale service
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.

Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.

          In order to quota you the right Hot Air Dryer Machine / pepper Dryer Machine / drying oven  with best price, we would like to get the following information include in your inquiry:

• -What is the raw material?  Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.

• -What is the capacity per hour you need (kg/h)?

• -What is the initial moisture and final moisture of finished products you require to get?

• -What about the maximum heat temperature of raw material?

• -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?

• -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?

• -Provide us your country’s electricity information, such as phases, voltage, HZ?

• -How about dust collect requirements?

• -Other special requirements?
