Factory Price Freeze Dryer/vacuum Lyophilizer/ Industrial Vacuum Freeze Dryer Machinery
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
800l/kg Industrial Pharmaceutical Freeze Dryer/lyophilizer/freeze Drying Machine
-
Automatic Stainless Steel Freeze Dried Food Machine Freeze Drier
-
High Quality Granulation Machine Pharmaceutical
-
Njp 1200 Automatic Hard Shell Capsule Machine Maquina de Encapsuladora Drugs Encapsulation Machine
-
High Speed Automatic 25mm Effervescent Tablet Press Machine
-
FLP 5 Mini Lab Pilot Pharmaceutical Fluid Bed Granulator Fluidized Bed Dryer Fluid Bed Processor
Product Description
Product Description
It is well known that vacuum drying is to put raw material to the state of vacuum for heating and drying.
If use vacuum to take air and humidity out, the dry speed will be faster.
Note: if use condensate, the solvent in raw material can be recovered. If use SK series water ring vacuum pump sets, condensate can not be used and the investment could be saved.
Model：

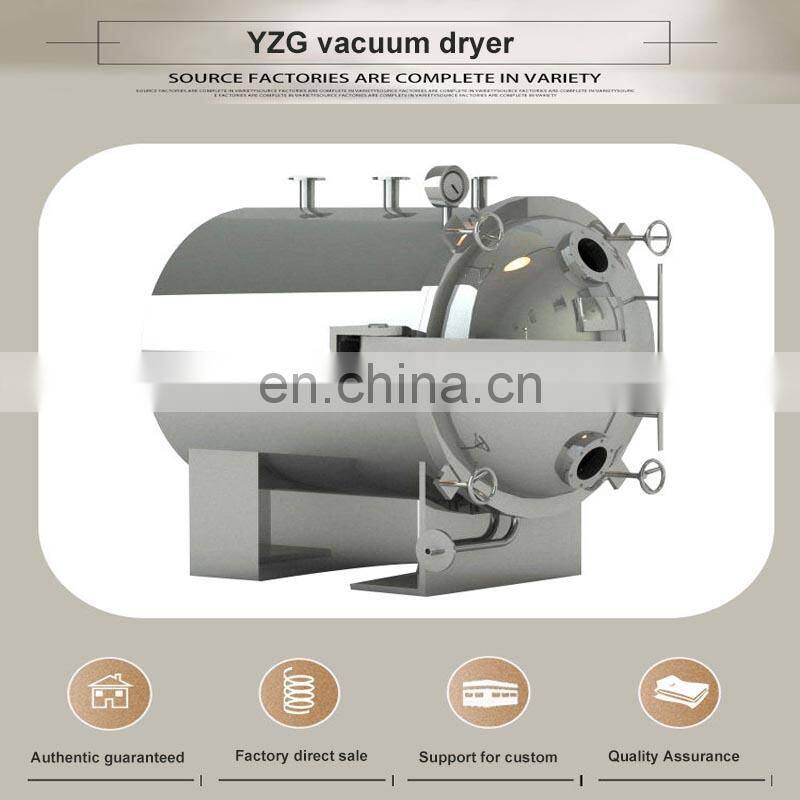

YZG
FZG
Every factory machine is precisely debugged by engineers to ensure that it is ready for use after delivery

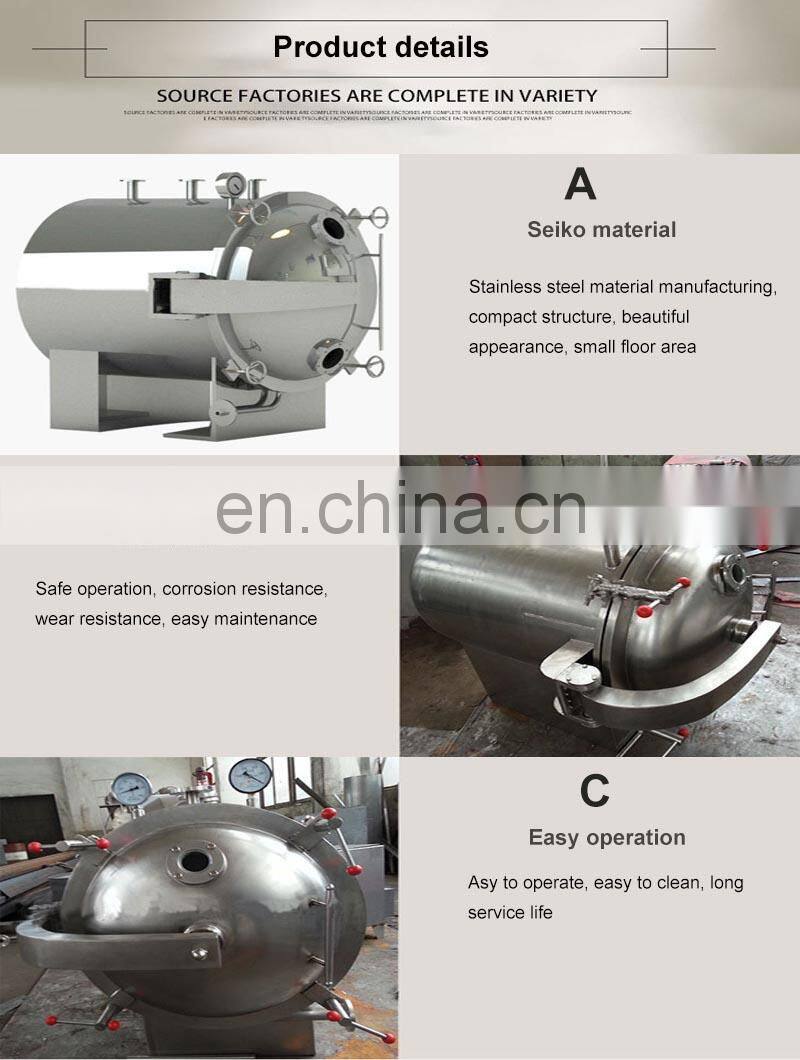

Details Images
We can customize high, medium and low three levels of equipment according to customer requirements
The price is different because of different customization requirements
Technical Parameters
Features
Under the condition of vacuum, the boiling point of raw material will decrease and make the pushing force become greater.
Therefore for a certain amount of heat radiation, the conducting area of evaporator can be saved; The heat source for operation of
evaporation may be low pressure steam or surplus heat steam;
Therefore for a certain amount of heat radiation, the conducting area of evaporator can be saved; The heat source for operation of
evaporation may be low pressure steam or surplus heat steam;
The heat loss of evaporator is less; Before drying, the treatment of
disinfection may be carried out. During the period of drying, there is no impurity material mixing. It belongs to static drier. So the shape of raw material to be dried can not be destroyed.
disinfection may be carried out. During the period of drying, there is no impurity material mixing. It belongs to static drier. So the shape of raw material to be dried can not be destroyed.
Specification Name | YZG-600 | YZG-1000 | YZG-1400 | FZG-10 | FZG-15 | FZG-20 | |||||
Inside size of chamber (mm) | φ600*976 | φ1000*1572 | φ1400*2054 | 1500*1060 *1220 | 1500*1220 *1400 | 1500*1220 *1600 | |||||
Outer size of chamber (mm) | 1135x810 x1020 | 1693x1190 x150 | 2386x1657 x1920 | 1720x1513 x1924 | 2060x1513 x1924 | 2060x1513 x2124 | |||||
Layers of baking shelf | 4 | 6 | 8 | 5 | 8 | 12 | |||||
Layer of baking shelf (mm) | 81 | 102 | 102 | 122 | 122 | 122 | |||||
Size of baking disk (mm) | 310x600 x45 | 460x640 x45 | 460x640 x45 | 460x640 x45 | 460x640 x45 | 460x640 x45 | |||||
Number of baking disk | 4 | 12 | 32 | 20 | 32 | 48 | |||||
Permitted pressure inside the pipe of baking shelf (Mpa) | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | |||||
Temperature inside chamber (°C) | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 | |||||
Vacuum in idle inside chamber (Mpa) | -0.09~0.096 | ||||||||||
If not use condensate, type and power of vacuum pump (kw) | SK-1.5 4KW | SK-3 5.5KW | SK-6 11KW | SK-6 11KW | SK-6 11KW | SK-6 11KW | |||||
Weight of drying chamber (kg) | 250 | 800 | 1000 | 1400 | 2100 | 2500 | |||||
We can provide a series of detailed materials for mask production pictures, production process videos, drawings, etc.
Professional we can provide sterilizers and packaging machines. Can meet your mass production.
Finished Product
Packing & Delivery
Our Service & FAQ
Our Company
Our Customer
Due to our good credit and service, we have made great achievements in the past years.
We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China.
