Home > Products > Solid Preparation & Filling Machine > hot air turmeric and ginger cabinet dryer/dryer machine/drying equipment

hot air turmeric and ginger cabinet dryer/dryer machine/drying equipment

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

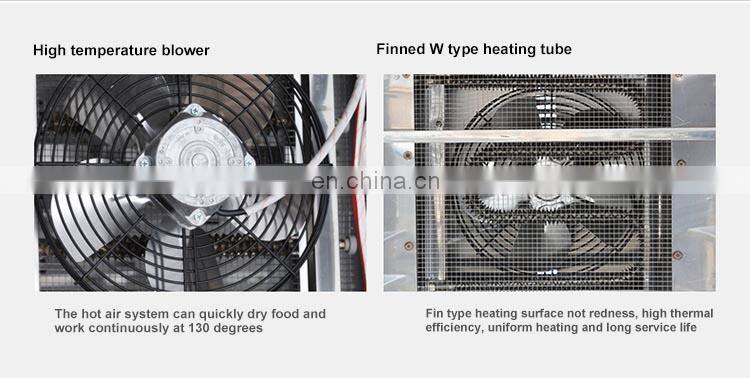

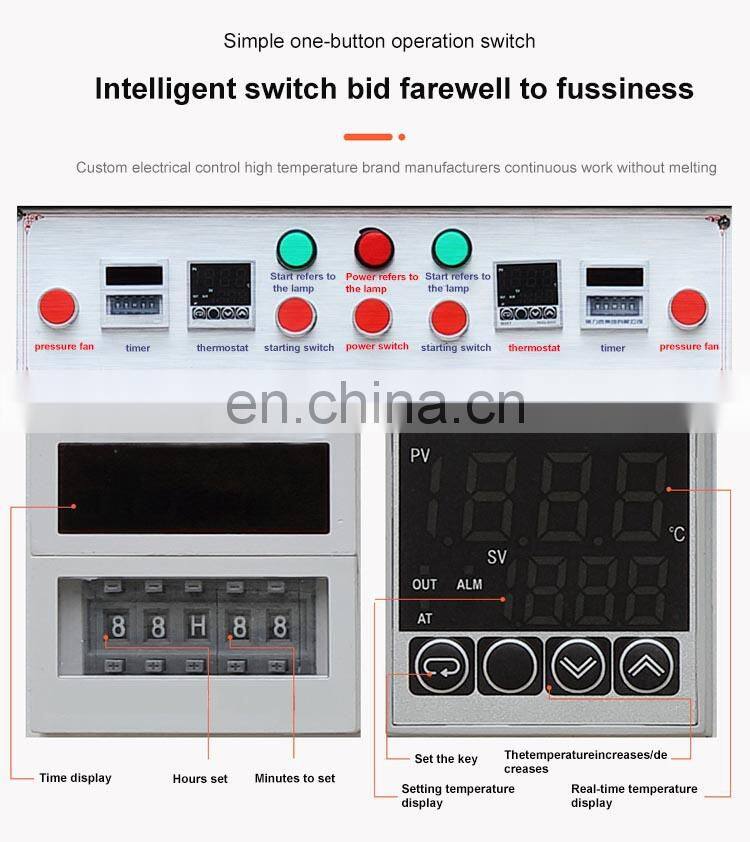

CT-C series hot air circulation drying oven uses a low noise and high temperature proof axial flow blower and an automatic temperature control system. The whole circulation system is the fully enclosed to make that the heat efficiency of the drying oven increases from 3-7% of the traditional drying oven to 35-45% of the present one. The highest heat efficiency can reach 50%. The successful design of CT- Chot air circulation drying oven makes that the hot air circulation drying oven in our country reach the advanced level both at home and abroad. In order to save a large quantity of the energy in our country, in order to enhance the economic results of the enterprises, in 1990, the medicine management bureau of the State issued the industry standard and the uniform type is RXH.

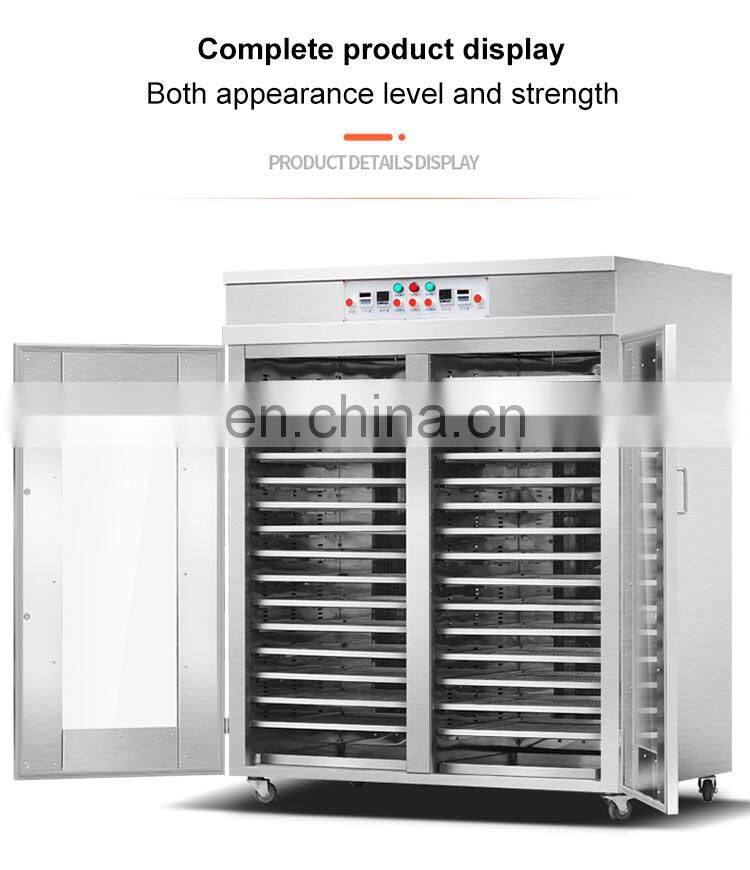

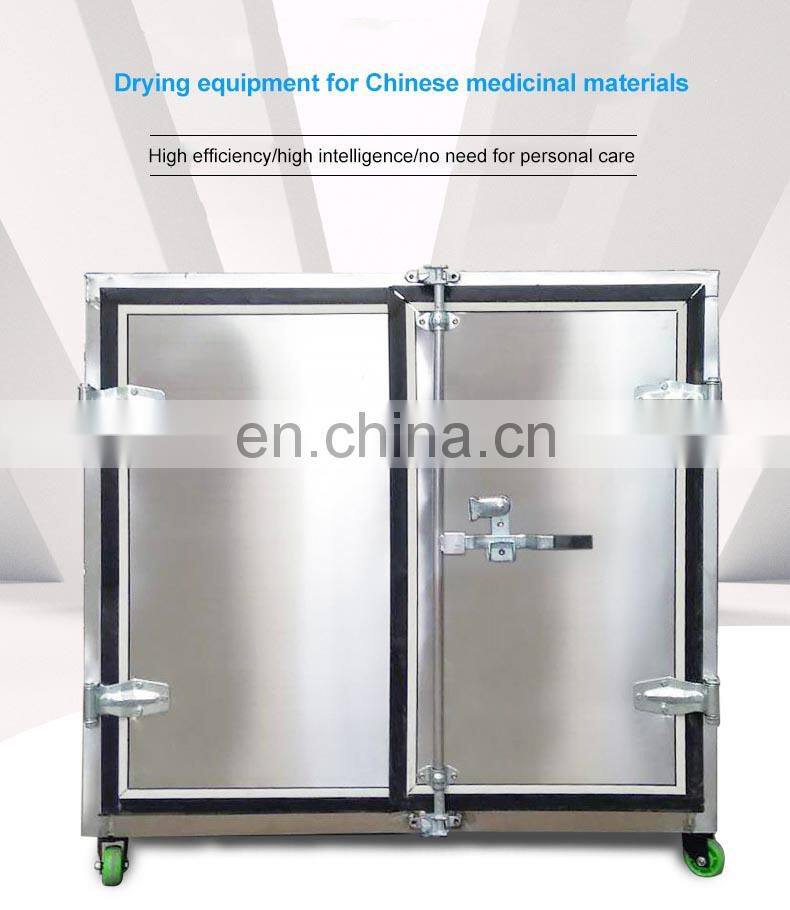

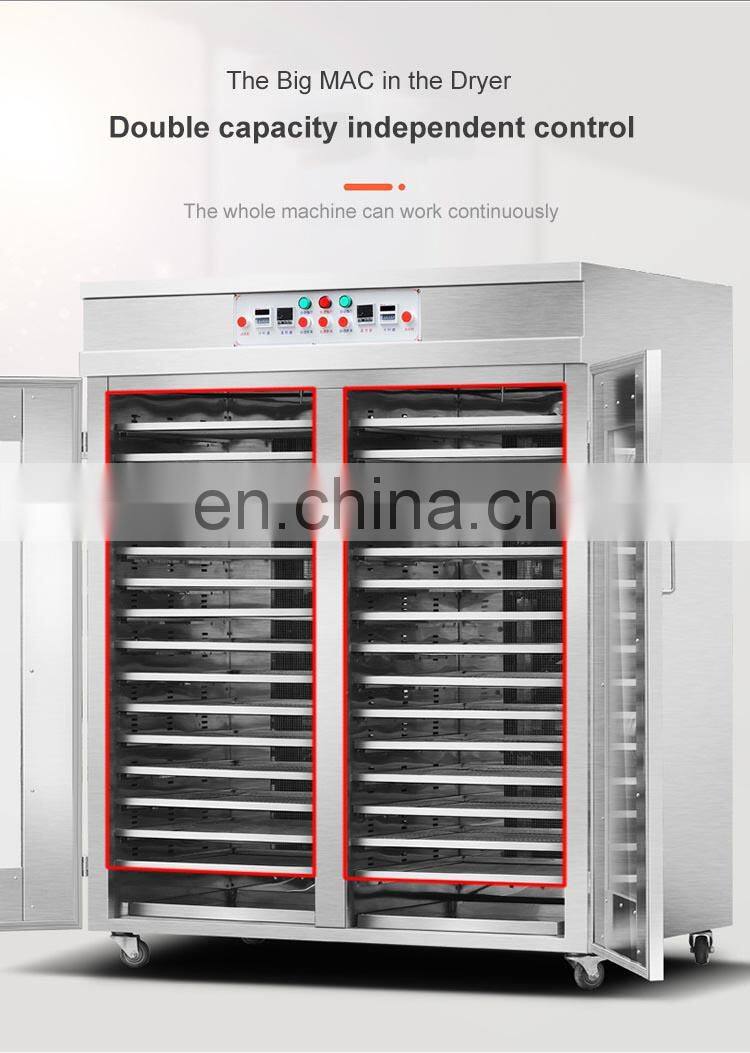

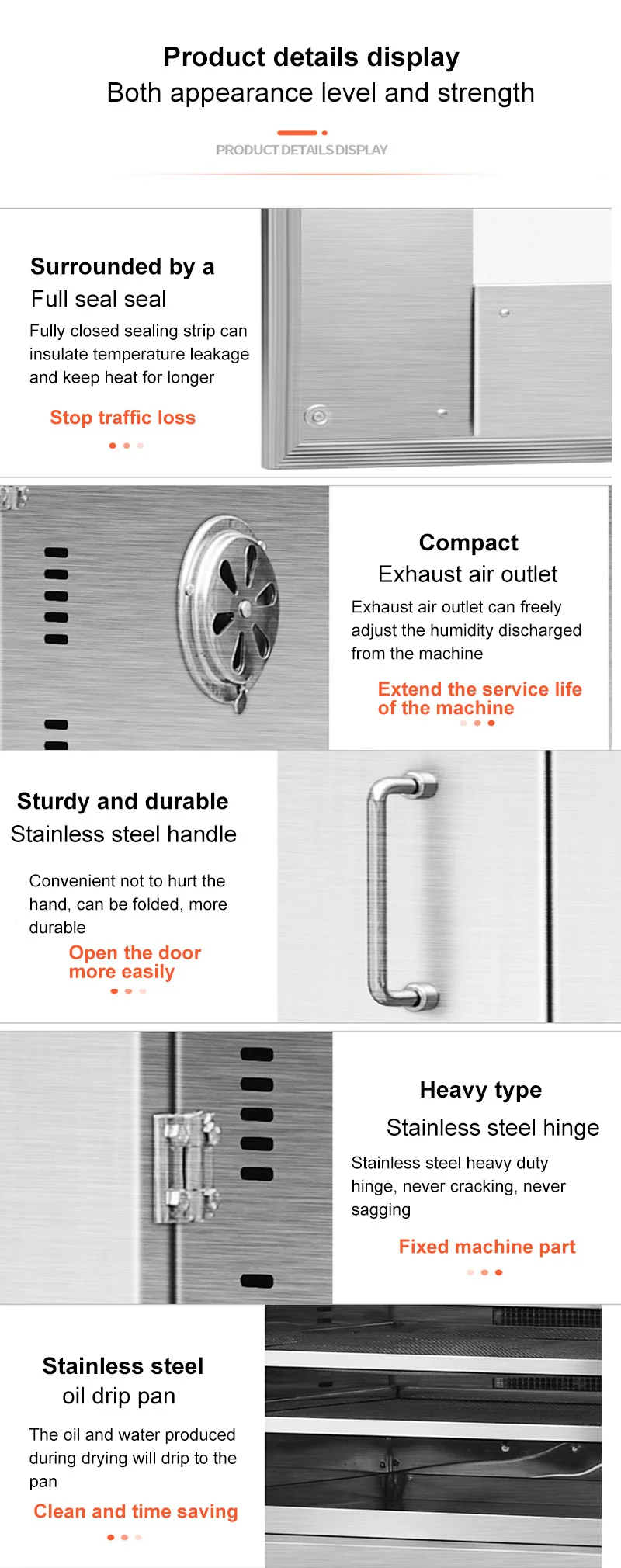

Detailed Images

Every factory machine is precisely debugged by engineers to ensure that it is ready for use after delivery

Technical Parameters

We can customize high, medium and low three levels of equipment according to customer requirements

The price is different because of different customization requirements

Model of industrial standard	RXH-5-C	RXH-14-C	RXH-27-C	RXH-41-C	RXH-54-C
Model specification	CT-C-0	CT-C-I	CT-C-II	CT-C-III	CT-C-IV
Dry amount each time (kg)	60	120	240	360	480
Equipped power (kW)	0.45	0.45	0.9	1.35	1.8
Consumption of steam (kg/h)	10	18	36	54	72
Area of radiation(㎡)	10	20	40	80	100
Amount of air (m³/h)	3450	3450	6900	10350	13800
temperature difference between up and low(°C)	±2	±2	±2	±2	±2
Amount of drying tray to be equipped	24	48	96	144	192
Overall dimensions WxDxH(mm)	14801100 1750	23001200 2000	23002200 2000	23003200 2000	44602200 2290
Equipped drying trolly	1	2	4	6	8

We can provide a series of detailed materials for mask production pictures, production process videos, drawings, etc.

Professional we can provide sterilizers and packaging machines. Can meet your mass production.

Product Application

Applications

1.The heat source can be steam, heat conductive oil,electricity or far infrared. Customers can select one of them in accordance with practical conditions. 2.Temperature for steam:140℃-150℃. 3.Temperature for electricity or far infrared:350℃. 4.There are automatic and computer control system for customers to choose. 5.The normal steam pressure:0.2-0.8MPa. 6.Power for electricity heat source will be 15KW calculated as Model I. Practical power to be used will be 5-8kw/h. 7.lf any special requirements, please indicate it when order. 8. Parameters for non-standard ovens shall be discussed separately according to different conditions. 9.If the operating temperature is higher than 14℃ or lower then 60℃, please indicate it when order. 10.The drying trollies and trays are of a standard size and can be exchanged with one another. 11.The size of drying tray:460x 640x45mm.

The radiators can be used for various drying equipment.There are many specifications and kinds.The materials to be used are
aluminium alloy stainless steel, A3 steel surface zinc covering,steel and aluminium compound, copper,steel pipe and aluminium
winding sheet In addition.the radiators can be used for the heating and dehunidification indoors in the warehouses.Our factory can
carry out the design and manufacturing for our users.

Packing & Delivery

Our Service & FAQ

Our Company

Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including clean room project, soft-gel production line, glass-lined reactor, fermentor, centrifuge, granulator, mixer, dryers, pulverizer, tablet press, soft and hard blister packing machine, capsule filling machines, cartoner and rollers, etc. Our products are exported to many countries . Besides machinery and equipment, we also supply production lines and turn key projects. In SINOPED you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.

Our Customer

Due to our good credit and service, , we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China.
