FLP-10 Fluid-Bed Granulator/Coater
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
NJP 800 Automatic Capsule Filling Machine/ China Manufacturer Pharmaceutical Equipment
-
High Quality Food Freeze Dryer / Fruit Freeze Drying Machine for Sale
-
Good Quality Fruit Freeze Drying Machine Freeze Drying Machine Lyophilizer Vacuum Freeze Dryer
-
DTJ-C Semi Automatic Capsule Filling Machine
-
SNGR-2B Automatic Vial Bottle Filling, Stoppering and Capping Machine/ Vial Filler
-
Vacuum Freeze-drying Machine/ Vacuum Dryer Series for Vegetable and Fruit
Product Description
Product Description

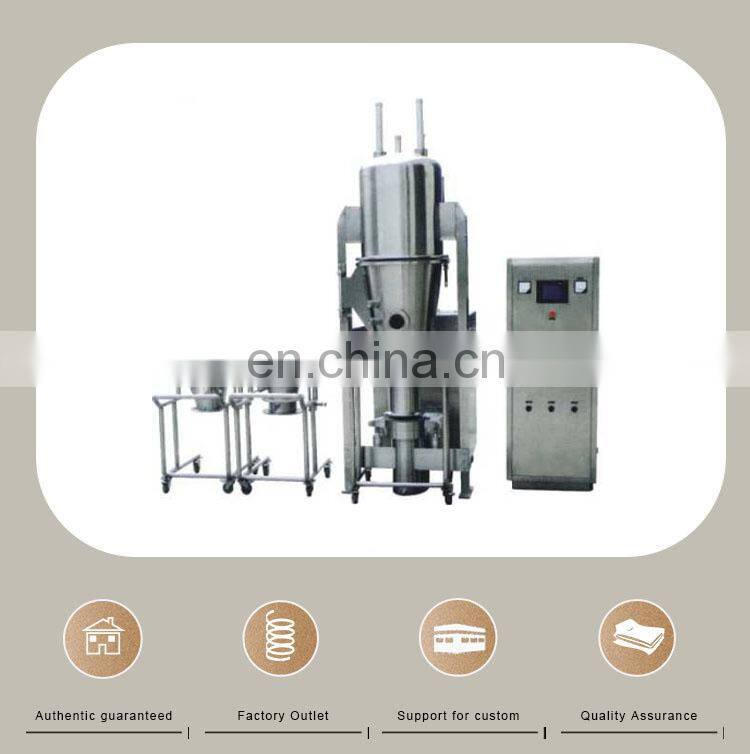

FLP Multifunction Granulating Coating Machine

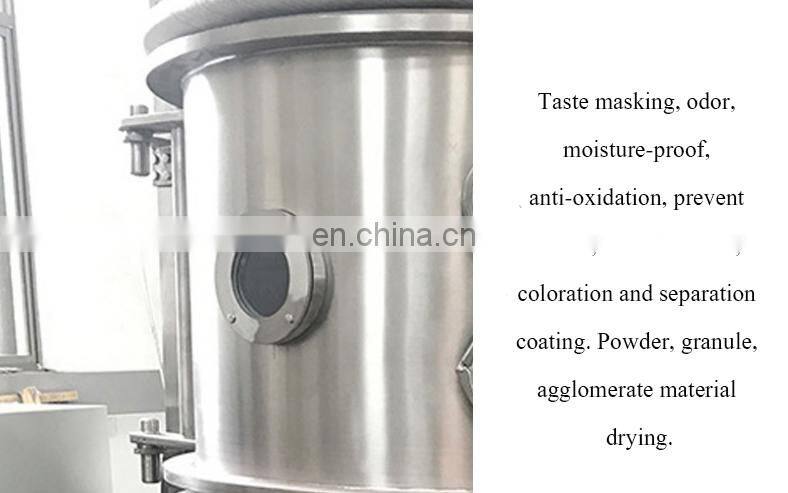

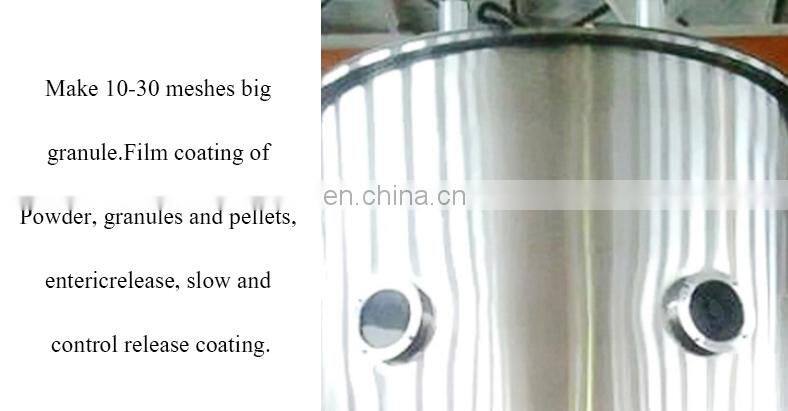

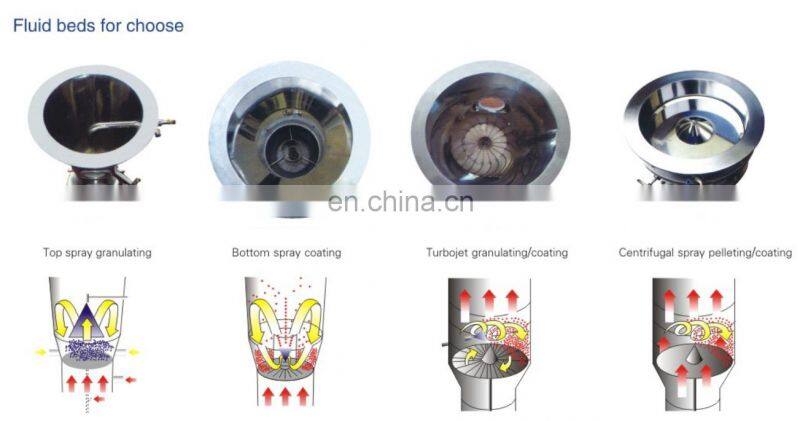

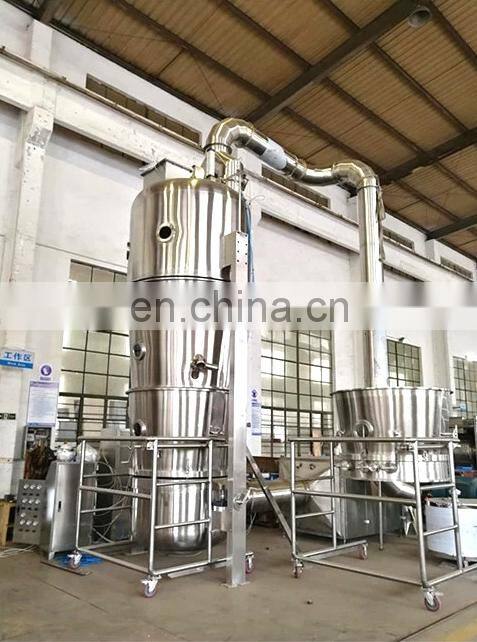

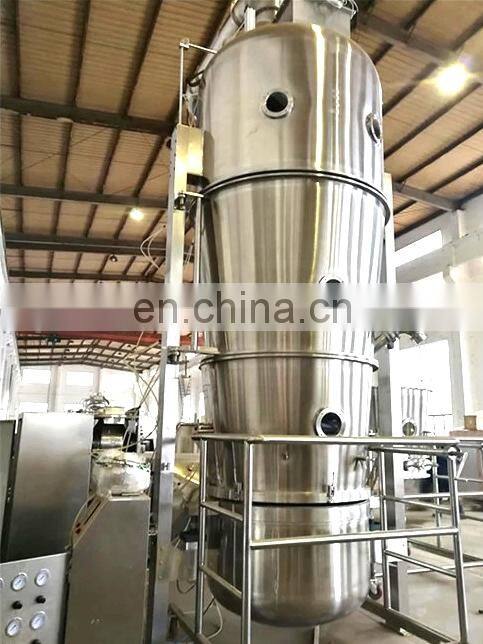

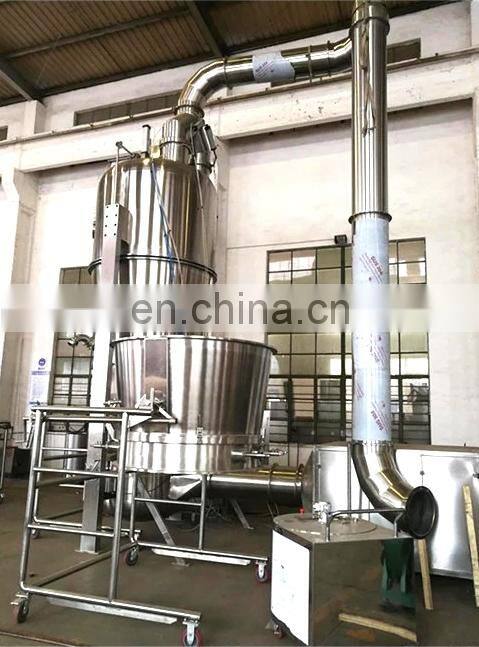

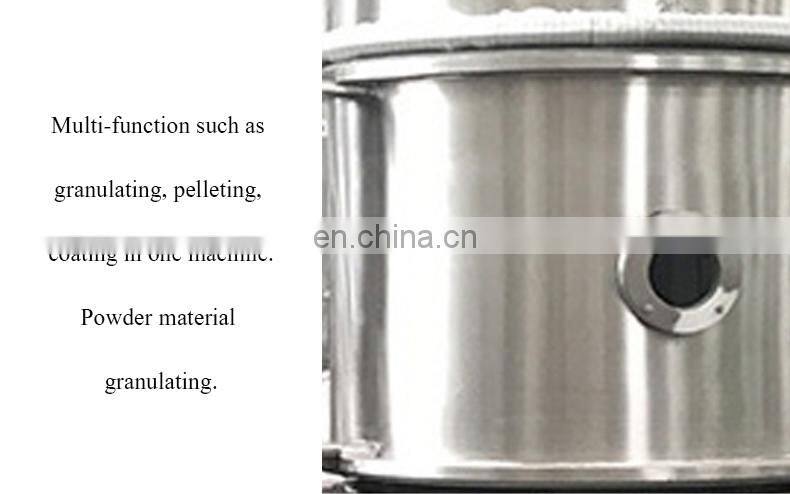

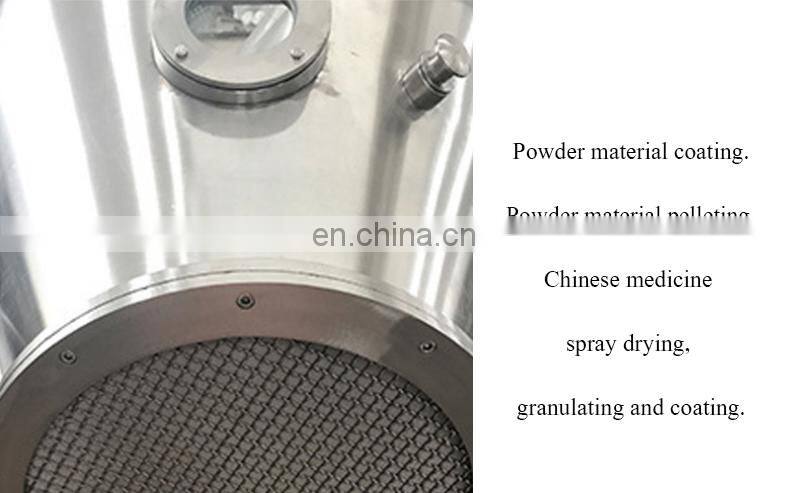

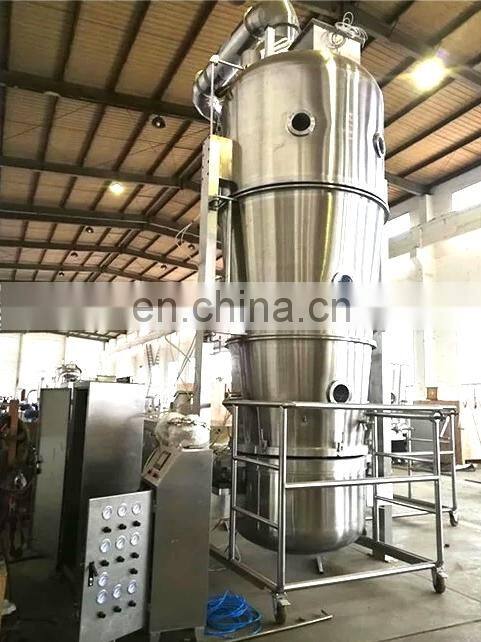

FLP Multifunction Granulating Coating Machine is multi-function equipment integrated spray drying-granulating-centrifugal spray coating-fluid coating drying in one body. The machine combines various process operations. Particularly it is suitable for granulating, pelleting and coating of various varieties in pharmaceutical industry, foodstuff industtry and chemical industry.etc.Detailed Images
Technical Parameters
type | unit | 10 | 30 | 45 | 60 | 90 | 120 | |||||||
dia of container | mm | 700 | 1000 | 1100 | 1200 | 1400 | 1500 | |||||||
productive capacity | kg/batch | 2.5-10 | 7.5-30 | 10-45 | 15-60 | 20-90 | 30-120 | |||||||
power of fan | kw | 5.5 | 7.5 | 11 | 11 | 15 | 18.5 | |||||||
steam | pressure | Mpa | 0.4-0.6 | |||||||||||
consumption | Kg/h | 35 | 60 | 140 | 160 | 180 | 240 | |||||||
compressed air | pressure | Mpa | 0.6 | |||||||||||
consumption | m3/min | 0.6 | 0.9 | 0.9 | 1.1 | 1.3 | 1.5 | |||||||
noise | dB | No more than 75bt separated of fan | ||||||||||||

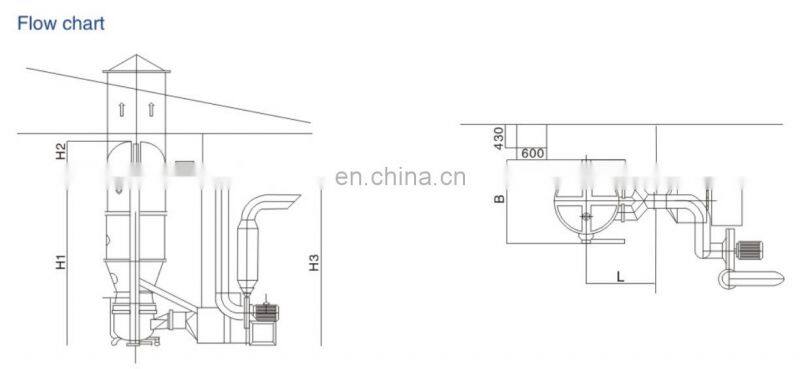

installation size for reference | H1(mm) | 2790 | 3720 | 3720 | 3850 | 3950 | 4190 | |||||||
H2(mm) | 340 | 590 | 640 | 690 | 740 | 790 | ||||||||
H3(mm) | 2570 | 3500 | 3500 | 3630 | 3720 | 3975 | ||||||||
φ1(mm) | 700 | 1200 | 1300 | 1400 | 1500 | 1600 | ||||||||
φ2(mm) | 250 | 280 | 280 | 280 | 280 | 315 | ||||||||
L(mm) | 1250 | 1500 | 1550 | 1600 | 1650 | 1700 | ||||||||
B1(mm) | 1160 | 1600 | 1760 | 1860 | 1960 | 2060 | ||||||||
B2(mm) | 1860 | 2860 | 3060 | 3260 | 3460 | 3660 | ||||||||
Other Type

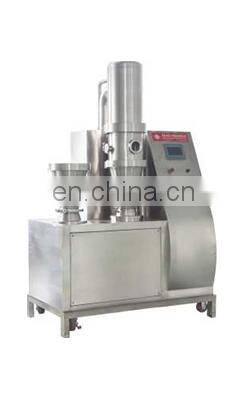

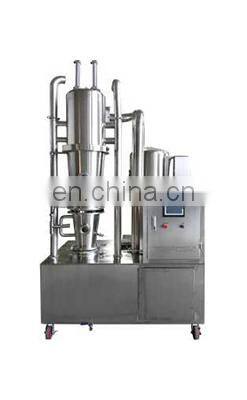

FLP Multifunction Granulating Coating Machine Testing Machine.

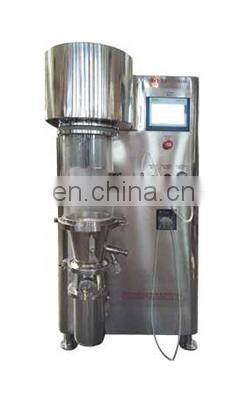

FLP-Mini
FLP-1.5
FLP-3
For more product model information, please contact us.
Packing & Delivery
Our Service & FAQ
Our Company
Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including clean room project, soft-gel production line, glass-lined reactor, fermentor, centrifuge, granulator, mixer, dryers, pulverizer, tablet press, soft and hard blister packing machine, capsule filling machines, cartoner and rollers, etc. In SINOPED you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.
Our Customer
Due to our good credit and service, , we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China.
