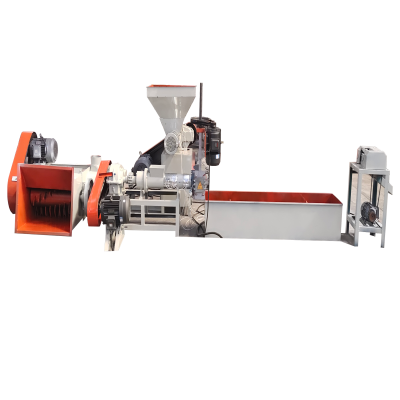

Plastic EPS XPS EPP Foam Granulator Machine for Waste Recycling
US$ 2234.00
≥1 Sets
You May Like
-
Cold Press Compactor EPS Foam Melter and Compressor Hot Melt Cold Press Crusher With Hot Melt and Cold Press
-
1:50 High Compression Ratio Large Foam Compressor Household Appliance Plant Waste Foam Volume Reduction Equipment
-
Save Electricity 50 EPS/EPP Foam Compressor Hydraulic Cold Pressing for Home Appliance/logistics Packaging Recycling
-
Fully Automatic Foam Plastic Cold Press Foam Cold Press XPS/EPS for Recycling Equipment
-
Panqi High-efficiency Hot Melt Foam Hot Melt Machine Processes EPS, EPE Waste Foam Pearl Cotton From Electronics, Furniture
-
Panqi High Strength Compression Ratio EPS Foam Cold Press Machine for Recycling Box Packaging Electronic Product Waste Foam
Product Details
| plastic processed | EPS, Polystyrene, EPE, XPS | output (kg/h) | 100 - 150 | |
| video outgoing-inspection | Provided | machinery test report | Provided | |
| core components | Foam hot melt machine, Foam granulation machine | place of origin | Henan, China | |
| brand name | Panqi | screw design | single screw | |
| voltage | 380 V, 220 V | dimension(l*w*h) | 4000*2000*3000 | |
| power (kw) | 32 | Filter Type | Fine Mesh Filter | |
| warranty | 1 Year | Weight (KG) | 500 |
Product Description
Performance and Characteristics:

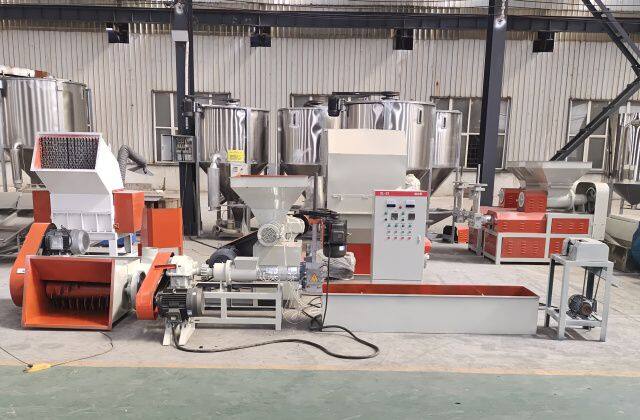

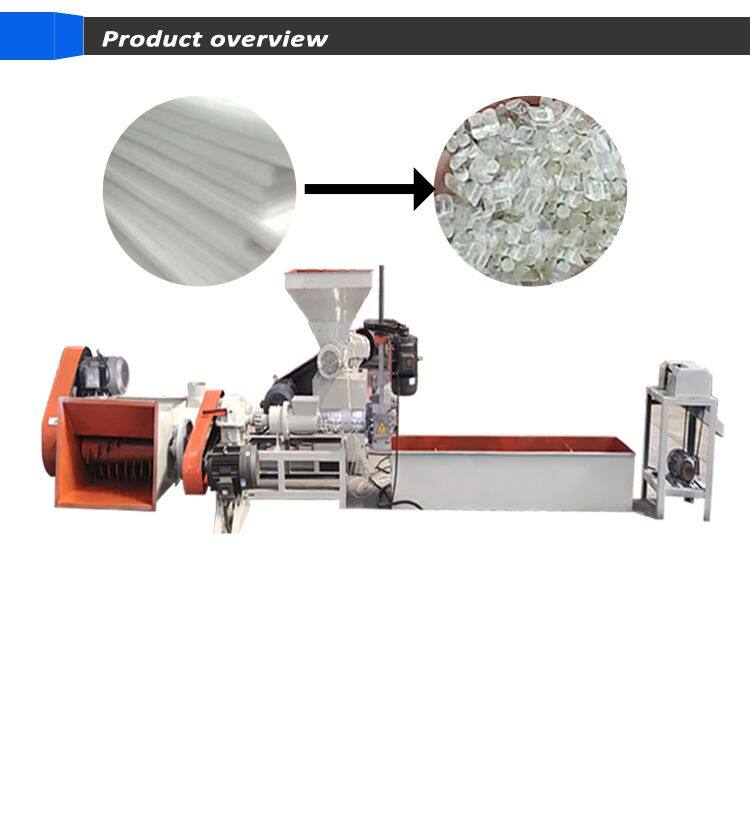

The foam pelletizing machine is an environmentally friendly mechanical equipment that specializes in recycling and processing various types of foam waste. It is mainly used to process waste foam materials such as EPS (polystyrene), EPE (polyethylene foam), EPP (polypropylene foam) into recycled plastic particles through crushing, melting, extrusion, pelletizing and other processes to
achieve resource recycling.
achieve resource recycling.
1. High Production Efficiency: 100-1000 kg/h processing capacity, screw extrusion and melting technology enable continuous production.
2. Multi-Application: Can process a variety of foam plastics, including EPS, XPS, EPE, and EPP, covering waste recycling in the packaging, building materials, and home appliance industries.
3. High-Quality Recycling: Produces high-purity plastic pellets measuring 3-5 mm for direct use in recycling industries such as injection molding and extrusion.
4. Adjustable pelletizing system and replaceable die head enable precise control of pellet size to accommodate different materials and downstream needs.

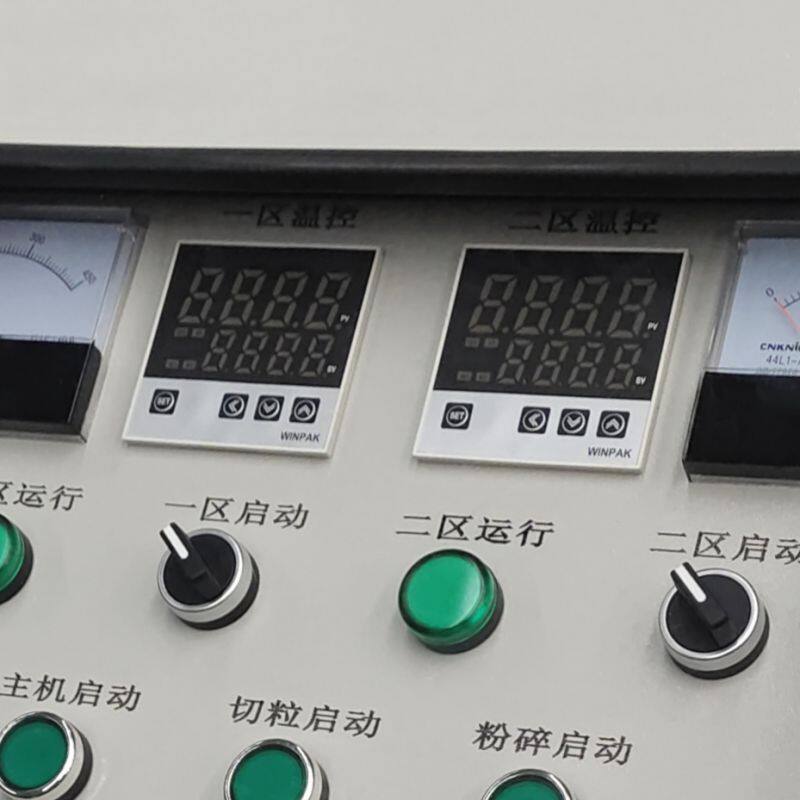

5. Intelligent Safety Protection: PLC automatic control with multiple protections (overload,over temperature, and power failure), and an exhaust gas treatment system ensure safe operation.
2. Multi-Application: Can process a variety of foam plastics, including EPS, XPS, EPE, and EPP, covering waste recycling in the packaging, building materials, and home appliance industries.
3. High-Quality Recycling: Produces high-purity plastic pellets measuring 3-5 mm for direct use in recycling industries such as injection molding and extrusion.
4. Adjustable pelletizing system and replaceable die head enable precise control of pellet size to accommodate different materials and downstream needs.
5. Intelligent Safety Protection: PLC automatic control with multiple protections (overload,over temperature, and power failure), and an exhaust gas treatment system ensure safe operation.
Product model ：
Model | Device Configuration | Motor power（Kw） | Voltage input（v） | Output(kg/h) |
220 A | Foam crusher | 5.5 | 380V | 100-150 |
Foam hot melt machine (main machine) | 18.5 | |||
Wire drawing machine | 5.5 | |||
die head | 1.5 | |||
Foam pelletizer | 1.1 | |||
245 s | Foam crusher | 5.5 | 380V | 150-200 |
Foam hot melt machine (main machine) | 15 | |||
Wire drawing machine | 5.5 | |||
die head | 2.2 | |||
Foam pelletizer | 1.1 | |||
270 s | Foam crusher | 5.5 | 380V | 200-250 |
Foam hot melt machine (main machine) | 15 | |||
Wire drawing machine | 5.5 | |||
die head | 2.2 | |||
Foam pelletizer | 1.1 | |||
320 s | Foam crusher | 5.5 | 380V | 250-300 |
Foam hot melt machine (main machine) | 18.5 | |||
Wire drawing machine | 7.5 | |||
die head | 2.2 | |||
Foam pelletizer | 2.2 | |||
350 s | Foam crusher | 5.5 | 380V | 300-400 |
Foam hot melt machine (main machine) | 22 | |||
Wire drawing machine | 7.5 | |||
die head | 2.2 | |||
Foam pelletizer | 2.2 |

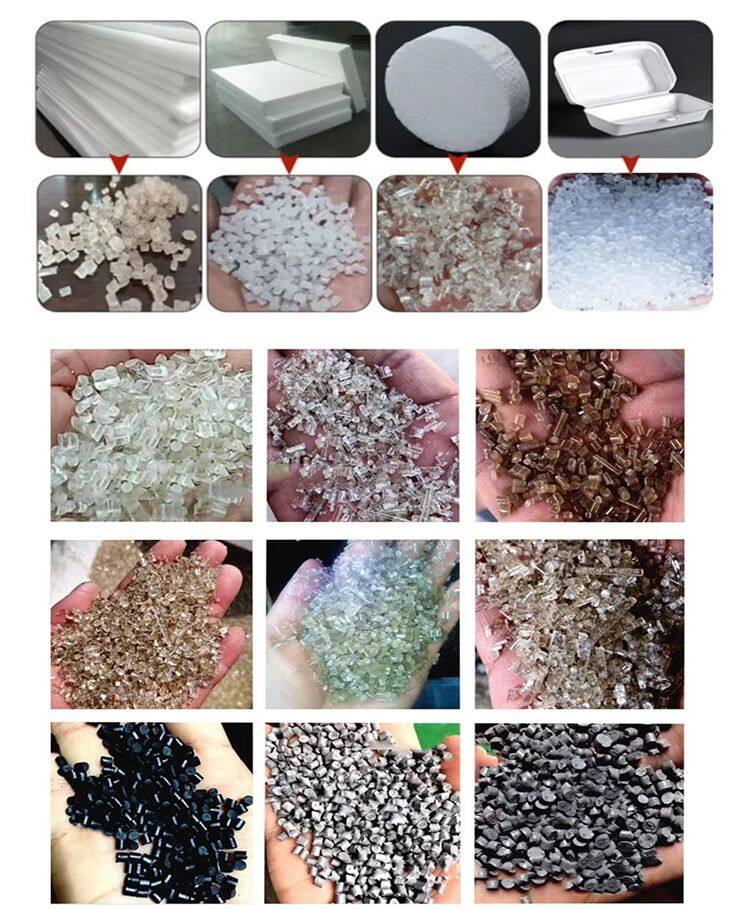

Applicable raw materials & Effects after use：
The foam pelletizer allows precise control of pellet size through pelletizing system adjustments, die replacement, and process parameter optimization, adapting to different materials and downstream needs.
1.Uniform morphology: cylindrical or elliptical pellets, 2-5mm (adjustable)2.Moderate density: EPS pellets 0.6-0.9g/cm³, EPE pellets 0.8-1.1g/cm³
3.Surface finish: After melt extrusion, pellets have a smooth, burr-free surface.
4.Excellent flowability: 10-15% higher injection molding performance than the original material.
5.Masterbatch addition capability: Customizable colors possible.
6.Foamable and recyclable: Maintains excellent secondary foaming properties.
7.The produced plastic pellets can be used to manufacture recycled plastic products such as packaging, building materials, daily necessities, automotive parts, and agricultural tools, enabling the recycling of waste foam.
Henan Panqi Heavy Industry Technology Co., Ltd. is a well-known enterprise specializing in the production of various types of crushing machinery. Over the past decade, we have continuously introduced advanced technologies from home and abroad, professional technical teams, and experienced production personnel. We have developed a series of products including wood crushers, jaw crushers, wood chippers, plastic crushers, metal crushers, sawdust machines, double-shaft crushers, stainless steel food crushers,etc.
Our products are popular with customers.Our products are complete in specification and model, and can meet the needs of different users. We are responsible for the revitalization of Chinese crushing machinery to cooperate wholeheartedly with the vast numbers of users.
Our products are popular with customers.Our products are complete in specification and model, and can meet the needs of different users. We are responsible for the revitalization of Chinese crushing machinery to cooperate wholeheartedly with the vast numbers of users.
A:We are a manufacturer, located in Located at Miaowang Road, Xingyang, Zhengzhou,Henan, China. Warmly welcome to
visit our company.
Q:2. What is your minimum order quantity, can you send me samples?
A:Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
Q:3. How does your factory do regarding quality controlling?
A:(1) All raw material we used are thickening.
(2) Skillful workers care every details in handling the producing and packing process.
(3) Quality control department are specially responsible for quality in each process.
We have been kept providing high quality products by introducing advanced technologies for over 10 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
Q:4.What is the delivery time of your machine?
A:In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.
Q:5.How about the after-sale service?
A:(1)TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
(2)To solve the problems with videos/pictures.
(3)One year warranty for spare parts change.
