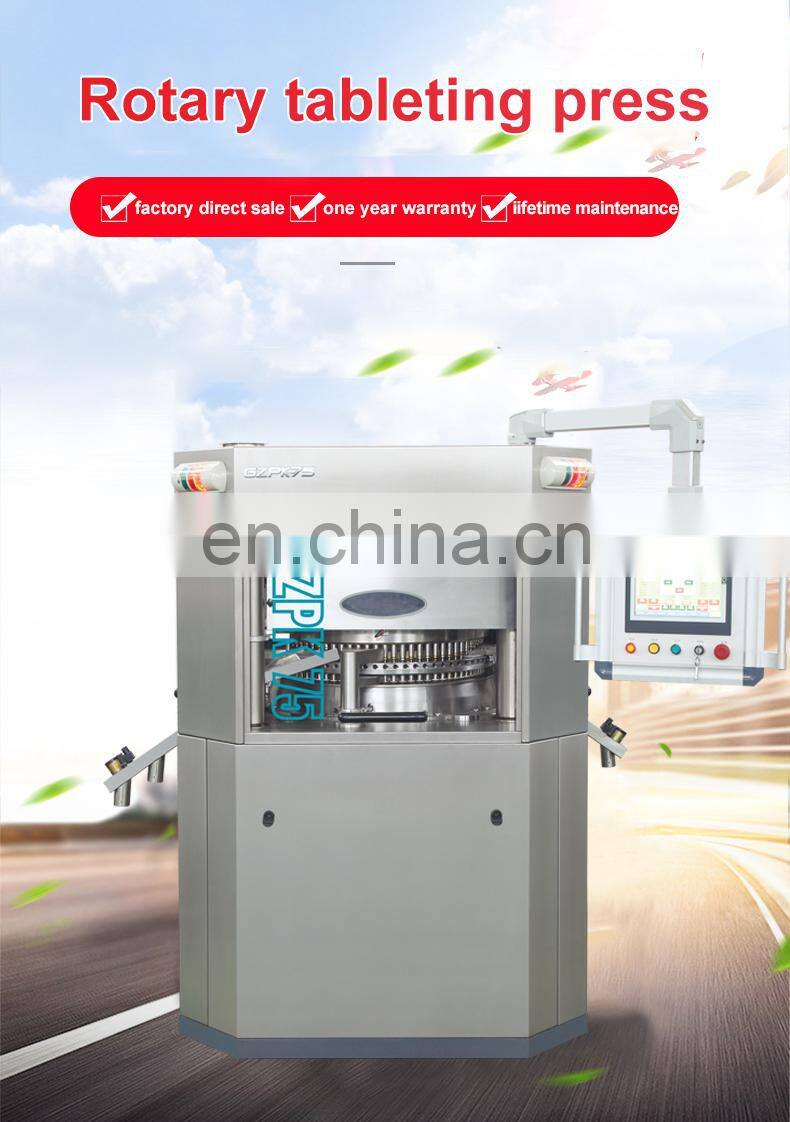

GZPK series high speed rotary tablet press is the British company Maniste products in the 1990s, through continuous technological
innovation and improvement, with a higher degree of automation, better operability, faster production speed, stronger stable
performance, and work noise is lower.Its technology is at the leading level in China.(It is different from other similar products
in the domestic is the development of double discharge high speed tablet press on the basis of the 80's single discharge company,
or imitation of the 80's technology double discharge high speed tablet press).

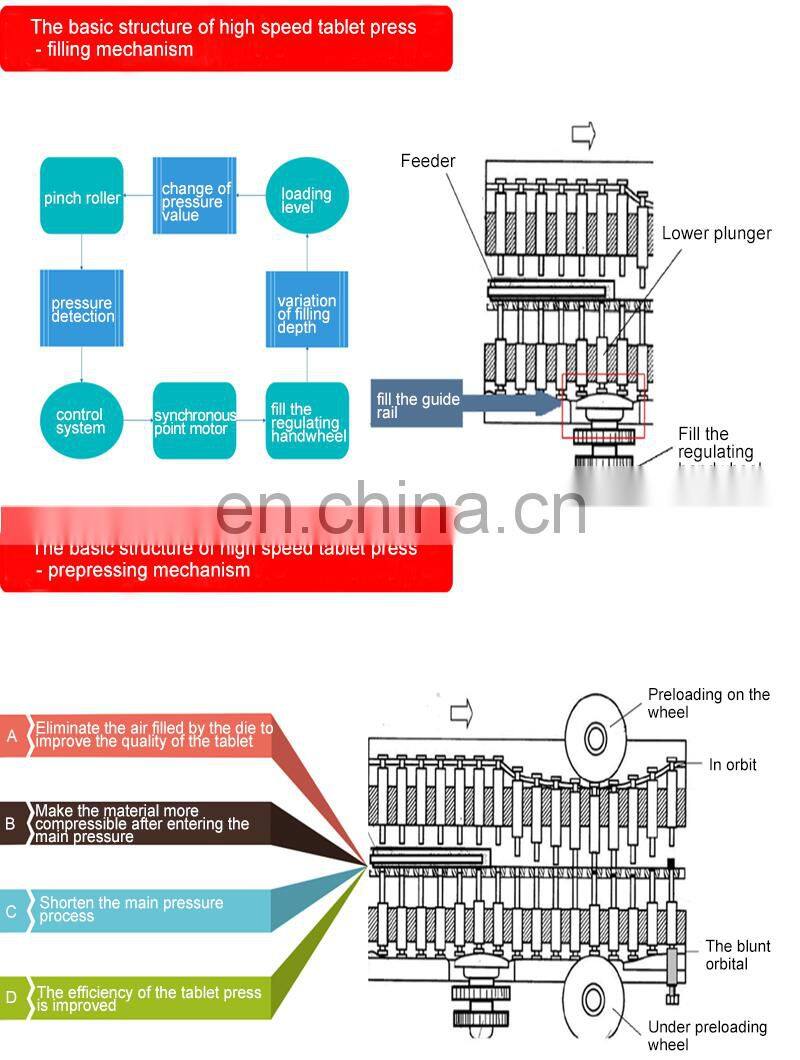

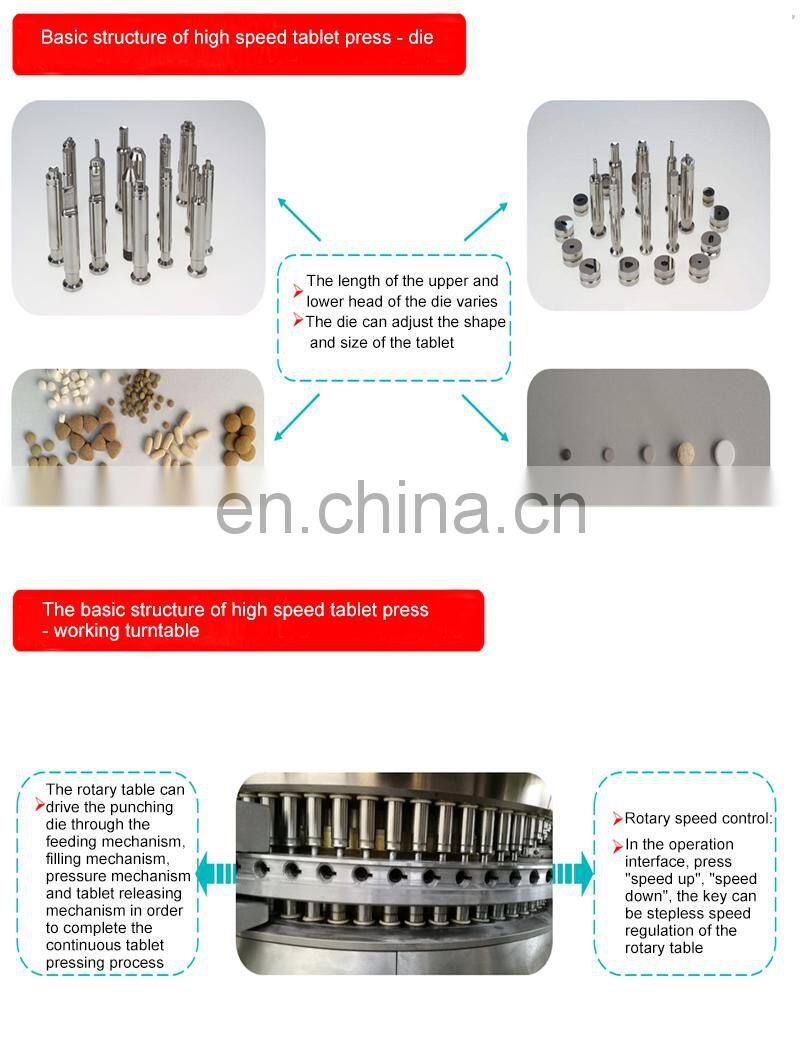

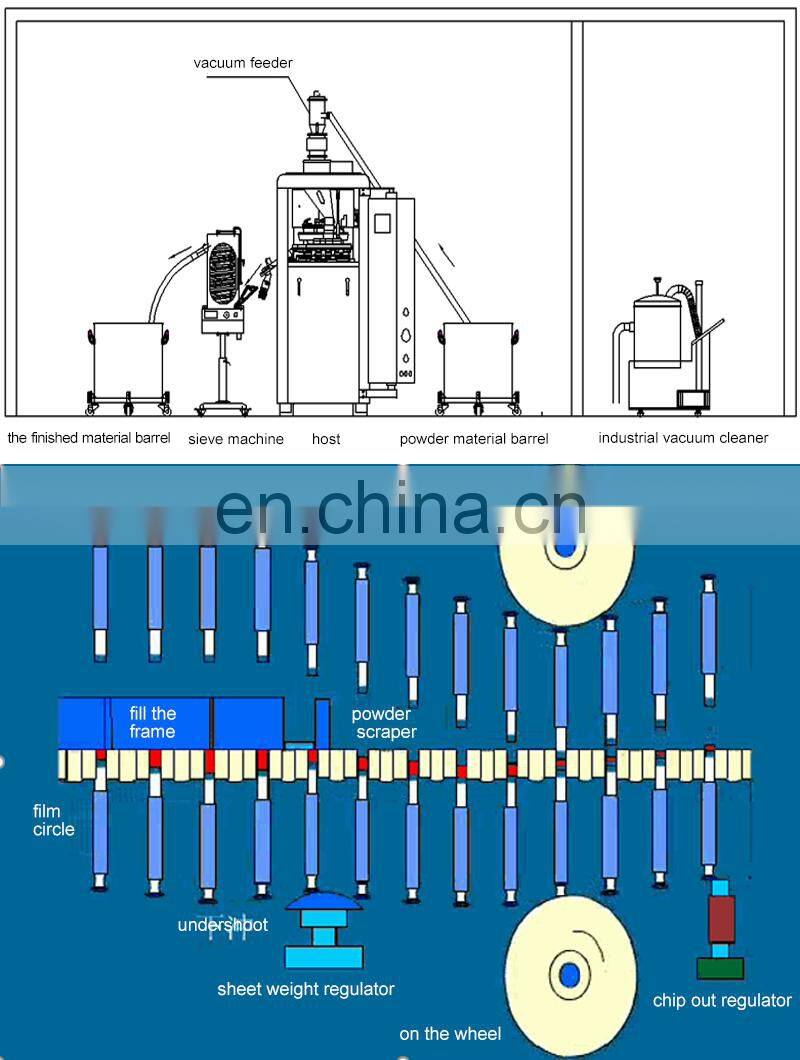

The main motor of the tablet press drives the turntable to rotate through the AC variable frequency stepless governor and the worm
deceleration.The rotation of the turntable causes the upper and lower punch to move up and down relative under the action of the

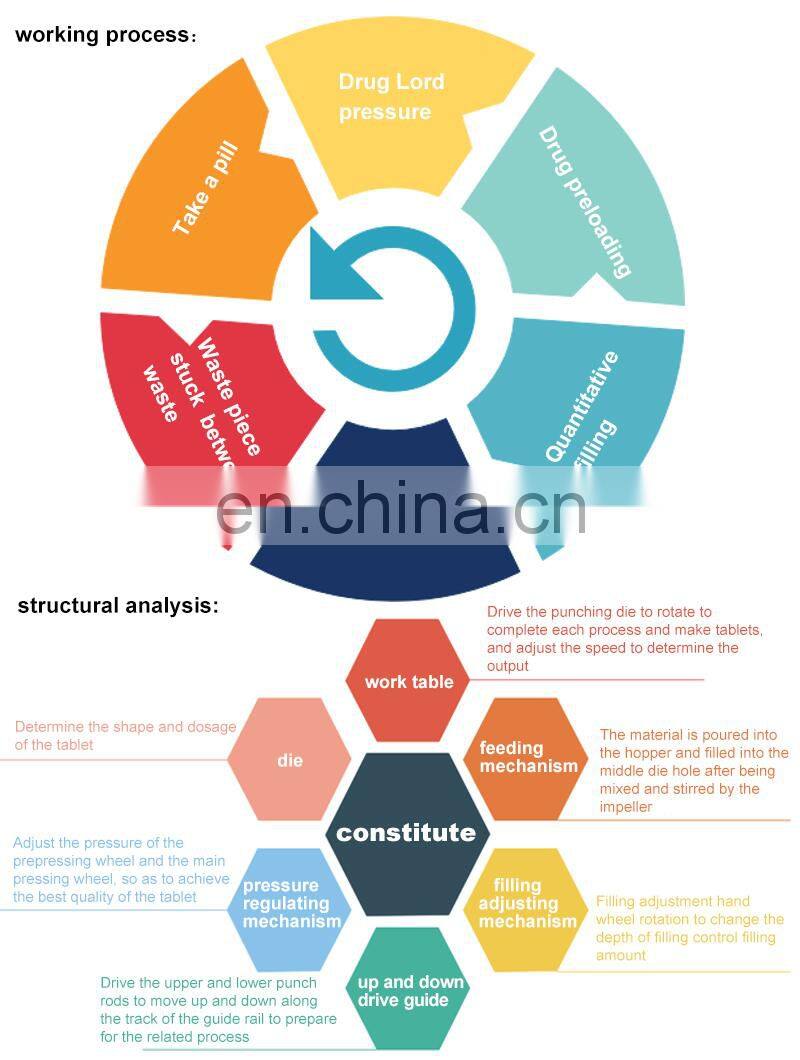

guide rail.The granules or powders are pressed into tablets by filling, prepressing, main pressing and tablet discharging.In the

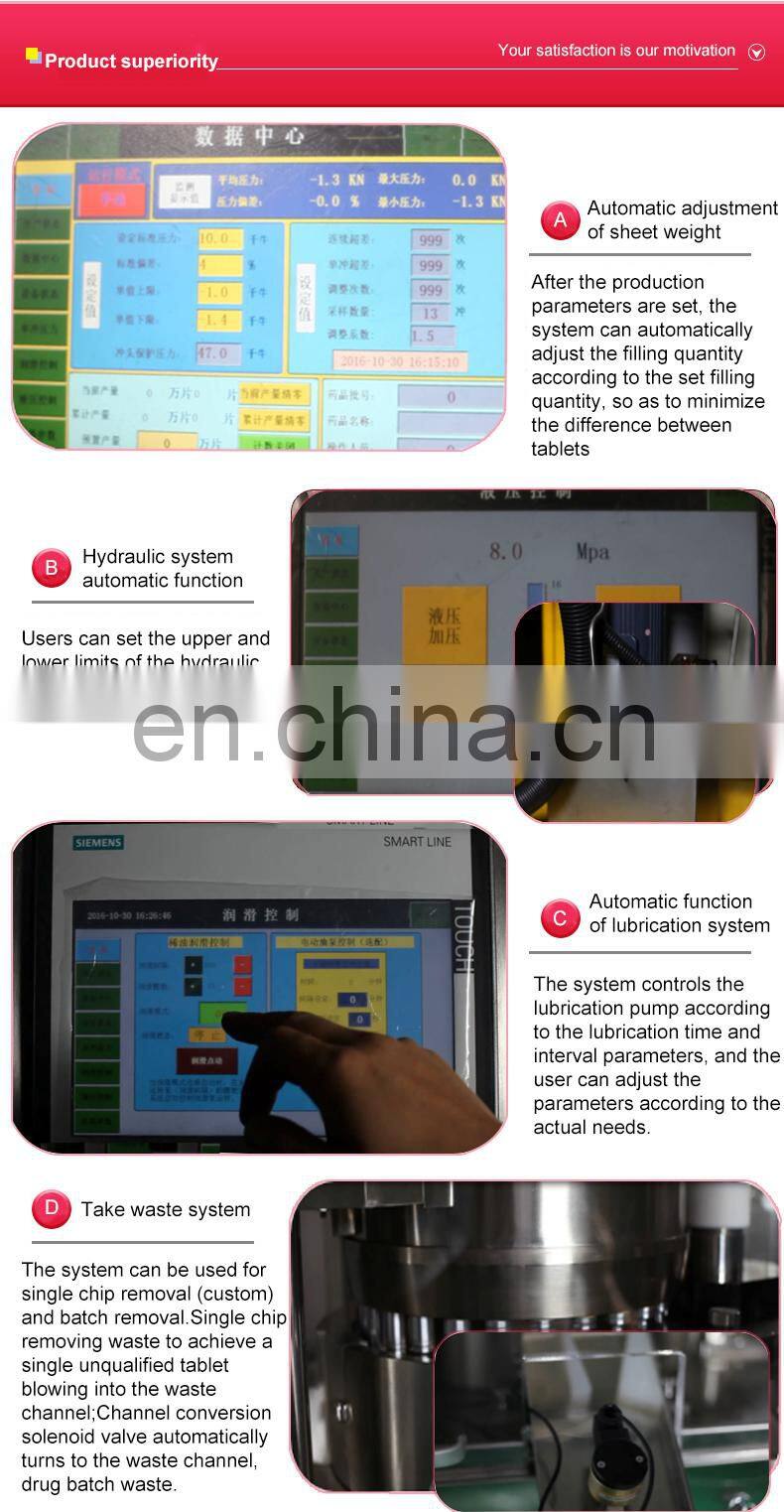

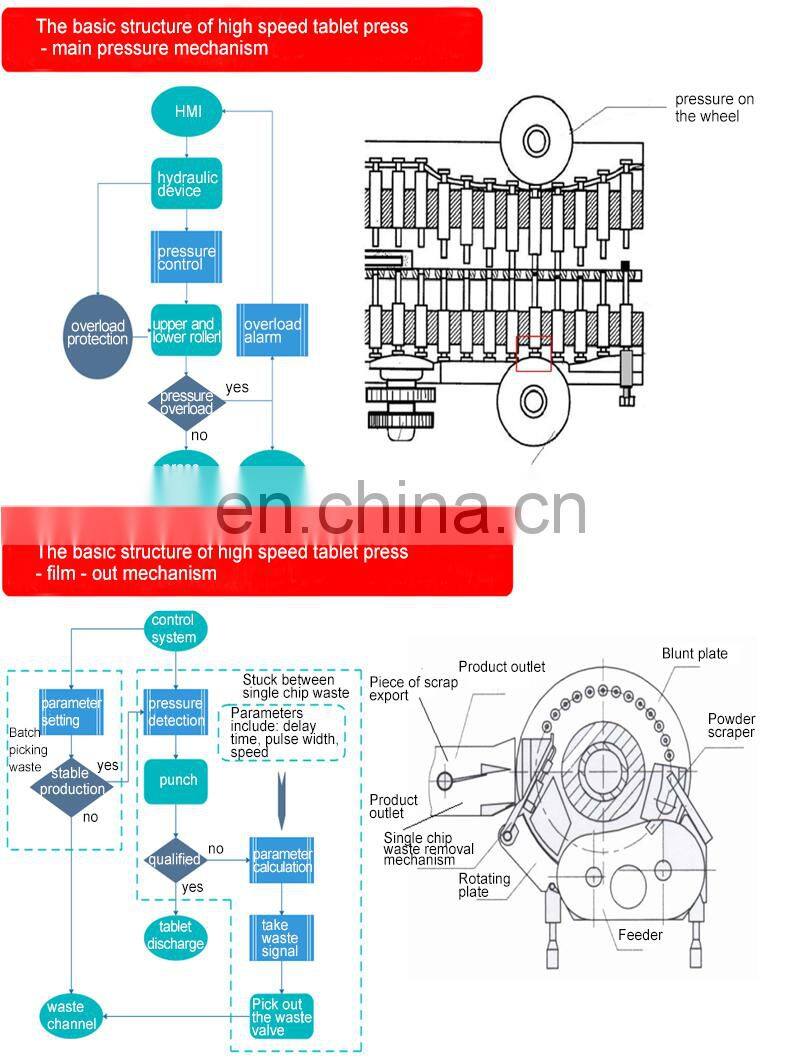

whole process of pressing the tablet, the control system through the pressure signal detection, transmission, calculation,
processing and so on to implement the automatic control of the weight of the tablet, the waste piece automatic reject and fault
display function.

Features:
● Synthetic starch granules: the granules are uniform, not moist, and the proportion of fine powder (more than 60 mesh) in the granules is not more than one third. ● Chinese medicine granules: full extract, half extract and raw powder granules are required not to be wet and have a certain fluidity.Hardness, uniformity requirements are not strict. ● Particle size range: 12-60 mesh, with compressibility and fluidity. ● It can also be applied to dry powder tablet. ● Not suitable for semi-solid, wet molecules and particles of very small (> 100 mesh) powder pressing. 2.2 Molding time and maximum pressure Molding time ≥20ms, Molding maximum pressure: ≤100KN; 2.3 Equipment storage Should be in the relative humidity is not more than 86%, the room temperature is not higher than 35℃, and has the shelter rainproof and the ventilation good place.
