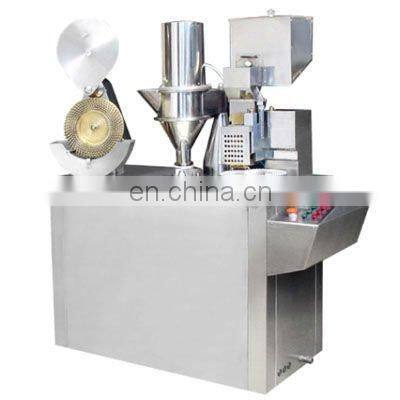

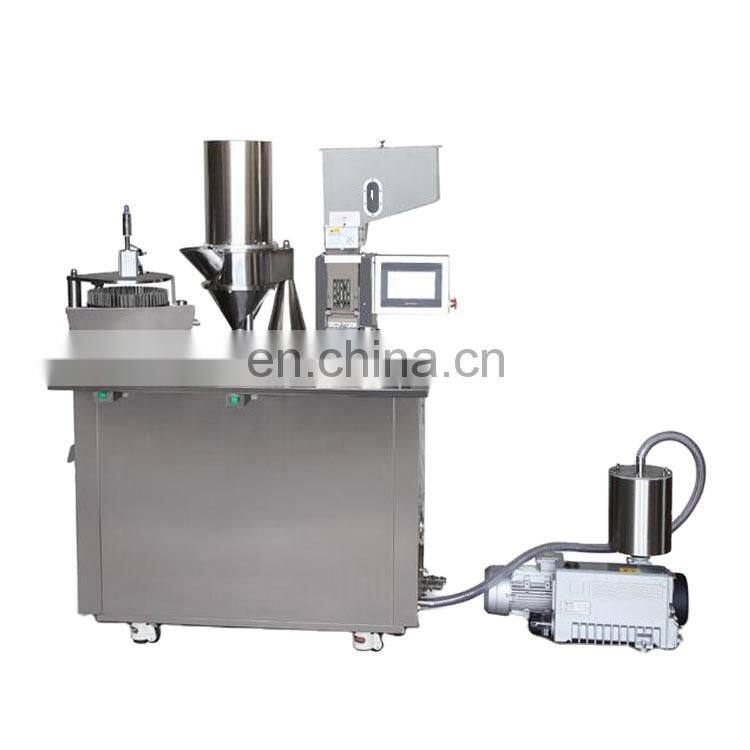

Labor saved small semi automatic hand capsule filling machine
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Hot selling granule chemical dispensing dryer machine granulating machine Extractor Granule Sprayer Coffee Machine
-
Wet Granulating Granulator Pharmaceutical Mixer Pharmaceutical High Speed Wet Material Super Mixer Granulating Machine
-
For Pharmaceutical Plant High Quality Pellet Wet Granulator Granule Making Machine
-
High Quality wet granulator machine powder mixer powder granulator rapid mixer granulator
-
Pharmaceutical Wet Powder Granule High Speed Rapid Shear Mixer Wet Granulator Machine
-
Pharmaceutical High Speed Rapid Wet Type super Mixing Granulator Wet granulation machine
Product Description
Product Description
CGN-208D PRO Pharmaceutical grade semi-automatic capsule filling machine for herb powder and hard gelatin capsules, which is suitable for medium and small pharmaceutical factory, hospital preparation lab, etc. The machine is adopted programmable control system, touch panel operation, step-less transudation speed-shift, and electronic automatic counter. It can automatic complete the action of position, separation, filling, locking, etc. The dosage is accurate, and the operation is convenient. The overall machine is made of stainless steel, and it is suitable for the capsule which is filled with power and grain.
This Capsule-Filling Machine is a new type of medicine filling machine with novel structure and attractive appearance. Under both electrical and pneumatic control and equipped with and automatic electronic counter and computer-controlled speed-adjusting device, the machine can accomplish the positioning, separation and locking etc. of capsules. In place of manual capsule-filling, it can reduce labor intensity and raise productivity. Its filling amounts are accurate and up to sanitary standards for pharmaceutics.

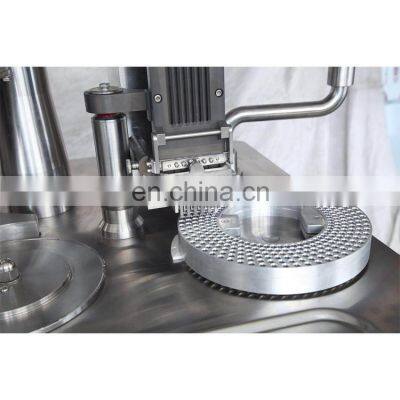

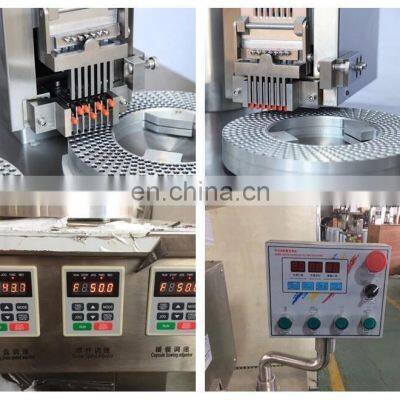

The machine consists of capsule-feeding, U-turning and separating mechanism, material medicine-filling mechanism, locking device, electronic speed varying and adjusting mechanism, electrical and pneumatic control system protection device as well as accessories such as vacuum pump and air pump. With automatic locking capsules and automatic discharging function.
China machine-made capsules or the imported are applicable to this machine, with which the finished product qualification rate can be above 98%.
Specification
Item | Semi automatic pill capsule filling machine manual price |
Productivity | 25,000 granules/h |
Applicable capsules | 00# 0#, 1#, 2#, 3#, 4#,5# |
Filled medicine type | Not adhesive or wet powders and small granules |
Total power | 2.12Kw |
Air pressure | 0.03m3/min, 0.7MPa |
Vacuum pump | evacuating rate: 40m3/h |
External dimensions | 1500*780*1800mm (L*W*H) |
Weight | 330Kg |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
After-sales Service Provided | Free spare parts, Field installation, commissioning and training, field maintence and repair service, video technical support, online support |
Certification | ISO GMP |
Detailed information
parameter | JTJ-V/CGN208-Pro | CGN208-E | JTJ-III/CGN208-D2 | JTJ-II/CGN208-D1 | JTJ-I/CGN208-D |
Filling dasage | powder | Pellet, powder(changing filling device) | powder | powder | powder |
Touch screen | Siemens PLC | Weinview PLC | Weinview PLC | Weinview PLC | --(button control) |
Vacuum pump | Built-in, save space | extraposition | extraposition | extraposition | extraposition |
component | Fast fitting parts, Manual, quick removal without tools | Should be assembled by special tools | Should be assembled by special tools | Should be assembled by special tools | Should be assembled by special tools |
Locking device | Vertical | Horizontal | Horizontal | Vertical | Vertical |

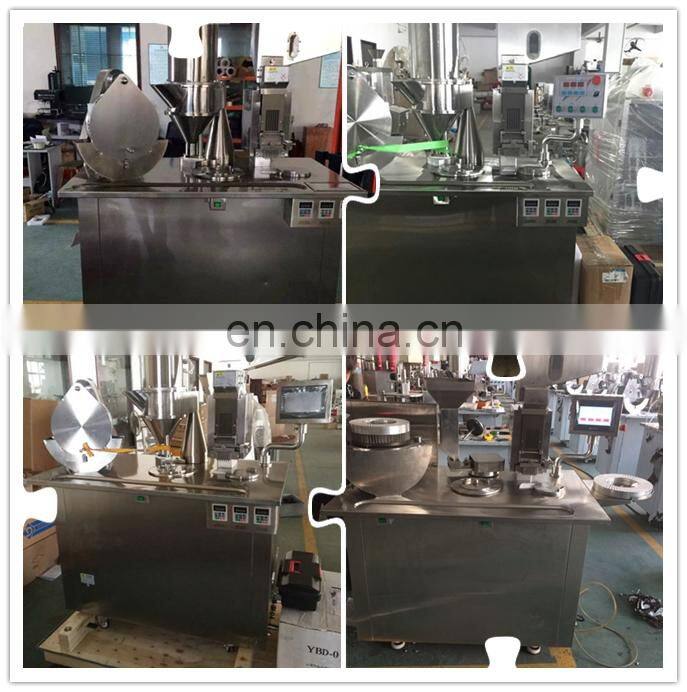

Factory Views
