SINOPED LPG Series High Speed Centrifugal Atomizing Dryer Drying Equipment
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
GHL200 Pharmaceutical Food SS316 Wet Mixing Granulation Equipment 60kg Mixer Granulator Machine
-
Labor Saved Small Semi Automatic Hand Capsule Filling Machine
-
Hot Selling Granule Chemical Dispensing Dryer Machine Granulating Machine Extractor Granule Sprayer Coffee Machine
-
Wet Granulating Granulator Pharmaceutical Mixer Pharmaceutical High Speed Wet Material Super Mixer Granulating Machine
-
For Pharmaceutical Plant High Quality Pellet Wet Granulator Granule Making Machine
-
High Quality Wet Granulator Machine Powder Mixer Powder Granulator Rapid Mixer Granulator
Product Description
Product Description

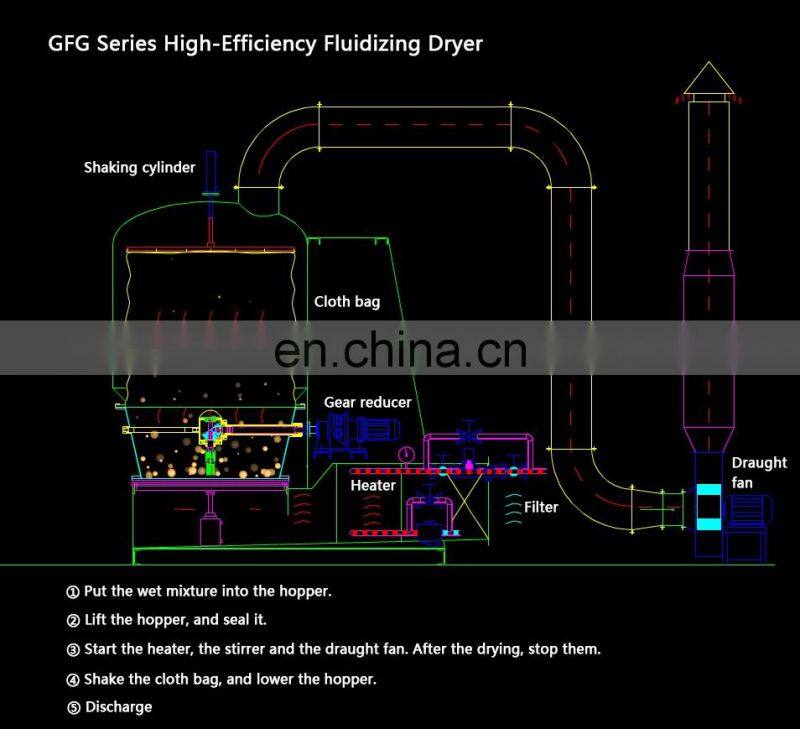

Principles
Purified and heated air is introduced from the bottom through suction fan and passed through the screen plate of raw material. In the work chamber, the state of fluidization is formed through stirring and negative pressure. The moisture is evaporated and removed rapidly and the raw material is dried quickly.

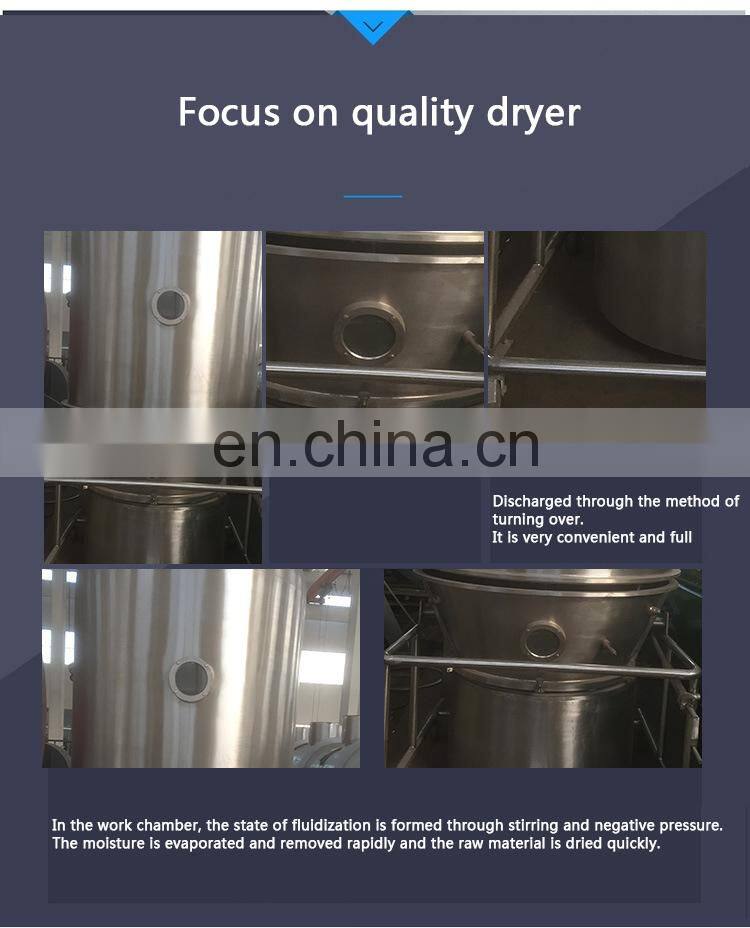

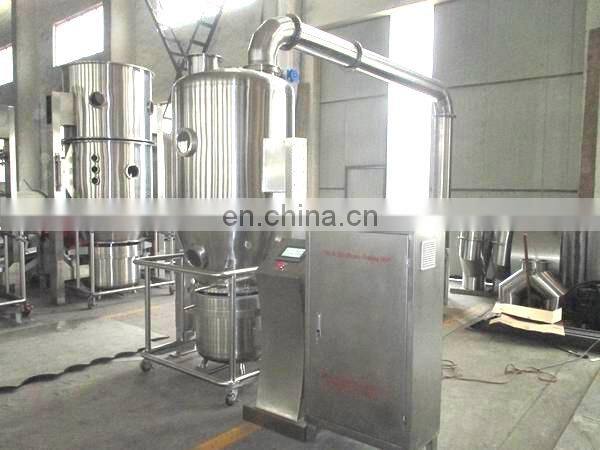

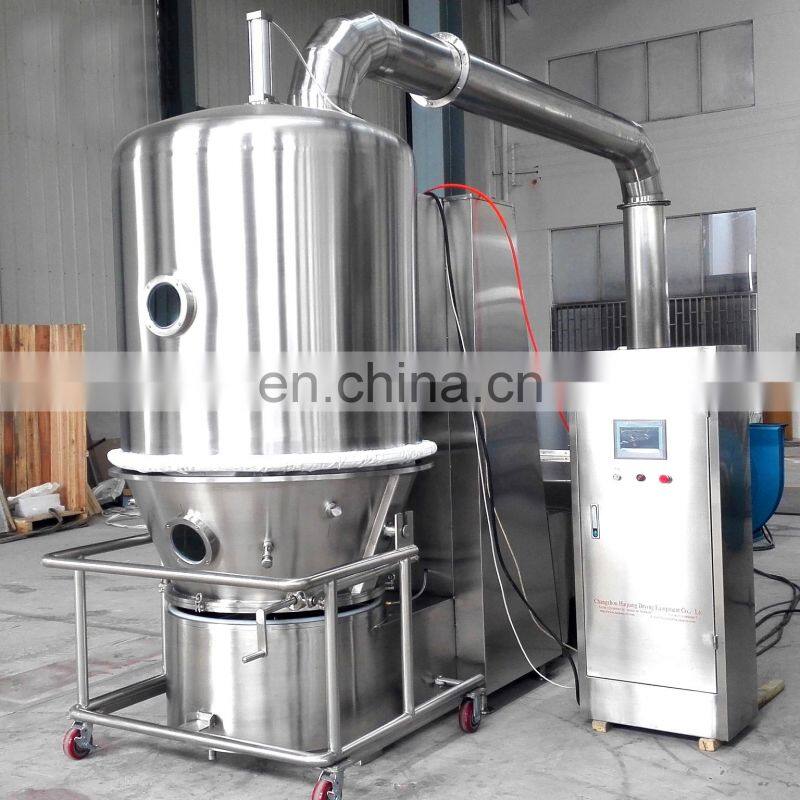

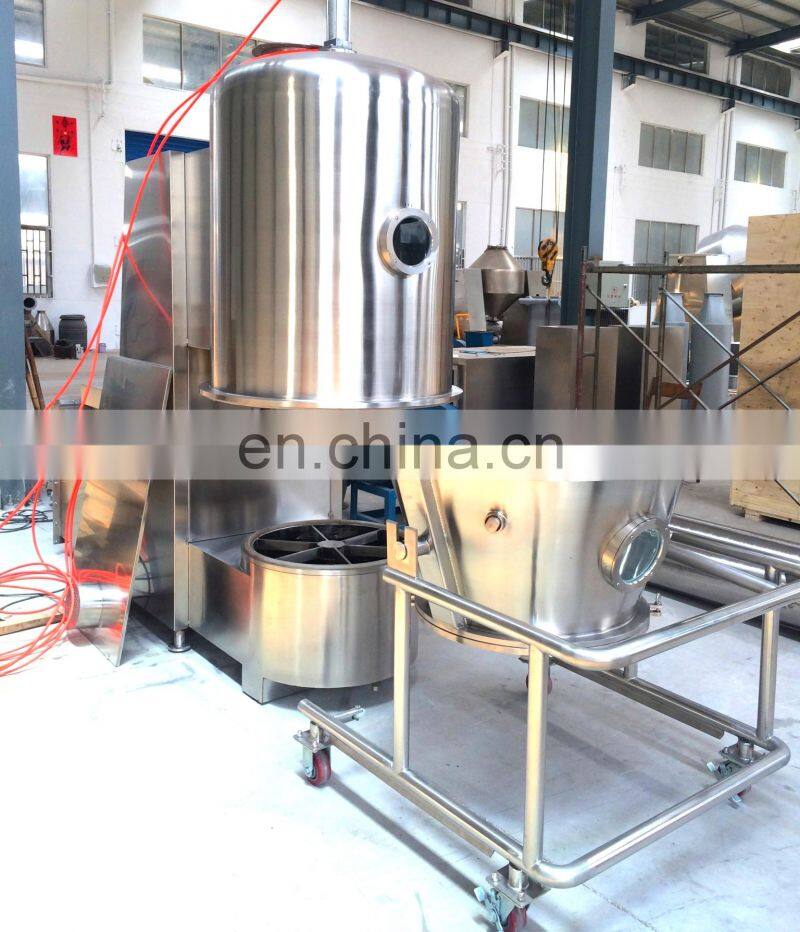

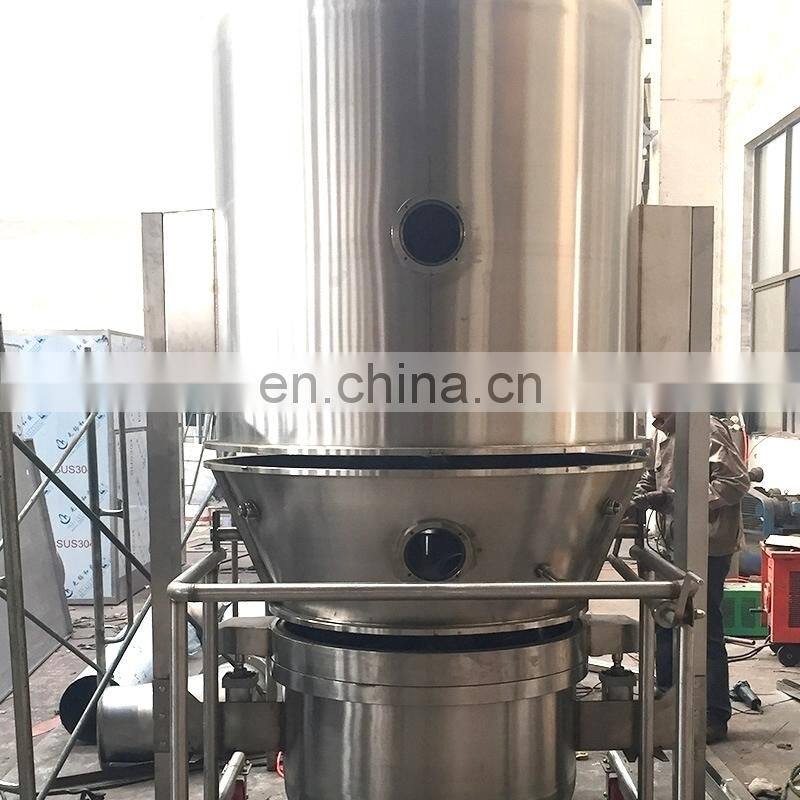

Detailed Images
Technical Parameters

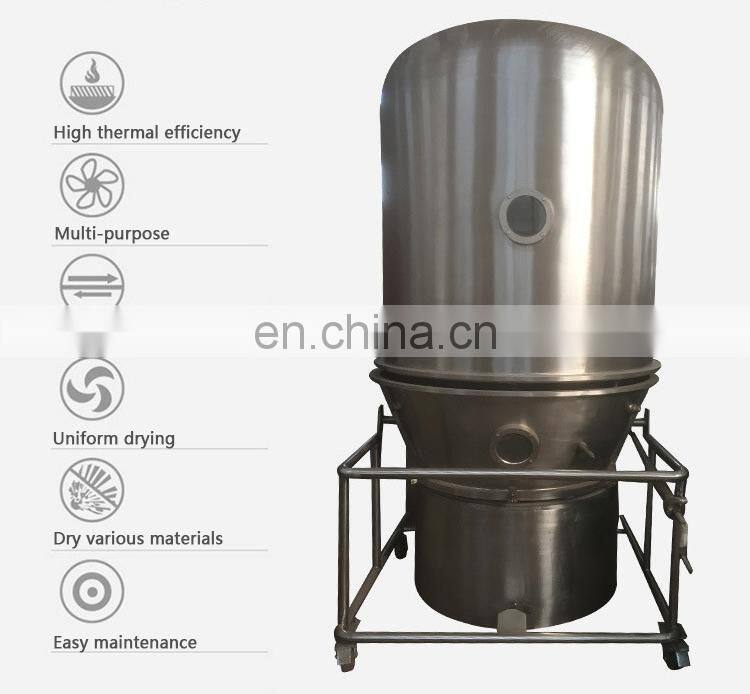

Features
○ The structure of fluidization bed is of round so as to avoid dead corner.

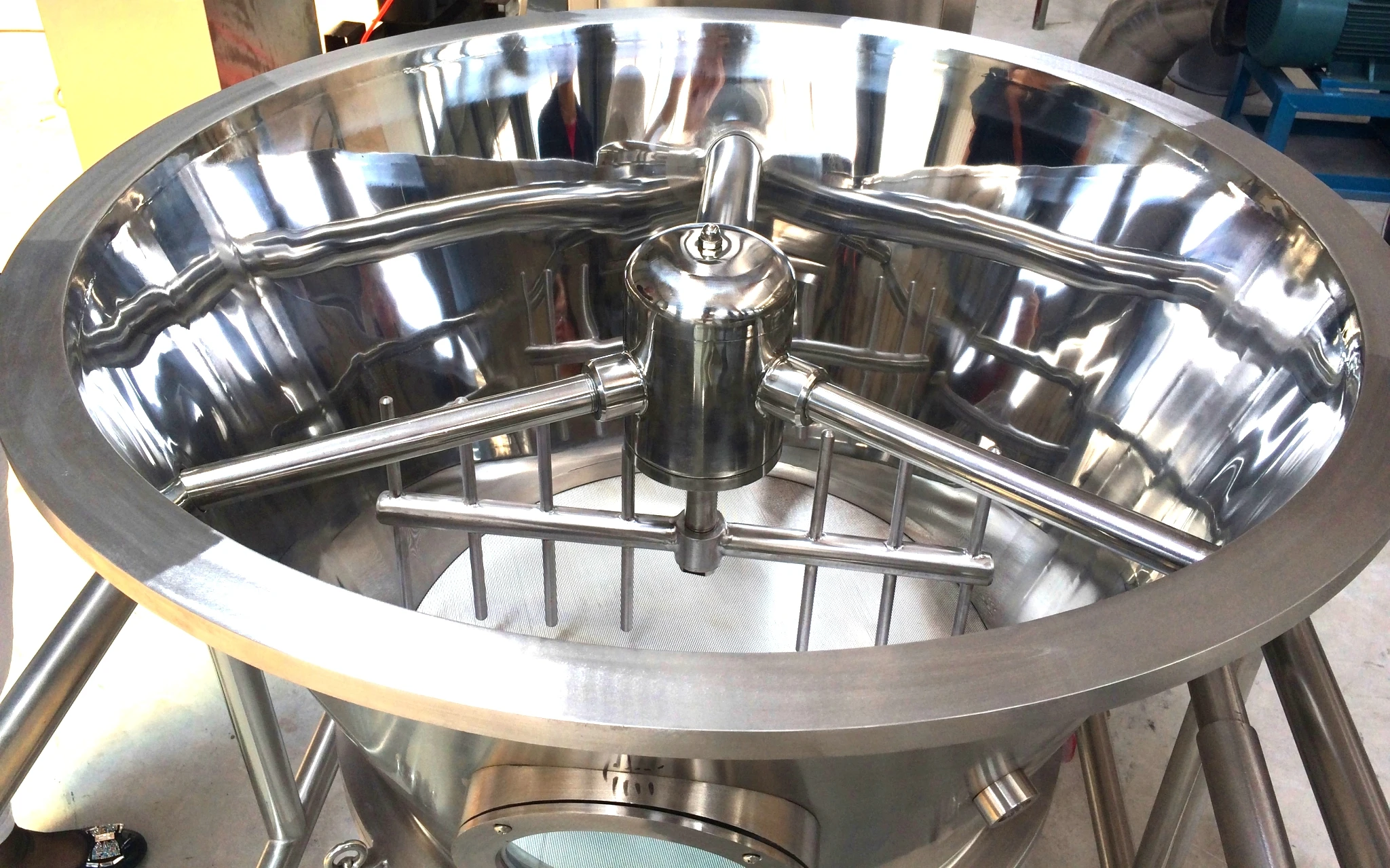

○ Inside the hopper there is a stirring device in order to avoid agglomeration of raw material and forming canal of flow.
○ The granule is discharged through the method of turning over. It is very convenient and full. The discharged system can be designed as request too.
○ It is operated at the conditions of negative pressure and seal. The air is filtered. Therefore it is simple in operation and convenient for cleaning. It is an ideal equipment that is in conformity with the requirements.
○ The drying speed is fast and the temperature is uniform. The drying time is 20-30 minutes normally.
Item | Unit | Type | Type | |||||||||||||
capacity | Kg | 60 | 120 | 150 | 200 | 300 | 500 | 1000 | ||||||||
fan | velocity | m3/h | 2361 | 4000 | 4901 | 6032 | 7800 | 10800 | 15000 | |||||||
air pressure | mmH20 | 594 | 533 | 679 | 787 | 950 | 950 | 1200 | ||||||||
power | kw | 7.5 | 15 | 18.5 | 22 | 30 | 45 | 75 | ||||||||
stirring power | kw | 0.55 | 0.75 | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | ||||||||
stirring speed | rpm | 11 | ||||||||||||||
consume of steam | kg/h | 141 | 220 | 240 | 282 | 366 | 451 | 800 | ||||||||
time of operation | min | 15-30(depends on material) | ||||||||||||||
height of main machine | mm | 2700 | 2900 | 2900 | 3100 | 3600 | 3850 | 5800 | ||||||||
product application
○ Use screw to extrude and vibrate granule and granulate granule using the methods of humidity, high speed and mixing;
○ Suitable for drying humidity block or powder raw material in the fields such as pharmaceutical, foodstuff, feedstuff, chemical industries and so on;
○ The raw material is large in granule and small in bolck and having adhesive property;
○ Suitable for raw materials, its volume will be changed when dry, such as giantarum, polyacrylamide, etc.
Packing & Delivery
Our Service & FAQ
Our Company
Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including clean room project, soft-gel production line, glass-lined reactor, fermentor, centrifuge, granulator, mixer, dryers, pulverizer, tablet press, soft and hard blister packing machine, capsule filling machines, cartoner and rollers, etc. Our products are exported to many countries & areas. Besides machinery and equipment, we also supply production lines and turn key projects. In SINOPED you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.
Our Customer
Due to our good credit and service, , we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China.
