Product Description

EYH Series Two Dimensional Mixer Principle Two dimensional mixer mainly consists of three big parts namely, rotating cylinder, swinging rack and frame. The rotating cylinder lies on the swinging rack, supported by four wheels and its axial fixation is done by two stop wheels. Two of our wheels are driven by rotating power system to made the cylinder rotate. The swinging rack is driven by a set of crankshaft swinging bar which is mounted on the frame and the swinging rack is supported on the frame.

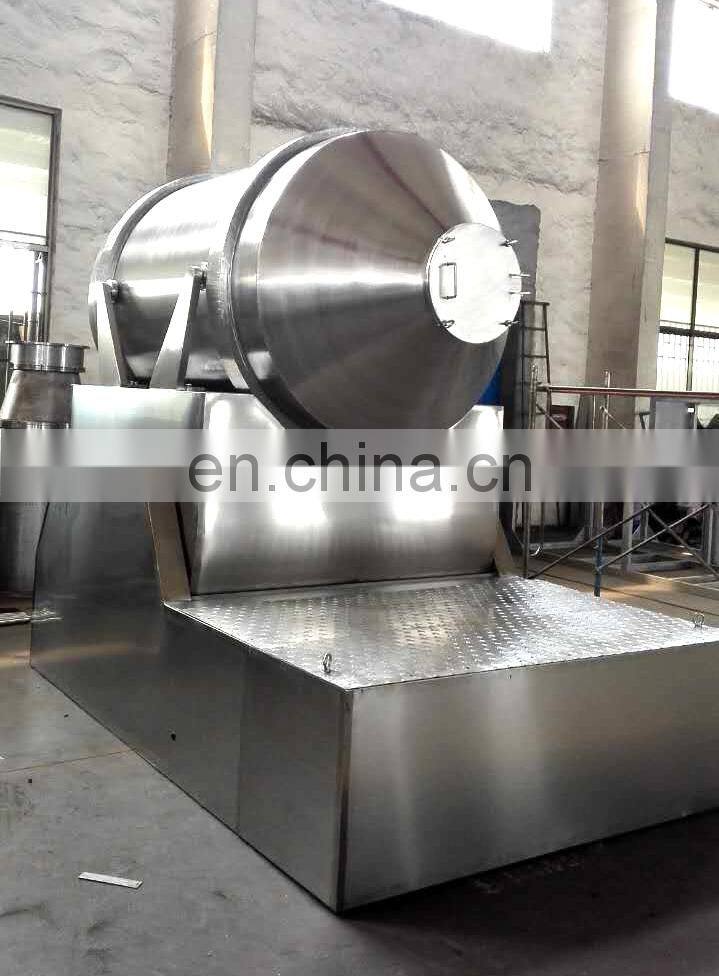

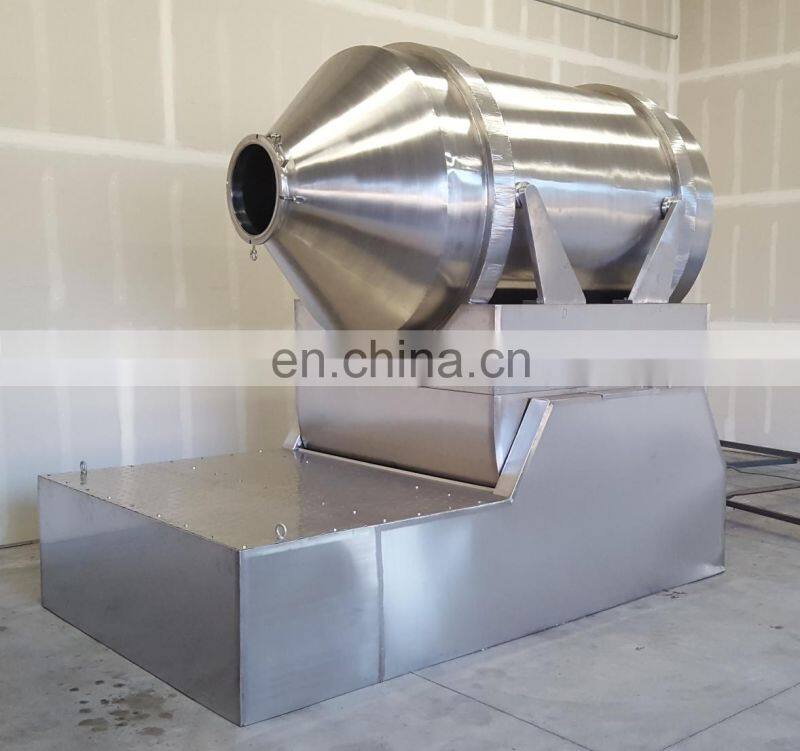

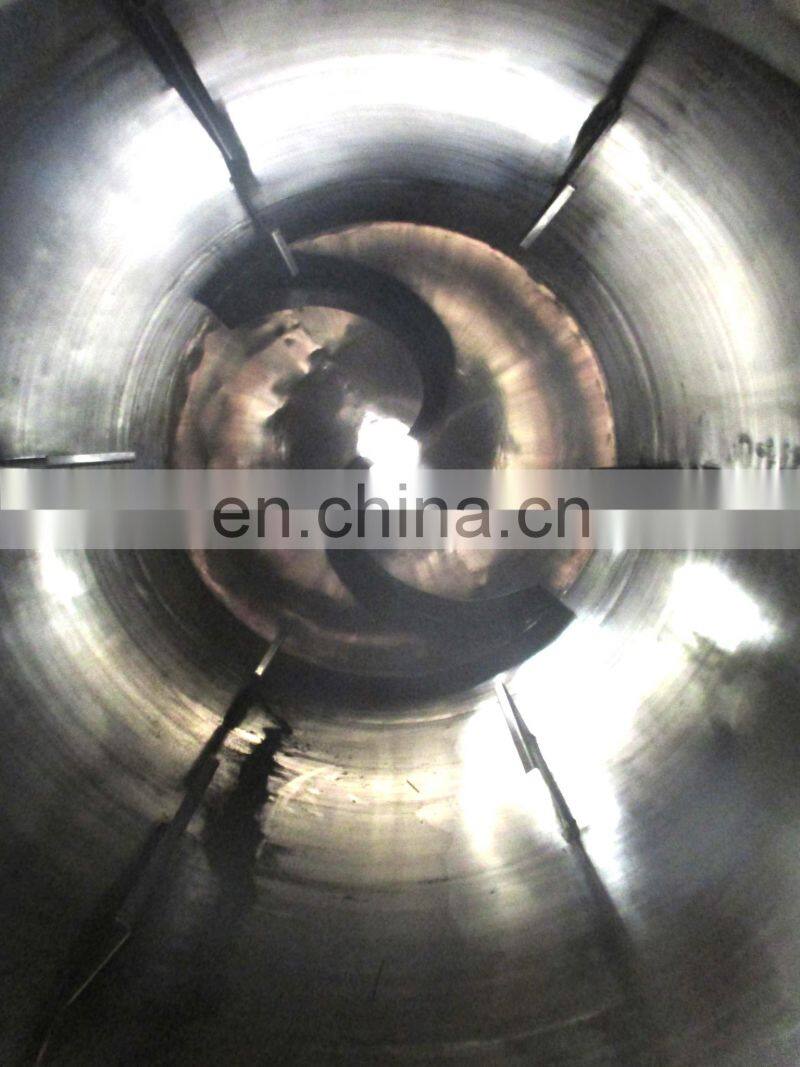

Detailed Images

Features

The rotating cylinder of EYH Two Dimensional Mixer can achieve two motions at the same time. One is the rotation of the cylinder and the other is swinging of the cylinder along the swinging rack. Materials to be mixed will be mixed from left to right and vice versa when the cylinder is swinging. As a result of these two motions,materials can be mixed fully in a short time. EYH Two Dimensional Mixer is suitable for mixing of all powder and granule materials.

Technical Parameters

Type	Barrel volume (L)	Loading capacity (L)	Max Loading weight (kg/ batch)	No.of swing& rotation (r/min)	Total motor power(kw)	Barrel weight (kg)
EYH-300	300	180	90	18/11	1.3	60
EYH-600	600	360	180	16/9	2.2	140
EYH-800	800	480	240	10/6	3	200
EYH-1000A	1000	600	300	8/6	3	240
EYH-1500A	1500	900	450	9/5	4.4	320
EYH-2000A	2000	1200	600	8.5/5	5.2	430
EYH-3000A	3000	1800	900	7/4.5	7.0	620
EYH-4000A	4000	2400	1200	7.8/5	9.5	700
EYH-6000A	6000	3600	1800	7/4	13	1100
EYH-8000A	8000	4800	2400	6.7/4.5	13	1450
EYH-10000A	For more model parameters, please send us an inquiry.
EYH-12000A
EYH-15000A
EYH-20000A

Product Application

Packing & Delivery

Our Service & FAQ

Our Company

Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including clean room project, soft-gel production line, glass-lined reactor, fermentor, centrifuge, granulator, mixer, dryers, pulverizer, tablet press, soft and hard blister packing machine, capsule filling machines, cartoner and rollers, etc. Our products are exported to many countries . Besides machinery and equipment, we also supply production lines and turn key projects. In SINOPED you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.

Our Customer

Due to our good credit and service, , we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China.
