Mixing Pastes Trough Type Mixing Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Powder Mixture Machine Dry Blending For Dry Milk Powder Materials Mixing Machine
-
Stainless Steel Powder Mixer Chinese Herbal Medicine Powder Trough Electric Mixer Powder Mixing Equipment
-
CH-50/100/150/200/300/500 Trough Type Mixing Machine
-
Powder Mixer Mixing Machine V200 Pharmaceutical Machine Post Mix Machine
-
Model SBHSeries High Efficient Medicine Bakery Mixing Machine
-
Cone Shaped Mixer Mixing Machine Manufacturer
Product Description
Product Description

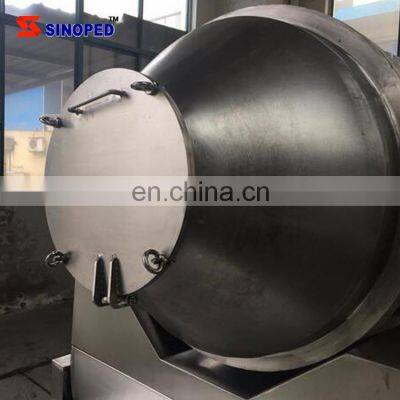

EYH Series Two Dimensional Mixer Principle Two dimensional mixer mainly consists of three big parts namely, rotating cylinder, swinging rack and frame. The rotating cylinder lies on the swinging rack, supported by four wheels and its axial fixation is done by two stop wheels. Two of our wheels are driven by rotating power system to made the cylinder rotate. The swinging rack is driven by a set of crankshaft swinging bar which is mounted on the frame and the swinging rack is supported on the frame.
Detailed Images
Features
The rotating cylinder of EYH Two Dimensional Mixer can achieve two motions at the same time. One is the rotation of the cylinder and the other is swinging of the cylinder along the swinging rack. Materials to be mixed will be mixed from left to right and vice versa when the cylinder is swinging. As a result of these two motions,materials can be mixed fully in a short time. EYH Two Dimensional Mixer is suitable for mixing of all powder and granule materials.
Technical Parameters
Type | Barrel volume (L) | Loading capacity (L) | Max Loading weight (kg/ batch) | No.of swing& rotation (r/min) | Total motor power(kw) | Barrel weight (kg) | |||||
EYH-300 | 300 | 180 | 90 | 18/11 | 1.3 | 60 | |||||
EYH-600 | 600 | 360 | 180 | 16/9 | 2.2 | 140 | |||||
EYH-800 | 800 | 480 | 240 | 10/6 | 3 | 200 | |||||
EYH-1000A | 1000 | 600 | 300 | 8/6 | 3 | 240 | |||||
EYH-1500A | 1500 | 900 | 450 | 9/5 | 4.4 | 320 | |||||
EYH-2000A | 2000 | 1200 | 600 | 8.5/5 | 5.2 | 430 | |||||
EYH-3000A | 3000 | 1800 | 900 | 7/4.5 | 7.0 | 620 | |||||
EYH-4000A | 4000 | 2400 | 1200 | 7.8/5 | 9.5 | 700 | |||||
EYH-6000A | 6000 | 3600 | 1800 | 7/4 | 13 | 1100 | |||||
EYH-8000A | 8000 | 4800 | 2400 | 6.7/4.5 | 13 | 1450 | |||||
EYH-10000A | For more model parameters, please send us an inquiry. | ||||||||||
EYH-12000A | |||||||||||
EYH-15000A | |||||||||||
EYH-20000A | |||||||||||
Product Application
Packing & Delivery
Our Service & FAQ
Our Company
Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including clean room project, soft-gel production line, glass-lined reactor, fermentor, centrifuge, granulator, mixer, dryers, pulverizer, tablet press, soft and hard blister packing machine, capsule filling machines, cartoner and rollers, etc. Our products are exported to many countries . Besides machinery and equipment, we also supply production lines and turn key projects. In SINOPED you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.
Our Customer
Due to our good credit and service, , we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China.
