Cheap Zonergy 535w Monocrystalline Power Photovoltaic Solar Panel for Solar Energy Systems

What is a half cell?

Half-cell technology is a technique of laser cutting a standard size cell (156 mm x 156 mm) equally into two cells (156 x 78 mm), which are cut and connected together. The cells of the entire module are then divided into two groups, each containing 60 half-cells connected in series, and the cells form a complete 120-cell module, thus reducing the current through each main grid to 1/2 of the original, and reducing internal losses to 1/4 of the whole cell, thus increasing the module power.

1.Higher Yield Due to Better Shading Response
Half Cell Module comprises two separated and identical solalr cell arrays, which means the ordinary strings of cells are cut into halves, and these shorter strings compose which has separated current paths. When a module is shaded, only one side shaded array's current will be impacted, while the other array will still be functionally producing power. Under this circumstance, when a module is shaded, the affected working areas of Blade will be 50% less.
By cutting solar cell into halves, the internal power loss will be lower and hot spot effect will also be reduced.

SYSTEM & PRODUCT CERTIFICATES·IEC 61215 /IEC 61730/IEC 61701/IEC 62716
ISO 9001: 2015 Quality Management System
ISO 14001: 2015 Environment Management System
ISO 45001: 2018 Occupational Health and Safety Management Systems

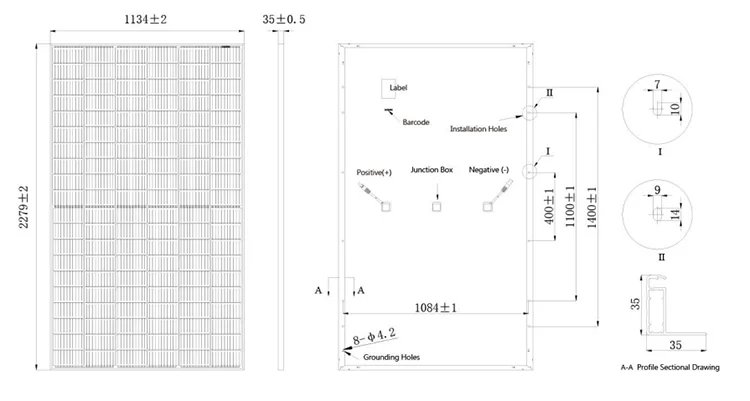

ZPM525~ 545MH5-72 Half-Cell Monocrystalline Silicon PV Modules Mechanical Data
Cell Type	182×91mm Mono
Cell Orientation	144 (6×24)
Module Dimensions	2279x 1134 x35mm
Weight	29.0kg
Glass	3.2mm high transmittance, reinforced glass
Backsheet	Anti-aging film
Frame Material	Anodized aluminum alloy
Junction Box	Protection class IP68
Cable	4.0 mm2 positive pole: 300 mm negative pole: 400 mmwire length can be customized
Connector	MC4 compatible connector

I-V Curve	Electrical Data (STC)
Current-Voltage Curve(455W)	Maximum Power (Pmax/W)	525	530	535	540	545
	Voltage at Maximum Power (Vmp/v)	40.58	40.73	40.88	41.03	41.18
	Current at Maximum Power (Imp/A)	12.95	13.02	13.10	13.17	13.24
	Open Circuit Voltage (Voc/M)	49.08	49.23	49.38	49. 53	49 68
	Short Circuit Current (Isc/A)	13.39	13.46	13.54	13.63	13.71
	Module Efficiency (%)	20.31	20.51	20.71	20.89	21.09
	STC(Standard Testing Conditions): lrradiance 1000W/m2, Cell Temperature 25*C,AM1.5
Power-Voltage Curve(455W)	Electrical Data (NMOT)
	Maximum Power (Pmax/w)	392	396	400	404	408
	Voltage at Maximum Power (Vmp/M)	37.34	37.49	37.64	37.79	37.94
	Current at Maximum Power (Imp/A)	10.51	10.57	10.64	10.70	10.77
	Open Circuit Voltage (Voc/V)	45.11	45.26	45.41	45.56	45.71
	Short Circuit Current (Isc/A)	11.14	11.22	11.29	11.37	11.44
	NMOT (Nominal Moudule Operating Temperature): Iradiance 800W/m , Ambient Temperature 20'C,AM1.5, Wind Speed 1m/s.

Temperature Coefficients		Operating Parameters
Temperature Coefficient(Pm)	-0.350%℃	Maximum System voltage	1000/1500v
Temperature Coefficient(Voc)	-0.270%℃	Operating Temperature	-40℃~+85℃
Temperature Coefficient(Isc)	-0.048%℃	NMOT (Nominal MouduleOperating Temperature)	41+3℃
Packaging
Modules Per Pallet	31+31pcs	Modules Per 40'HQ Container	620pcs
