Home > Products > Home Solar System > Solar panel system power about are for active energy can replace around application at home a house an average

Solar panel system power about are for active energy can replace around application at home a house an average

FOB Price

USD $2082.39 - $8298.60 / Piece

1 Piece(Min.Order)

Supply Ability 100 Box / Boxes per Month
Port Shenzhen
Payment TermsT/T L/C Credit Card PayPal Cash
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Zonergy	Place of Origin	China
Model Number	Panda 5000S-5HP~30HP	Application	Home
Specification	Normal	Output Voltage (V)	220v
Work Time (h)	24	Solar Power (W)	5kw
Load Power (W)	5kw

Product Description

Distributed PV-ESS Solution

Zonergy offers solutions for the distributed Photovoltaic Energy Storage System, Including Zonergy-made Solar panels, Energy Storage Inverters, Lithium Battery Modules, and WiFi stick, to store the surplus energy from solar power generation. Our solution not only keeps the darkness away from your family when power outage, but also save extra on your electricity bill. Zonergy selects high-class core components, applies brilliant electrical and structural design, continues the concept of standardized modules, and realizes flexible expansion of nominal capacity and power. Meanwhile, Zonergy uninterruptedly investigates the product application scenarios and configures the 9-Level Safety Protection design to build a high-security, high-performing, and easy-to-install Energy Storage System.

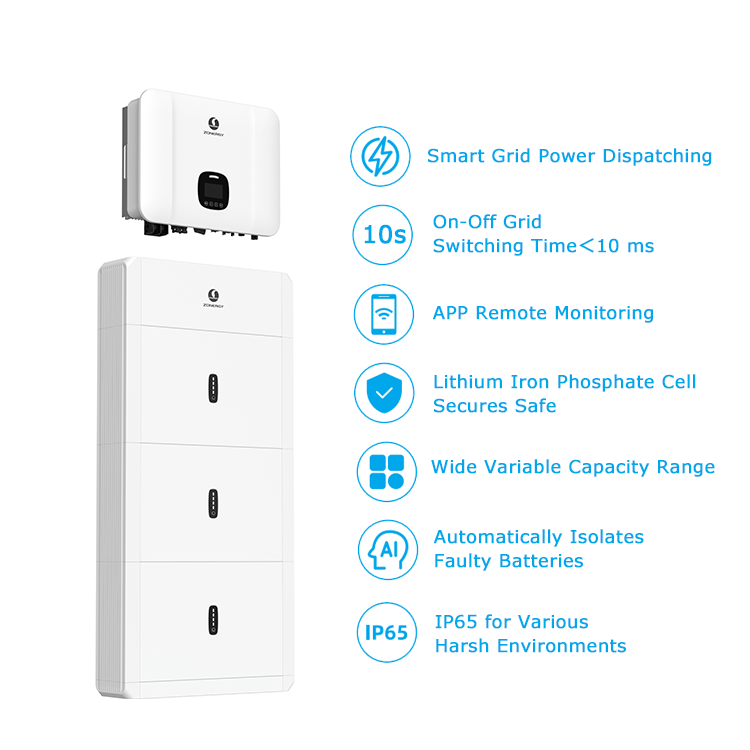

Residential Single-phase Energy Storage System Panda Series

The built-in Smart Grid Management module enables power grid dispatching.2. The switching time between on-off grid less than 10 ms secures Uninterruptable Power Supply for the load.
The APP-based remote monitoring offers easy maintenance and unlimited function expansion.
The Lithium Iron Phosphate (LFP) cell secures safe and reliable operation.

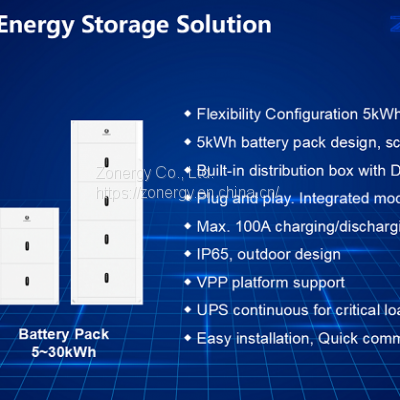

The 5 KWh module adopted enables variable capacity range of 5-30 kWh.
The automatic isolation of the faulty battery module secures smooth system operation.
The Degree of Protection at IP65 makes it suitable for various harsh environments for application.

Specification

System Specification
Nominal Output Power	4000 W / 5000 W / 6000 W
Capacity Range	5.12~30.72 kWh
Usable Capacity Range	4.6~27.65 kWh
Battery Chemistry	LFP (LiFePO4)
IP Protection	IP65 (Outdoor)
Warranty	5 Year Product Warranty, 10 Year Performance Warranty

Inverter Technical Specification

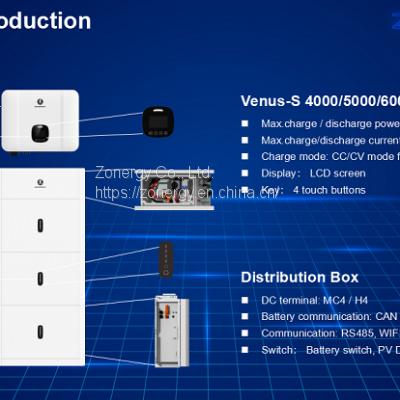

Model	Venus 4000-S1 / Venus 5000-S1 / Venus 6000-S1
Phase	Single Phase
Max. PV Input Voltage	600 V
MPPT Voltage Range	100 V~550 V
Max. PV Input Current	13 A / 13 A
Max. PV Input Power	6000 W / 7500 W / 9000 W
Max. MPPT Short-circuit Current	18 A /18 A
Number of Independent MPPT	2
Start-up Voltage Range	120 V
Max. Charging/Discharging Current	80 A / 100 A / 100 A
Max. Charging/Discharging Power	4000 W / 5000 W / 6000 W
Nominal Output Voltage on Grid	220 V,230 V,240 V (comply with local regulations)
Output Voltage Range on Grid	180 ~ 276 V
Rated Grid Output Frequency on Grid	50 Hz/60 Hz
Max.AC output Power	4000 W / 5000 W / 6000 W
Nominal AC Output Voltage	230 V
Communication	CAN2.0/RS485, Wifi/GPRS(optional)
Display	LCD & APP
Dimension(WHD) mm	540 x 450 x185

Battery Technical Specification

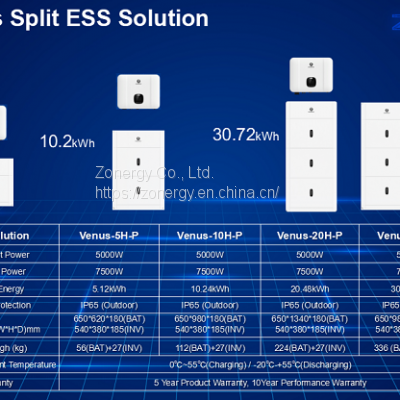

Module Model	Limestone 5H-P	Limestone 10H-P	Limestone 15H-P	Limestone 20H-P	Limestone 25H-P	Limestone 30H-P
Module Capacity	5.12 kWh	10.24 kWh	15.35 kWh	20.48 kWh	25.64 kWh	30.72 kWh
Usable Capacity	4.6 kWh	9.21 kWh	13.81 kWh	18.43 kWh	23.04 kWh	27.65 kWh
Nominal Voltage	51.2 V
Max. Charging/Discharging Power	2.5 kW	5 kW	5 kW	5 kW	5 kW	5 kW
Operating Temperature Range	-20 ~ +50 °C
Dimension(WHD) mm	650 x 620 x 180	650 x 980 x 180	650 x 1340 x 180	650 x 980 x 180 650 x + x 180 980	650 x 1340 x 180 650 x + x 180 980	650 x 1340 x 180 650 x + x 180 1340
