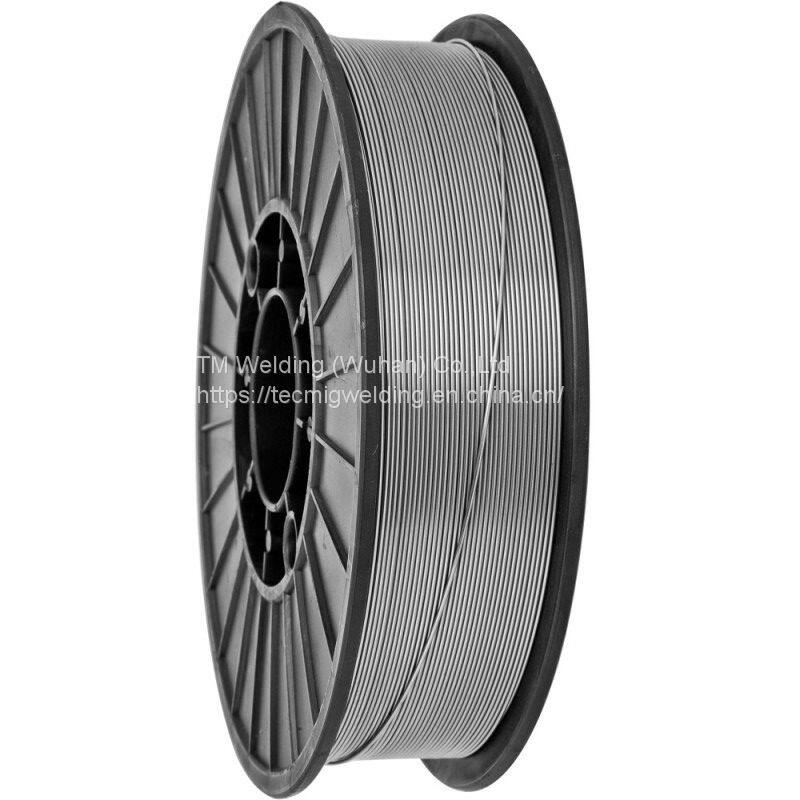

TMW High Tensile Low Alloy Steel Gas Shield Flux Cored Wires E81T1-Ni1C/M H4 E81T1-Ni2C/M H4

E81T1-Ni1

AWS A5.29: E81T1-Ni1M-JH4

AWS A5.36 E81T1-M21A6-Ni1-H4,

Description：

E81T1-Ni1 is designed for gas-shielded flux cored welding of low alloy steels that require good toughness at low temperatures. This alloy is excellent for single and multiple pass, all positional welding with good operation properties like easy slag removal, stable arc, less smoke and spatter etc. Welding for 500MPa grade high strength structural steel, like vessels, machine manufacturing, petrochemical industries and structural bridges etc.

Diameters:

1.0mm, 1.2mm, 1.4mm, 1.6mm.

Typical Mechanical Properties:

Typical Chemical Compositon:

Welding Current:(DC+)

Note:

1.Shield gas: 80% Ar + 20% CO2

Wire extension length: 15-25mm

Thermal input: 0.8-1.8KJ/mm, thick plate welding should be preheat.

Rusty, oil stains, water and other impurity  on the weld parts must be cleaned before welding.

Stock in dry environment, please use up in short time once opened.

E81T1-Ni2

AWS A5.36 E81T1-Ni2

Description：

E81T1-Ni2 is designed for gas shielded flux cored welding of low alloy steels that require good CVN toughness at low temperatures. It is excellent for single and multiple pass, all positional welding with good operation properties like easy slag removal, stable arc, less smoke and spatter etc. Welding for 550MPa grade high strength structural steel, like vessels, machine manufacturing, petrochemical industries and structural bridges etc.

Diameters:

1.2mm, 1.6mm

Typical Mechanical Properties:

Typical Chemical Compositon:

Welding Current:(DC+)

Note:

1. Shield gas: CO₂ ; Gas purity: ≥99.95%.

2. Wire extension length: 15-25mm

3. Thermal input: 0.8-1.8KJ/mm, thick plate welding should be preheat.

4. Rusty, oil stains, water and other impurity on the weld parts must be cleaned before welding.

5. Stock in dry environment, please use up in short time once opened.
