Home > Products > Welding Materials > TMW Extra Low Temperature Low Hydrogen Iron Powder Basic Electrodes E7018-1 H4

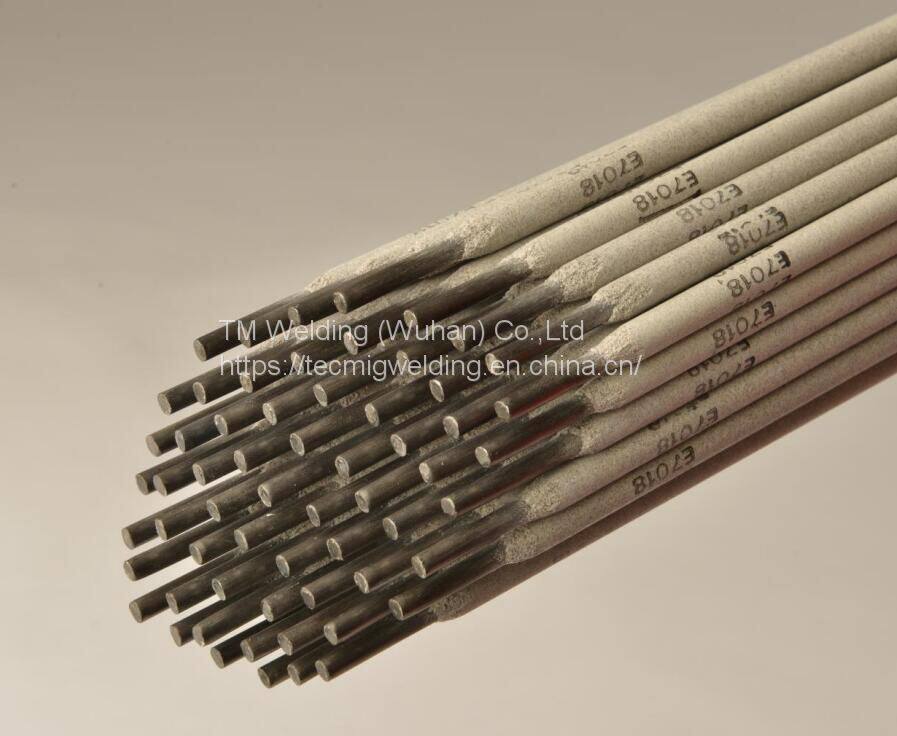

TMW Extra Low Temperature Low Hydrogen Iron Powder Basic Electrodes E7018-1 H4
- Shanghai
- T/T L/C
- 25 days
You May Like
-
TMW Cellulose Pipe Welding Electrodes E6010 E6011 E7010
-
TMW Stainless Steel Electrodes E308L-16 E309L-16 E316L-16
-
TMW Cast Iron Electrodes Niquel100, Ni99 Ni55 ENi-CI, ENiFe-CI
-
TMW Mild Steel Solid Mig CO2 Welding Wires ER70S-6 ER50-6 G3Si1 SG2 G4Si1
-
TMW Low Alloy Steel Solid Mig CO2 Welding Wires ER70S-2 ER70S-3 ER70S-4 ER80S-D2
-
TMW Low Alloy Steel TIG Rods ER70S-6 ER70S-2, ER70S-3 ER80S-D2
Product Details
| Brand Name | TecMig | Place of Origin | China | |
| Model Number | E7018-1 H4 | Material | Other, Mild steel | |
| Diameter | 1.6-5.0mm | Weight | 5kg/pack | |
| Application | arc welding | Melting Point | 300 | |
| Flux Content | rutile |
Product Description
E7018-1 H4
AWS A5.1 E7018-1
ISO2560-A E42 4 B 3 2
GB/T5117 E5018
Description：
An improved formulation of E7018, which ensures good impact value at -45℃.
Diameters:
2.5mm, 3.2mm, 4.0mm, 5.0mm.
Typical Mechanical Properties:
Tensile strength(MPa): | 572 |
Yield strength(MPa): | 480 |
Elongation (%): | 28 |
Impact values(≥47J/-45℃): | 110 |
Typical Chemical Compositon:
C | Mn | P | S | Si | Ni | Cr | Mo | V |
0.060 | 1.26 | 0.017 | 0.012 | 0.25 | 0.008 | 0.028 | 0.035 | 0.014 |
Welding Current:(AC/DC+)
Diameter(mm) | 2.5 | 3.2 | 4.0 | 5.0 | |
Current/A | F/H | 70-110 | 100-140 | 140-170 | 190-240 |
Current/A | V/OH | 60-70 | 80-110 | 130-150 | -- |
Note:
1.The electrodes must be baked 1-2 hours in 350℃-450℃ before using.
Rusty, oil stains, water and other impurity on the weld parts must be cleaned before welding.
