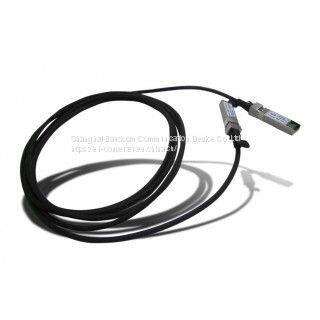

SFP+ Direct Attach Passive Copper Cables
- 100 Unit / Units per Month
- shanghai
- T/T L/C D/P D/A PayPal
- 1 days
You May Like
Product Details
| Brand Name | Baudcom | Place of Origin | China | |
| Model Number | BD-10GSFP-Cable-3001C |
Product Description
The SFP+ passive cable assemblies are high performance, cost effective I/O solutions for 10G Ethernet and 10G Fiber Channel applications. SFP+ copper modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cast and reduced power budget. The high speed cable assemblies meet and exceed Gigabit Ethernet and Fiber Channel industry standard requirements for performance and reliability.
Features
?Support for multi-gigabit data rates up to 10.5Gbps
?1m、3m、5m Reach
?Data rates backward compatible to 1Gbps
?Hot-pluggable SFP 20PIN footprint
?I/O Connector designed for high speed differential signal applications
?Improved Pluggable Form Factor(IPF) compliant for enhanced EMI/EMC performance
?Compatible to SFP+ MSA
?Temperature Range: 0~ 70 °C
RoHS Compatible
Recommended Operating Conditions Parameter Symbol Min Typical Unit -40 +85 °C Tc 0 +70 °C Systems Performance Media Hot-pluggable, industry-standard Small Form-Factor Pluggable(SFP+) copper cable, available as 1m,3m or 5m. Pin Descriptions Pin Logic Symbol Name/Description 1 VeeT Transmitter Ground 2 LV-TTL-O TX_Fault N/A 1 3 LV-TTL-I TX_DIS Transmitter Disable 2 4 LV-TTL-I/O SDA Tow Wire Serial Data 5 LV-TTL-I SCL Tow Wire Serial Clock 6 MOD_DEF0 Module present, connect to VeeT 7 LV-TTL-I RS0 N/A 1 8 LV-TTL-O LOS LOS of Signal 2 9 LV-TTL-I RS1 N/A 1 10 VeeR Reciever Ground 11 VeeR Reciever Ground 12 CML-O RD- Reciever Data Inverted 13 CML-O RD+ Reciever Data Non-Inverted 14 VeeR Reciever Ground 15 VccR Reciever Supply 3.3V 16 VccT Transmitter Supply 3.3V 17 VeeT Transmitter Ground 18 CML-I TD+ Transmitter Data Non-Inverted 19 CML_I TD- Transmitter Data Inverted 20 VeeT Transmitter Ground 1. Signals not supported in SFP+ Copper pulled-down to VeeT with 30K ohms resistor 2. Passive cable assemblies do not support LOS and TX_DISMax Storage Ambient Temperature Operating Case Temperature 10.5 Gpbs line speed, full duplexBit error rate: better than 10E-12 Notes
