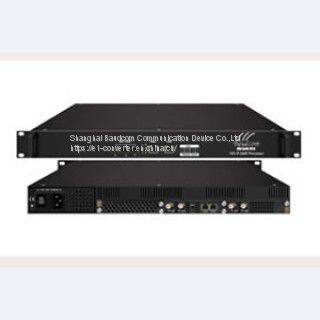

112 Channels 10G IP QAM Modulator

FOB Price

USD $150 - $200 / Unit

1 Unit(Min. Order)

Port shanghai
Payment TermsT/T L/C D/P D/A PayPal
Delivery Detail1 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Baudcom		Place of Origin	China
Model Number	BD-QAM-10G-32

Product Description

Overview

BD-QAM-10G 10G IP QAM processor is an all-in-one device which integrates multiplexer, scrambler and modulator in one body with maximum 112 DVB-C QAM channels output. With 10G switch built in, it can process 10G optical signal to work as a traditional QAM modulator.

The device is equipped with one fixed 64ch QAM card and another card slot to expand qam card (16/32/48QAM optional). Its high density helps operators to save cost to the most extent.

Key Features

Support 3 SFP+ (10G)/SFP(1G) ports input & output from front panel, or RJ45 GE port input & output from daughter cards

High density, modularized plug-in design, 1U chassis with max 2 QAM cards

Support multiplexer and scrambler with 6 CAS Simul-cryption

Maximum 112 non-adjacent QAM carriers output

Supports accurate PCR adjusting/CA filtering, PID remapping and PSI/SI editing

Web-based Network management

Inner Principle Chart (Example: one 64qam card + one 48qam card)

Carrier Setting Illustration (Example: 64qam card)

Specification

Specifications

Input	Input from Front Panel	Max 512 IP in per card through SFP+/SFP ports 1-3
	Input from Daughter Card	IP from 2 GE ports (SFP port optional)
	Transmission Rate	Max 9600Mbps for each 10G SFP+/SFP input
	Transport Protocol	TS over UDP/RTP, unicast and multicast, IGMP V2/V3
Mux	Max PIDs Remapping	256 per output channel
	Functions	PID remapping (auto/manually optional)
		PCR accurate adjusting
		PSI/SI table automatically generating
Scrambling	Max simulcrypt CA		6
	Scramble Standard		ETR289, ETSI 101 197, ETSI 103 197
	Connection		Local/remote connection
Modulation	Modulation Standard		EN300 429/ITU-T J.83A/B/C
	Constellation		J.83A	Constellation :16/32/64/128/256QAM
				Bandwidth :8M
			J.83B/C	Constellation :64/256QAM
				Bandwidth :6M
	QAM Channel		32/48/64/80/96/112 non-adjacent carriers output, 192 or 384Mbps bandwidth for each RF port
	Symbol Rate		3600~7000Ksps, 1ksps stepping 5057Ksps (J.83B, 64QAM) ; 5361Ksps (J.83B, 256QAM)
	Constellation		16, 32, 64, 128, 256QAM
	FEC		RS (204, 188)
RF Output	Interface (per card)	1 or 2 F type output ports for 16/32/48/64 carriers card, 75Ω. 16 or 32 ch qam card : all Carrier out thru one RF port 48ch qam card : Carrier 1~24 out thru RF1, 25~48 thru RF2 64ch qam card : Carrier 1~32 out thru RF1, 33~64 thru RF2
	RF Range	50~960MHz, 1kHz stepping
	Output Level	-20dBm~+10dBm(87~117dbμV), 0.1dB stepping
	MER	≥ 40dB
TS output	Per Daughter QAM Card	16/32/48/64 IP output over UDP/RTP/RTSP, unicast/multicast, through SFP+/SFP ports 1-3 or GE port RJ45
System	Web-based Network management
General	Dimension	420mm×440mm×44.5mm (WxLxH)
	Temperature	0~45℃(operation), -20~80℃(storage)
	Power Supply	AC 100V±10%, 50/60Hz ; or AC 220V±10%, 50/60Hz
	Consumption	50W(1 daughter QAM card)/75W(2 daughter QAM cards)
