Ball Valve Wifi Automatic Smart Valve Stainless Steel Brass BSP NPT Motorized Flow Control Intelligent Wifi Water Shutoff Valve
- T/T Credit Card
You May Like
-
Wifi Water Valve Wifi Automatic Shut off Smart Valve Stainless Steel Brass BSP NPT Motorized Flow Control Valve
-
Wifi Automatic Gas Shut off Valve Water Smart Valve Stainless Steel Brass BSP NPT Motorized Flow Control Valve
-
Wifi Water Shut off Valve Wifi Automatic Shut off Smart Valve Stainless Steel Brass BSP NPT Motorized Flow Control Valve
-
Smart Water Wifi Valve Wifi Automatic Shut off Smart Valve Stainless Steel Brass BSP NPT Motorized Flow Control Valve
-
Tuya Smart Wifi Water Valve Wifi Automatic Shut off Smart Valve Stainless Steel Brass BSP NPT Motorized Flow Control Valve
-
Smart Water Valve Wifi Water Automatic Shut off Smart Valve Stainless Steel Brass BSP NPT Motorized Flow Control Valve
Product Description
wifi ball valve wifi water valve wifi automatic shut off smart valve stainless steel brass BSP NPT motorized flow control valve intelligent wifi water shutoff valve
wifi water valve wifi automatic shut off smart valve stainless steel brass BSP NPT motorized flow control valve

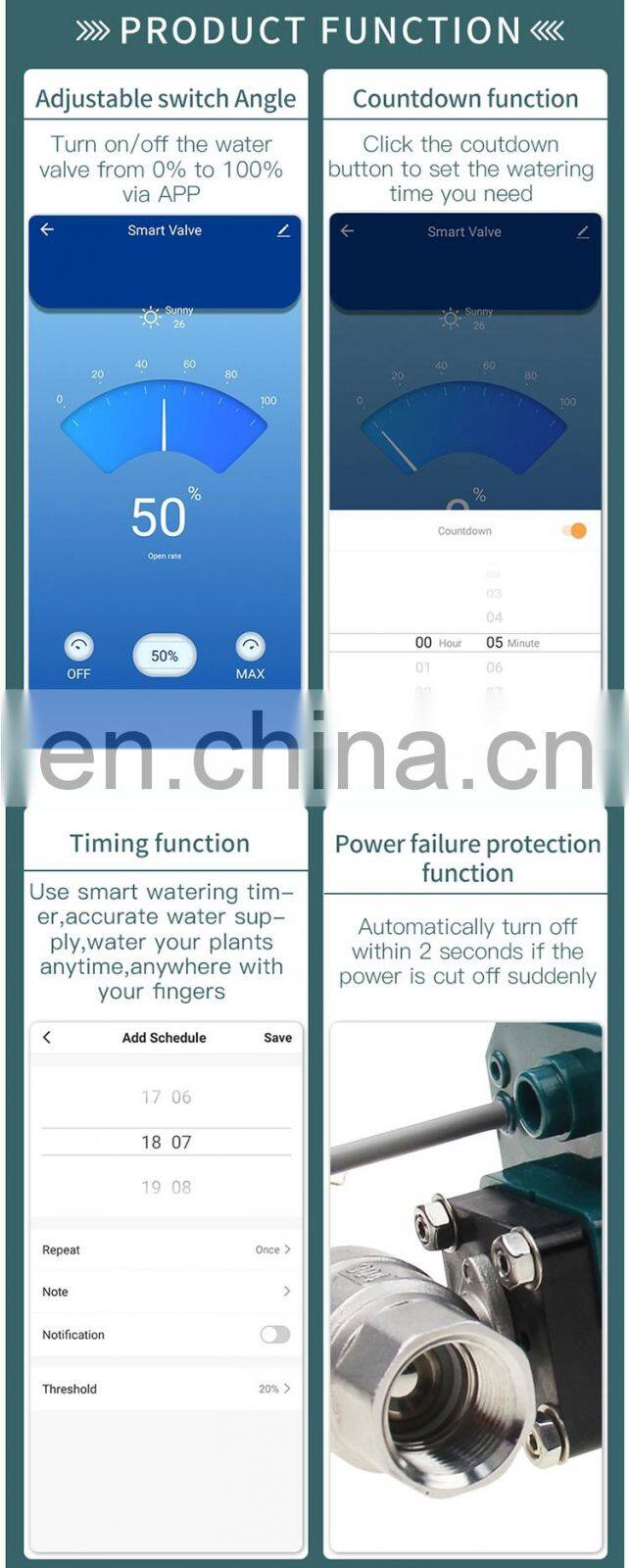

1. WIFI wireless connection, mobile APP remote control,
2.Manual Override, the valve can be operated when power failure;
3. Real-time status feedback, easy installation, plug- and- play,
4.Super torque, micro high temperature resistance, long life electric ball valve.
5.The valve can realize angle adjustment, timing switch, flow control.
wifi water valve wifi automatic shut off smart valve stainless steel brass BSP NPT motorized flow control valve
This product is widely used for various liquid, gas, pressure, temperature and other needs
1. University laboratories, automobile laboratories;
2. Drug production, diesel energy saving, etc.;
3. University water-saving, automatic control system, industrial automatic control and other small equipment;
4. Environmental protection, water supply and drainage, and water treatment projects;
5. Places solenoid valve can not be used normally;
6. Water-saving appliances, drinking water equipment,
wifi water valve wifi automatic shut off smart valve stainless steel brass BSP NPT motorized flow control valve
|
Body size |
DN8-DN32 |

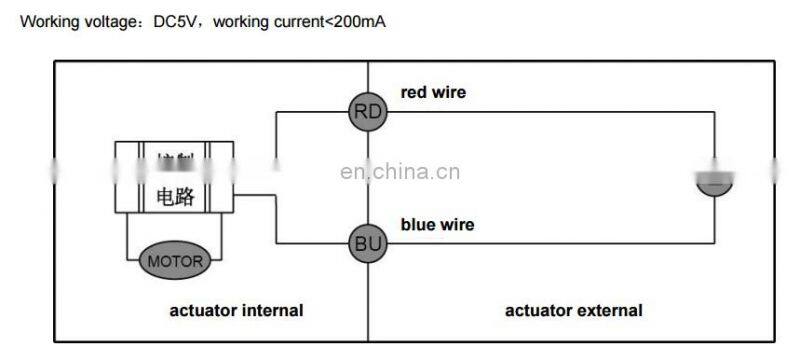

Voltage |
DC5V |
|
Output torque |
10NM |
Fully open/close time |
<30s |
|
Transmission mode |
WIFI |
WIFI frequency |
2.4G |
|
Motor power |
<5W |
Working current |
<200mA |
|
Medium temperature |
0-90℃ |
Protect level |
IP65 |
*High performance industrial computer core, high torque output; Dn8-dn32 diameter ball valve can be driven.
WIFI wireless connection;
*2.4G frequency transmission, in line with IEEE 802.11b/G/N standard; Remote control of mobile APP;
*Real-time status feedback; Control accuracy: 0.5%~1%; Easy to install, plug and play;
*The electric actuator has two working states: timing mode and Angle adjustment mode;
* Open angle can choose from 10%,20%,30%,40%,50%,60%,70%,80%,90%,100%
CWX-15N stainless steel brass BSP NPT motorized flow control valve 12V electric actuator ball valve 12v 24v 110v 220v
|
Brass
|

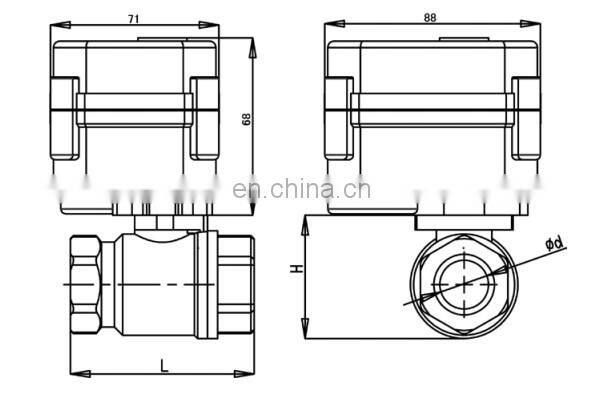

Connection | Sizes | d(mm) | H(mm) | L(mm) |
|
Both female thread Full-port |
DN8 | 8 | 46 | 31 | |
| DN15 | 15 | 57 | 38 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 23.5 | 72 | 49 | ||
| Both female thread Reduce-port | DN10 | 8 | 46 | 31 | |
| DN20 | 15 | 66 | 38 | ||
| DN25 | 20 | 72 | 47 | ||
| DN32 | 25 | 86 | 60 | ||
|
Vertical Three-way |
DN15 | 12 | 63 | 49 | |
| DN20 | 15 | 66 | 53 | ||
| Female-male thread | DN15 | 15 | 63 | 38 | |
| DN20 | 15 | 66 | 38 | ||
| DN32 | 20 | 76 | 50 | ||
| Both male thread | DN15 | 15 | 68 | 38 | |
| SS304 | Both female thread | DN8 | 8 | 46 | 31 |
| DN10 | 8 | 46 | 30.5 | ||
| DN15 | 15 | 55 | 38 | ||
| DN20 | 15 | 63 | 39 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 20 | 75 | 47 | ||
| DN25 | 25 | 72 | 49 |
|
UPVC |
Connection |
Size |
d (mm) |
L (mm) |
|
Both female thread/Glue full port |
DN15 |
15 |
121 |
|
|
DN20 |
20 |
135 |

Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer of electric valve
and manual valve, is a founding company of Tianjin Valve industry.Tianfei has a professional R & D team,has won many letters of petent and the recognition of the Tianjin municipal government departments.“CWX”is our brand and our company has passed theISO9001,CE,RoHS,NSF61 certificate and so on,the products have exported to many countries and regionsworldwide.
Our company motto is novative, simplified, high-valued, As having accumulated rich experiences and resources during more than 10 years developing,
we are confident inproviding you satisfied products and service in the cooperation. Tianfei pays attention to the quality of the products,use “CWX” valve is your correct choice.


1. Are you manufacturer or trading company?
We are manufacturer, we had been produced electric valve for more than 10 years. So we have advantage in price. We also could do OEM.
2. What's the payment method?
T/T,Paypal,Western Union, Moneygram,Aliexpress, L/C ect.
3.What's your Minimum Order Quantity (MOQ)?
Our MOQ is 1piece.
4. What about the delivery time?
Sample need about 3 working days, large order delivery time will according to your quantity.
5..Would you have a discount if l have a large order?
A; Yes we could offer different discount according to your order quantity.
6.Where is the factory located?
Tianjin city and welcome to visit our factory.
CWX-15N stainless steel brass BSP NPT motorized flow control valve 12V electric actuator ball valve 12v 24v 110v 220v
Contact:
Tianjin Tianfei High-Tech valve Co., Ltd.
Address:B-5-C, NO.16 Rongyuan Road, 300384,Tianjin, China
Email :n(at) Lucy Liu
TEL:+86-18702234196 (Whatsapp Wechat)
