Product Description

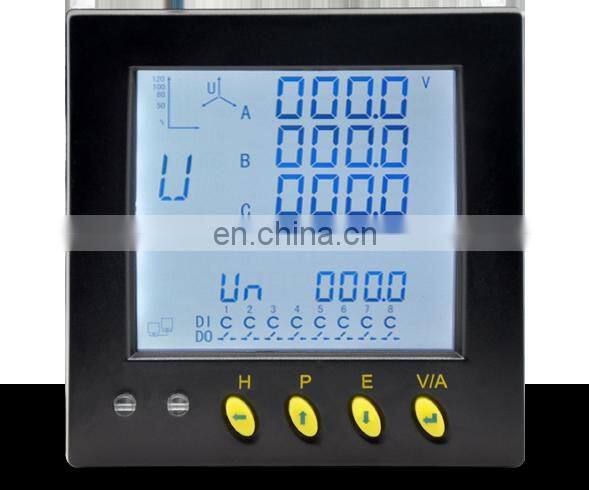

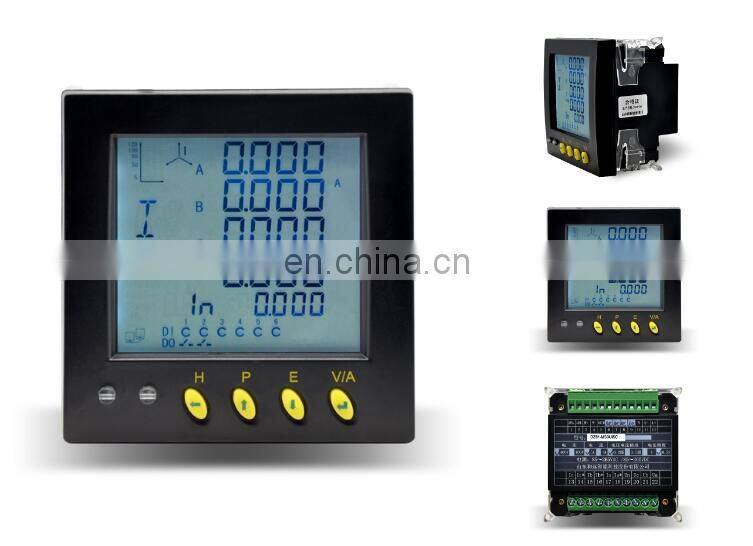

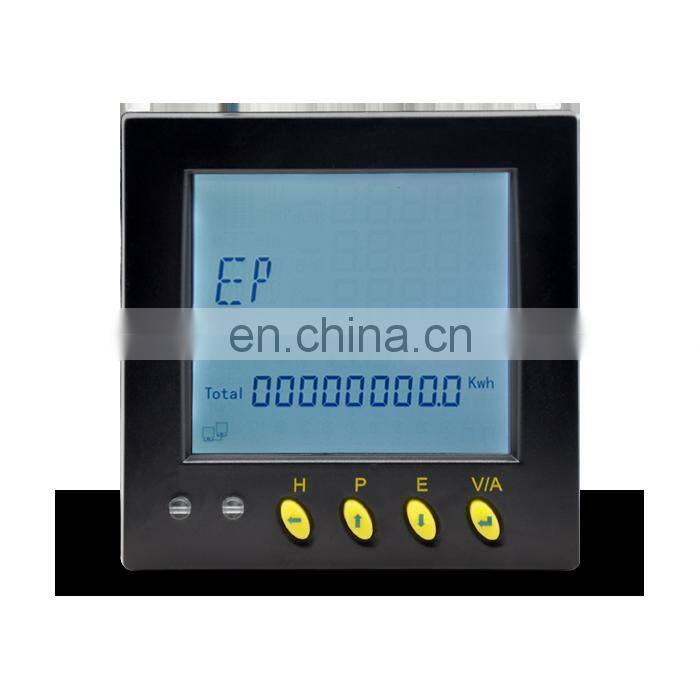

Three Phase Amp Meter and Voltmeter RS485 Modbus Digital Multifunction Meter
MA3UI5C Is one of our high accuracy multi-function electric energy meter.It is used for measuring, monitoring, and controlling the power distribution system. And this meter has greatly extended functions, which connect measuring, analyzing, and controlling together, and make the work become easier.
• Measuring all parameters: three-phase voltage, current, line voltage, zero-sequence current, zero-sequence voltage, voltage unbalance, current unbalance, active power, reactive power, apparent power, power factor, frequency, four-quadrant electric energy, active energy, reactive energy
• Standard CT, PT or voltage direct connected, suitable for various wiring modes under a high or low-pressure environment
• Analysis of current/voltage harmonic (2-31times)
• Multi tariff (optional)
• Off-limits alarm and alarm event records
• SOE event records accurate to milliseconds
• Real-time clock
• 1* RS485, Modbus RTU communication protocol
• 4 DI
• 2-4 DO
• Voltage qualified rate
• Demand analysis
• 1* programmable energy pulse output
• LCD display
Technical Parameters
Accuracy Class | Voltage:0.2, Current:0.2, Frequency:0.05Hz, Power factor:0.5 | ||||||
Active power:0.5, Reactive power:0.5, Appearent power:0.5 | |||||||
Active energy: 0.5/1, Reactive energy: 2 | |||||||
Input | Rated Value | Voltage: 100/400V; Current: 1A/5A | |||||
Overload | Voltage: Sustained Overload: 1.2 times of the rated value Momentary Overload: 2 times of the rated value Current: Sustained Overload: 1.2 times of the rated value Momentary Overload: 10 times of the rated value |
||||||
Frequency | 45-60Hz | ||||||
Functional Module | Pulse output | 1 | |||||
Interface |
1* RS485; Modbus RTU communication protocol; Baud rate: 1200-19200bps |
||||||
DI | 4 | ||||||
DO | 2-4 (AC250/5A, DC30V/5A) | ||||||
Power Supply | Working Range | AC: 85-265V; DC: 85-300V | |||||
Consumption | < 3W | ||||||
Working Condition | Temperature | Operating: -20℃~+70℃ Storage: -40℃~+80℃ | |||||
Humidity | Relative Humidity: <93% (place without corrosive gas) | ||||||
Altitude | 0 to 4000m | ||||||
Size | 96×96mm (hole Size 91*91mm) | ||||||
Installation | Panel installation |
Dimensions
27 channels energy meter | Three-phase Energy Meter | Multi-tariff DIN Rail Meter | Single Phase Energy Meter |
Multi-tariff Panel Meter | three-phase energy meter | Three Phase Multifunction Energy meter | Three-Phase Ammeter Meter |
HeYuan Intelligent Technology Co., Ltd. is one of the state-level hi-tech enterprises.It is located in the CIIC ( China International ICT Innovation Cluster ). HeYuan has been focusing on electric power industry for almost 20 years and achieved more than 20 patents, copyrights, and other intellectual property rights. With ' Innovation, Quality and Service' as its core value, HeYuan is a pioneering leader in R&D, manufacture, sales, and service of industrial electronic products and solutions.
HeYuan has successfully supplied millions of customers with intelligent power distribution system, electric energy management solution, electric fire monitoring system, to integrated railway automation solution, to oil-gas drilling monitoring system.
ODM & OEM Service
We support private label and package.
Customization
We offer service of customization according to customers' needs.
Sample order
Sample order is available.
Professional Training
Make sure our clients can operate and maintain the system independently.
Free Updating
We offer service of free updating for our products.
24H Service
We promise to respond in 2 hours and offer a solution in 24hours.
1. Q: Are you a factory or a trading company?
A: Yes, we are a factory with a trading department.
2. Q: May I get a sample first?
A: Yes, samples are available for our customers,
but according to the value of the product, the sample fee or the freight might be charged.
3. Q: Can you make products according to our designs?
A: Yes, we have very great R&D team, we can make products as your requirement. And we can also offer you professional support to help you to find better solutions.
4. Q: How much is the software?
A: Well, when you place an order for our product, the matched software would be sent for free.
