Product Description
Products Description

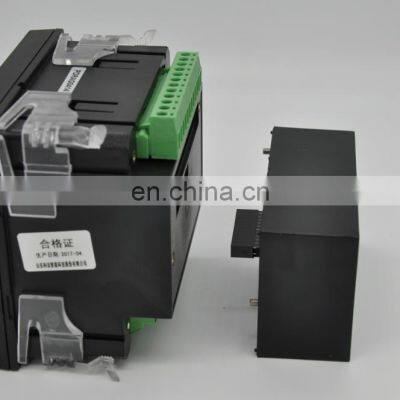

AC Digital Multi-functional Threephase Bidirectional Power Meter
DZ81-MA Three-phase Multi-functional Smart Power Meters are used for measuring, monitoring, and controlling the power distribution system. The digital input helps us to monitor the status of switches, and the digital output gives us the possibility to control them. DZ81-MA Three-phase Multi-functional Smart Power Meters have great extended functions, which connect measuring, analyzing, and controlling together, and make the work become easier.
Product Paramenters
Features:
• Measuring all parameters: three-phase voltage, current, line voltage, zero-sequence current, zero-sequence voltage, voltage
unbalance, current unbalance, active power, reactive power, apparent power, power factor, frequency, four-quadrant electric
energy, active energy, reactive energy
• Standard CT, PT or voltage direct connected, suitable for various wiring modes under a high or low-pressure environment
• Analysis of current/voltage harmonic (2-31times)
• Multi tariff (optional)
• Off-limits alarm and alarm event records
• SOE event records accurate to milliseconds
• Real-time clock
• 1* RS485, Modbus RTU communication protocol
• 4 DI
• 2-4 DO
• Voltage qualified rate
• Demand analysis
• 1* programmable energy pulse output
• LCD display
unbalance, current unbalance, active power, reactive power, apparent power, power factor, frequency, four-quadrant electric
energy, active energy, reactive energy
• Standard CT, PT or voltage direct connected, suitable for various wiring modes under a high or low-pressure environment
• Analysis of current/voltage harmonic (2-31times)
• Multi tariff (optional)
• Off-limits alarm and alarm event records
• SOE event records accurate to milliseconds
• Real-time clock
• 1* RS485, Modbus RTU communication protocol
• 4 DI
• 2-4 DO
• Voltage qualified rate
• Demand analysis
• 1* programmable energy pulse output
• LCD display
Technical Parameters-MA3UI5C | ||||
Accuracy Class | Voltage:0.2, Current:0.2, Frequency:0.05Hz, Power factor:0.5 | |||
Active power:0.5, Reactive power:0.5, Appearent power:0.5 | ||||
Active energy: 0.5/1, Reactive energy: 2 | ||||
Input | Rated Value | Voltage: 100/400V; Current: 1A/5A | ||
Overload | Voltage: Sustained Overload: 1.2 times of the rated value Momentary Overload: 2 times of the rated value Current: Sustained Overload: 1.2 times of the rated value Momentary Overload: 2 times of the rated value | |||
Frequency | 45-60Hz | |||
Functional Module | Pulse output | 1 | ||
Interface | 1* RS485; Modbus RTU communication protocol; Baud rate: 1200-19200bps | |||
DI | 4 | |||
DO | 2-4 (AC250/5A, DC30V/5A) | |||
Power Supply | Working Range | AC: 85-265V; DC: 85-300V | ||
Consumption | < 3W | |||
Working Condition | Temperature | Operating: -20℃~+70℃ Storage: -40℃~+80℃ | ||
Humidity | Relative Humidity: <93% (place without corrosive gas) | |||
Altitude | <4000m | |||
Cut-out Size | 96×96mm (hole Size 91*91mm) | |||
Installation | Panel installation | |||
