Programmable Electronic Digital Voltage and Current Panel Meter
- T/T Credit Card
You May Like
-
3 Phase Multi-function Power Meter Ethernet Electronic Digital Meter
-
Three Phase Digital AC Panel Meter LCD Current Voltage Power Meter
-
Digital Ammeter Voltmeter LCD Panel Watt Multifunction Energy Meter
-
Digital Current Voltage Power Meter AC Digital LCD Multifunction Energy Meter
-
Digital Panel AC Power Meter Pulse Voltage Ampere Meter with RS485
-
Three Phase Amp Meter and Voltmeter RS485 Modbus Digital Multifunction Meter
Product Description

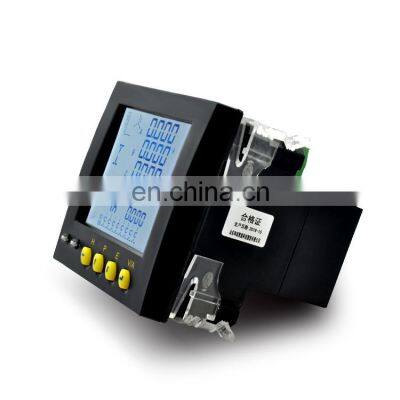

MA3UI5C Programmable Electronic Digital Voltage and Current Panel Meter
MA3UI5C Is one of our high accuracy multi-function electric energy meter.It is used for measuring, monitoring, and controlling the power distribution system. And this meter has greatly extended functions, which connect measuring, analyzing, and controlling together, and make the work become easier.
• Measuring all parameters: three-phase voltage, current, line voltage, zero-sequence current, zero-sequence voltage, voltage unbalance, current unbalance, active power, reactive power, apparent power, power factor, frequency, four-quadrant electric energy, active energy, reactive energy
• Standard CT, PT or voltage direct connected, suitable for various wiring modes under a high or low-pressure environment
• Analysis of current/voltage harmonic (2-31times)
• Multi tariff (optional)
• Off-limits alarm and alarm event records
• SOE event records accurate to milliseconds
• Real-time clock
• 1* RS485, Modbus RTU communication protocol
• 4 DI
• 2-4 DO
• Voltage qualified rate
• Demand analysis
• 1* programmable energy pulse output
• LCD display
Technical Parameters
| Accuracy Class | Voltage:0.2, Current:0.2, Frequency:0.05Hz, Power factor:0.5 | ||||||
| Active power:0.5, Reactive power:0.5, Appearent power:0.5 | |||||||
| Active energy: 0.5/1, Reactive energy: 2 | |||||||
| Input | Rated Value | Voltage: 100/400V; Current: 1A/5A | |||||
| Overload | Voltage: Sustained Overload: 1.2 times of the rated value Momentary Overload: 2 times of the rated value Current: Sustained Overload: 1.2 times of the rated value Momentary Overload: 10 times of the rated value |
||||||
| Frequency | 45-60Hz | ||||||
| Functional Module | Pulse output | 1 | |||||
| Interface |
1* RS485; Modbus RTU communication protocol; Baud rate: 1200-19200bps |
||||||
| DI | 4 | ||||||
| DO | 2-4 (AC250/5A, DC30V/5A) | ||||||
| Power Supply | Working Range | AC: 85-265V; DC: 85-300V | |||||
| Consumption | < 3W | ||||||
| Working Condition | Temperature | Operating: -20℃~+70℃ Storage: -40℃~+80℃ | |||||
| Humidity | Relative Humidity: <93% (place without corrosive gas) | ||||||
| Altitude | 0 to 4000m | ||||||
| Size | 96×96mm (hole Size 91*91mm) | ||||||
| Installation | Panel installation | ||||||
Dimensions
